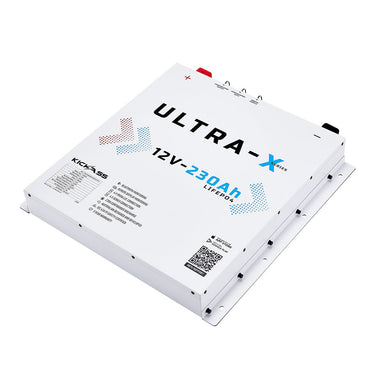

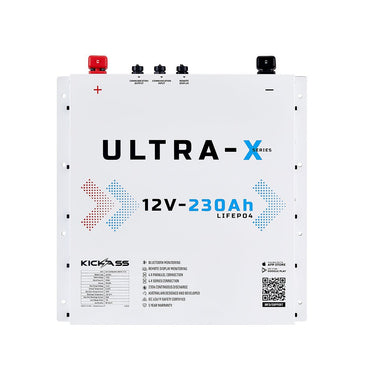

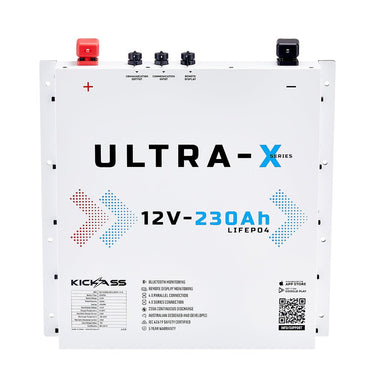

KickAss Smart 12V 230Ah Ultra-X Lithium Slimline Deep Cycle Battery LiFePO4 - Arctic White

KickAss Smart 12V 230Ah Ultra-X Lithium Slimline Deep Cycle Battery LiFePO4 - Arctic White

Support Page User Manual

KickAss Features:

• Ultra compact, slimline design
• Supporting Bluetooth app
• BMS with multiple safety features
• Connect in parallel or series
• Monitor your battery bank remotely
• 230Ah usable capacity
• 230A continuous charge & discharge with 460A pulse capacity
• 4000+ Cycles @ 80% DoD 0.5C
• Metal case with integrated mounting points
• Australian Safety Certified
• Designed & developed in Australia

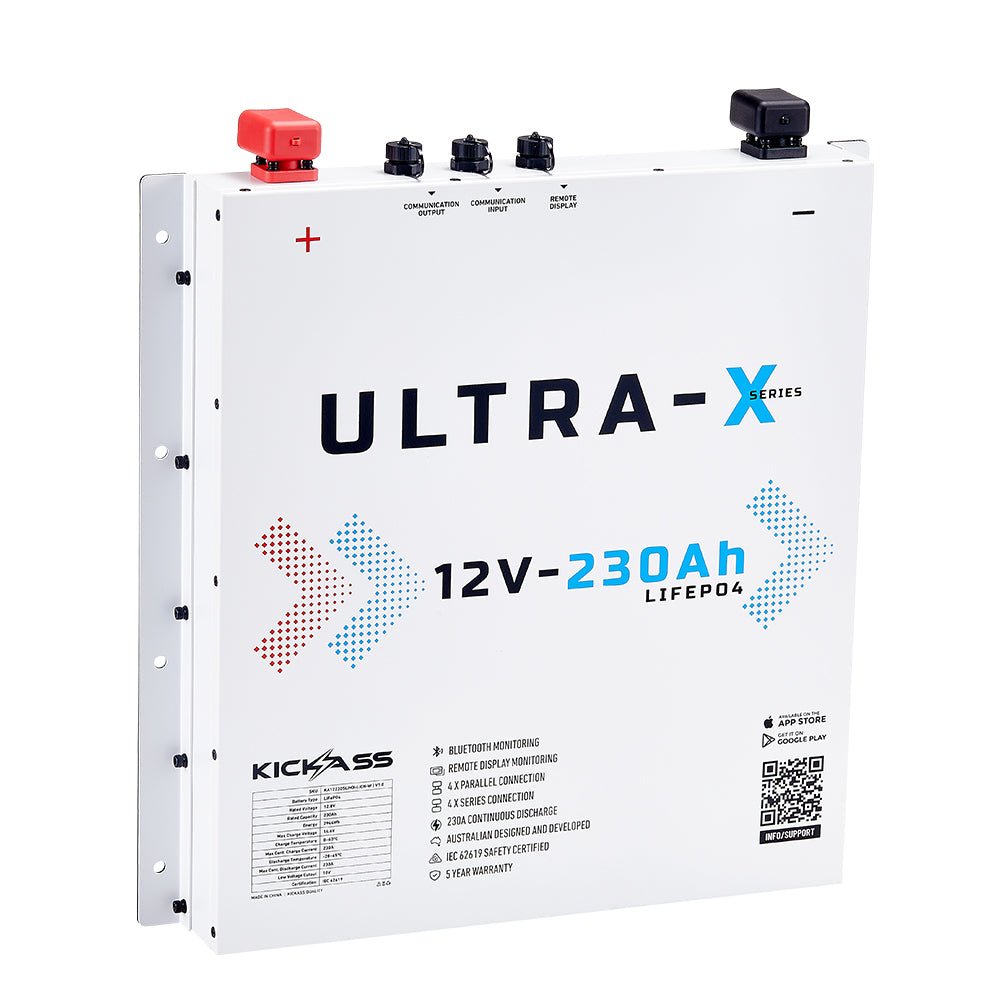

Ultra Compact, Slimline Design

The ultra-compact, slimline design is ideal for those who have minimal space but need maximum power. Measuring only 500mm x 510mm x 70mm, this compact powerhouse is perfect for installing in canopies, under false floors in caravans, behind seats, and anywhere where space is tight. This KickAss battery delivers big power in a small package.

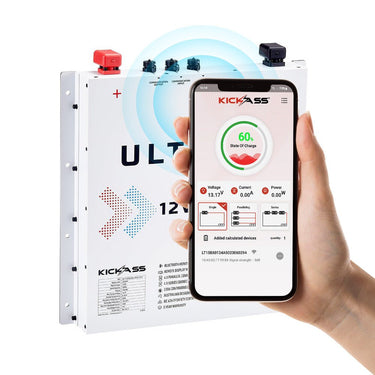

Supporting Bluetooth App

No more guesswork – stay in control of your power system by using the supporting Bluetooth app. Monitor critical battery parameters such as SoC, level, voltage, current, temperature, and real-time system alerts right from your smartphone. Having real-time data at your fingertips ensures optimal performance and peace of mind during all your off-grid adventures.

BMS with Multiple Safety Features

The KickAss 12V 230Ah Deep Cycle Lithium Battery is equipped with an advanced Battery Management System (BMS) that ensures safety and reliability. The BMS actively monitors and protects the battery from common issues such as overcharging, over-discharging, short circuits, and overheating, ensuring safe operation at all times.

Create a Battery Bank with Over 900Ah of Usable Capacity

These batteries support parallel and series configurations for maximum versatility. Link up to four in parallel to create a massive battery bank with over 900Ah of usable capacity, delivering serious power for extended off-grid use. This capability allows you to tailor your power setup to your exact needs.

Monitor Your Battery Bank Remotely

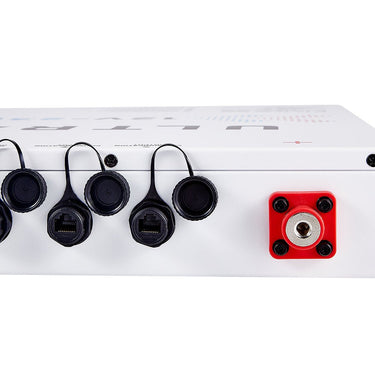

Monitoring multiple batteries in a series or parallel setup usually requires an external shunt, but these batteries eliminate that need. Simply connect each Ultra-X series battery using an RJ45 cable, and the optional KickAss Remote Display Unit (RDU) will seamlessly interface with the entire battery bank. Alternatively, use the supporting Bluetooth app for system monitoring without additional hardware.

230Ah Usable Capacity

With 230Ah of usable capacity, the KickAss 12V Deep Cycle Lithium Battery offers an abundance of power for extended off-grid adventures. This large capacity means you can run devices and appliances for longer periods without frequent recharges.

230A Continuous Charge & Discharge with 460A Pulse Capacity

This battery delivers exceptional performance with its 230A continuous charge and discharge capability, ensuring a steady and reliable flow of power for demanding applications. The impressive 460A pulse capacity allows it to handle sudden power surges, making it incredibly versatile.

4000+ Cycles @ 80% DoD 0.5C

Designed for longevity, this battery offers over 4000 charge and discharge cycles at 80% Depth of Discharge (DoD) and a 0.5C charge/discharge rate. This durability ensures a long-lasting, high-performance battery for years to come.

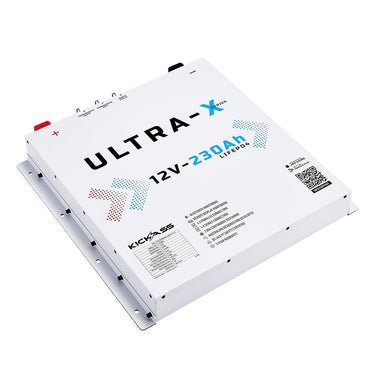

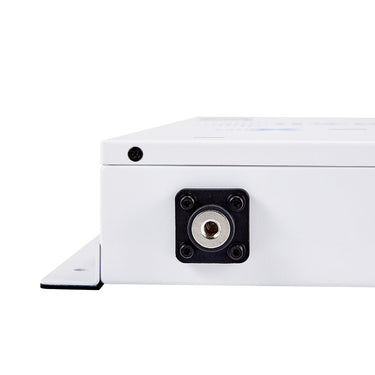

Metal Case with Integrated Mounting Points

The durable metal housing with integrated mounting points eliminates the need for a separate battery tray. The heavy-duty metal casing not only protects the battery from the elements and rough conditions but also makes installation easier and more secure.

This KickAss Ultra-X Lithium Slimline Deep Cycle Battery boasts a rated capacity of 230Ah and delivers a substantial 2944Wh of energy, ensuring reliable and long-lasting power for your off-grid adventures. Its nominal voltage is 12.8V, providing consistent performance for various applications. This impressive capacity and energy output make it an ideal choice for powering a wide range of 12V appliances and systems, offering extended run times and dependable operation when you need it most.

The KickAss Smart 12V 230Ah Ultra-X Lithium Slimline Deep Cycle Battery is engineered for exceptional longevity, offering an impressive 4000 cycles at 80% Depth of Discharge (DOD) and a 0.5C rate. This robust cycle life ensures years of dependable service, making it a highly durable and cost-effective power solution. This means you can confidently rely on your battery for countless adventures, knowing it's built to withstand repeated charging and discharging without significant degradation in performance.

Yes, you can connect up to four KickAss Ultra-X Lithium Slimline Batteries in either a parallel or series configuration to significantly boost your power system's capacity or voltage. In a parallel setup, the system voltage remains at 12.8V while capacity increases, whereas in a series setup, the voltage increases while capacity remains at 230Ah. This flexibility allows you to customise your power system to perfectly match your specific energy requirements, whether you need more run time or higher voltage for demanding applications.

You can conveniently monitor your KickAss Ultra-X Lithium Slimline Battery's performance using either the KA Lithium App on your mobile device or a dedicated remote display unit. Both options provide real-time data on State of Charge (SOC), battery pack voltage, charge/discharge current, power, time to full/empty, cycle count, cell voltage, and temperature. This comprehensive monitoring capability ensures you always have critical information at your fingertips, allowing you to manage your power usage efficiently and confidently.

The KickAss Smart 12V 230Ah Ultra-X Lithium Slimline Battery is designed to operate safely across a broad range of temperatures, with a recommended charge temperature of 0°C to +55°C and a discharge temperature of -0°C to +60°C. These robust temperature tolerances ensure reliable performance in diverse Australian conditions, from chilly mornings to hot afternoons. The integrated Battery Management System (BMS) actively monitors the battery's temperature, providing essential protection and alerts to maintain optimal and safe operation.

The KickAss Ultra-X Lithium Slimline Deep Cycle Battery is equipped with an advanced Battery Management System (BMS) that provides crucial protection against overcharging, over-discharging, over-current, and extreme temperatures. This intelligent system actively monitors the battery's health and performance, displaying system warnings and alerts to ensure safe and reliable operation. This comprehensive suite of safety features safeguards your investment and provides peace of mind, allowing you to focus on your adventures without worrying about battery integrity.

It is crucial to always use a charger specifically designed for lithium batteries, such as the KickAss Smart 12V 230Ah Ultra-X Lithium Slimline Deep Cycle Battery, to ensure optimal performance and safety. Using an incorrect charger can lead to damage or create a safety hazard, as lithium batteries have specific charging profiles. By using the correct charger, you ensure your battery receives the precise voltage and current it needs, maximising its lifespan and maintaining its peak efficiency for all your power needs.

The KickAss Smart 12V 230Ah Ultra-X Lithium Slimline Battery features compact dimensions of 500 x 70 x 510 mm (L x W x H) and weighs 26.9kg, making it an ideal solution for installations where space is at a premium. Its slimline design allows for versatile mounting options, fitting into tighter spaces than traditional batteries. This thoughtful design ensures you can easily integrate this powerful battery into your setup without compromising on valuable storage or living area, perfect for caravans, campers, and 4x4s.
