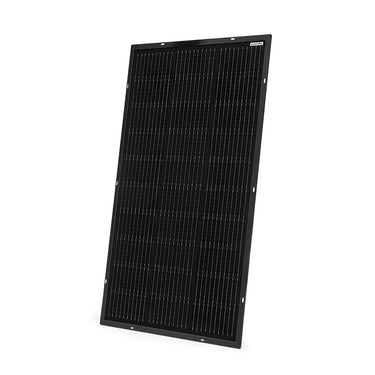

KickAss 110W Ultra Thin Fixed Glass Solar Panel

• Lightweight – 4.2kg
• Ultra thin design
• Monocrystalline PERC cells
• Multi Busbar Technology
• Bypass Diode
• Full Tempered Glass Protection
• Aluminium Alloy Frame
• Series Configuration

• 3-year warranty

Weighing just 4.2kg, this solar panel is incredibly light and won’t add extra weight to your vehicle or impact fuel efficiency.

This ultra-thin 110W solar panel is a sleek, durable solution for those seeking efficient solar power. Perfect for compact spaces, it delivers reliable energy in a lightweight design. Ideal for installing on the roof of your 4WD, trailer or caravan.

These panels combine ultra-efficient A-grade monocrystalline cells with advanced PERC technology. The added layer on the back of each cell reflects unused light back in, improving efficiency and putting more energy into your battery.

Multi Busbar Technology ensures that electricity travels shorter distances, reducing power loss and increasing output. Even if a cell is partially damaged, energy can still be captured by other busbars, improving durability.

The bypass diode ensures the panel keeps producing power even when partially shaded – great for rooftop setups where conditions vary.

2mm full tempered glass offers excellent protection and durability while allowing maximum sunlight through. It’s a balance of strength, efficiency and convenience.

The aluminium frame is under 6mm thick, reducing wind resistance and keeping vehicle height low – ideal for streamlined travel.

Connect multiple panels in series to increase your output – they’re rated up to 1500V DC, perfect for powering devices like the KickAss Quickfire BBQ or Induction Cooktop.

Backed by a 3-year warranty for peace of mind.

The KickAss 12V 110W Ultra Slim Fixed Glass Solar Panel delivers a maximum power output of 110W with an open circuit voltage of 20.96V and a short circuit current of 6.72A. It weighs 4.2kg and measures 990 x 600 x 5.9mm, featuring durable 2mm tempered glass and an anodised aluminium frame.
This panel is designed to efficiently charge 12V rechargeable batteries with an 18.5% module efficiency, making it ideal for off-grid power setups where space and weight are considerations. Its slim 5.9mm thickness allows for easy installation in tight spaces without compromising durability or performance.

The KickAss 110W solar panel is compatible with 12V rechargeable batteries and should always be connected to a suitable PWM or MPPT solar charge regulator that matches or exceeds the panel’s 20.96V open circuit voltage, 6.72A short circuit current, and 110W power rating.
Using the correct regulator ensures safe and efficient charging while protecting your battery from overcharging. The regulator must also support your battery chemistry, whether AGM, GEL, or LiFePO4, to optimise battery life and performance.

Installation involves mounting the panel using the four pre-drilled holes with the included Z-shaped aluminium brackets, secured by M4 stainless steel self-locking nuts, hex socket cap screws, washers, and self-drilling tapping screws.
Before installation, gently wipe the panel with a soft, dry cloth to remove any dust. Use only the supplied mounting points to avoid damaging the panel or voiding the warranty. Secure mounting prevents vibration and movement, ensuring long-term reliability even in rugged conditions.

This solar panel produces unregulated DC voltage up to 20.96V and must never be connected directly to a battery without a suitable charge regulator to prevent damage or hazards. Always use insulated tools, avoid touching uninsulated cable ends, and keep the panel away from liquids.
The panel is tested to international safety standards and designed for 12V battery charging only. Following the installation sequence and using strain relief on cables protects connections and prevents sparks, ensuring safe, reliable operation in off-grid environments.

The panel features 2mm tempered glass and an anodised aluminium alloy frame, providing robust protection against impacts and harsh weather. It operates safely in temperatures from -40ºC to 85ºC and supports a maximum system voltage of 1500VDC.
This rugged construction ensures the panel withstands Australian outdoor conditions, making it perfect for caravanning, camping, or permanent off-grid installations where reliability and longevity are essential.

Yes, but it’s recommended to use panels of the same model when wiring in series, parallel, or series-parallel configurations. Ensure your regulator can handle the combined open circuit voltage and current without exceeding its input limits.
Using identical panels simplifies system design and maximises efficiency. Always check that cables and fuses are rated for the total current and voltage to maintain safe and optimal performance.

Regularly inspect the panel for dust, dirt, or damage and clean gently with a soft, dry cloth as needed. Avoid using mirrors or devices to concentrate sunlight, as this can damage the panel.
Maintaining clean panels and proper battery care maximises energy output and extends the lifespan of your off-grid power system, ensuring you get the most from your KickAss solar panel every day.

Always connect the solar panel to a suitable charge regulator before connecting to your 12V battery. This regulator must have an input voltage and current rating above 20.96V and 6.72A respectively, and be compatible with your battery type.
Connecting in this order prevents sparks and electrical hazards while protecting your battery from overcharge. This design approach ensures your system remains safe, efficient, and reliable for all your off-grid power needs.
