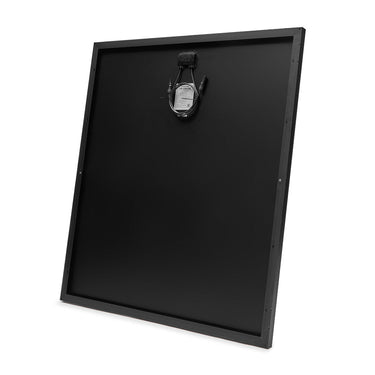

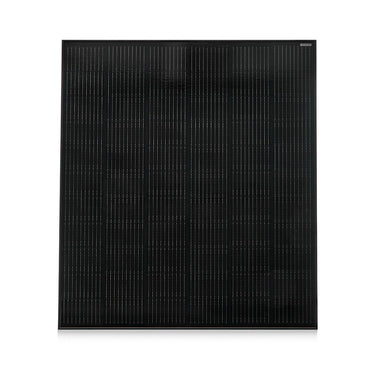

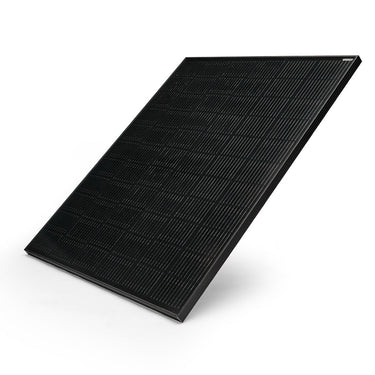

Kickass 280W Ultra Slim Fixed Glass Solar Panel Kickass 280W Ultra Slim Fixed Glass Solar Panel Kickass 280W Ultra Slim Fixed Glass Solar Panel Kickass 280W Ultra Slim Fixed Glass Solar Panel Kickass 280W Ultra Slim Fixed Glass Solar Panel Kickass 280W Ultra Slim Fixed Glass Solar Panel

SPECIFICATIONS

Technical Details
Cell Type Monocrystalline PERC
Max Power (Pmax) 280W
Open Circuit Voltage (Voc) 44.88V
Short Circuit Current (Isc) 7.87A
Front Glass 3.2mm Tempered Glass
Frame Anodised Aluminium Alloy
Dimensions 1275 x 1134 x 35mm
Weight 16kg
Maximum System Voltage 1500VDC
Maximum Series Fuse Rating 15A
Operation Temperature -40°C – 85°C
Nominal Operation Cell Temperature 42
User Manual & Support Docs

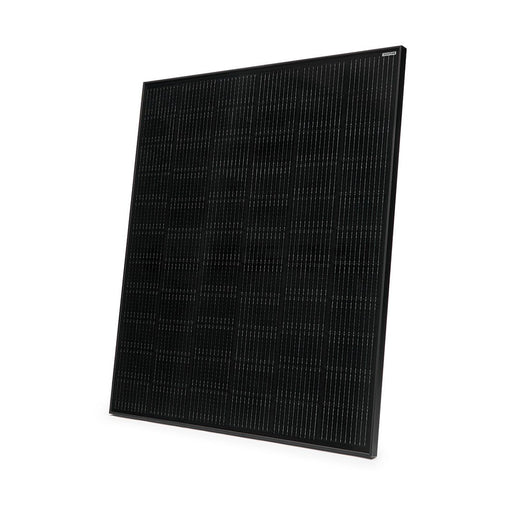

KickAss 12V 280W Ultra Slim Fixed Glass Solar Panel
Detailed Description

KickAss Features:

  • High 44V VOC
  • Ultra thin design
  • Monocrystalline PERC cells
  • Multi Busbar Technology
  • Bypass Diode
  • Full Tempered Glass Protection
  • Aluminium Alloy Frame
  • Series Configuration
  • 3 year warranty

Ultra thin design

This ultra thin 280W solar panel is a sleek, durable solution or those seeking efficient solar power. It’s perfect for compact spaces, and delivers reliable energy in a lightweight design. Perfect for installing on the roof of your 4WD, trailer or caravan.

High 44V VOC

With a 44V VOC, this panel can be paired with a KickAss MPPT Solar Charge Controller to charge large Kickass 12V high capacity LiFePo4 batteries and 24V or 48V battery systems. The high voltage ensures optimal performance and fast charging, even when the panels are partially shaded.

Monocrystalline PERC cells

These solar panels combine our KickAss ultra-efficient A-grade monocrystalline solar cells with additional PERC technology. PERC is an innovation which adds an extra layer onto the back of the solar cell. This layer reflects unused light back into the solar cell, which improves efficiency, reduces loss, and puts more energy into your battery.

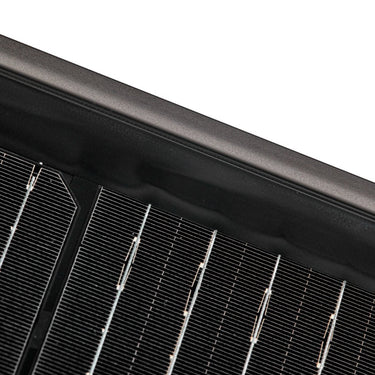

Multi Busbar Technology

These ultra thin panels are constructed using multiple busbars, meaning that the electrons generated by sunlight have shorter distances to travel before being collected. This reduces resistance and power losses, resulting in higher overall efficiency. If a solar cell is partially damaged, then the multiple busbar technology also means that energy can still be collected by additional busbars, making the overall system extremely durable and resilient.

Bypass Diode

The bypass diode ensures the panels will continue to produce power even when partially shaded. This makes them ideal for rooftop installations, where sunlight conditions may vary.

3.2mm Thick Full Tempered Glass

The panel features a 3.2mm protective layer of full tempered glass. This protective layer allows more sunlight in, and also enhances their strength and durability. The perfect balance of durability, efficiency, and streamlined convenience.

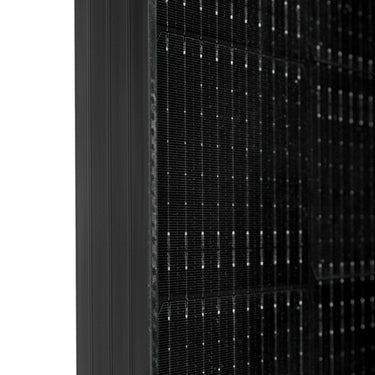

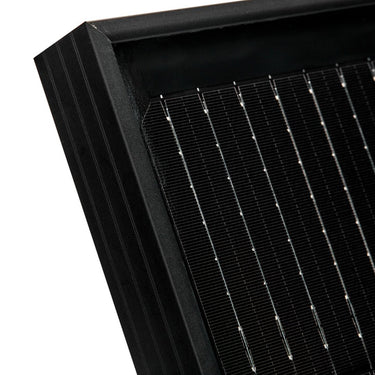

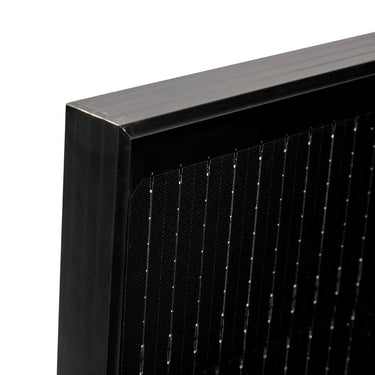

Lightweight Aluminium Alloy Frame

The aluminium frame is less than  6mm thick, minimising wind resistance and helping to boost your vehicle’s fuel efficiency. Plus, it keeps your vehicle's overall height low – perfect for streamlined travel.

Series Configuration

If you want even more power, link multiple panels in series to boost your overall output. The panels can handle up to 1500V of direct current – perfect if you want to run the KickAss Quickfire BBQ and Induction Cooktop.

We’re so confident in the performance of this product that it comes with a 3-year warranty guarantee – so your investment is protected.

CUSTOMER REVIEWS

4.9
Rated 4.9 out of 5 stars
Based on 10 reviews
Slide 1 selected
10 reviews
  • Ross F.
    Verified Buyer
    I recommend this product
    Rated 5 out of 5 stars
    2 months ago
    Great panel size

    Had two pairs of 130w panels on my 4wd, each set in series, so effectively two 260w solar arrays each to their own MPPT. Replaced one pair with the 280w KickAss and saw a decent improvement, especially when I actually saved some roof space with the 280w panel over the 2x130w. For reference the panel outputs were taken on the 4th of August up around Karijini, as like any solar panel, it all varies depending on location, but hard to complain about the difference between the old set and new 😂 every bit counts when you run the heated blanket overnight plus induction cooker.

  • Nicholas F.
    I recommend this product
    Rated 5 out of 5 stars
    5 months ago
    Good

    Not too big and is pretty slim

  • Paul F.
    Verified Buyer
    I recommend this product
    Rated 5 out of 5 stars
    8 months ago
    280 W

    Installed 2x 280w Ultra Slims, rapid improvement over my old system.

  • Phillip J.
    Verified Buyer
    I recommend this product
    Rated 5 out of 5 stars
    8 months ago
    the best

    unbelievably brilliant love it

  • Jesse K.
    Verified Buyer
    I recommend this product
    Rated 5 out of 5 stars
    11 months ago
    Solar panel 280w

    Awesome solar panel, charges 200ah fast
