KickAss Digital DC Watt Meter for Portable 12V Solar Panels with Anderson Connection
Rated 4.8 out of 5 stars
286
$
49
95
Real Time Voltage & Current Display
Accumulative & Peak Readings
Hands-Free Monitoring
Back-Lit Display
Anderson Connections
In stock
Fast Dispatch
30 Day Returns
Pickup available at Acacia Ridge Store
Usually ready in 1 hour
KickAss Digital DC Watt Meter for Portable 12V Solar Panels with Anderson Connection
$
49
95
1 Year Warranty
This product is covered by a 1 Year Limited Warranty.
ABOUT THIS ITEM
Measure the charge output from your solar panels or the draw from your 12V fridge. This portable meter is Anderson-compatible, and provides real time readings.
SPECIFICATIONS
Technical Details
| Operating Voltage | 0-60V DC |
|---|---|
| Current | 0-100A Intermittent / 50A Continuous |
| Temperature Range | 0-50°C ambient air temperature |
| Measurement Update Period | 400ms |
| Data Queue Sequence Time | 400ms |
| In-Circuit Resistance | 0.001 Ohms |
| Operation Current | 7mA |
| Auxiliary Power Voltage | 4-60V DC |
| Case Dimensions | 84 x 43 x 25mm (L x W x D) |
| Weight | 140g |
| Display | 16 character x 2 row STN LCD |
| Parameter | Range | Resolution |
|---|---|---|
| Voltage | 0-60V DC | 0.01V |
| Current | 0-100A Peak | 0.01A |
| Power | 0-6554W | 0.1KW |
| Charge | 0-65Ah | 0.001Ah |
| Energy | 0-6554Wh | 0.1Wh |
User Manual & Support Docs
| KickAss Digital DC Watt Meter for Portable 12V Solar Panels with Anderson Connection |
Detailed Description

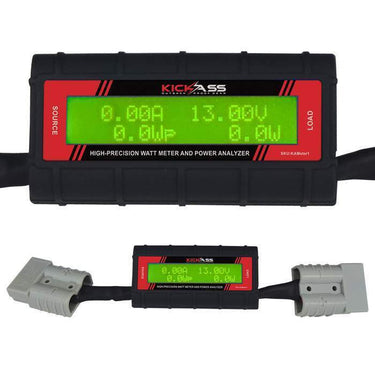

KickAss Digital DC Watt Meter
This simple yet extremely handy device gives a digital display of exactly how much charge your panels are producing in real time. Previously, this required special equipment or technical knowledge—until now!
Easily installed, it provides all the key metrics from your solar panels. It's the perfect companion to our range of KICKASS® Portable Solar Panels but is also compatible with most other solar panels.
Installation is straightforward—featuring two Anderson plugs, the watt meter fits in-line between your solar regulator and battery/load.
To install: connect the solar panel regulator's output to the "source" side of the watt meter, and the battery/load cabling to the "load" side. Once powered, the display shows the following metrics:
- Current (Amps/A)
- Voltage (Volts/V)
- Power (Watts/W)
- Total Amp Hours (Ah) since startup
- Total Energy (kWh) since startup
- Maximum Voltage (Vm) recorded
- Peak Power (Wp) recorded
- Peak Current (Ap) recorded
The watt meter draws only 7mA to operate, so it won’t significantly impact your system’s output.
Note: This product is not intended for permanent inline installation and does not have long-term memory like a full battery management system.
CUSTOMER REVIEWS
FREQUENTLY ASKED QUESTIONS
What measurements can the KickAss Digital DC Watt Meter provide?
The KickAss Digital DC Watt Meter accurately measures energy in Amp Hours (Ah), Watts (W), Amps (A), and Volts (V), reading voltage levels from 0 Volts. It also precisely tracks Peak Amps and Peak Watts, offering a comprehensive overview of your power system's performance. This detailed data helps you monitor and optimise your off-grid power usage effectively.
How accurate is the KickAss Digital DC Watt Meter?
The KickAss Digital DC Watt Meter provides exceptional accuracy with a 0.01A and 0.01V variance, ensuring precise readings for your power measurements. This high level of precision allows you to confidently monitor critical electrical parameters like current, voltage, and power, making it an indispensable tool for managing your 12V solar setup.
What voltage range can the KickAss Digital DC Watt Meter handle?
The KickAss Digital DC Watt Meter is designed to operate across a broad voltage range, accurately measuring from 0 Volts up to 60 Volts. This wide compatibility ensures it can be used with various 12V solar panels and battery systems, providing versatile monitoring capabilities for your off-grid adventures.
Can I use this watt meter with high-current devices?
Yes, the KickAss Digital DC Watt Meter is built to handle significant current, with a peak measurement capacity of 50 Amps and continuous operation at 50 Amps. This robust design makes it suitable for monitoring power flow to and from high-current devices, ensuring reliable performance in demanding off-grid applications.
How do I connect the KickAss Digital DC Watt Meter to monitor my solar panels?
To monitor power generated by your solar panels, simply connect the
