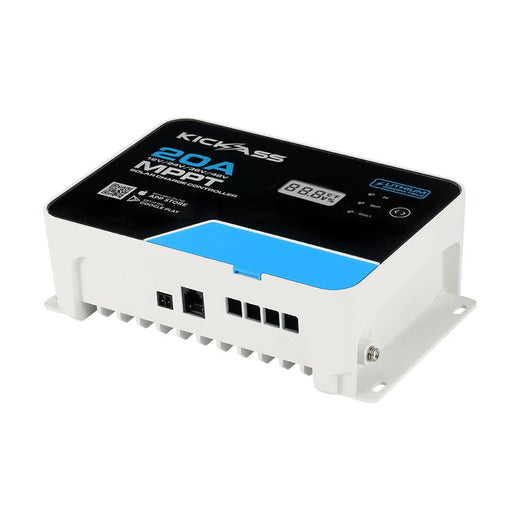

KickAss 20A 12V/24V/36V/48V MPPT Solar Charge Controller
Pickup available at Acacia Ridge Store
Usually ready in 1 hour
3 Years Warranty
This product is covered by a 3 Year Limited Warranty.
Harvest more energy! This ultra versatile charger will charge 12V, 24V, 36V and 48V battery systems. Monitor your system remotely via the Bluetooth App or an optional remote display screen.

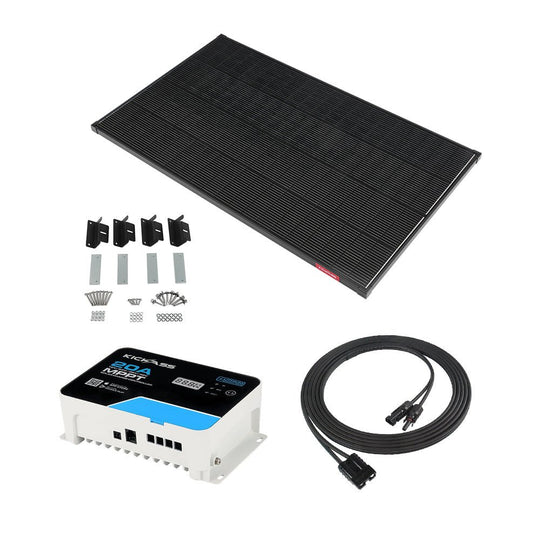

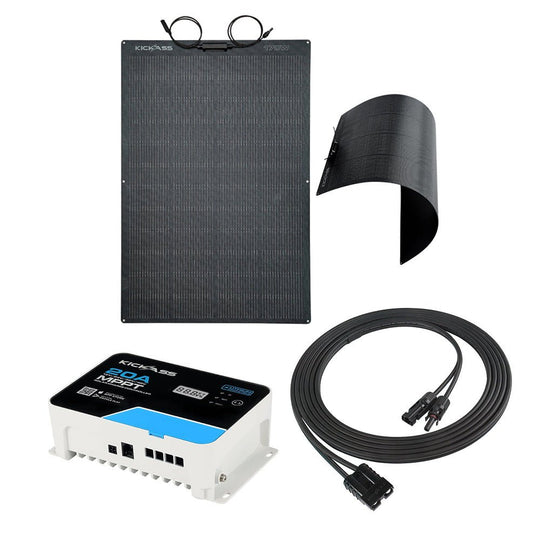

BUNDLE & SAVE!
SPECIFICATIONS
Technical Details
| Parameter | Specification | ||||
|---|---|---|---|---|---|
| System Voltage | 12V/24V/36V/48V AUTO in GEL/FLD/AGM AUTO; USER OR LI(MANUAL) | ||||
| Standby Power | 0.3W Max | ||||
| Battery Voltage | 9V TO 60V | ||||
|
|||||
| Max. Solar Input Voltage Range |
|
||||
| Min. Solar Input Voltage Range |
|
||||
| Max. System Input Power |
|
||||
| Rated Charging Current | 20A | ||||
| Conversion Efficiency | 0.98 | ||||
| MPPT Tracking Efficiency | >99% | ||||
| Operating Temperature | -35°C ~ +45°C | -31°F ~ +113°F | ||||
| Ingress Protection | IP43 | ||||
| Weight | 1.22kg | ||||
| Communication Method | RS485 & Integrated Bluetooth | ||||
| Altitude | ≤3000m | ||||
| Product Dimensions | 190*125*60mm |
User Manual & Support Docs
Detailed Description
20A 12V/24V/36V/48V MPPT Solar Charge Controllers Feature Overview
Wide Output Voltage Range
The MPPT controller can be used to charge a wide range of voltages, including 12V, 24V, 36V and 48V batteries. Perfect for setups in canopies, campervans or caravans.
Parallel Charge
This feature allows you to charge a single battery pack using two MPPT devices in parallel, so you get faster, more efficient charging.
Built-in Bluetooth Connectivity
Monitor your system’s performance in real time from your smartphone or tablet, without needing physical access to the controller.
Advanced MPPT Technology
The ultra-fast MPPT tracking is so effective that this solar controller has an efficiency rating of above 99%! Whether you’re operating in cloudy conditions or the hot outback sun, the MPPT technology will track the maximum power point available to ensure your system is operating as efficiently as possible and generating the maximum amount of power.
Wide Input Voltage Range
The MPPT controller is compatible with solar arrays with a Voc of up to 150V. This allows a variety of solar panels with different voltage outputs to be connected, so your system will be highly versatile and adaptable.
Temperature compensation
Other MPPT controllers on the market will fail in hot temperatures – the KickAss MPPT Controller will continue to function. The controller will adjust its charging parameters based on the ambient temperature, ensuring that your batteries are always charged efficiently even in hot conditions.
Lithium Recovery Mode
Safely reawaken lithium batteries that have been deeply discharged, preventing damage and maintaining their health.
Adjustable Parameters via App
The charging settings can be customised within the user-friendly app. Choose between battery types, and adjust parameters such as boost charge voltage, float voltage, boost charge recovery voltage, and auto temperature compensation.
High thermal performance
The integrated aluminium housing helps the unit keep cool so that it can continue to function and perform efficiently even in the hottest conditions, reducing the risk of overheating or system failure.
Multiple protective features
The controller has built-in protective features to protect your setup from damage caused by overload, overvoltage, overheating, reverse polarity, short circuiting and more. Your system will always operate safely.
Data logging and analysis
Your controller will track the performance of your system, and provide an analysis for optimisation. It will store historical data on a dedicated page, so you can monitor your solar consumption and performance on an ongoing basis. Keep track of features like maximum charge power, total running days, etc.
Low power consumption
The standby power used by the controller is very low, so it will maximise your overall system efficiency while using minimal power.
User-friendly interface
The controller is highly intuitive, and you’ll find it easy to setup, configure, and mange.
Battery temperature sensor
This sensor monitors the battery temperature for efficient charging, ensuring your system won’t overheat.
LCD Display/LED Indicators
The LCD display with LED indicators lets you see the exact status of your system at a glance. It’s the perfect way to monitor and manage your system in real time.

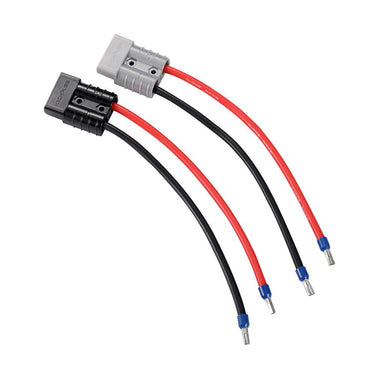

x2 Anderson to Bootlace Ferrule Connectors Included
The unit comes with x2 Anderson to Bootlace Ferrule Connectors – the Anderson plug makes setup simple, while the bootlace ferrule ensures a clean, secure fit into the controller’s terminals.
Optional Remote Display
As an alternative to Bluetooth monitoring, you can keep an eye on your system via the KickAss Remote Display Unit. Monitor and manage your power remotely.
CUSTOMER REVIEWS
Frequently Asked Questions
What system voltages and battery types does the KickAss 20A MPPT Solar Charge Controller support?
This versatility means you can confidently use the controller with a wide range of battery systems, whether for off-grid solar setups or adventure power solutions. Its automatic voltage recognition and battery type settings ensure efficient, safe charging tailored to your battery chemistry.
How much solar input power and charging current can the KickAss 20A controller handle?
This capacity allows you to connect sizeable solar arrays to efficiently charge your batteries. The high input voltage range and current rating ensure the controller can handle robust solar setups while maintaining excellent conversion efficiency of over 98%.
How do I set up the battery type and nominal voltage on the KickAss 20A MPPT controller?
This intuitive setup process makes installation straightforward, allowing you to tailor charging parameters precisely to your battery. The clear LCD interface provides real-time feedback, ensuring your system is optimised for maximum battery life and performance.
Is the KickAss 20A MPPT Solar Charge Controller safe to use around children and flammable materials?
The robust design includes thermal management to prevent overheating, ensuring reliable operation even in demanding environments. By following installation guidelines, you can enjoy safe, continuous solar charging with peace of mind.
Can I use the KickAss 20A controller with lithium batteries, and are there any special considerations?
The controller’s advanced lithium battery settings allow precise charging control, optimising battery health and lifespan. Its built-in protections and configuration options ensure safe, effective charging tailored to lithium chemistries, making it ideal for modern off-grid setups.
What communication options are available with the KickAss 20A MPPT Solar Charge Controller?
These communication capabilities enable seamless integration with remote display units or compatible monitoring systems, giving you greater control and insight into your solar power setup from a distance.
How efficient is the KickAss 20A MPPT Solar Charge Controller at converting solar energy?
This high efficiency means more of your solar energy is converted into usable battery charge, reducing energy waste and improving overall system performance. It’s designed to maximise your solar investment, delivering reliable power even in variable sunlight conditions.
What are the physical dimensions and weight of the KickAss 20A MPPT Solar Charge Controller?
Its manageable size and weight simplify mounting and integration into your off-grid or adventure power system. The compact aluminium housing also aids heat dissipation, contributing to the controller’s durability and long-term reliability.
