All-in-one solar solution for reliable off-grid power. Includes 170W panel, MPPT controller, 5m cable & mounting kit.

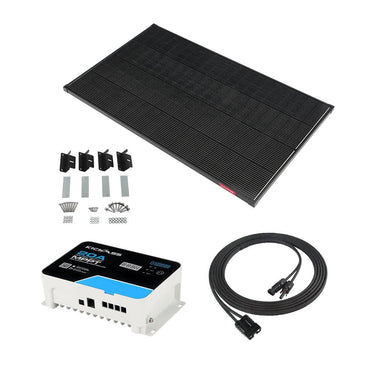

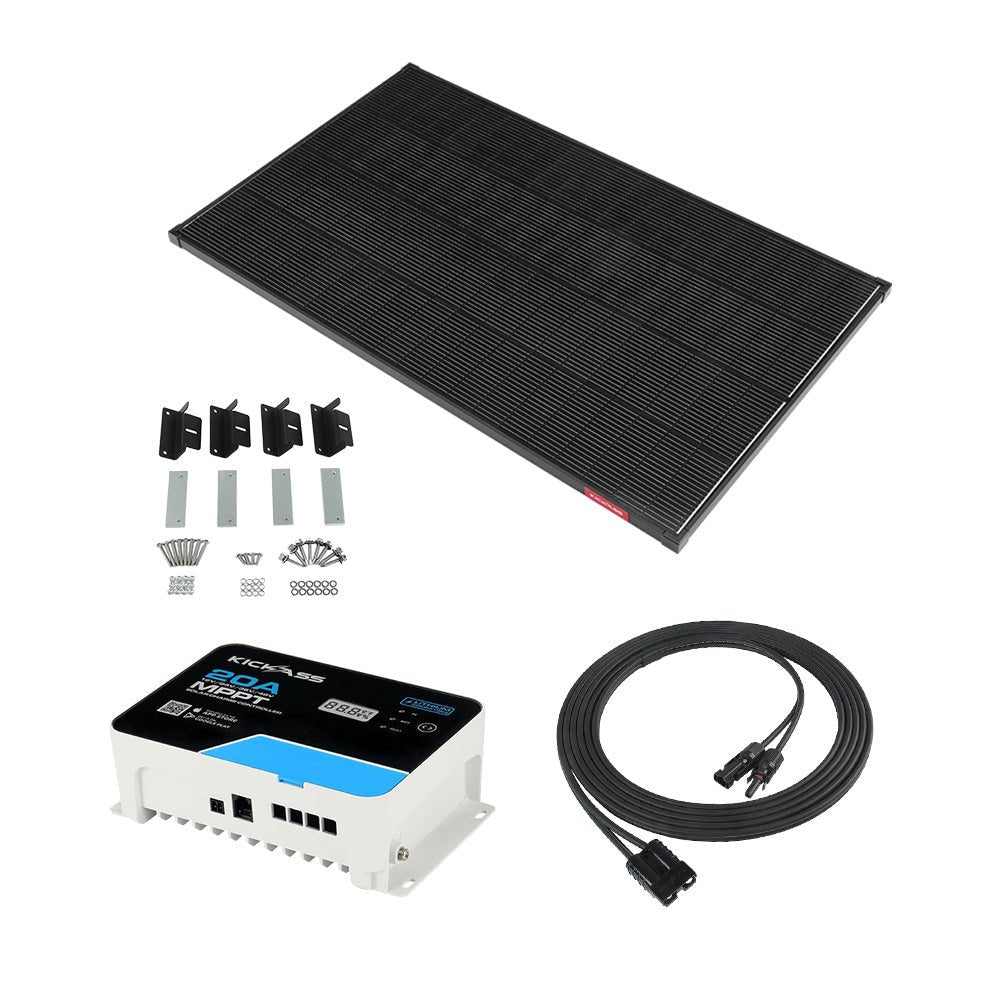

Everything that is included in this KickAss kit!

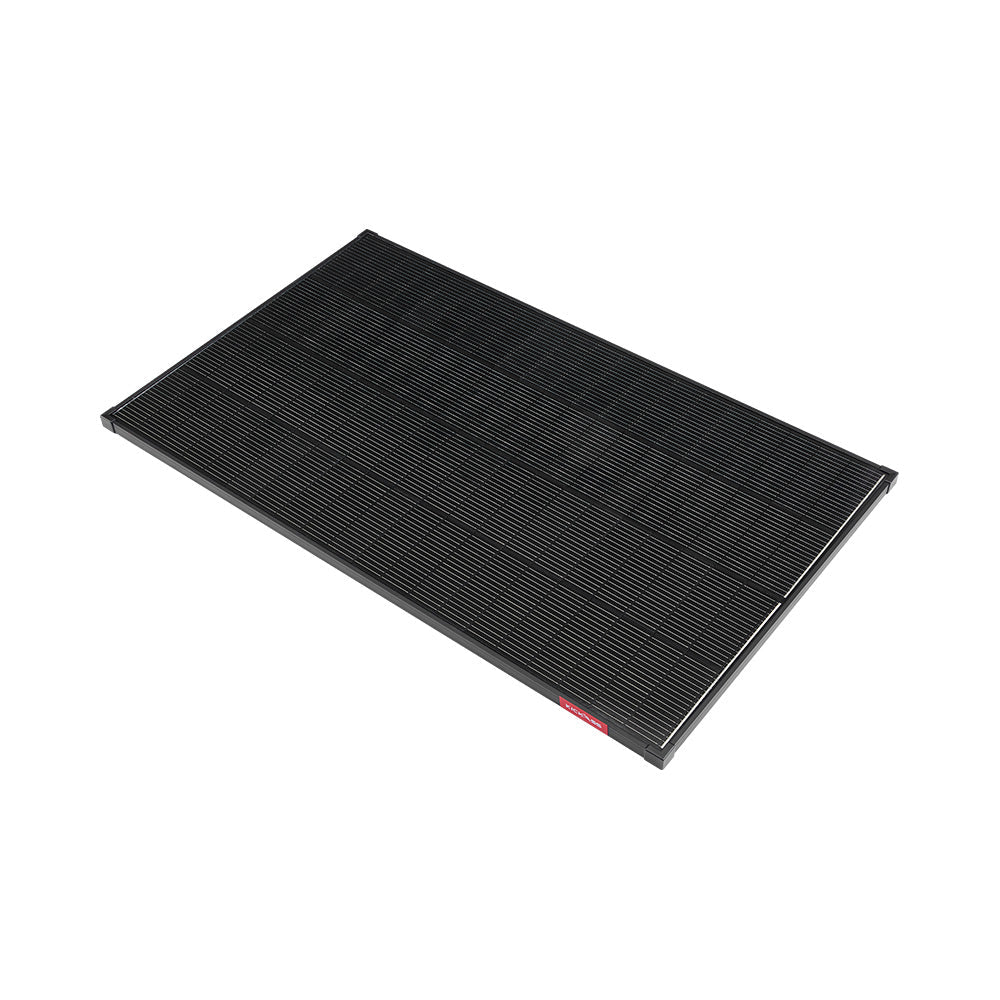

Built with advanced N-Type TOPCon monocrystalline cells, the new and improved KickAss 12V 170W TOPCon+ Fixed Solar Panel delivers impressive efficiency & reliable charging performance in real-world conditions. Designed to handle harsh Aussie environments, it generates dependable power in heat, cloud cover, and low light – perfect for caravans, 4WDs, boats, and off-grid setups.
Built using advanced N-Type TOPCon monocrystalline solar cell technology, this new and improved KickAss 12V 170W TOPCon+ Fixed Solar Panel is designed to deliver excellent efficiency, dependable charging performance, and long-term durability for caravans, camper trailers, 4WDs, boats, canopies, and off-grid setups.
Advanced N-Type TOPCon Solar Technology
Unlike traditional solar panels, this panel uses premium N-Type TOPCon monocrystalline solar cells for improved efficiency and reduced power loss. N-Type TOPCon technology performs exceptionally well in high temperatures and low-light conditions, helping you generate more usable power across a wider range of environments. That means better charging performance earlier in the morning, later in the afternoon, and during cloudy or overcast weather – ideal for unpredictable outdoor conditions and extended off-grid stays.
Up to 25% Conversion Efficiency
With conversion efficiency of up to 25%, this panel captures more energy from the sun and converts it into usable power for your setup. Higher efficiency means you can generate more power from the same available roof space, making it a great option for compact touring setups where every centimetre counts. The advanced 18-busbar layout further improves electrical flow across the cells, helping maximise efficiency while reducing resistance and power loss.
Reliable Power Even in Partial Shade
Outdoor conditions aren't always perfect, which is why this panel is designed to continue generating power in partial shade and low-light conditions. Whether you're camped beneath trees, dealing with cloudy skies, or parked in less-than-ideal sunlight, you'll still benefit from more consistent charging performance throughout the day.
Built Tough for Harsh Aussie Conditions
Designed for permanent outdoor installation, the KickAss 170W TOPCon+ Fixed Solar Panel features durable tempered glass and a strong aluminium frame to handle the demands of Australian touring and off-grid travel. The rugged construction helps protect against impacts, corrosion, vibration, and weather exposure, making it ideal for long-term use on caravans, camper trailers, canopies, 4WD roof racks, and marine applications.
IP68 Rated with MC4 Connectors
This panel is rated IP68 for excellent resistance against dust and water ingress in harsh outdoor environments. It also comes fitted with industry-standard MC4 connectors, providing a secure and reliable connection while making installation simple with compatible solar systems and accessories.
Flexible Installation Options
Compatible with both parallel and series wiring configurations, this panel gives you the flexibility to expand and customise your solar setup as your power requirements grow. Pre-drilled mounting holes also make permanent installation quick and straightforward across a wide range of applications, including caravans, boats, camper trailers, canopies, and off-grid sheds.
Lightweight and Easy to Handle
Despite its rugged construction, the panel weighs just 9.4kg, making it easier to transport, position, and install compared to heavier alternatives. It's a practical choice for weight-conscious touring setups without compromising on durability or performance.

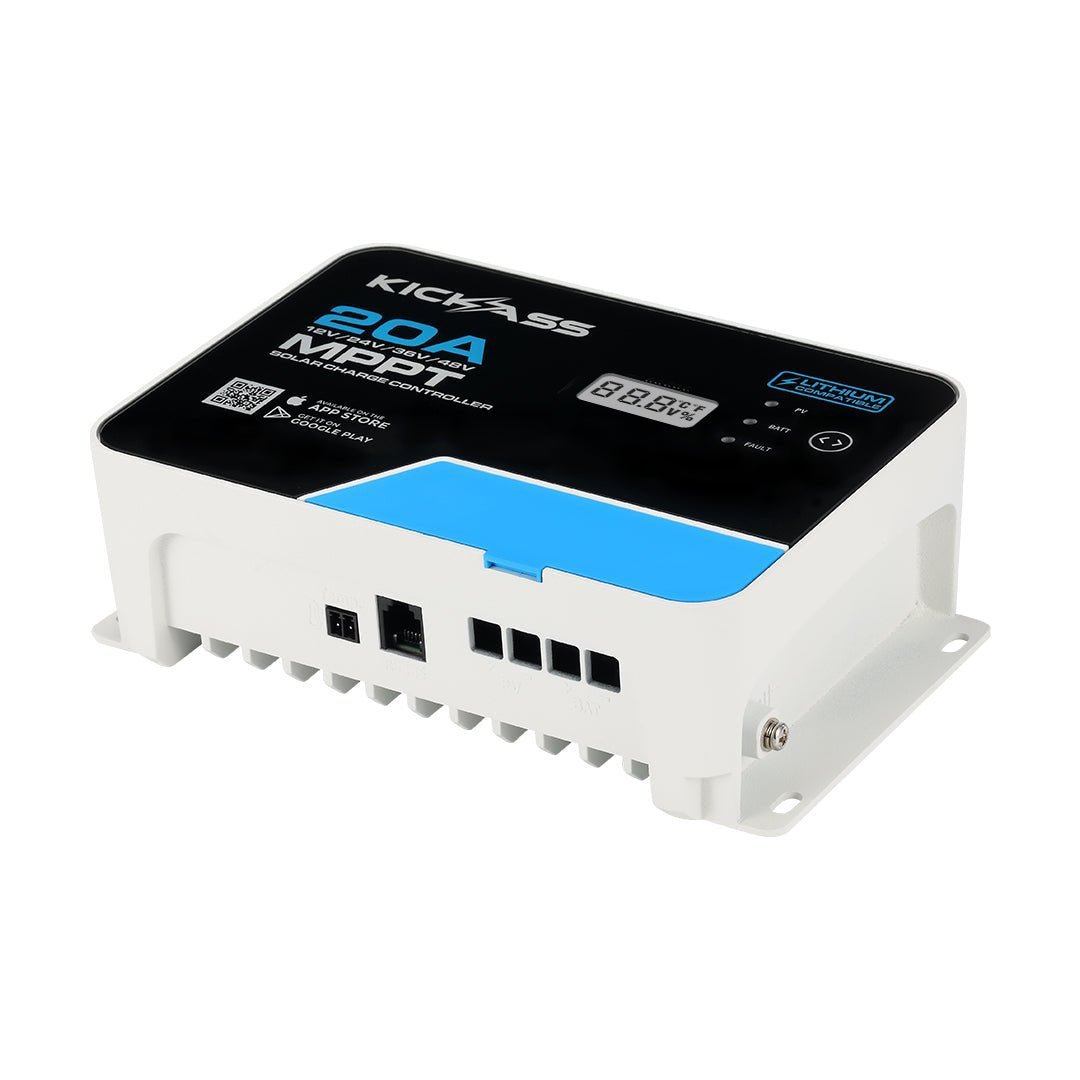

Harvest more energy! This ultra versatile charger will charge 12V, 24V, 36V and 48V battery systems. Monitor your system remotely via the Bluetooth App or an optional remote display screen.
20A 12V/24V/36V/48V MPPT Solar Charge Controllers Feature Overview
Wide Output Voltage Range
The MPPT controller can be used to charge a wide range of voltages, including 12V, 24V, 36V and 48V batteries. Perfect for setups in canopies, campervans or caravans.
Parallel Charge
This feature allows you to charge a single battery pack using two MPPT devices in parallel, so you get faster, more efficient charging.
Built-in Bluetooth Connectivity
Monitor your system’s performance in real time from your smartphone or tablet, without needing physical access to the controller.
Advanced MPPT Technology
The ultra-fast MPPT tracking is so effective that this solar controller has an efficiency rating of above 99%! Whether you’re operating in cloudy conditions or the hot outback sun, the MPPT technology will track the maximum power point available to ensure your system is operating as efficiently as possible and generating the maximum amount of power.
Wide Input Voltage Range
The MPPT controller is compatible with solar arrays with a Voc of up to 150V. This allows a variety of solar panels with different voltage outputs to be connected, so your system will be highly versatile and adaptable.
Temperature compensation
Other MPPT controllers on the market will fail in hot temperatures – the KickAss MPPT Controller will continue to function. The controller will adjust its charging parameters based on the ambient temperature, ensuring that your batteries are always charged efficiently even in hot conditions.
Lithium Recovery Mode
Safely reawaken lithium batteries that have been deeply discharged, preventing damage and maintaining their health.
Adjustable Parameters via App
The charging settings can be customised within the user-friendly app. Choose between battery types, and adjust parameters such as boost charge voltage, float voltage, boost charge recovery voltage, and auto temperature compensation.
High thermal performance
The integrated aluminium housing helps the unit keep cool so that it can continue to function and perform efficiently even in the hottest conditions, reducing the risk of overheating or system failure.
Multiple protective features
The controller has built-in protective features to protect your setup from damage caused by overload, overvoltage, overheating, reverse polarity, short circuiting and more. Your system will always operate safely.
Data logging and analysis
Your controller will track the performance of your system, and provide an analysis for optimisation. It will store historical data on a dedicated page, so you can monitor your solar consumption and performance on an ongoing basis. Keep track of features like maximum charge power, total running days, etc.
Low power consumption
The standby power used by the controller is very low, so it will maximise your overall system efficiency while using minimal power.
User-friendly interface
The controller is highly intuitive, and you’ll find it easy to setup, configure, and mange.
Battery temperature sensor
This sensor monitors the battery temperature for efficient charging, ensuring your system won’t overheat.
LCD Display/LED Indicators
The LCD display with LED indicators lets you see the exact status of your system at a glance. It’s the perfect way to monitor and manage your system in real time.
x2 Anderson to Bootlace Ferrule Connectors Included
The unit comes with x2 Anderson to Bootlace Ferrule Connectors – the Anderson plug makes setup simple, while the bootlace ferrule ensures a clean, secure fit into the controller’s terminals.
Optional Remote Display
As an alternative to Bluetooth monitoring, you can keep an eye on your system via the KickAss Remote Display Unit. Monitor and manage your power remotely.

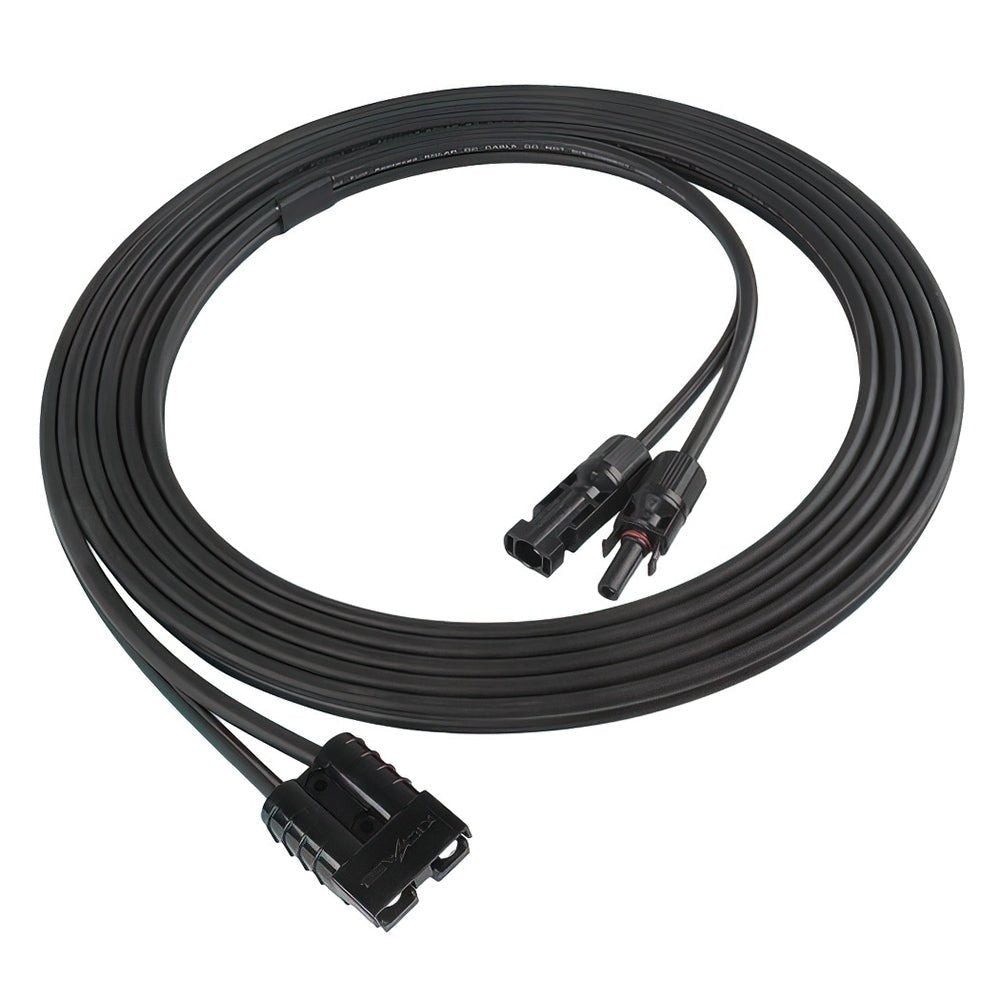

Makes installing solar panels a breeze. Specially engineered to be paired with our KickAss DC/DC Charger and KickAss 170W, 250W, or 350W Fixed Glass Solar Panels, this extension cable is completely plug & play. MC4 compatible.
Heavy Duty Twin Core 10B&S Cable
Individually insulated and encased in a smooth PVC outer, providing added strength.
Pre-Crimped Anderson Terminals for Ease of Install
Setting up your solar has never been easier with the KickAss Solar Panel PV to Anderson Solar 5M Extension Cable. It can be plugged straight into your KickAss DCDC charger on your battery box, control hub, or directly into your MPPT/PWM solar controller. MC4 compatible.

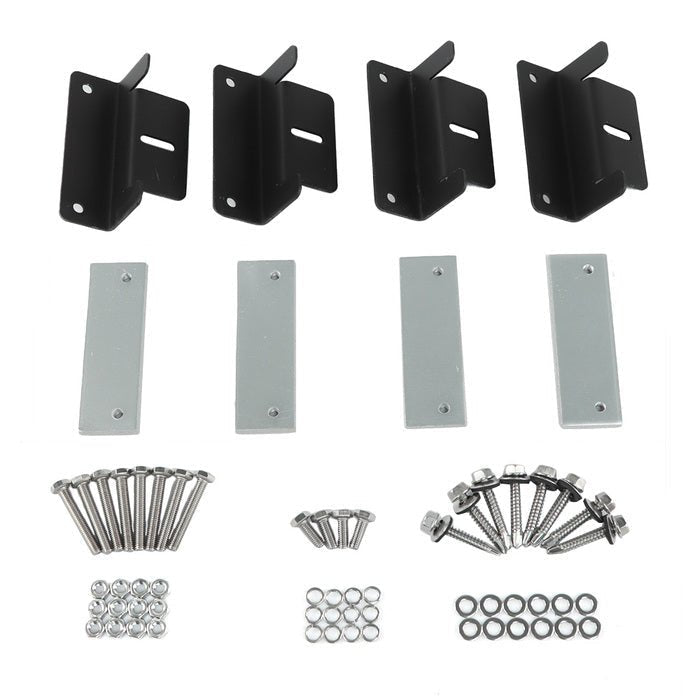

This mounting kit has everything you need to make it easy to affix your KickAss 170W, 250W, or 350W Glass Solar Panel to the roof of your vehicle. The compact design maintains the aerodynamics of your vehicle.
Mounting Kit for the KickAss Fixed Glass Solar Panel Range
Constructed from strong, light weight aluminium and contains all bolts, nuts and washers required for mounting.
What's Included:
This mounting kit has everything you need to make it easy to affix your KickAss Fixed Glass Solar Panel to the roof of your vehicle. The compact design maintains the aerodynamics of your vehicle.
| Parameter | Specification | ||||
|---|---|---|---|---|---|
| System Voltage | 12V/24V/36V/48V AUTO in GEL/FLD/AGM AUTO; USER OR LI(MANUAL) | ||||
| Standby Power | 0.3W Max | ||||
| Battery Voltage | 9V TO 60V | ||||
|
|||||
| Max. Solar Input Voltage Range |
|
||||
| Min. Solar Input Voltage Range |
|
||||
| Max. System Input Power |
|
||||
| Rated Charging Current | 20A | ||||
| Conversion Efficiency | 0.98 | ||||
| MPPT Tracking Efficiency | >99% | ||||
| Operating Temperature | -35°C ~ +45°C | -31°F ~ +113°F | ||||
| Ingress Protection | IP43 | ||||
| Weight | 1.22kg | ||||
| Communication Method | RS485 & Integrated Bluetooth | ||||
| Altitude | ≤3000m | ||||
| Product Dimensions | 190*125*60mm |
| Cell Type | N-Type TOPCon Monocrystalline Silicon |
| Efficiency Rate | Up to 25% |
| Covering | Tempered Glass |
| Frame | Black Powder Coated Aluminium |
| Rated Power | 170W |
| Open-Circuit Voltage (VOC) | 24.89V |
| Short-Circuit Current (ISC) | 8.35A |
| Voltage at Pmax (VMP) | 21.31V |
| Current at Pmax (IMP) | 7.98A |
| Product Dimensions | 131x70x3cm |
| Product Weight | 9.4kg |
| Waterproof | IP68 |
| Connector Type | MC4 Connectors |
| Operating Temperature | -40°C to +85°C / -40°F to +185°F |
| KickAss Mounting Kit for Fixed Glass Solar Panels | |
| KickAss Solar Panel PV to Anderson Extension Cable - 5m | |
| KickAss 20A 12V/24V/36V/48V MPPT Solar Charge Controller | |
| KickAss 12V 170W TOPCon+ Fixed Solar Panel |
Harness the sun's power with the KickAss 12V 170W Solar Panel Bundle. This all-in-one solution includes a high-performance 170W TOPCon+ solar panel, a versatile MPPT solar charge controller, a 5-metre PV to Anderson extension cable, and a durable mounting kit. Perfect for powering your off-grid adventures, this bundle ensures you have reliable energy wherever you roam. Built for harsh Australian conditions, it's ideal for 4WD enthusiasts, campers, and anyone looking to explore without limits. Upgrade your setup and stay charged with ease.
