Built with advanced N-Type TOPCon monocrystalline cells, the new and improved KickAss 12V 170W TOPCon+ Fixed Solar Panel delivers impressive efficiency & reliable charging performance in real-world conditions. Designed to handle harsh Aussie environments, it generates dependable power in heat, cloud cover, and low light – perfect for caravans, 4WDs, boats, and off-grid setups.
| Cell Type | N-Type TOPCon Monocrystalline Silicon |
| Efficiency Rate | Up to 25% |
| Covering | Tempered Glass |
| Frame | Black Powder Coated Aluminium |
| Rated Power | 170W |
| Open-Circuit Voltage (VOC) | 24.89V |
| Short-Circuit Current (ISC) | 8.35A |
| Voltage at Pmax (VMP) | 21.31V |
| Current at Pmax (IMP) | 7.98A |
| Product Dimensions | 131x70x3cm |
| Product Weight | 9.4kg |
| Waterproof | IP68 |
| Connector Type | MC4 Connectors |
| Operating Temperature | -40°C to +85°C / -40°F to +185°F |
| KickAss 12V 170W TOPCon+ Fixed Solar Panel |
Built using advanced N-Type TOPCon monocrystalline solar cell technology, this new and improved KickAss 12V 170W TOPCon+ Fixed Solar Panel is designed to deliver excellent efficiency, dependable charging performance, and long-term durability for caravans, camper trailers, 4WDs, boats, canopies, and off-grid setups.

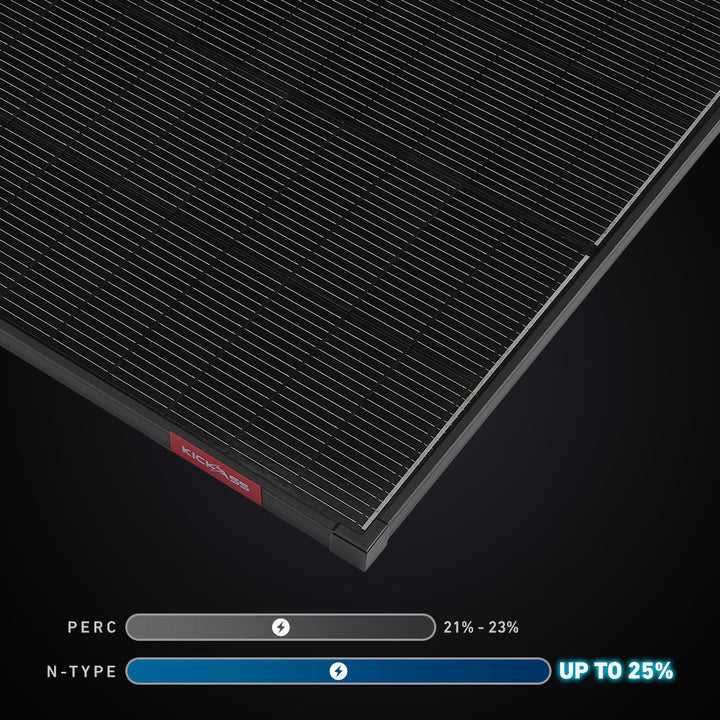

Advanced N-Type TOPCon Solar Technology
Unlike traditional solar panels, this panel uses premium N-Type TOPCon monocrystalline solar cells for improved efficiency and reduced power loss. N-Type TOPCon technology performs exceptionally well in high temperatures and low-light conditions, helping you generate more usable power across a wider range of environments. That means better charging performance earlier in the morning, later in the afternoon, and during cloudy or overcast weather – ideal for unpredictable outdoor conditions and extended off-grid stays.
Up to 25% Conversion Efficiency

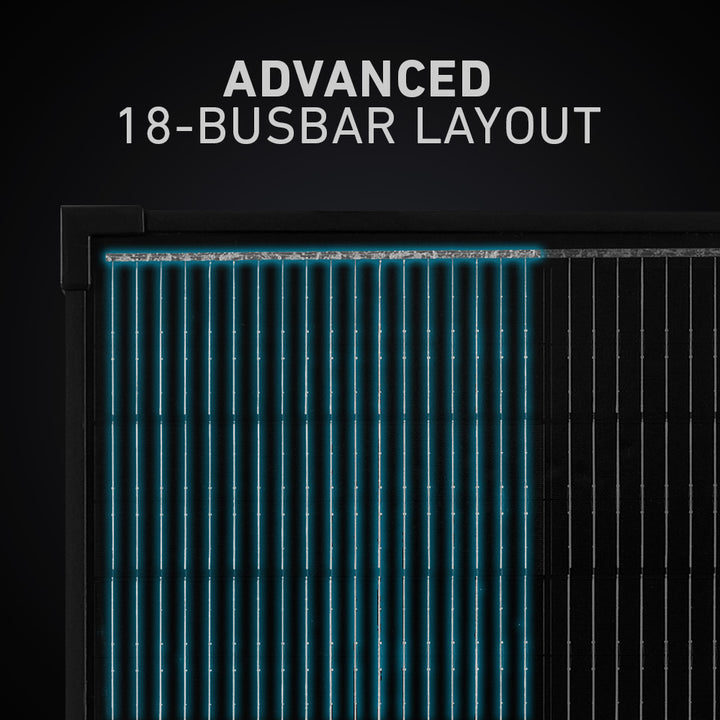

With conversion efficiency of up to 25%, this panel captures more energy from the sun and converts it into usable power for your setup. Higher efficiency means you can generate more power from the same available roof space, making it a great option for compact touring setups where every centimetre counts. The advanced 18-busbar layout further improves electrical flow across the cells, helping maximise efficiency while reducing resistance and power loss.
Reliable Power Even in Partial Shade
Outdoor conditions aren't always perfect, which is why this panel is designed to continue generating power in partial shade and low-light conditions. Whether you're camped beneath trees, dealing with cloudy skies, or parked in less-than-ideal sunlight, you'll still benefit from more consistent charging performance throughout the day.

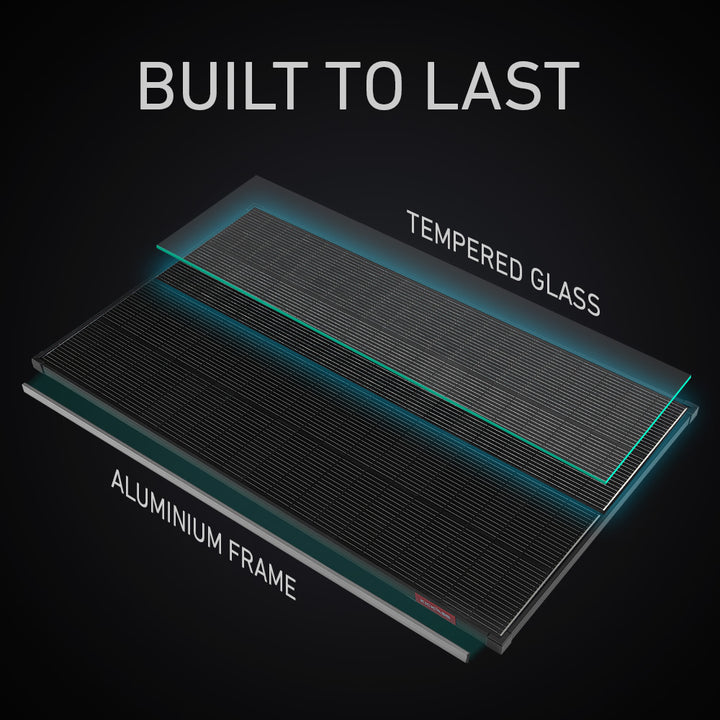

Built Tough for Harsh Aussie Conditions
Designed for permanent outdoor installation, the KickAss 170W TOPCon+ Fixed Solar Panel features durable tempered glass and a strong aluminium frame to handle the demands of Australian touring and off-grid travel. The rugged construction helps protect against impacts, corrosion, vibration, and weather exposure, making it ideal for long-term use on caravans, camper trailers, canopies, 4WD roof racks, and marine applications.

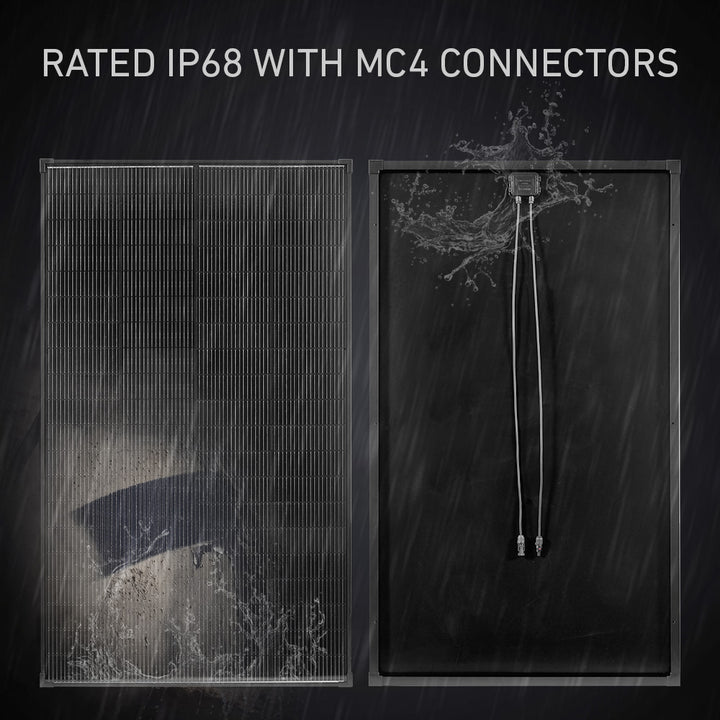

IP68 Rated with MC4 Connectors
This panel is rated IP68 for excellent resistance against dust and water ingress in harsh outdoor environments. It also comes fitted with industry-standard MC4 connectors, providing a secure and reliable connection while making installation simple with compatible solar systems and accessories.

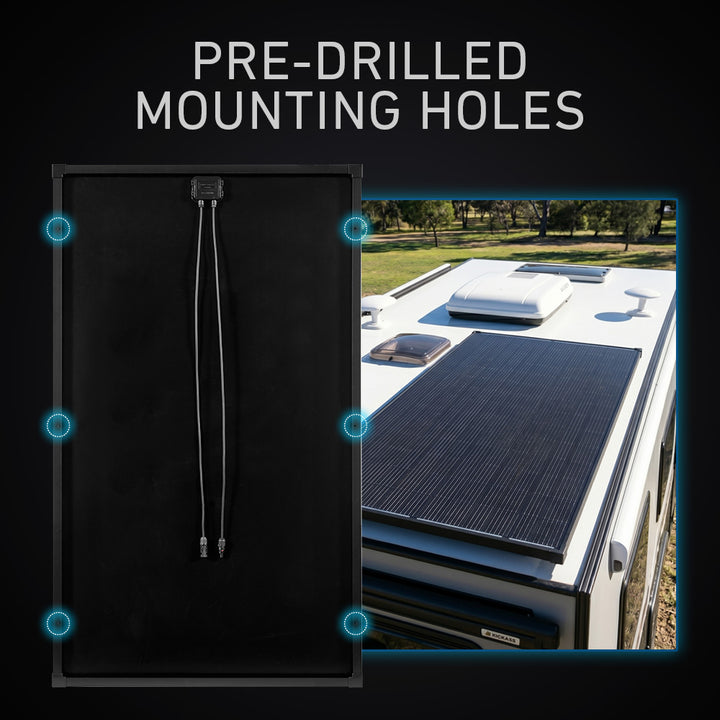

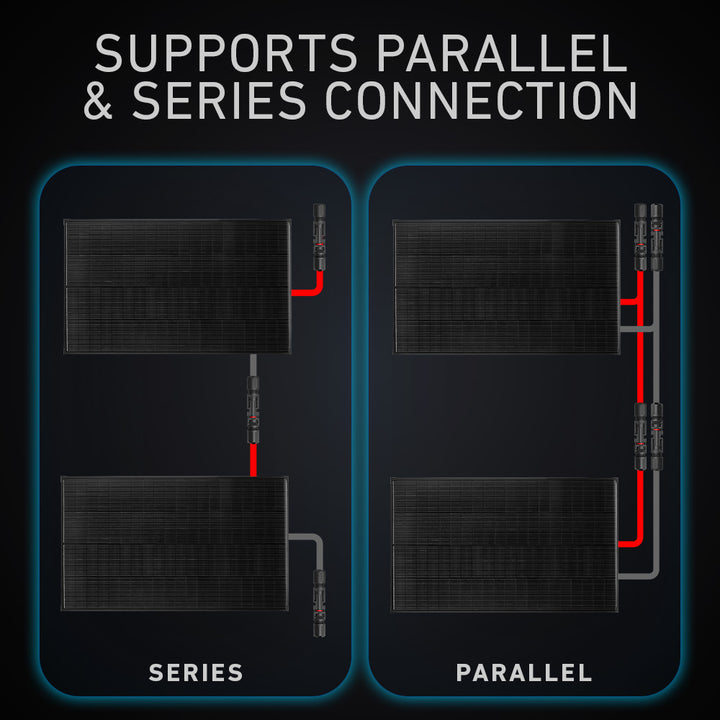

Flexible Installation Options
Compatible with both parallel and series wiring configurations, this panel gives you the flexibility to expand and customise your solar setup as your power requirements grow. Pre-drilled mounting holes also make permanent installation quick and straightforward across a wide range of applications, including caravans, boats, camper trailers, canopies, and off-grid sheds.

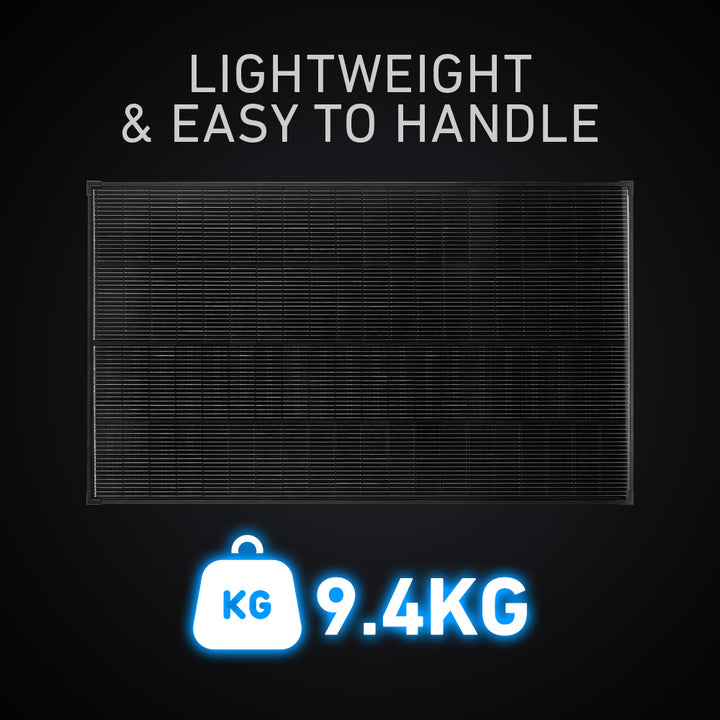

Lightweight and Easy to Handle
Despite its rugged construction, the panel weighs just 9.4kg, making it easier to transport, position, and install compared to heavier alternatives. It's a practical choice for weight-conscious touring setups without compromising on durability or performance.
