KickAss Remote LCD Display For MPPT Solar Controllers

KickAss Remote LCD Display For MPPT Solar Controllers

Support Page User Manual

Specially designed for KickAss MPPT systems:

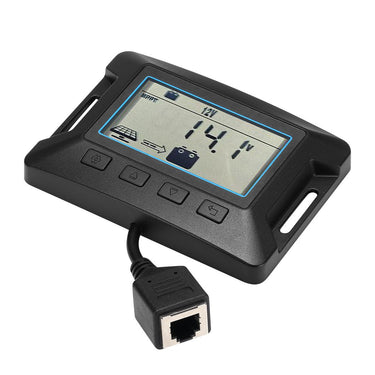

This remote control LCD screen has been specifically designed to pair with the KickAss 20A and 40A solar charge controllers. The targeted functionality means the features and metrics it displays are highly relevant to solar systems, and the design is intuitive and easy to use.

Note that this unit is not compatible with any other solar controllers.

Easy to mount

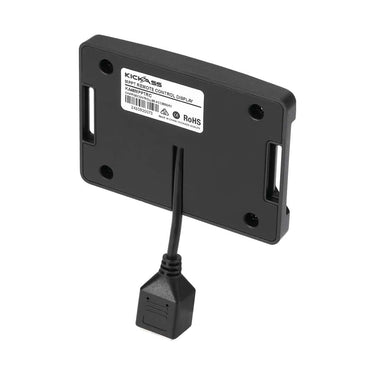

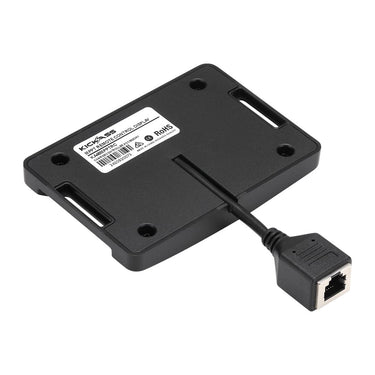

The device can be flush-mounted or surface-mounted in your chosen location using the four Phillips head screws included with the product.

Simple to use

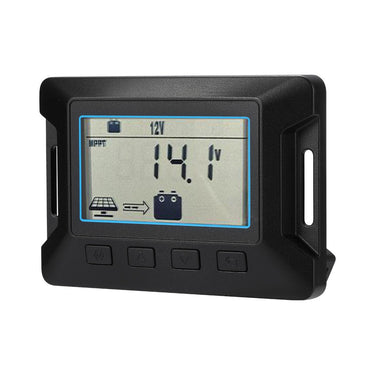

Settings and parameters can all be adjusted using four buttons on the unit. It’s simple and intuitive.

Plug & Play Setup

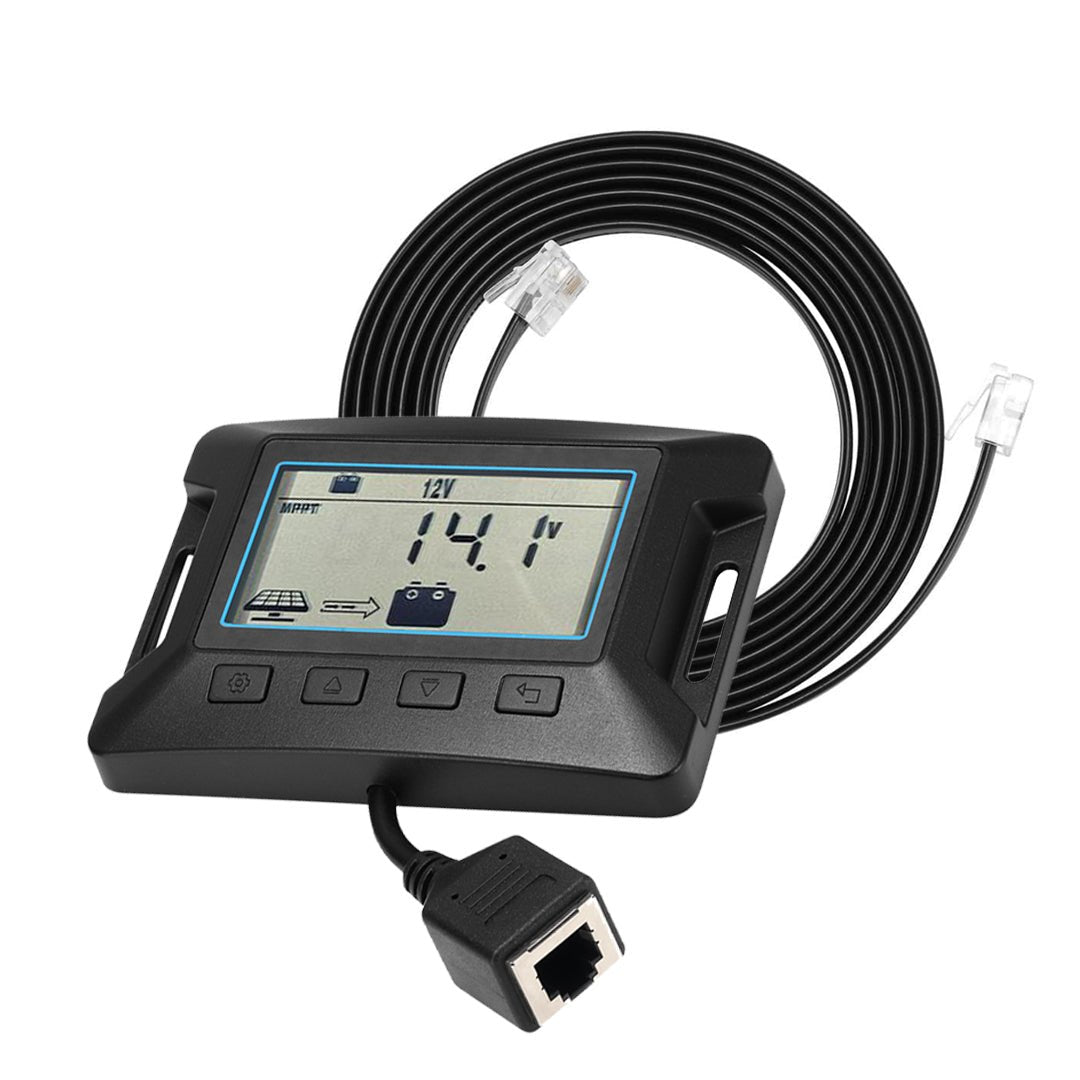

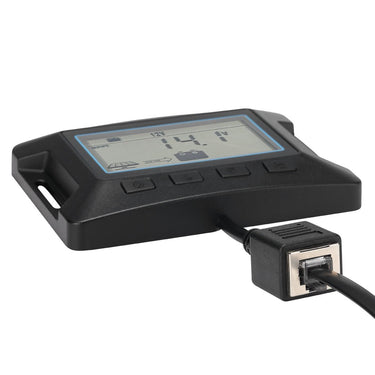

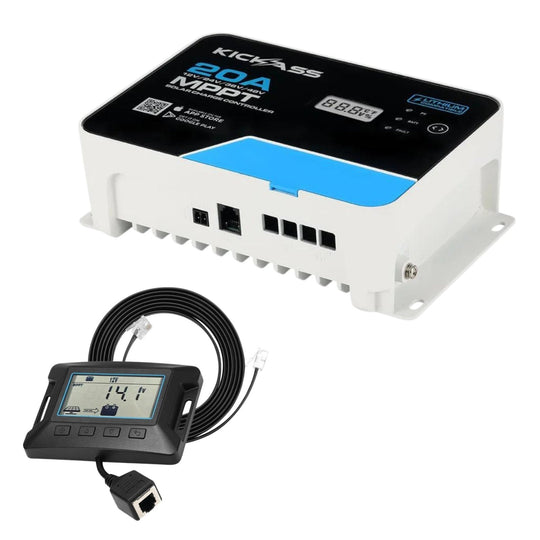

Simply plug the remote control LCD display into the 20A or 40A MPPT controller and you're ready to configure and monitor your device.

The KickAss Remote LCD Display is compatible with 20A and 40A MPPT solar charge controllers operating at 12V, 24V, 36V, and 48V system voltages. It supports maximum solar input voltages up to 150V and charging currents of 20A or 40A depending on the controller model.
This means you can monitor and control a wide range of solar systems with your remote display, ensuring flexibility for different battery bank sizes and solar array configurations. It works seamlessly with KickAss controllers designed for various off-grid setups.

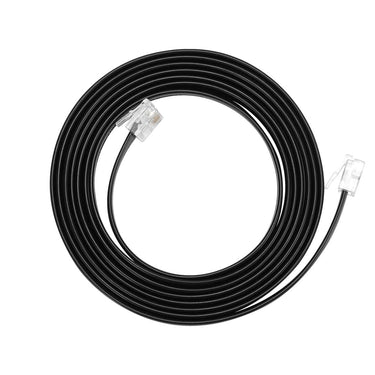

The KickAss Remote LCD Display connects to the MPPT solar controller via an RS485 communication interface. The display measures 100 x 70 x 15mm and requires proper wiring as outlined in the installation manual, including using appropriately sized cables and isolating all equipment during installation.
Installation is straightforward for anyone with basic electrical skills, and the remote display allows you to conveniently monitor your solar controller’s performance from a distance. Always follow the wiring diagrams and safety instructions to ensure optimal operation and protection.

Yes, you can configure battery type, nominal battery voltage, and advanced lithium battery settings directly via the KickAss Remote LCD Display. This includes setting parameters for GEL, AGM, FLD, lithium, or user-defined battery types across 12V to 48V systems.
This feature gives you full control over your battery charging profile without needing to access the controller physically. It simplifies system customisation and helps maximise battery life and efficiency, especially for lithium battery systems with advanced settings.

The system includes built-in protections such as preventing connection of AC power sources, reverse polarity protection for lithium batteries, and integrated aluminium heat sinks to manage device temperature. It also requires appropriate fuses and wiring to avoid electrical faults.
These safety designs ensure your solar power system operates reliably and safely in rugged off-grid environments. The remote display helps you monitor system status continuously, allowing you to catch potential issues early and maintain peace of mind.

The MPPT solar controllers paired with the KickAss Remote LCD Display have a conversion efficiency greater than 98% and an MPPT tracking efficiency exceeding 99%.
This high efficiency means your solar panels’ energy is optimally converted and managed, maximising power harvest and battery charging speed. The remote display provides real-time feedback on these efficiencies so you can monitor system performance closely.

The KickAss Remote LCD Display operates reliably between -35°C and +45°C and is designed for altitudes up to 3000m. It uses RS485 communication and consumes a maximum standby power of 0.4W.
This wide operating range makes it suitable for harsh Australian outback conditions and remote locations. Its low power consumption also ensures minimal drain on your battery system when monitoring remotely.

Yes, the KickAss system supports parallel operation configurations, which can be set up via the remote LCD display or the controller’s integrated display. This allows multiple controllers to work together for larger solar systems.
Parallel operation increases your system’s total charging capacity and flexibility. The remote display simplifies managing these setups by providing a central interface to monitor and configure all connected controllers.

The remote LCD display offers capacitive touch function keys and multiple view modes, allowing easy navigation and real-time monitoring away from the controller unit itself. It displays detailed icons and status indicators for quick system checks.
This convenience lets you place the display in a more accessible location, improving usability and system oversight. It’s ideal for installations where the controller is mounted in hard-to-reach areas, enhancing your overall off-grid solar experience.
