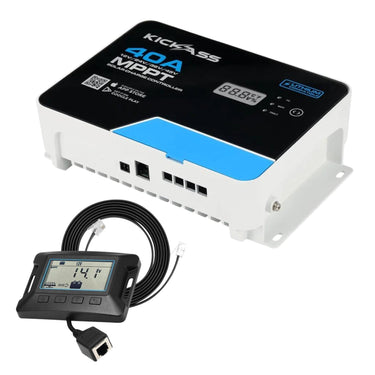

KickAss 40A MPPT Solar Charge Controller + Remote LCD Display Bundle

Specially designed for KickAss MPPT systems:

This remote control LCD screen has been specifically designed to pair with the KickAss 20A and 40A solar charge controllers. The targeted functionality means the features and metrics it displays are highly relevant to solar systems, and the design is intuitive and easy to use.

Note that this unit is not compatible with any other solar controllers.

Easy to mount

The device can be flush-mounted or surface-mounted in your chosen location using the four Phillips head screws included with the product.

Simple to use

Settings and parameters can all be adjusted using four buttons on the unit. It’s simple and intuitive.

Plug & Play Setup

Simply plug the remote control LCD display into the 20A or 40A MPPT controller and you're ready to configure and monitor your device.

KickAss 40A 12V/24V/36V/48V MPPT Solar Charge Controllers Features Overview

The KickAss 40A 12/24V MPPT Solar Controller uses the latest dual-peak and multi-peak tracking technology available today.

Highly Efficient MPPT

With a tracking efficiency of at least 99.5% and a peak conversion efficiency of 98%, you can be confident that your dual battery system is receiving the optimal charge.

The KickAss 12/24V MPPT Solar Controller series accurately identifies and tracks multiple power points, and includes built-in self-diagnostic technology to help prevent damage from installation and system failures.

Battery Temperature Sensor

Equipped with a temperature sensing probe, the KickAss 12/24V MPPT Solar Controller can limit the current output to your battery, preventing overheating and overcharging if a fault occurs with the connected battery.

LCD Display

The easy-to-read LCD display shows all crucial charging information dynamically (note that the LCD is not backlit).

Pair with

• KickAss Remote Control LCD Display For MPPT Controllers
• KickAss Bluetooth MPPT Module

These devices allow for convenient viewing of your controller in tight spaces and can connect to the KA Solar App on your smartphone for added convenience.

**Please Note: this unit is not a full battery management system, it is simply an MPPT with a load output**

Key features

• 99.5% tracking efficiency
• 98% peak conversion efficiency
• Built-in self-diagnostic technology
• LCD easy read display
• LED indicators for charging, battery, load, and faults
• RJ12 communication interface
• Temperature sensing probe
• Lithium compatible

Protective features

• Input power limit protection
• Battery reverse polarity protection
• Solar input high voltage protection
• Load overpower protection
• Load short circuit protection
• Reverse charge protection
• Over temperature protection for internal heat protection of the MPPT unit
• Over temperature protection for your battery (temperature sensing probe must be attached)

Do not get the controller wet, as it is not waterproof and will be damaged by moisture.

This device is a charge controller, not a complete battery management system. It is designed to power small accessories like LED lights. However, the load output is dependent on the solar input (daylight and darkness) and does not provide a consistent power supply suitable for running appliances like a fridge or freezer. Therefore, we advise against connecting electronics that need stable and reliable power directly to the MPPT Solar Controller. Instead, all accessories should be connected directly to your battery bank using appropriately fused circuits.

x2 Anderson to Bootlace Ferrule Connectors Included
The unit comes with x2 Anderson to Bootlace Ferrule Connectors – the Anderson plug makes setup simple, while the bootlace ferrule ensures a clean, secure fit into the controller’s terminals.
