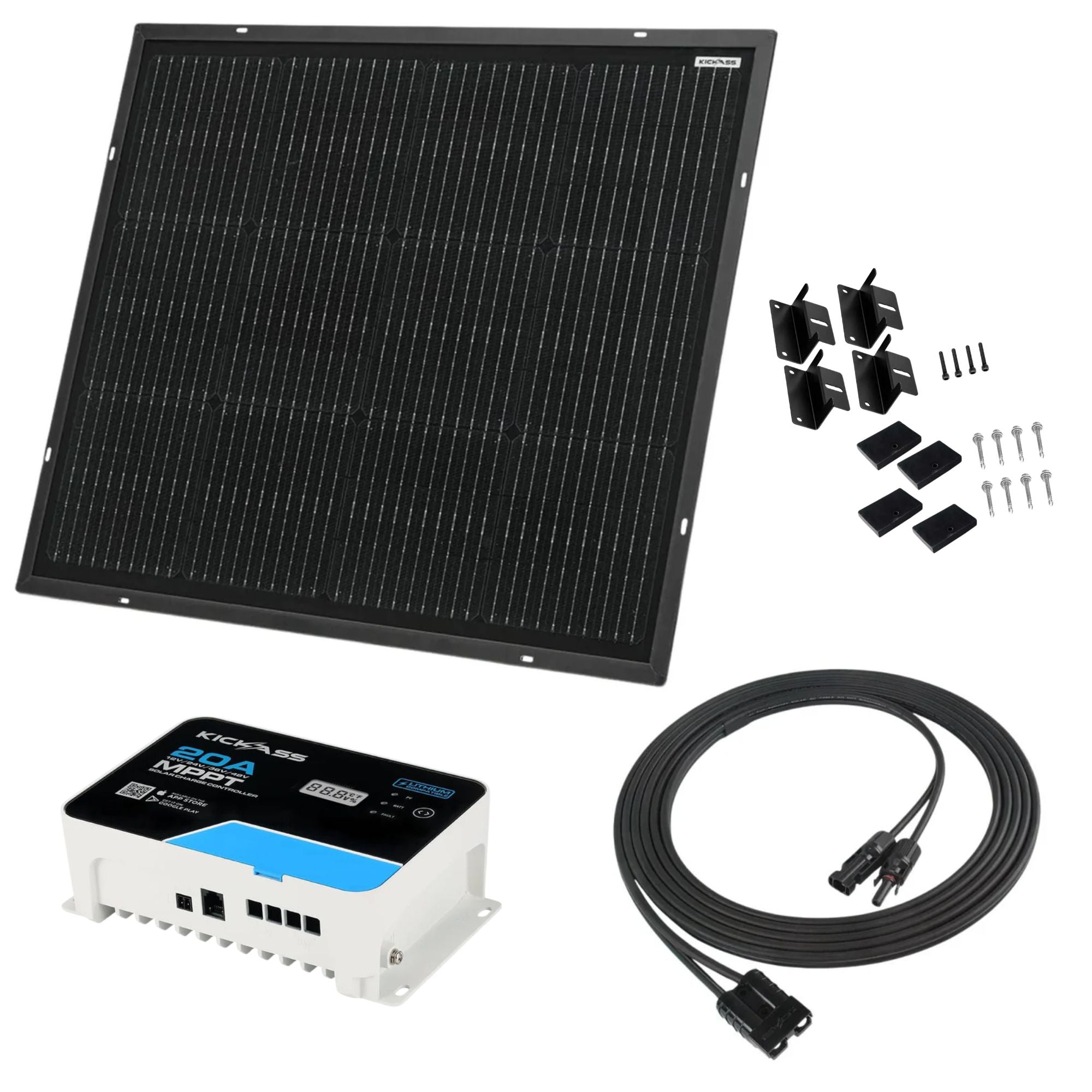

KickAss 80W Ultra Slim Fixed Glass Solar Panel + 20A MPPT Solar Charge Controller Bundle
Included in this kit:
or 4 payments of $61.62 with
or from $41.08 per week with
Acacia Ridge Store
39 Iris Place
Acacia Ridge QLD 4110
Australia
Perth Store
unit 2/180 Bannister Road
Canning Vale WA 6155
Australia
Kawana Waters Store
2/224 Nicklin Way
Warana QLD 4575
Australia
Shipping calculated at checkout. Express orders dispatched same business day if ordered before 12pm AEST. Standard orders dispatched within 2 business days.
SAFE &
RELIABLE
KICKASS QUALITY
When you buy directly from us, you eliminate the middleman, allowing you to enjoy high-quality gear at budget-friendly prices.
Change your mind? No worries, our quick & easy online or in-store returns process has you covered. Learn more.
Description
Enjoy efficient, reliable solar power in a sleek, space-saving design with the KickAss 80W Ultra Slim Fixed Glass Solar Panel + 20A MPPT Solar Charge Controller Bundle. Perfect for maintaining a steady charge on your batteries, this bundle combines the compact 80W Ultra Slim Solar Panel with a high-performance 20A MPPT Solar Charge Controller and a 5m extension cable, ensuring a convenient and powerful solar setup for your vehicle, boat, or campsite.
80W Ultra Slim Fixed Glass Solar Panel
Designed for durability and efficiency, the 80W Ultra Slim Solar Panel features high-grade monocrystalline cells encased in tempered glass. Its ultra-slim profile allows it to be mounted in tight spaces, making it ideal for campers, caravans, and 4WDs where space is at a premium. Despite its compact size, it provides powerful solar output, keeping your batteries topped up on the go.
20A MPPT Solar Charge Controller
Maximise your solar efficiency with the 20A MPPT Solar Charge Controller, which optimises power conversion from your solar panel. Compatible with 12V to 48V systems, this controller ensures that your battery receives the correct charge, even in varying sunlight conditions, for efficient, safe charging.
5m Solar Extension Cable
The bundle includes a 5m extension cable with Anderson connectors, giving you the flexibility to position your solar panel where sunlight is strongest while keeping your power setup organised.
Compact, Efficient, and Reliable Solar Solution
This ultra-slim solar bundle provides a dependable and efficient off-grid power solution. Built to withstand the elements, both the solar panel and charge controller are designed for long-lasting performance, making them ideal for off-road and outdoor adventures.
Upgrade your solar setup with the KickAss 80W Ultra Slim Fixed Glass Solar Panel + 20A MPPT Solar Charge Controller Bundle—compact, powerful, and ready for any adventure.
What's in this KickAss kit?
1 x KickAss 20A 12V/24V/36V/48V MPPT Solar Charge Controller
1 x KickAss 20A 12V/24V/36V/48V MPPT Solar Charge Controller
Harvest more energy! This ultra versatile charger will charge 12V, 24V, 36V and 48V battery systems. Monitor your system remotely via the Bluetooth App or an optional remote display screen.
20A 12V/24V/36V/48V MPPT Solar Charge Controllers Feature Overview
Wide Output Voltage Range
The MPPT controller can be used to charge a wide range of voltages, including 12V, 24V, 36V and 48V batteries. Perfect for setups in canopies, campervans or caravans.
Parallel Charge
This feature allows you to charge a single battery pack using two MPPT devices in parallel, so you get faster, more efficient charging.
Built-in Bluetooth Connectivity
Monitor your system’s performance in real time from your smartphone or tablet, without needing physical access to the controller.
Advanced MPPT Technology
The ultra-fast MPPT tracking is so effective that this solar controller has an efficiency rating of above 99%! Whether you’re operating in cloudy conditions or the hot outback sun, the MPPT technology will track the maximum power point available to ensure your system is operating as efficiently as possible and generating the maximum amount of power.
Wide Input Voltage Range
The MPPT controller is compatible with solar arrays with a Voc of up to 150V. This allows a variety of solar panels with different voltage outputs to be connected, so your system will be highly versatile and adaptable.
Temperature compensation
Other MPPT controllers on the market will fail in hot temperatures – the KickAss MPPT Controller will continue to function. The controller will adjust its charging parameters based on the ambient temperature, ensuring that your batteries are always charged efficiently even in hot conditions.
Lithium Recovery Mode
Safely reawaken lithium batteries that have been deeply discharged, preventing damage and maintaining their health.
Adjustable Parameters via App
The charging settings can be customised within the user-friendly app. Choose between battery types, and adjust parameters such as boost charge voltage, float voltage, boost charge recovery voltage, and auto temperature compensation.
High thermal performance
The integrated aluminium housing helps the unit keep cool so that it can continue to function and perform efficiently even in the hottest conditions, reducing the risk of overheating or system failure.
Multiple protective features
The controller has built-in protective features to protect your setup from damage caused by overload, overvoltage, overheating, reverse polarity, short circuiting and more. Your system will always operate safely.
Data logging and analysis
Your controller will track the performance of your system, and provide an analysis for optimisation. It will store historical data on a dedicated page, so you can monitor your solar consumption and performance on an ongoing basis. Keep track of features like maximum charge power, total running days, etc.
Low power consumption
The standby power used by the controller is very low, so it will maximise your overall system efficiency while using minimal power.
User-friendly interface
The controller is highly intuitive, and you’ll find it easy to setup, configure, and mange.
Battery temperature sensor
This sensor monitors the battery temperature for efficient charging, ensuring your system won’t overheat.
LCD Display/LED Indicators
The LCD display with LED indicators lets you see the exact status of your system at a glance. It’s the perfect way to monitor and manage your system in real time.
Optional Remote Display
As an alternative to Bluetooth monitoring, you can keep an eye on your system via the KickAss Remote Display Unit. Monitor and manage your power remotely.
This product is covered by a 3 Year Limited Warranty. Learn more.

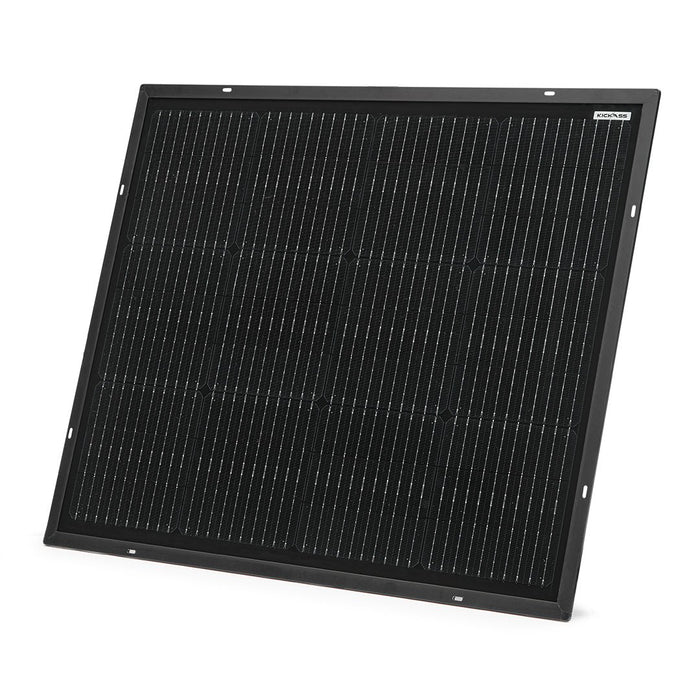

1 x Kickass 80W Ultra Slim Fixed Glass Solar Panel
1 x Kickass 80W Ultra Slim Fixed Glass Solar Panel
The KickAss 80W Ultra Slim Fixed Glass Solar Panel is featherlight, weighing in at only 3.6kg – so it’s absolutely perfect for installing on the roof of your caravan, 4WD or boat. Featuring A-grade monocrystalline PERC cells, it will reliably deliver the maximum amount of energy possible, even in low light or partial shade. With a 2mm tempered glass layer for strength and an ultra-slim aluminium frame that reduces wind resistance, this panel is specially designed to install on the roof of your vehicle. All mounting gear is included, and it comes with a 3 year warranty for peace of mind.
KickAss 80W Ultra Slim Fixed Glass Solar Panel
KickAss Features:
- Lightweight – only 3.6kg
- Ultra thin design
- Monocrystalline PERC cells
- Multi Busbar Technology
- Bypass Diode
- Full Tempered Glass Protection
- Aluminium Alloy Frame
- Series Configuration
- Mounting Brackets & Accessories Included
- 3 year warranty
Super Lightweight
Weighing just 3.6kg, this solar panel is incredibly light, and won’t add extra weight to your vehicle or impact your fuel efficiency.
Ultra thin design
This ultra thin 80W solar panel is a sleek, durable solution or those seeking efficient solar power. It’s perfect for compact spaces, and delivers reliable energy in a lightweight design. Perfect for installing on the roof of your 4WD, trailer or caravan.
Monocrystalline PERC cells
These solar panels combine our KickAss ultra-efficient A-grade monocrystalline solar cells with additional PERC technology. PERC is an innovation which adds an extra layer onto the back of the solar cell. This layer reflects unused light back into the solar cell, which improves efficiency, reduces loss, and puts more energy into your battery.
Multi Busbar Technology
These ultra thin panels are constructed using multiple busbars, meaning that the electrons generated by sunlight have shorter distances to travel before being collected. This reduces resistance and power losses, resulting in higher overall efficiency. If a solar cell is partially damaged, then the multiple busbar technology also means that energy can still be collected by additional busbars, making the overall system extremely durable and resilient.
Bypass Diode
The bypass diode ensures the panels will continue to produce power even when partially shaded. This makes them ideal for rooftop installations, where sunlight conditions may vary.
2mm Thick Full Tempered Glass
The panel features a 2mm protective layer of full tempered glass. This protective layer allows more sunlight in, and also enhances their strength and durability. The perfect balance of durability, efficiency, and streamlined convenience.
Lightweight Aluminium Alloy Frame
The aluminium frame is less than 6mm thick, minimising wind resistance and helping to boost your vehicle’s fuel efficiency. Plus, it keeps your vehicle's overall height low – perfect for streamlined travel.
Series Configuration
If you want even more power, link multiple panels in series to boost your overall output. The panels can handle up to 1500V of direct current – perfect if you want to run the KickAss Quickfire BBQ and Induction Cooktop.
Mounting Gear Included
The KickAss 80W Ultra Slim Fixed Glass Solar Panel comes with Z-shaped mounting brackets and accessories, so you’ll have the gear you need to get it installed.
3 year warranty
We’re so confident in the performance of this product that it comes with a 3-year warranty guarantee – so your investment is protected.
This product is covered by a 3 Year Limited Warranty. Learn more.
1 x KickAss Solar Panel PV to Anderson Solar 5M Extension Cable
1 x KickAss Solar Panel PV to Anderson Solar 5M Extension Cable
Makes installing solar panels a breeze. Specially engineered to be paired with our KickAss DC/DC Charger and KickAss 170W, 250W, or 350W Fixed Glass Solar Panels, this extension cable is completely plug & play. MC4 compatible.
Heavy Duty Twin Core 10B&S Cable
Individually insulated then encased in a smooth PVC outer. Providing added strength.
Pre-Crimped Anderson Terminals For Ease Of Install
Setting up your solar has never been easier with the KickAss Solar Panel PV to Anderson Solar 5M Extension Cable. Can easily be plugged straight into your KickAss DCDC charger on your battery box or on your control or connect directly into your MPPT/PWM Solar controller.
MC4 compatible.
This product is covered by a 1 Year Limited Warranty. Learn more.
