KickAss 12V 80W Ultra Slim Fixed Glass Solar Panel
Pickup available at Acacia Ridge Store
Usually ready in 1 hour
3 Years Warranty
This product is covered by a 3 Year Limited Warranty.

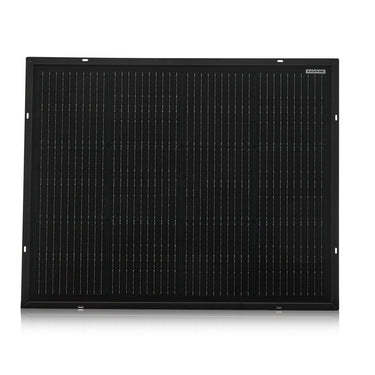

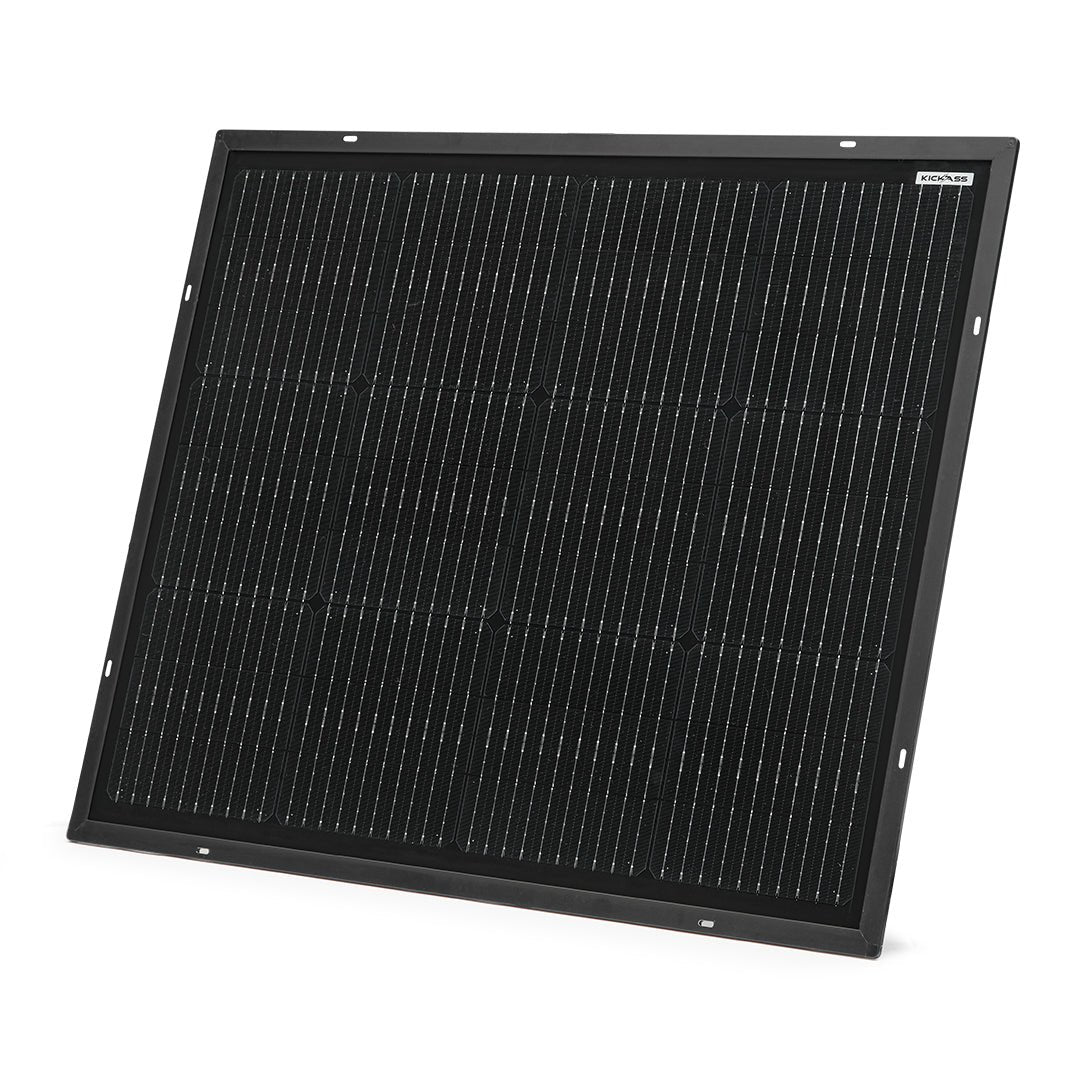

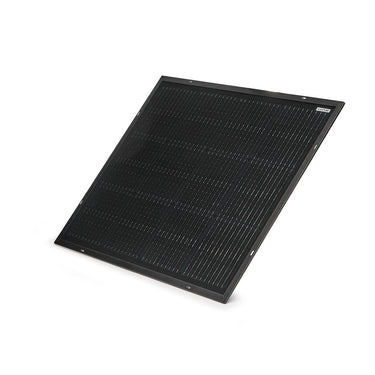

The KickAss 80W Ultra Slim Fixed Glass Solar Panel weighs just 3.6kg – perfect for your 4WD, caravan or boat. Built with A-grade monocrystalline PERC cells, it performs even in low light. The 2mm tempered glass and slim aluminium frame reduce wind resistance. Includes 3-year warranty.

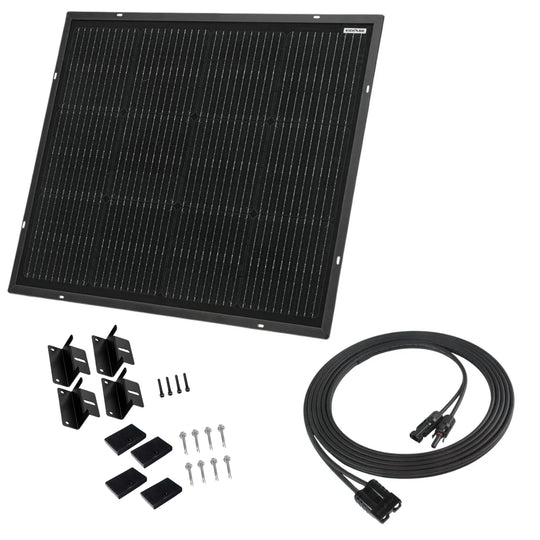

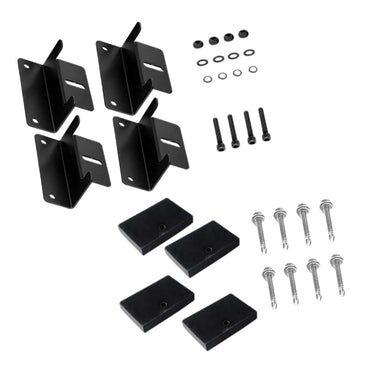

BUNDLE & SAVE!
SPECIFICATIONS
Technical Details
| Cell Type | Monocrystalline PERC |
| Max Power (Pmax) | 80W |
| Open Circuit Voltage (Voc) | 25.07V |
| Short Circuit Current (Isc) | 4.35A |
| Front Glass | 2mm Tempered Glass |
| Frame | Anodised Aluminium Alloy |
| Dimensions | 635 x 795 x 5.9mm |
| Weight | 3.6kg |
| Maximum System Voltage | 500VDC |
| Maximum Series Fuse Rating | 10A |
| Operation Temperature | -40°C – 85°C |
| Nominal Operation Cell Temperature | 42 |
User Manual & Support Docs
| KickAss 12V 80W Ultra Slim Fixed Glass Solar Panel |
Detailed Description
KickAss 80W Ultra Slim Fixed Glass Solar Panel
KickAss Features:
- Lightweight – only 3.6kg
- Ultra thin design
- Monocrystalline PERC cells
- Multi Busbar Technology
- Bypass Diode
- Full Tempered Glass Protection
- Aluminium Alloy Frame
- Series Configuration
- 3 year warranty
Super Lightweight
Weighing just 3.6kg, this solar panel is incredibly light, and won’t add extra weight to your vehicle or impact your fuel efficiency.
Ultra thin design
This ultra thin 80W solar panel is a sleek, durable solution or those seeking efficient solar power. It’s perfect for compact spaces, and delivers reliable energy in a lightweight design. Perfect for installing on the roof of your 4WD, trailer or caravan.

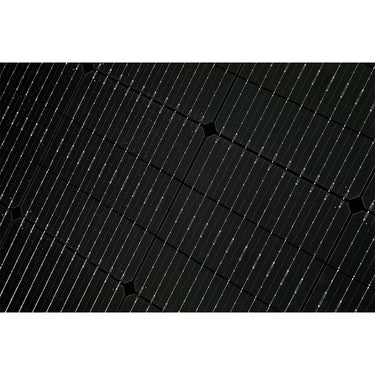

Monocrystalline PERC cells
These solar panels combine our KickAss ultra-efficient A-grade monocrystalline solar cells with additional PERC technology. PERC is an innovation which adds an extra layer onto the back of the solar cell. This layer reflects unused light back into the solar cell, which improves efficiency, reduces loss, and puts more energy into your battery.
Multi Busbar Technology
These ultra thin panels are constructed using multiple busbars, meaning that the electrons generated by sunlight have shorter distances to travel before being collected. This reduces resistance and power losses, resulting in higher overall efficiency. If a solar cell is partially damaged, then the multiple busbar technology also means that energy can still be collected by additional busbars, making the overall system extremely durable and resilient.
Bypass Diode
The bypass diode ensures the panels will continue to produce power even when partially shaded. This makes them ideal for rooftop installations, where sunlight conditions may vary.
2mm Thick Full Tempered Glass
The panel features a 2mm protective layer of full tempered glass. This protective layer allows more sunlight in, and also enhances their strength and durability. The perfect balance of durability, efficiency, and streamlined convenience.

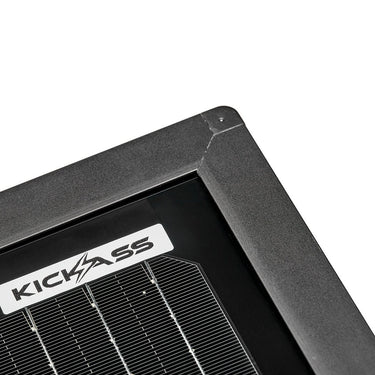

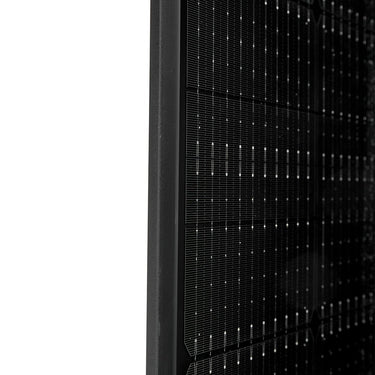

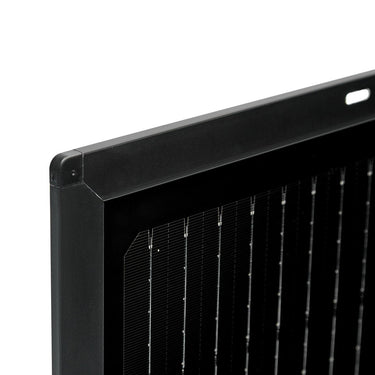

Lightweight Aluminium Alloy Frame
The aluminium frame is less than 6mm thick, minimising wind resistance and helping to boost your vehicle’s fuel efficiency. Plus, it keeps your vehicle's overall height low – perfect for streamlined travel.
Series Configuration
If you want even more power, link multiple panels in series to boost your overall output. The panels can handle up to 1500V of direct current – perfect if you want to run the KickAss Quickfire BBQ and Induction Cooktop.
3 year warranty
We’re so confident in the performance of this product that it comes with a 3-year warranty guarantee – so your investment is protected.
CUSTOMER REVIEWS
Frequently Asked Questions
How much power does the KickAss 12V 80W Ultra Slim Fixed Glass Solar Panel produce and what are its main specifications?
This panel is designed for efficient 12V battery charging with a high module efficiency of 15.8%. Its ultra-slim 5.9mm profile makes it ideal for sleek, space-conscious installations without compromising performance or durability.
Can I connect the KickAss 80W solar panel directly to my 12V battery?
Using a compatible PWM or MPPT charge controller ensures your battery receives the correct voltage and current, optimising charging efficiency and extending battery life. This safety design protects your investment and maximises the panel’s performance.
What type of solar charge regulator should I use with this 80W solar panel?
This compatibility ensures safe and efficient charging. Both PWM and MPPT controllers work well, with MPPT offering higher efficiency in variable sunlight. Choosing the right regulator maximises energy harvest and battery health.
How do I install the KickAss 12V 80W solar panel securely and safely?
Always avoid drilling extra holes to prevent damage or warranty voiding. Before installation, clean the panel surface with a soft, dry cloth to remove dust for optimal performance. Proper installation ensures durability and reliable power generation.
What safety precautions should I follow when handling and installing this solar panel?
The panel complies with international safety standards and is designed for 12V rechargeable batteries only. Following these precautions protects you and your equipment, while the robust tempered glass and aluminium frame provide long-lasting, safe operation.
Is the KickAss 80W solar panel suitable for off-grid and adventure use in harsh environments?
This rugged design ensures consistent power generation in extreme Australian conditions, making it an ideal choice for off-grid power needs, camping, and adventure setups where space and weight are critical.
Can I use multiple KickAss solar panels together for higher power output?
Using identical panels simplifies wiring and maximises efficiency. Proper regulator selection prevents overvoltage or overcurrent issues, allowing you to scale your solar setup confidently for larger off-grid power systems.
How do I maintain the KickAss 12V 80W solar panel to ensure optimal performance?
Proper battery maintenance combined with clean, unobstructed panels ensures you get the best energy harvest. The durable tempered glass and anodised frame also resist environmental wear, helping your panel deliver reliable power for years.
