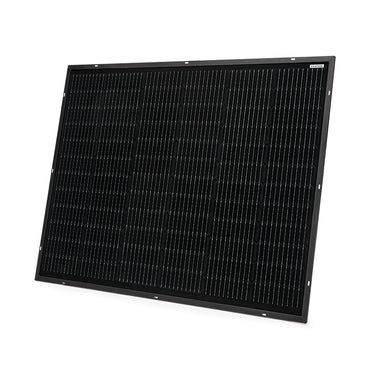

KickAss 12V 170W Ultra Slim Fixed Glass Solar Panel
The KickAss 170W Ultra Slim Fixed Glass Solar Panel weighs just 6.7kg – perfect for your 4WD, caravan or boat. Built with A-grade monocrystalline PERC cells, it performs even in low light. The 2mm tempered glass and slim aluminium frame reduce wind resistance. Includes a 3-year warranty.
Pickup available at Acacia Ridge Store
Usually ready in 1 hour
3 Years Warranty
This product is covered by a 3 Year Limited Warranty.
Description
KickAss 170W Ultra Thin Fixed Glass Solar Panel
KickAss Features:
- Lightweight – 6.7kg
- Ultra thin design
- Monocrystalline PERC cells
- Multi Busbar Technology
- Bypass Diode
- Full Tempered Glass Protection
- Aluminium Alloy Frame
- Series Configuration
- 3 year warranty
Super Lightweight
Weighing just 6.7kg, this solar panel is incredibly light, and won’t add extra weight to your vehicle or impact your fuel efficiency.
Ultra thin design
This ultra thin 170W solar panel is a sleek, durable solution or those seeking efficient solar power. It’s perfect for compact spaces, and delivers reliable energy in a lightweight design. Perfect for installing on the roof of your 4WD, trailer or caravan.
Monocrystalline PERC cells
These solar panels combine our KickAss ultra-efficient A-grade monocrystalline solar cells with additional PERC technology. PERC is an innovation which adds an extra layer onto the back of the solar cell. This layer reflects unused light back into the solar cell, which improves efficiency, reduces loss, and puts more energy into your battery.
Multi Busbar Technology
These ultra thin panels are constructed using multiple busbars, meaning that the electrons generated by sunlight have shorter distances to travel before being collected. This reduces resistance and power losses, resulting in higher overall efficiency. If a solar cell is partially damaged, then the multiple busbar technology also means that energy can still be collected by additional busbars, making the overall system extremely durable and resilient.
Bypass Diode
The bypass diode ensures the panels will continue to produce power even when partially shaded. This makes them ideal for rooftop installations, where sunlight conditions may vary.
2mm Thick Full Tempered Glass
The panel features a 2mm protective layer of full tempered glass. This protective layer allows more sunlight in, and also enhances their strength and durability. The perfect balance of durability, efficiency, and streamlined convenience.
Lightweight Aluminium Alloy Frame
The aluminium frame is less than 6mm thick, minimising wind resistance and helping to boost your vehicle’s fuel efficiency. Plus, it keeps your vehicle's overall height low – perfect for streamlined travel.
Series Configuration
If you want even more power, link multiple panels in series to boost your overall output. The panels can handle up to 1500V of direct current – perfect if you want to run the KickAss Quickfire BBQ and Induction Cooktop.
3 year warranty
We’re so confident in the performance of this product that it comes with a 3-year warranty guarantee – so your investment is protected.
Specifications
| Cell Type | Monocrystalline PERC |
| Max Power (Pmax) | 170W |
| Open Circuit Voltage (Voc) | 24.62V |
| Short Circuit Current (Isc) | 8.78A |
| Front Glass | 2mm Tempered Glass |
| Frame | Anodised Aluminium Alloy |
| Dimensions | 830 x 1155 x 5.9mm |
| Weight | 6.7kg |
| Maximum System Voltage | 1500VDC |
| Maximum Series Fuse Rating | 15A |
| Operation Temperature | -40°C – 85°C |
| Nominal Operation Cell Temperature | 42 |
