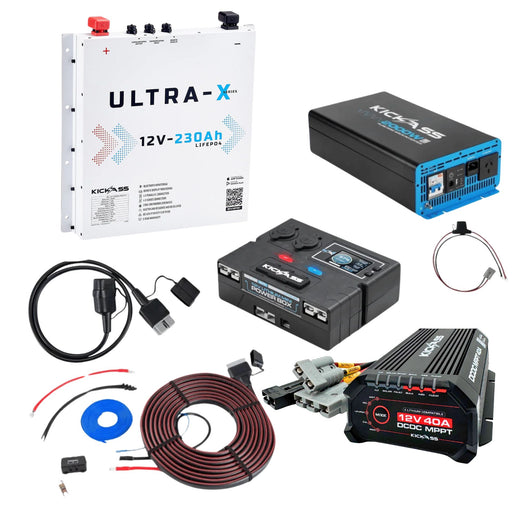

KickAss Smart Ultra-X 12V 230Ah Slimline Lithium Complete Dual Battery Kit - Arctic White with 2000W Inverter, 40A DCDC Charger, Control Box, Wiring

KickAss 12V to 240V Pure Sine Wave 2000W Inverter Feature Overview

2000W Continuous Output

Plenty of power to run all your AC essentials while on the move—induction cooktops, coffee machines, battery chargers for your power tools, and more.

Pure Sine Waveform

Delivers a clean and reliable sine wave output that replicates the AC signal from a home power point. Unlike modified sine wave inverters, the KickAss Pure Sine Wave Inverter is ideal for running sensitive electronics such as laptops, Starlink systems, and CPAP machines.

AC Automatic Transfer Switch

Simplify your off-grid setup with the integrated Automatic Transfer Switch. Power your AC devices from your battery bank, then seamlessly switch to mains power by plugging in the AC input cable. If mains power drops out, the inverter automatically switches back to battery power without interruption.

Multiple Protective Features

Multi-level safety protection uses both software and hardware safeguards to protect you, your inverter, and your devices. The system continuously monitors operation and automatically enters protection mode if necessary. Integrated Residual Current Devices (RCD) and Circuit Breakers (CB) provide added hardware protection, making it suitable for commercial and domestic use.

Optional Remote Control Display (Not Included in Base Version)

Enhance your setup with the optional remote display, allowing you to monitor and manage power usage remotely. The flush-mountable screen is low-profile and ideal for installation near your camp kitchen. It includes an integrated on/off switch for conserving battery power when the inverter is not in use.

Note: Only compatible with the blue KickAss remote inverter screen.

Powerful 40A Dual Battery Charging

With a high 40A output, this charger is perfect for keeping larger lithium and lead acid battery systems topped up and ready for action. It ensures fast, safe charging for demanding off-road or touring applications.

Bluetooth Monitoring & App Control

Connect your charger to your smartphone via Bluetooth to monitor performance in real time. The KickAss App gives you complete visibility over charging status, voltages, current flow, and system alerts – all from your pocket.

Simple Plug & Play Installation

Thanks to Anderson-style connectors, installation is quick and hassle-free with no complex wiring required. It’s designed for DIY setups and easy integration into your existing system.

Dual Input: Alternator & Solar Charging

Charge from your vehicle’s alternator while driving or connect a solar panel when stationary – this charger handles both. Its built-in MPPT solar regulator ensures maximum efficiency when using solar input.

Built for Aussie Conditions

Rated IP66, the KickAss 40A DCDC Charger is waterproof, dustproof, and rugged enough to handle corrugated tracks, extreme heat, and remote adventures. It’s built tough for Australian conditions.

Compatible with 12V & 24V Alternators

Highly versatile, this charger is compatible with both 12V and 24V alternators, making it suitable for a wide range of vehicle types including trucks, commercial vehicles, and 4WDs.

Adjustable Max Input Current – Hybrid Compatible

The maximum input current can be configured via the Bluetooth app, allowing the charger to limit the draw from your vehicle’s alternator, without reducing the maximum charge current when charging from solar. This makes it ideal for some hybrid vehicles or those with low-output alternators, helping prevent overload and ensuring stable, efficient charging without placing strain on your electrical system.

Smart Alternator Ready

Modern vehicles with smart alternators are no problem. The unit supports both smart and fixed-voltage alternators and includes an ignition trigger wire to start or stop charging based on engine status.

Lithium Battery Compatible

Fully lithium-ready, this charger includes an automatic lithium wakeup function that can safely restore LiFePO4 batteries from low voltage protection or sleep mode – no manual intervention needed.

Advanced Multi-Stage Charging

Precision charging algorithms help extend the life of your auxiliary battery. The charger delivers multi-stage charging tailored to the battery type, helping maintain peak performance over the long haul.

Starter Battery Isolation

To protect your starting battery, the charger only delivers current to your auxiliary battery when the engine is running, and automatically disconnects when the vehicle is off – eliminating unwanted drain.

Supports Multiple Battery Chemistries

Whether you’re using lithium, AGM, wet, gel, or calcium batteries, this charger has you covered. It’s a versatile solution designed to support a wide range of battery types.

Perfect for 4WDs, caravans, camper trailers, and off-grid touring setups, the KickAss 40A DCDC Charger with Solar MPPT and Bluetooth delivers intelligent charging for serious adventurers.

Power up to 10 Devices Simultaneously

The KickAss 12V Mini Power Box distributes power from your auxiliary battery to up to 10 different devices at once. Built with 6 x USB ports, 2 x 12V cigarette sockets, and 2 x Anderson input/output ports, it can power phones, tablets, 12V fridges, ovens, vacuum sealers, projectors, and more.

4 x USB Ports Featuring USB-C & QC3 Ports

Enjoy fast charging with USB-C and QC3 (Quick Charge 3.0) ports. Charge up to 6 USB devices simultaneously—perfect for phones, tablets, and other devices.

2 x Anderson Input/Outputs – Charge from Solar

Use the Anderson connectors to run 12V appliances or charge your auxiliary battery from regulated solar panels with quick-connect convenience.

Built-in 3-Stage LED Light

Includes a handy 3-stage LED light—ideal when you need illumination in a pinch and can’t find your torch or phone.

Multiple Mounting Options

Two convenient mounting points make it easy to install in your canopy, camper, or caravan.

Anti-Slip Rubber Feet

Rubber feet prevent the box from sliding and protect surfaces from scratches.

Protective Dust Cover & Anderson Cable Cover

Protect your ports with the USB dust cover and safeguard your Anderson cable from dust and disconnection with the protective end cover.

Warning: A battery must be connected before connecting a regulated solar panel. Disconnect the panel before disconnecting the battery. Failure to follow this may void your warranty.

Note: This unit is not waterproof and should not be mounted outside. It is not a standalone power source—must be connected to a battery or power supply.

Product Compatibility: This control box is only compatible with KickAss Smart or Ultra-X batteries. It is not compatible with other brands. KickAss will not cover restocking costs for incompatibility-related change of mind returns.

This 3-pin Anderson-style connector with built-in ignition wire makes connecting your 12V dual battery system easy. Perfect for wiring DC/DC chargers, battery boxes & auxiliary batteries.

KickAss Features:

• Ultra compact, slimline design
• Supporting Bluetooth app
• BMS with multiple safety features
• Connect in parallel or series
• Monitor your battery bank remotely
• 230Ah usable capacity
• 230A continuous charge & discharge with 460A pulse capacity
• 4000+ Cycles @ 80% DoD 0.5C
• Metal case with integrated mounting points
• Australian Safety Certified
• Designed & developed in Australia

Ultra Compact, Slimline Design

The ultra-compact, slimline design is ideal for those who have minimal space but need maximum power. Measuring only 500mm x 510mm x 70mm, this compact powerhouse is perfect for installing in canopies, under false floors in caravans, behind seats, and anywhere where space is tight. This KickAss battery delivers big power in a small package.

Supporting Bluetooth App

No more guesswork – stay in control of your power system by using the supporting Bluetooth app. Monitor critical battery parameters such as SoC, level, voltage, current, temperature, and real-time system alerts right from your smartphone. Having real-time data at your fingertips ensures optimal performance and peace of mind during all your off-grid adventures.

BMS with Multiple Safety Features

The KickAss 12V 230Ah Deep Cycle Lithium Battery is equipped with an advanced Battery Management System (BMS) that ensures safety and reliability. The BMS actively monitors and protects the battery from common issues such as overcharging, over-discharging, short circuits, and overheating, ensuring safe operation at all times.

Create a Battery Bank with Over 900Ah of Usable Capacity

These batteries support parallel and series configurations for maximum versatility. Link up to four in parallel to create a massive battery bank with over 900Ah of usable capacity, delivering serious power for extended off-grid use. This capability allows you to tailor your power setup to your exact needs.

Monitor Your Battery Bank Remotely

Monitoring multiple batteries in a series or parallel setup usually requires an external shunt, but these batteries eliminate that need. Simply connect each Ultra-X series battery using an RJ45 cable, and the optional KickAss Remote Display Unit (RDU) will seamlessly interface with the entire battery bank. Alternatively, use the supporting Bluetooth app for system monitoring without additional hardware.

230Ah Usable Capacity

With 230Ah of usable capacity, the KickAss 12V Deep Cycle Lithium Battery offers an abundance of power for extended off-grid adventures. This large capacity means you can run devices and appliances for longer periods without frequent recharges.

230A Continuous Charge & Discharge with 460A Pulse Capacity

This battery delivers exceptional performance with its 230A continuous charge and discharge capability, ensuring a steady and reliable flow of power for demanding applications. The impressive 460A pulse capacity allows it to handle sudden power surges, making it incredibly versatile.

4000+ Cycles @ 80% DoD 0.5C

Designed for longevity, this battery offers over 4000 charge and discharge cycles at 80% Depth of Discharge (DoD) and a 0.5C charge/discharge rate. This durability ensures a long-lasting, high-performance battery for years to come.

Metal Case with Integrated Mounting Points

The durable metal housing with integrated mounting points eliminates the need for a separate battery tray. The heavy-duty metal casing not only protects the battery from the elements and rough conditions but also makes installation easier and more secure.

Extend the reach of your 12V devices with ease using the KickAss 8B&S 1 Metre Extension Lead. Featuring heavy-duty 8B&S twin core cable and Anderson style connectors, this extension ensures minimal voltage drop for a reliable and secure connection. Built with a smooth PVC outer for added durability and resistance to grease, oil, and acids, it's the perfect accessory for uncompromising performance.

KickAss MAXI Fuse Anderson Cable

The KickAss MAXI Fuse Anderson Cable is the perfect solution for connecting a battery to virtually any device. It offers superior circuit protection through an inline 80A MAXI Fuse, safeguarding against short circuits and potential system damage.

With a purpose-designed length, this cable easily reaches vehicle starting batteries and integrates seamlessly with dual battery setups. The built-in weatherproof MAXI Fuse holder simplifies installation, eliminating the need for mounting traditional fuse holders or circuit breakers.

One end of the cable features a 50 Amp Anderson style connector for effortless connection to battery boxes, solar panels, or other compatible devices. The other end includes high-quality 8mm ring terminals for secure battery attachment. A spare 80A MAXI Fuse is included for added convenience.

Features:

• In-line weatherproof MAXI Fuse holder with 80A MAXI Fuse
• Length: 750mm
• Cable type: Twin 8B&S (7.71mm²) Red/Black Sheathed
• 1 x 80A MAXI Fuse pre-installed in holder
• 1 x 80A MAXI Fuse spare
• 8mm ring terminals

See links below for replacement fuses:

Spare 50A MAXI Fuse - Red
