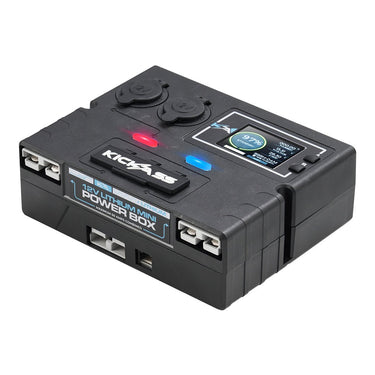

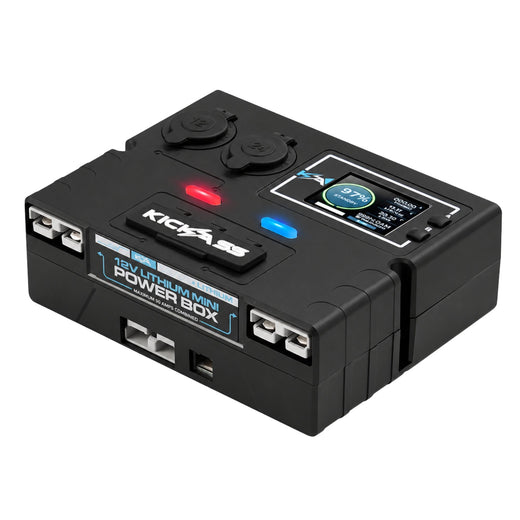

KickAss 12V Control Box & Battery Monitor - with LCD Screen

KickAss 12V Control Box & Battery Monitor - with LCD Screen

Support Page User Manual Previous Model

Power up to 10 Devices Simultaneously

The KickAss 12V Mini Power Box distributes power from your auxiliary battery to up to 10 different devices at once. Built with 6 x USB ports, 2 x 12V cigarette sockets, and 2 x Anderson input/output ports, it can power phones, tablets, 12V fridges, ovens, vacuum sealers, projectors, and more.

4 x USB Ports Featuring USB-C & QC3 Ports

Enjoy fast charging with USB-C and QC3 (Quick Charge 3.0) ports. Charge up to 6 USB devices simultaneously—perfect for phones, tablets, and other devices.

2 x Anderson Input/Outputs – Charge from Solar

Use the Anderson connectors to run 12V appliances or charge your auxiliary battery from regulated solar panels with quick-connect convenience.

Built-in 3-Stage LED Light

Includes a handy 3-stage LED light—ideal when you need illumination in a pinch and can’t find your torch or phone.

Multiple Mounting Options

Two convenient mounting points make it easy to install in your canopy, camper, or caravan.

Anti-Slip Rubber Feet

Rubber feet prevent the box from sliding and protect surfaces from scratches.

Protective Dust Cover & Anderson Cable Cover

Protect your ports with the USB dust cover and safeguard your Anderson cable from dust and disconnection with the protective end cover.

Warning: A battery must be connected before connecting a regulated solar panel. Disconnect the panel before disconnecting the battery. Failure to follow this may void your warranty.

Note: This unit is not waterproof and should not be mounted outside. It is not a standalone power source—must be connected to a battery or power supply.

Product Compatibility: This control box is only compatible with KickAss Smart or Ultra-X batteries. It is not compatible with other brands. KickAss will not cover restocking costs for incompatibility-related change of mind returns.

The KickAss 12V Control Box can power up to 10 devices simultaneously through 6 USB ports, 2 x 12V cigarette sockets, and 2 x Anderson input/output ports, with a maximum combined current of 50 amps. This allows you to run or charge phones, tablets, 12V fridges, ovens, and more all at once. Its smart circuit protection ensures your devices and battery stay safe while delivering reliable power for your off-grid adventures.

The LCD screen is only compatible with KickAss Smart and Ultra-X lithium batteries. This compatibility enables real-time monitoring of battery voltage, current, temperature, and system health via the RJ45 data cable included. Using it with these batteries ensures accurate battery status display and integrated lithium BMS alarm modes for enhanced safety and performance.

To install, mount the control box securely on a firm, flat surface inside your canopy, camper, or caravan using the two mounting points. Connect the control box to your KickAss lithium battery via an Anderson socket using a suitable Maxi Fuse cable (not included), then connect the supplied 5-metre RJ45 data cable between the battery and control box for LCD monitoring. Finally, power on the battery and test the USB or 12V sockets to confirm operation.

The control box features smart circuit protection with fuses and a resettable 50A breaker to safeguard your battery and connected devices. It includes voltage, current, temperature, and short circuit protection, plus lithium BMS alarm modes for KickAss lithium batteries. These built-in safety measures ensure reliable operation and protect against overload, overheating, and electrical faults.

Yes, the control box includes 4 USB-A ports (5V/2.1A each), 1 USB-C1 port supporting Power Delivery (PD) at 9V/2A or 12V/1.5A, and 1 USB-C2 port with Quick Charge 3.0 (QC 3.0) at 9V/2A or 12V/1.5A. This allows you to fast charge up to 6 USB devices simultaneously, making it ideal for powering phones, tablets, and other USB-powered gear efficiently.

The control box includes an under-voltage protection feature that prevents battery damage by automatically disconnecting loads when voltage drops below safe levels. You can release this protection via the LCD screen if needed. This design helps extend battery life while giving you control over power management during low-voltage situations.

Use a Maxi Fuse cable with an Anderson plug (not included) matched to your battery’s capacity and expected current draw, keeping cable runs as short as possible to reduce voltage drop. Ensure all plugs and connectors are fully seated and free of dust or debris. Proper cable selection and connection ensure safe, efficient power delivery and protect your equipment.

Yes, the control box weighs only 0.5kg and measures 180 x 58 x 120 mm, making it compact and portable. Its anti-slip rubber feet and protective dust covers add durability and ease of use. This design allows you to easily relocate the unit between vehicles, campers, or workstations, providing versatile power management wherever you go.
