Developed & Manufactured In-House
KickAss ULTRA-X Lithium Batteries are developed and manufactured in-house at our own battery factory, giving us complete quality control.

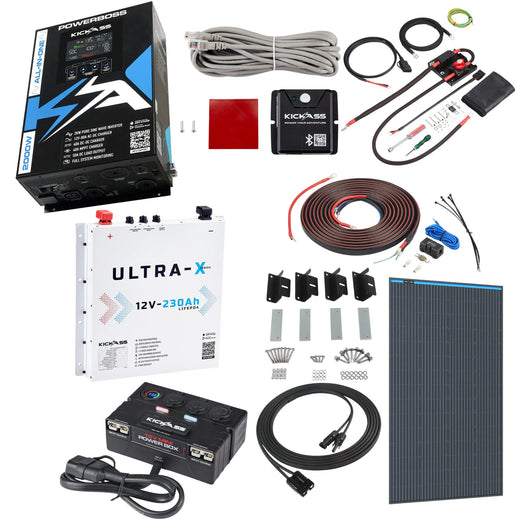

KickAss PowerBoss 2000W Off-Grid System with Bluetooth, Alternator Wiring Kit, 230Ah Arctic White Lithium Battery & Power Accessories
$
3397
In stock
Fast Dispatch
30 Day Returns
BONUS $100 KickAss Credit
EOFYS Special Offer, instant credit back!

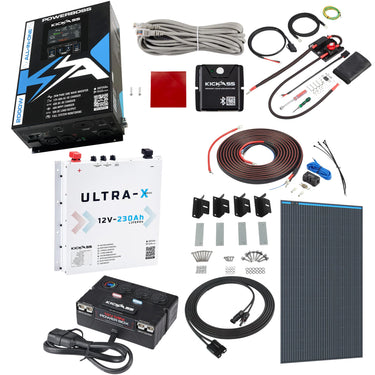

Included in this kit
Pickup available at Acacia Ridge Store
Usually ready in 1 hour
Why Choose ULTRA-X?
Built, tested and supported by Australia’s off-grid adventure specialists.
Tested In-House & Proven in the Field
Every KickAss lithium battery is rigorously tested in-house and in real off-grid conditions, and certified to meet the highest Australian standards.
5 Year Full Warranty
Backed by a 5 year full warranty and serviced Australia-wide for total peace of mind.
Built for Safety & Performance
A-grade prismatic cells and an intelligent BMS deliver dependable power with integrated safety protection.
Lifetime Customer Support
Get ongoing support online, in-store, or through our Australia-wide network of 150+ installers.
WHAT'S INCLUDED?
Everything that is included in this KickAss kit!
1 x KickAss PowerBoss to Alternator Wiring Kit (6.5m)
1 x KickAss PowerBoss to Alternator Wiring Kit (6.5m)
The 6.5m cable supports plug and play connection between the PowerBoss and the vehicle's alternator. The 3-core cable is comprised of 2 x 6AWG power conductors and a 14 AWG IGN wire.
Plug and Play Wiring Kit Alternator to PowerBoss: Quickly connect the PowerBoss directly to your vehicle's alternator for a seamless power supply.
Pre-Crimped Terminals: All terminations are pre-crimped, ensuring a fast and straightforward installation without the need for additional tools.
80A Midi Fuse: Includes an 80A midi fuse housed in a weatherproof casing, making it perfect for under bonnet installation.
Premium Heavy Duty Cable: Features heavy duty 6AWG cable for reliable, high-capacity performance.
1 x KickAss PowerBoss
1 x KickAss PowerBoss

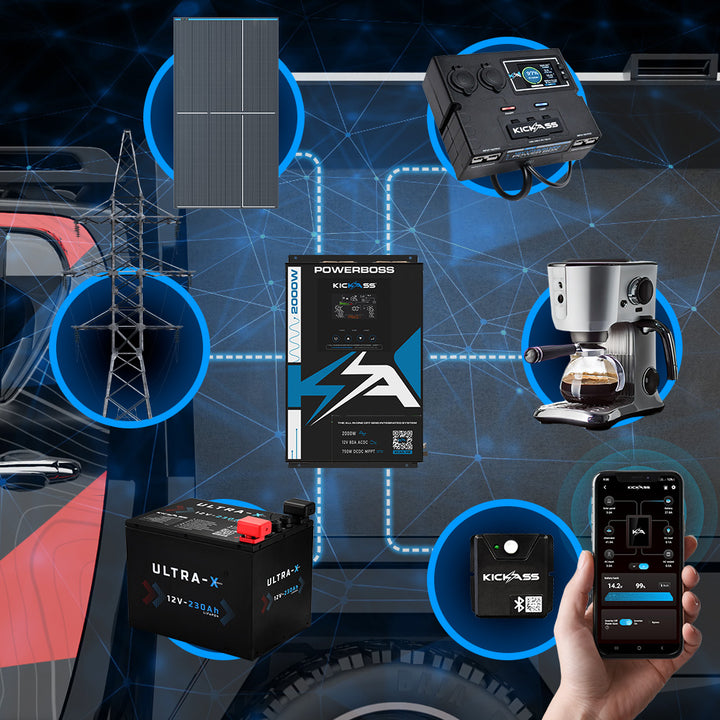

All-in-one, ultra-compact off-grid solution
One single, compact solution that does everything for you. An inverter, DCDC MPPT charger, AC charger + DC load monitoring, all in one unit. No fiddly installations required.

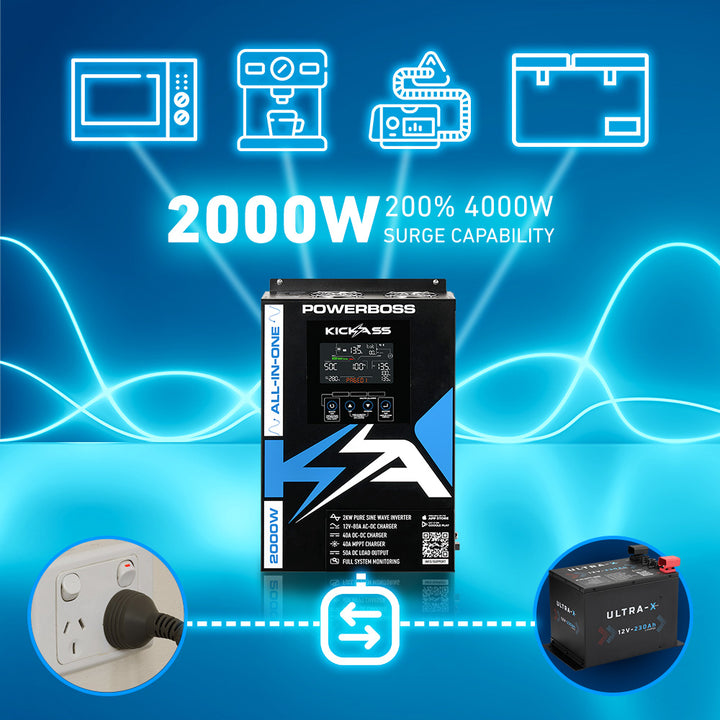

2000W Inverter with Automatic Transfer Switch
Delivers a clean, pure sine wave. It’s safe for sensitive electronics, and has a 200% surge capacity lasting 5 seconds – perfect for devices with a high inrush current. Seamlessly transition between the inverter and AC bypass modes using the Automatic Transfer Switch.

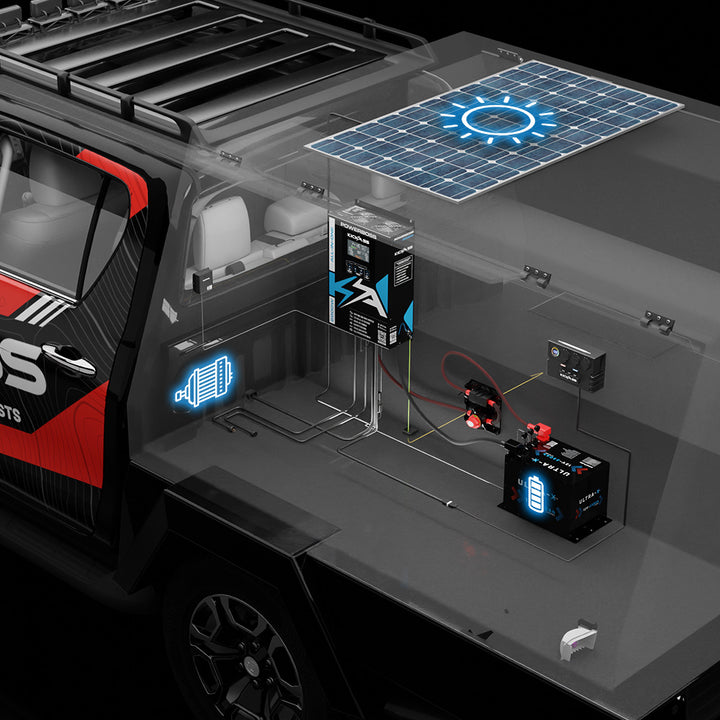

40A DCDC+MPPT Charger
The built-in 40A DCDC MPPT charger delivers a solid 40A output. Charge your battery system from your vehicle’s alternator, or harness solar energy via its high-input MPPT controller.

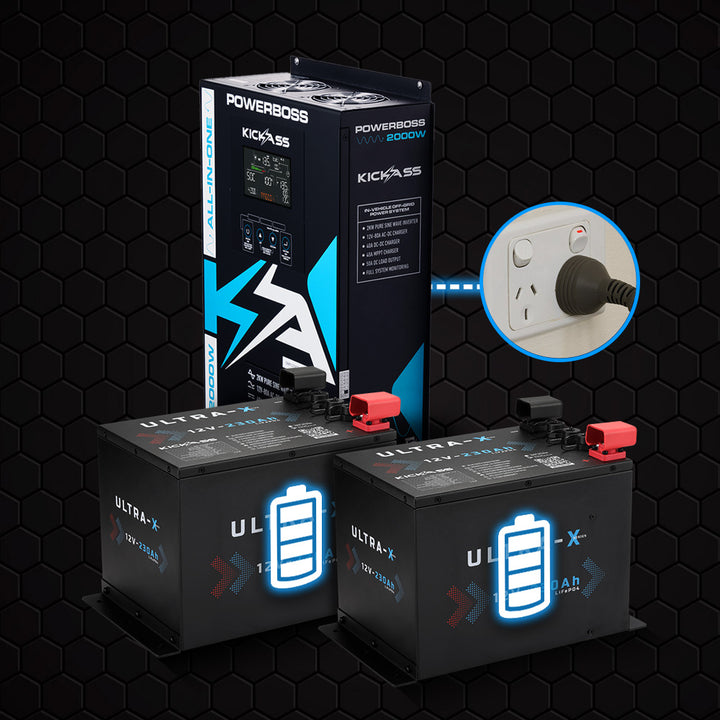

80A ACDC Charger
The powerful 80A ACDC charger will recharge your battery bank in record time – just plug, play, and charge, no wiring required.

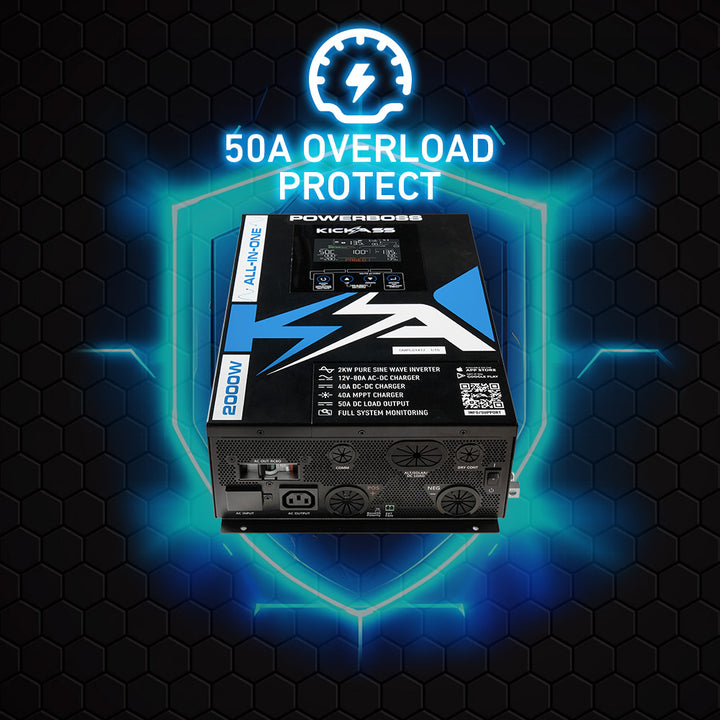

50A DC Load Monitoring
Control your off-grid power with the 50A overload-protected DC output. Real-time load monitoring lets you keep an eye on your power usage, so you can maximise battery efficiency.

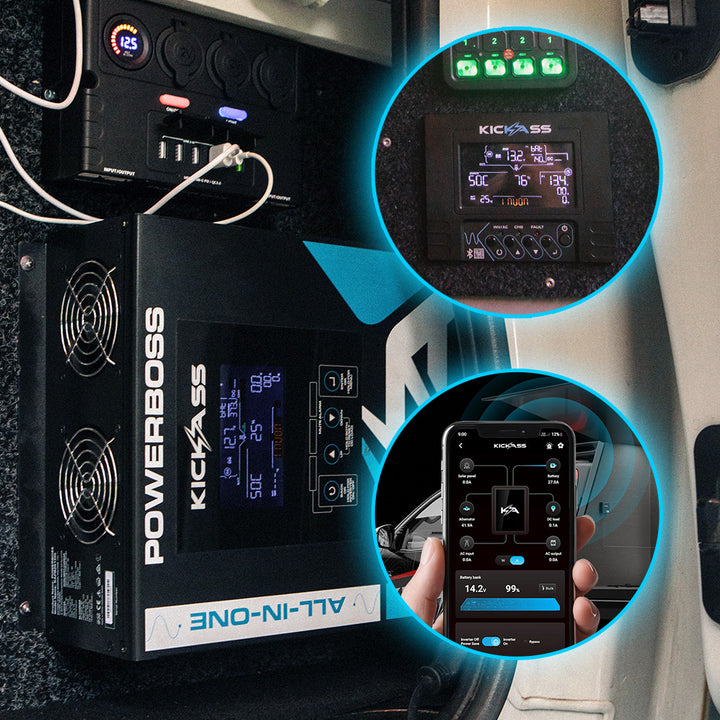

Local and Remote Monitoring Options
Hands-free system monitoring. The Power Boss remote display provides all the essential details you need at a glance, keeping you informed effortlessly.

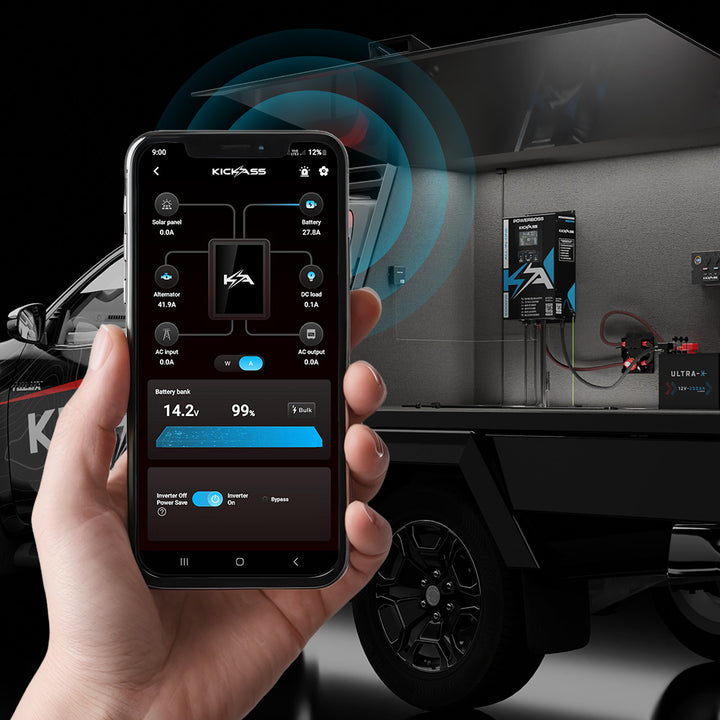

Bluetooth monitoring & control
You can track power usage in real-time and make adjustments via the Bluetooth app on your smartphone, or the Bluetooth-enabled Remote Display Unit. Whether you check the integrated LED screen or monitor remotely, you’ll always have the info you need.

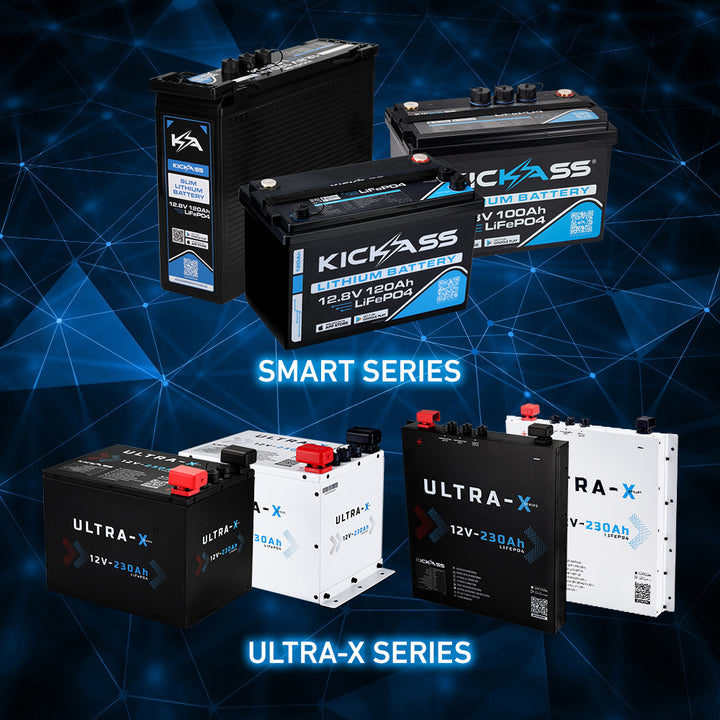

KickAss battery integration
Specifically designed to be paired with KickAss Smart Lithium Batteries and KickAss Ultra-X Lithium Batteries, the Powerboss provides real-time State Of Charge (SOC) updates & system alerts.

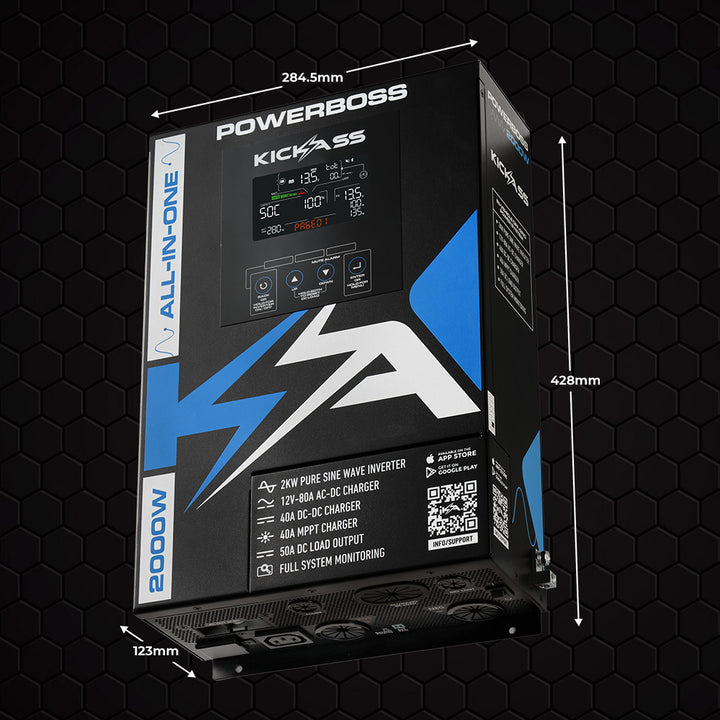

Ultra Compact
At only 278mm x 120mm x 400mm and 9.85kg, the Power Boss is the ultimate compact system for your installation.

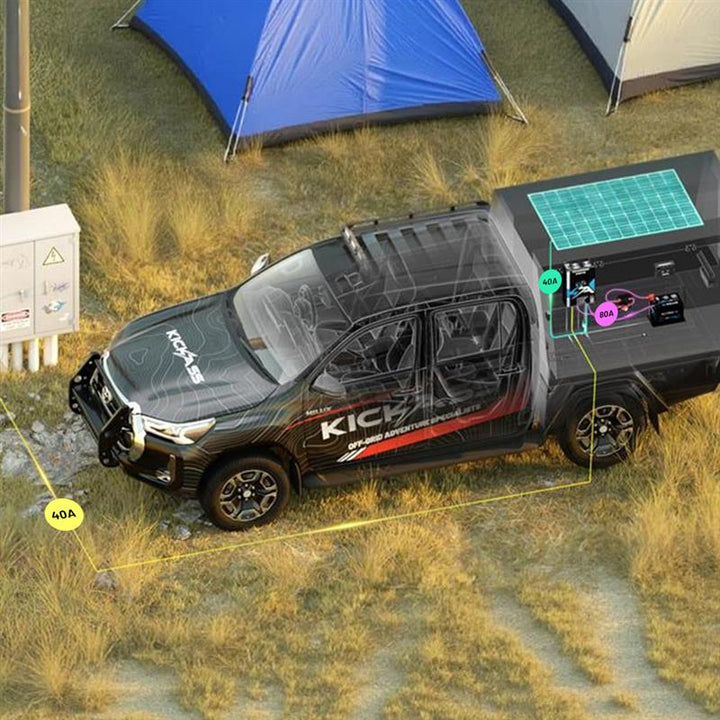

Simultaneous AC & Solar Charging
Harness solar energy when it’s available, and supplement it with AC power for even faster charging.

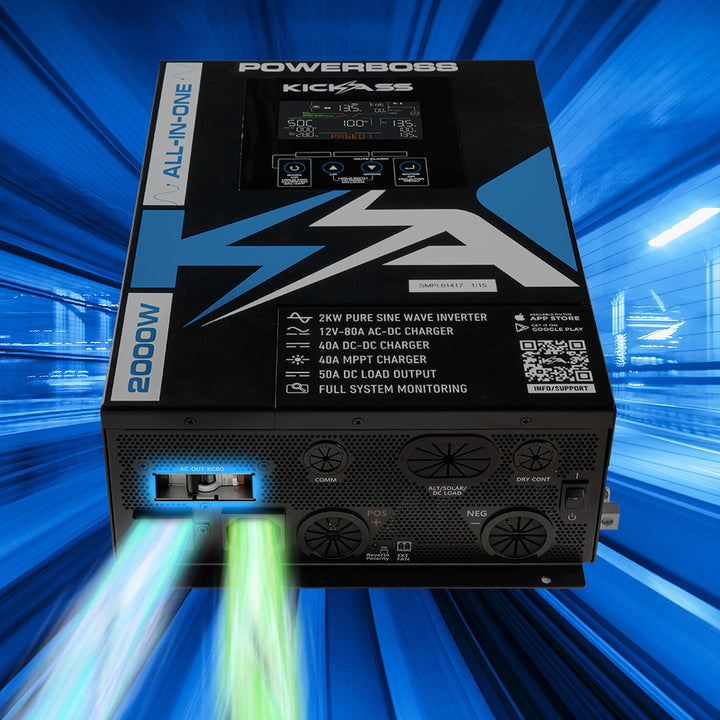

Plug & Play 240A AC Installation
The Powerboss is fully certified for plug-and-play installation thanks to the integrated Residual Current Circuit Breaker (RCBO). Connect the IEC connectors for your AC power supply, and you’re set.

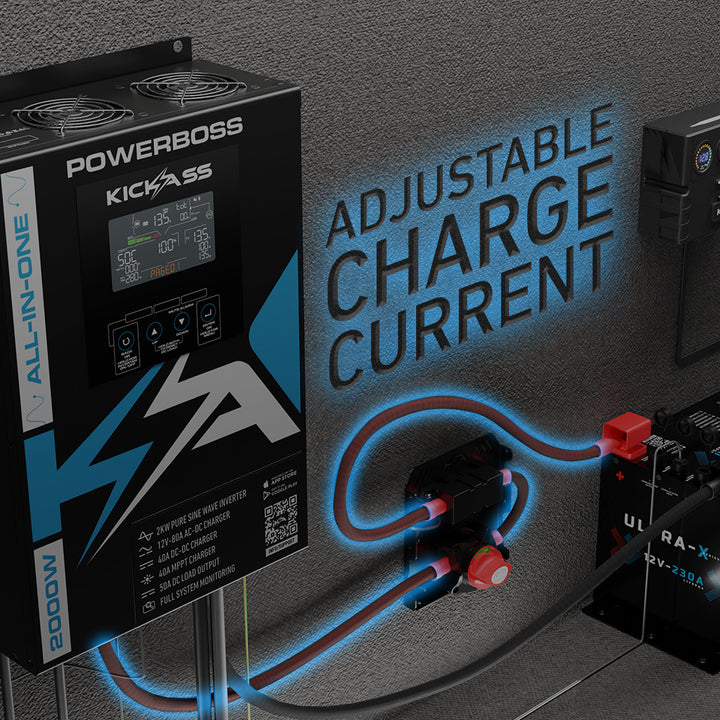

Adjustable Charge Current
Tailor your power settings with adjustable maximum battery charge current and independent control of alternator charge current. Optimise the output to match your system's needs, and reduce the load when necessary to protect your alternator.

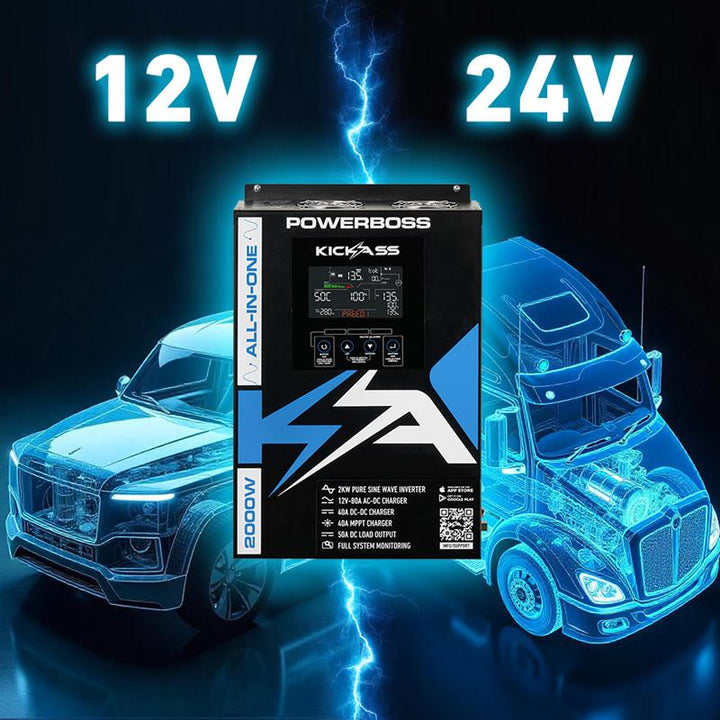

12V / 24V Alternator Input
Supporting both 12V and 24V alternators, the Power Boss is your all-in-one solution for 4WDs, vans, motorhomes, and commercial vehicles.
An all-in-one off grid plug and play solution with a 2kW Inverter with automatic transfer switch, 40A DCDC-MPPT charger, 80A ACDC charger with DC load monitoring.
Revolutionise your off-grid adventures with the KickAss PowerBoss, the flagship all-in-one power system designed for canopies, 4WDs, campervans, motorhomes, vans, and work trailers. Combining a 2000W pure sine wave inverter, 80A ACDC charger, 40A DCDC MPPT charger, and 50A DC load monitoring, this ultra-compact unit offers unparalleled convenience and efficiency. With Bluetooth monitoring, seamless integration with KickAss Smart Lithium and Ultra-X batteries the PowerBoss makes complex setups a thing of the past. Featuring plug-and-play installation, simultaneous AC and solar charging, and advanced customisation options, the PowerBoss is the all-in-one unit that will take your setup to the next level.
1 x KickAss PowerBoss - BT Remote Module
1 x KickAss PowerBoss - BT Remote Module
The KickAss PowerBoss Bluetooth Module enables connection between the PowerBoss and a mobile device, to deliver maximum monitoring and control. The Bluetooth Module has a single system on/off switch for easy access when shutting down or powering up your system.
The Bluetooth Module for PowerBoss enables seamless communication with your PowerBoss device from your mobile device. Designed for plug-and-play installation, it connects easily via the supplied RJ45 connector - no additional setup needed. Featuring an integrated hardware switch, the module allows you to conveniently power the system on and off.
1 x KickAss Smart 12V 230Ah Ultra-X Lithium Slimline Deep Cycle Battery LiFePO4 - Arctic White
1 x KickAss Smart 12V 230Ah Ultra-X Lithium Slimline Deep Cycle Battery LiFePO4 - Arctic White
The KickAss 12V 230Ah Slimline Lithium Battery in Arctic White delivers serious power in a sleek, space-saving design. Boasting 230Ah of usable capacity, Bluetooth monitoring, and the ability to connect in series or parallel, it’s ideal for demanding off-grid setups. With 4000+ cycles at 80% DoD and a built-in BMS for reliable safety protection, you can link up to four for a massive 920Ah system.
KickAss Features:
- Ultra compact, slimline design
- Supporting Bluetooth app
- BMS with multiple safety features
- Connect in parallel or series
- Monitor your battery bank remotely
- 230Ah usable capacity
- 230A continuous charge & discharge with 460A pulse capacity
- 4000+ Cycles @ 80% DoD 0.5C
- Metal case with integrated mounting points
- Australian Safety Certified
- Designed & developed in Australia
Ultra Compact, Slimline Design
The ultra-compact, slimline design is ideal for those who have minimal space but need maximum power. Measuring only 500mm x 510mm x 70mm, this compact powerhouse is perfect for installing in canopies, under false floors in caravans, behind seats, and anywhere where space is tight. This KickAss battery delivers big power in a small package.
Supporting Bluetooth App
No more guesswork – stay in control of your power system by using the supporting Bluetooth app. Monitor critical battery parameters such as SoC, level, voltage, current, temperature, and real-time system alerts right from your smartphone. Having real-time data at your fingertips ensures optimal performance and peace of mind during all your off-grid adventures.
BMS with Multiple Safety Features
The KickAss 12V 230Ah Deep Cycle Lithium Battery is equipped with an advanced Battery Management System (BMS) that ensures safety and reliability. The BMS actively monitors and protects the battery from common issues such as overcharging, over-discharging, short circuits, and overheating, ensuring safe operation at all times.
Create a Battery Bank with Over 900Ah of Usable Capacity
These batteries support parallel and series configurations for maximum versatility. Link up to four in parallel to create a massive battery bank with over 900Ah of usable capacity, delivering serious power for extended off-grid use. This capability allows you to tailor your power setup to your exact needs.
Monitor Your Battery Bank Remotely
Monitoring multiple batteries in a series or parallel setup usually requires an external shunt, but these batteries eliminate that need. Simply connect each Ultra-X series battery using an RJ45 cable, and the optional KickAss Remote Display Unit (RDU) will seamlessly interface with the entire battery bank. Alternatively, use the supporting Bluetooth app for system monitoring without additional hardware.
230Ah Usable Capacity
With 230Ah of usable capacity, the KickAss 12V Deep Cycle Lithium Battery offers an abundance of power for extended off-grid adventures. This large capacity means you can run devices and appliances for longer periods without frequent recharges.
230A Continuous Charge & Discharge with 460A Pulse Capacity
This battery delivers exceptional performance with its 230A continuous charge and discharge capability, ensuring a steady and reliable flow of power for demanding applications. The impressive 460A pulse capacity allows it to handle sudden power surges, making it incredibly versatile.
4000+ Cycles @ 80% DoD 0.5C
Designed for longevity, this battery offers over 4000 charge and discharge cycles at 80% Depth of Discharge (DoD) and a 0.5C charge/discharge rate. This durability ensures a long-lasting, high-performance battery for years to come.
Metal Case with Integrated Mounting Points
The durable metal housing with integrated mounting points eliminates the need for a separate battery tray. The heavy-duty metal casing not only protects the battery from the elements and rough conditions but also makes installation easier and more secure.
1 x KickAss 12V 170W Fixed Solar Panel, Glass Roof Top
1 x KickAss 12V 170W Fixed Solar Panel, Glass Roof Top
KickAss 12V 170W Fixed Glass Solar Panel, built with A-grade monocrystalline cells. Generates power even when partially shaded, resistant to hail, stones and accidental knocks.
Glass Top Rooftop 12V Solar Panel 170W
Bypass Diode
The bypass diode will maintain the solar panel's output in the event the cells are partially shaded. This technology enables superior performance by ensuring a more consistent supply of power, ideal for mounting to rooftops.
Perfect Sizing for Roof Top Mounting
The KickAss Engineering team has designed these panels to be the perfect dimensions for vehicle mounting on your 4WD, caravan, or trailer.
Permanent Power Solution
Elevate your 12V setup to the next level with the new KickAss 170W Fixed Solar Panel. It has been designed and tested in Australian conditions to offer the most efficient solar solution for your 4WD, trailer, caravan, or boat. One of the significant advantages of a fixed panel is its ability to operate continuously once connected to your 12V system. With optional mounting accessories, you can effortlessly attach the solar panel to your vehicle.
A-Grade Monocrystalline Solar Cells
Made with the highest quality monocrystalline cells, the KickAss 12V 170W Fixed Solar Panels provide 15–25% more efficiency than other panels on the market. Monocrystalline panels also deliver increased performance in low-light conditions.
Thick Tempered Glass
The highly transparent anti-reflective tempered glass provides high impact resistance against hail, stones, and accidental knocks. Perfect for permanent mounting and withstanding harsh Australian weather conditions.
1 x KickAss 12V Mini Control Box with 2 x Anderson, 6 x USB & 3 x Cig Sockets
1 x KickAss 12V Mini Control Box with 2 x Anderson, 6 x USB & 3 x Cig Sockets
The KickAss 12V Control Box distributes power from your auxiliary battery to charge up to 11 devices at once. Built with 6 USB ports, 3 12V Cig Sockets and 2 Anderson-style input/outputs.
Power up to 11 Devices Simultaneously
The KickAss 12V Mini Power Box distributes power from your auxiliary battery to power up to 11 different devices at once. Built with 6 x USB ports, 3 x 12V cigarette sockets, and 2 x Anderson input/output ports, you can power phones, tablets, 12V fridges, ovens, vacuum sealers, projectors, and more.
4 x USB Ports Featuring USB-C & QC3 Ports
Get blazing fast charging on all your USB devices with the USB-C and QC3 Port (Quick Charge 3.0). Charge phones, tablets, and more. Charge up to 6 USB devices simultaneously!
2 x Anderson Input/Outputs – Charge from Solar
Power 12V fridges, travel ovens, or even charge your auxiliary battery from regulated solar panels using the quick-connect Anderson connectors.
Built-in 3-Stage LED Light
Never be lost in the dark again. The KickAss Mini Box has a built-in 3-stage LED light, perfect for providing light when you cannot find your phone or torch.
LED Voltmeter Multi-Colour
The LED voltmeter shows your battery condition at a glance. With its multi-coloured display, you can clearly see the voltage of your battery day or night. Never end up with an unexpected flat battery. Please note the on/off switch is for the voltmeter only.
Multiple Mounting Options
Two convenient mounting points allow for easy installation into your canopy, camper, or caravan.
Anti-Slip Rubber Feet
The anti-slip rubber feet prevent your power box from slipping and help protect surfaces from scratches.
Protective Dust Cover & Anderson Cable Protective Cover
Protect the USB ports with the USB dust cover. The Anderson cable protective cover shields the cable end from dust and prevents disconnection.
Warning: A battery must be connected prior to connecting a regulated solar panel. The regulated solar panel must be disconnected before the battery is disconnected. Failure to do so may void your warranty.
Note: This unit is not waterproof and should not be mounted outside.
Note: This unit is not a standalone power source and must be connected to a power supply to power your devices.
1 x KickAss Solar Panel PV to Anderson Extension Cable - 5m
1 x KickAss Solar Panel PV to Anderson Extension Cable - 5m
Makes installing solar panels a breeze. Specially engineered to be paired with our KickAss DC/DC Charger and KickAss 170W, 250W, or 350W Fixed Glass Solar Panels, this extension cable is completely plug & play. MC4 compatible.
Heavy Duty Twin Core 10B&S Cable
Individually insulated and encased in a smooth PVC outer, providing added strength.
Pre-Crimped Anderson Terminals for Ease of Install
Setting up your solar has never been easier with the KickAss Solar Panel PV to Anderson Solar 5M Extension Cable. It can be plugged straight into your KickAss DCDC charger on your battery box, control hub, or directly into your MPPT/PWM solar controller. MC4 compatible.
1 x KickAss PowerBoss Connections Kit
1 x KickAss PowerBoss Connections Kit
The KickAss PowerBoss Power Connnections Kit contains all essential components and tools for wiring up the PowerBoss.
Plug and Play Installation Kit for the PowerBoss: Everything you need to wire up your Powerboss is included, from battery linking cables and solar/DC load cables to earthing cable, installation tools, and cable sheath.
0AWG Cable + Isolator + 300A Fuse: This kit includes premium heavy-duty 0AWG cable, a sturdy isolator plate, and a 300A mega fuse with isolator for safe, high-current connections.
Included Installation Tools: All essential tools are provided—13mm socket driver, multi-bit screwdriver, allen key, 4-way socket tool, and cable wrap—so you can handle every electrical connection with ease.
Solar + DC Load Quick Connection Cables: The kit also features bootlace crimp-to-Anderson cables for fast, plug-and-play solar input and DC load output connections.
What's Included:
- 1.5m 0AWG cable kit with 300A mega fuse, isolator, and mounting bracket
- Anderson quick connect solar cable
- Anderson quick connect DC load cable
- Chassis ground connection cable
- 13mm socket driver
- Multi-bit screwdriver
- Cable wrap
- 4-way socket tool
- Xmm Allen key
- 2 spare 8AWG lugs
- Spare isolator mounting hardware
- Spare 300A mega fuse
1 x KickAss Mounting Kit for Fixed Glass Solar Panels
1 x KickAss Mounting Kit for Fixed Glass Solar Panels
This mounting kit has everything you need to make it easy to affix your KickAss 170W, 250W, or 350W Glass Solar Panel to the roof of your vehicle. The compact design maintains the aerodynamics of your vehicle.
Mounting Kit for the KickAss Fixed Glass Solar Panel Range
Constructed from strong, light weight aluminium and contains all bolts, nuts and washers required for mounting.
What's Included:
- 4 x Aluminium Solar Panel Mounting Brackets
- 4 x Threaded Aluminium Mounting Bars
- 8 x M6 x 40mm Stainless Bolts
- 4 x M6 x 16mm Stainless Bolts
- 8 x M6 x 38mm Self Tapping Screws
- 12 x Stainless Steel Nuts
- 12 x Stainless Steel Spring Washer
- 12 x Stainless Steel Washer
This mounting kit has everything you need to make it easy to affix your KickAss Fixed Glass Solar Panel to the roof of your vehicle. The compact design maintains the aerodynamics of your vehicle.
SPECIFICATIONS
Technical Details
KickAss 12V 170W Fixed Solar Panel, Glass Roof Top
| SKU | KARTSP170 |
| Cell type | High efficiency A-grade monocrystalline |
| Max power (Pmax) | 170W |
| Max power voltage (Vmp) | 16.9V |
| Max power current (Imp) | 10.06A |
| Open circuit voltage (Voc) | 20.5V |
| Short circuit current (Isc) | 10.7A |
| Dimensions | 1315mm x 706mm x 35mm (including the corner pieces)
1310mm x 700mm x 35mm (excluding the corner pieces) |
| Weight | 10.2kg |
| Frame | Black powder coated aluminium |
| Application class | Class A |
| Fire safety class | Class C |
| Maximum system voltage | 1000VDC |
| Operating temperature | -40°C to 85°C |
| Nominal operating cell temperature | 47°C |
| Connector type | Water proof PV Connector |
| Standard test condition | 1000W/m² AM1.5 25° |
| Power tolerance | + / - 5% |
| Dimension tolerance | + / - 2mm |
| Conversion efficiency | 20.6% |
KickAss PowerBoss to Alternator Wiring Kit (6.5m)
| Main Cable Length | 6.5m - 3 Core |
| Ignition Cable Extension | 3m - 14AWG Single Core |
| Cable Size - 3 Core | 2x 6AWG (13.5mm²), 1x 14AWG (1.8mm²) |
| Insulation Material | Inner - Silicon / Outer - PVC |
| Rated Temperature | Max. 105°C |
| Alternator Connection | Ring Terminals - M8 - Battery / M6 - Fuse |
| Powerboss Connection | Power terminals - Bootlace crimp | Ignition - bare wire |
| Fuse | 80A MIDI Fuse with Holder |
KickAss PowerBoss - BT Remote Module
| Input Voltage | 5V |
| Input Power | 3W |
| Dimensions | 22 x 64 x 67mm |
| Weight | 0.05kg |
| Certifications | AS/NZS 4268 + AS/NZS 2772.2 |
| Connection Type | RJ45 |
KickAss Smart 12V 230Ah Ultra-X Lithium Slimline Deep Cycle Battery LiFePO4 - Arctic White
| Voltage | 12.8V |
| Capacity | 230Ah |
| Cell Type | Prismatic |
| Max Continuous Discharge | 230A |
| Max Continuous Charge | 230A |
| Peak Discharge | 430A (30s) |
| Max Charge Temp | 60°C |
| Min Charge Temp | 0°C |
| Max Discharge Temp | 65°C |
| Min Discharge Temp | -20°C |
| Cycle Life | 4000+ cycles | 80% DoD | 1C Charge / 0.5C Discharge |
| Bluetooth | Yes |
| Remote Display | Optional |
| Parallel / Series | 4 | 4 |
| Parallel / Series Remote Monitoring | Bluetooth | Remote Display |
| Dimensions (Battery) | 450 x 70 x 500 mm |
| Dimensions (with Terminals and Housing) | 510 x 70 x 540mm |
| Weight | 26.9 kg |
| Certifications | IEC62619 |
| Warranty | 5 years |
KickAss PowerBoss Connections Kit
| Battery Connections Cable | 1.6m 0AWG Silicon Single Core Positive and Negative |
| Mega Fuse | 300A |
| Isolator | Single Pole |
| Solar Connection Cable | 0.5m 2 Core Silicon 8AWG |
| DC Load Connection Cable | 2m 2 Core Silicon 8AWG |
| Chassis Ground Cable | 4m single core 4mm² |
| Supplied tools | 13mm socket driver | multi bit screwdriver | Cable wrap | 4-way socket tool | 2mm Allen key |
KickAss 12V Mini Control Box with 2 x Anderson, 6 x USB & 3 x Cig Sockets
| Voltage | 12V DC |
| Maximum Current |
|
| USB | 4 x 2.1A |
| USB-C PD | 1 x 18W |
| QC 3.0 | 1 x 18W |
| AGM Battery State of Charge Guide |
|
| Input Connection | 50A Anderson connector 1M 8B&S Cable |
| Weight | 905g |
KickAss PowerBoss
| Model | KAPB2K1280 |
| Dimensions | 278mm x 120mm x 400mm |
| Weight | 9.85kg |
| Operation Temperature Range | (-20 ºC ~ 50 ºC) |
| Inverter + Automatic Transfer Switch + ACDC Charger | |
| AC Output Power | 2000W |
| AC Input / Output Voltage | 240Vac |
| AC Input / Output Frequency | 50Hz |
| Battery Charge Current | 80A Max (Adjustable) |
| Efficiency | 93% Max |
| Overload Protection | <10s @ 100% Load | 5s @ 150% Load | <5s @ 200% Load |
| AC Input Type | IEC13 |
| AC Output Type | IEC14 |
| Transfer Time | 25ms |
| Circuit Protection | 10A (30mA) RCBO |
| M.E.N Link | Yes |
| Battery Output | |
| Nominal Voltage | 12V |
| Battery Type | GEL, AGM, FLD, LiFePO4, KickAss LiFePO4, USER |
| Battery Capacity | 50 - 500Ah |
| Battery Integration Integration | KickAss Smart and Ultra-X Series |
| DCDC-MPPT Charger | |
| Alt Input Voltage Range | 12V Alternator ~ 9-16V |
| Alt Battery Charging Current | 40A Max (Adjustable) |
| DCDC Efficiency | 88% Max |
| Solar Input Voltage Range | 14.5 - 50V |
| Solar Battery Charging Current | 40A Max (Adjustable) |
| MPPT Efficiency | 95% Max |
| DC Load | |
| Output | 12V 50A Max |
User Manual & Support Docs
| KickAss Solar Panel PV to Anderson Extension Cable - 5m | |
| KickAss 12V 170W Fixed Solar Panel, Glass Roof Top | |
| KickAss Mounting Kit for Fixed Glass Solar Panels | |
| KickAss Smart 12V 230Ah Ultra-X Lithium Slimline Deep Cycle Battery LiFePO4 - Arctic White | |
| KickAss 12V Mini Control Box with 2 x Anderson, 6 x USB & 3 x Cig Sockets | |
| KickAss PowerBoss |
Detailed Description
Run your off-grid setup with confidence using the KickAss PowerBoss 2000W Off-Grid System, now upgraded with a 230Ah Ultra Slimline Lithium Battery in Arctic White. This high-performance system includes a 2kW inverter, Bluetooth monitoring, DC and AC charging, MPPT solar input, alternator wiring, and power accessories. Compact, pre-wired, and ready to install—ideal for 4WD canopies, campers, and vans.
