KickAss Bluetooth Control 8 Gang Switch Panel
Rated 4.7 out of 5 stars
29
BLACK'26 PRICE
$
229
95
Wireless Control
10m Range
Rechargeable Battery
Multi Battery Chemistry
In stock
Fast Dispatch
30 Day Returns
Pickup available at Acacia Ridge Store
Usually ready in 1 hour
KickAss Bluetooth Control 8 Gang Switch Panel
$
229
95
1 Year Warranty
This product is covered by a 1 Year Limited Warranty.
ABOUT THIS ITEM
Gives you full control of up to 8 circuits. Control from your smart phone with the Bluetooth App. Comes with: 2x30A, 2x20A, 2x10A, 2x5A fused switches with a maximum combined input of 60 Amps.
Note that this is not compatible with the KickAss 12V 8 Gang Wireless Switch Panel MK11 (SKU: KAWLSWPANEL-8-MKII-CP).
SPECIFICATIONS
Technical Details
| Backlight Function | Adjustable dimmer function with RGB LED colour settings |
| Switch Control Function | Toggle Mode – red indicator light Momentary Mode – blue indicator light Pulsed Mode – green indicator light |
| Operating Voltage Range | 10 – 30V |
| Power Handling | 720 – 1440W |
| Maximum Current | 60A |

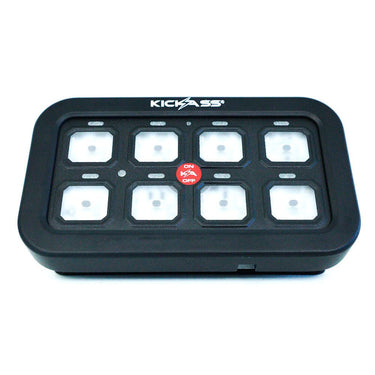

| Switch Panel Dimensions | 115 x 66 x 14mm |

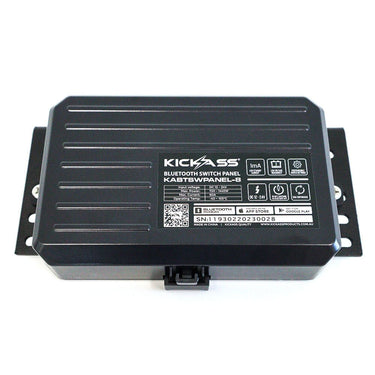

| Control Box Module Dimensions | 190 x 114 x 35mm |
| Technology | IGBT |
| Bluetooth | Yes |
User Manual & Support Docs
| KickAss Bluetooth Control 8 Gang Switch Panel |
Detailed Description
KickAss Bluetooth Control Switch Panel – 8 Gang Features

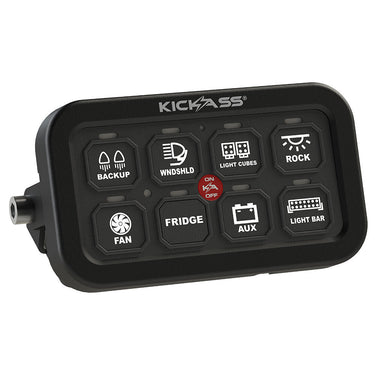

Control up to 8 Circuits

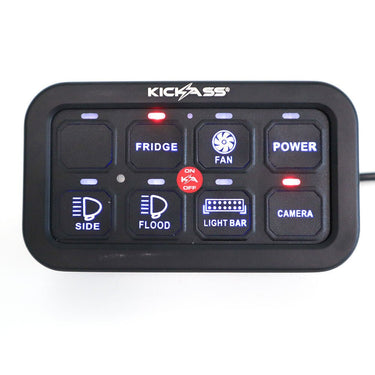

Easily manage up to 8 individual circuits with RGB backlit programmable switches. Each switch can be controlled manually or via the Bluetooth app.
Bluetooth App
Take full control of your 12V system using the Bluetooth app. Download the app to your phone to access and program all 8 switches remotely.
3 Programmable Switch Modes
Toggle: Press once to switch the connected device on or off.
Momentary: Device stays on only while the switch is pressed.
Pulsed: Press the switch to activate a flashing or strobing LED light until turned off.

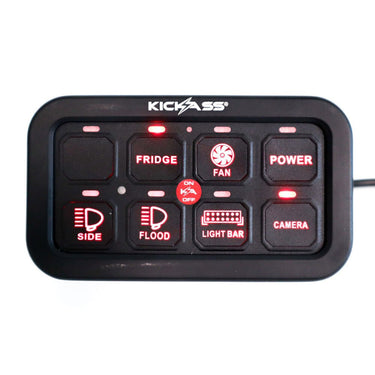

RGB Backlighting
Customise the brightness and colour of your switch panel. The RGB lighting automatically adjusts to ambient conditions for visibility day or night.
Includes 50 individual graphic labels.
CUSTOMER REVIEWS
FREQUENTLY ASKED QUESTIONS
How many devices can I control with the KickAss Bluetooth Control 8 Gang Switch Panel, and what is the maximum power it supports?
The KickAss Bluetooth Control 8 Gang Switch Panel can control up to 8 LED lights or other electronic devices with a maximum output power of 600 watts at 12V or 1200 watts at 24V, and a maximum input current of 60 amps.
This means you can manage multiple accessories from one panel, perfect for off-grid setups or adventure vehicles. Just ensure the total current drawn by active devices does not exceed 60 amps simultaneously to keep your system safe and reliable.
This means you can manage multiple accessories from one panel, perfect for off-grid setups or adventure vehicles. Just ensure the total current drawn by active devices does not exceed 60 amps simultaneously to keep your system safe and reliable.
Can I use the KickAss switch panel with different vehicle voltages?
Yes, the switch panel supports an input voltage range of 12V to 24V DC, making it compatible with a wide variety of vehicles and off-grid power systems.
This flexibility allows you to install the panel in cars, trucks, boats, or camper trailers without worrying about voltage compatibility. The built-in low-voltage cut-off (LVCO) also protects your battery from excessive discharge.
This flexibility allows you to install the panel in cars, trucks, boats, or camper trailers without worrying about voltage compatibility. The built-in low-voltage cut-off (LVCO) also protects your battery from excessive discharge.
How do I mount the KickAss Bluetooth Control 8 Gang Switch Panel in my vehicle?
The panel includes universal mounting brackets with two options: adjustable mount brackets for angled installation and slim line flush mount brackets for a fixed surface mount.
You can choose the mounting style that best suits your vehicle’s interior. The adjustable brackets support mounting surfaces between 1/8" and 1/4" thick, and all necessary screws and an Allen wrench are included for a secure fit.
You can choose the mounting style that best suits your vehicle’s interior. The adjustable brackets support mounting surfaces between 1/8" and 1/4" thick, and all necessary screws and an Allen wrench are included for a secure fit.
How do I change the backlight colour and brightness on the switch panel?
The switch panel features RGB colour changeable LED backlighting with 64 colour options and automatic dimming based on ambient light, adjusting brightness to suit your environment.
To change the backlight colour, enter setting mode by pressing the ON/OFF button and any other button simultaneously, then hold Button No. 1 or Button No. 4 to cycle through colours. Save your choice by pressing ON/OFF within 20 seconds.
To change the backlight colour, enter setting mode by pressing the ON/OFF button and any other button simultaneously, then hold Button No. 1 or Button No. 4 to cycle through colours. Save your choice by pressing ON/OFF within 20 seconds.
What safety features does the KickAss switch panel have to protect my electrical system?

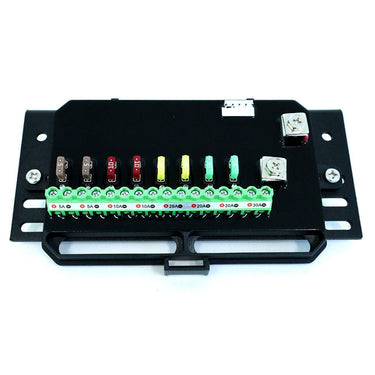

The panel includes six backup fuses rated from 5A to 30A across its circuits and an integrated low-voltage cut-off (LVCO) to prevent battery damage.
If a fuse blows, the LED indicator lights up red, and you can easily replace it with the included spare auto fuses. These protections ensure your accessories and vehicle wiring remain safe under heavy use or accidental overload.
If a fuse blows, the LED indicator lights up red, and you can easily replace it with the included spare auto fuses. These protections ensure your accessories and vehicle wiring remain safe under heavy use or accidental overload.
How do I wire the KickAss Bluetooth Control 8 Gang Switch Panel to my vehicle’s battery and accessories?

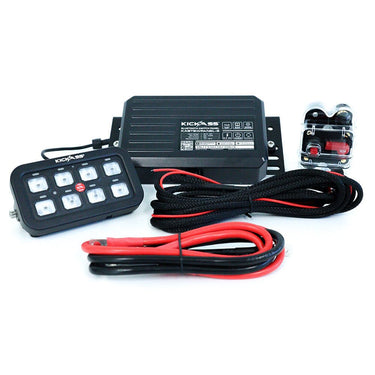

The panel comes with a complete wiring harness including a 35-inch black negative wire to battery negative, a 9-inch red positive wire to a circuit breaker, and extension wires for connecting up to 8 devices.
Simply connect the negative wire to the battery’s negative post, the positive wire through the circuit breaker to the battery positive terminal, and then connect your LED lights or accessories to the output terminals. Clear labelling and included decals make installation straightforward.
Simply connect the negative wire to the battery’s negative post, the positive wire through the circuit breaker to the battery positive terminal, and then connect your LED lights or accessories to the output terminals. Clear labelling and included decals make installation straightforward.
Can I control the switch panel remotely via Bluetooth, and what modes do the switches support?
Yes, the switch panel supports Bluetooth control through a mobile phone app and offers three switch modes: Toggle, Momentary, and Pulsed.
Toggle mode turns a device on or off with each press, Momentary lights the device only while the button is held, and Pulsed mode flashes the connected light until turned off. This versatility lets you tailor control to your specific lighting or accessory needs.
Toggle mode turns a device on or off with each press, Momentary lights the device only while the button is held, and Pulsed mode flashes the connected light until turned off. This versatility lets you tailor control to your specific lighting or accessory needs.
What should I check before installing the control box and switch panel in my vehicle?
Before installation, connect the switch panel system to a 12V DC power source to test full functionality, and ensure the mounting location allows unobstructed paths for power and accessory wires.
Also, check behind the mounting surface to avoid drilling into vehicle wiring or components. The included mounting brackets and hardware provide flexible installation options to suit your vehicle layout while keeping wiring safe and organised.
Also, check behind the mounting surface to avoid drilling into vehicle wiring or components. The included mounting brackets and hardware provide flexible installation options to suit your vehicle layout while keeping wiring safe and organised.
