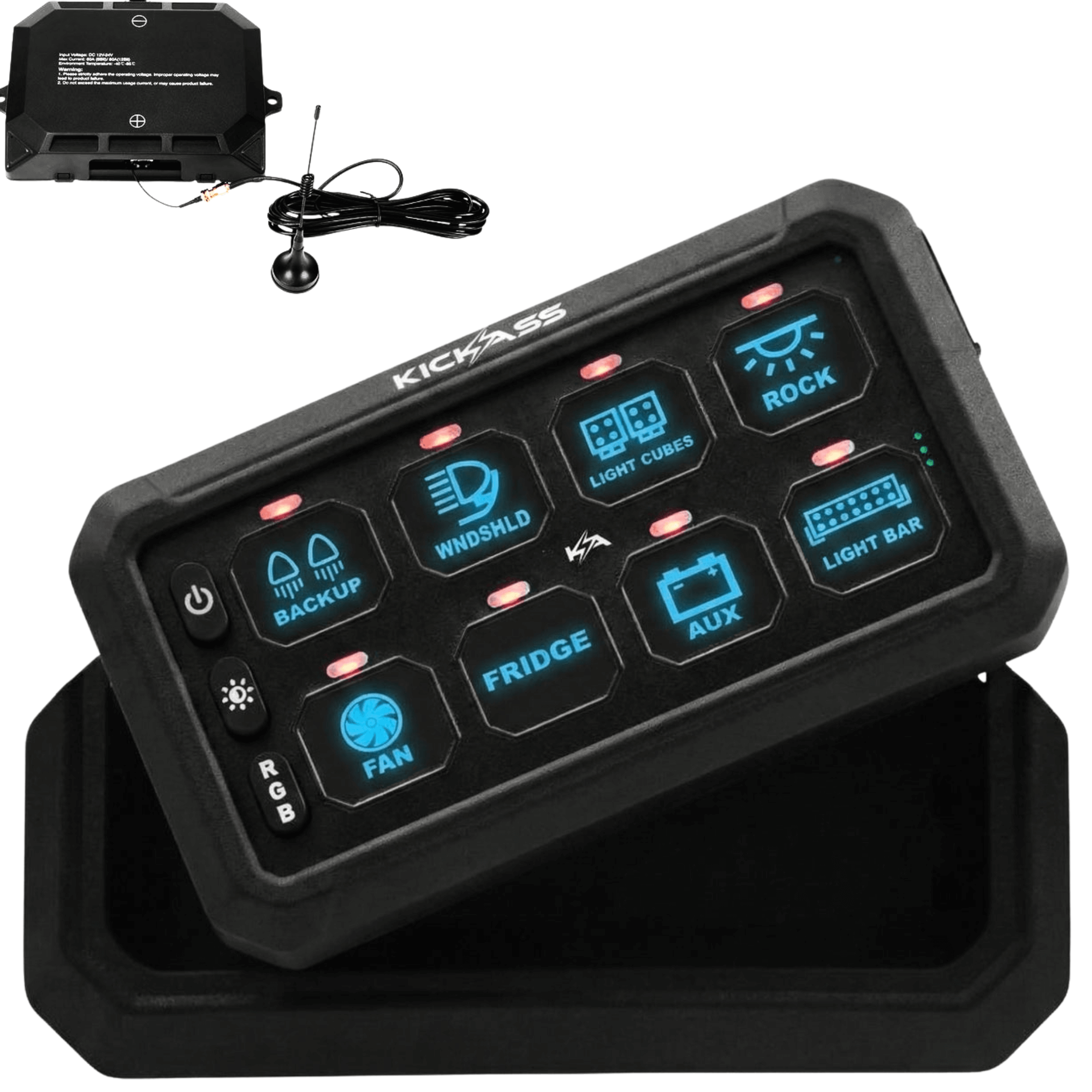

KickAss 12/24V 8 Gang Wireless Switch Panel with Magnetic Charging Cradle - MKII
Save more when you buy this as part of a KickAss kit.
View bundle deals →Control your DC switch gear from this sleek, premium 8-Gang Switch Panel. Enjoy app-free, wireless control from a range of up to 60 meters. Comes with a magnetic charging dock, so you can recharge straight from your switch panel’s cradle. No messy cables or loose USB ports – just a sleek, elegant setup.
NOTE: Not compatible with previous MKI control box and switch panels. A complete new MKII control box and switch panel upgrade is required.
Pickup available at Acacia Ridge Store
Usually ready in 1 hour
1 Year Warranty
This product is covered by a 1 Year Limited Warranty.
Description
KickAss Features:
- Wireless control
- Magnetic charging cradle (NEW!)
- Rechargeable battery
- High current capability
- Multi battery capability
- IP65 Dust & Water Resistant Rating
- Double sided outlet
- Prewired ACC fuse tap
- Enhanced safety features
- Multiple mounting options
- Adjustable lighting & on/off switch
- DIY switch panel labels

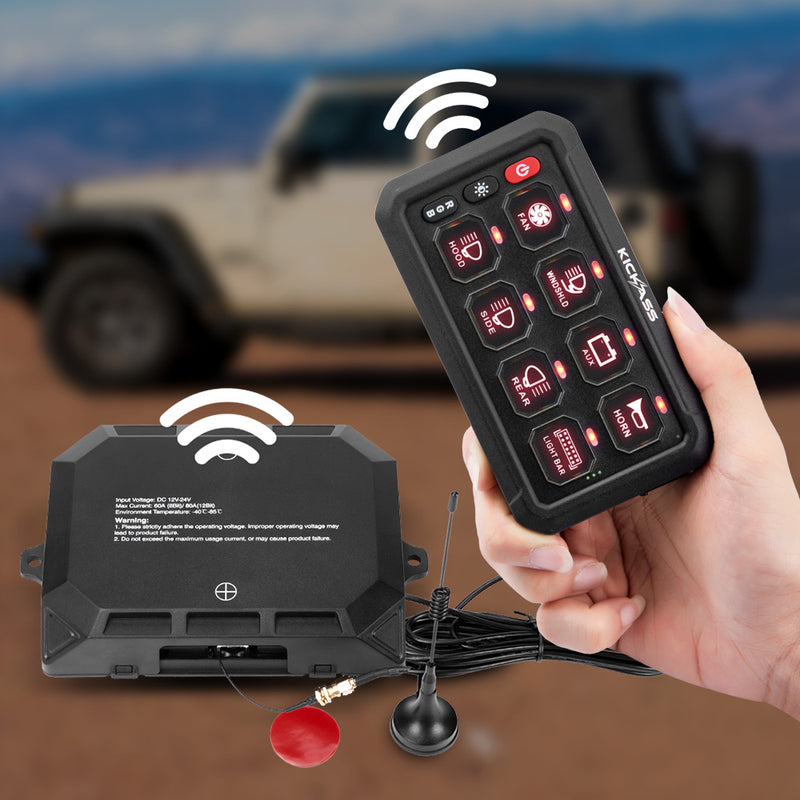

Wireless control
Operate your DC appliances remotely from a distance of up to 60 meters, which is a much greater range than Bluetooth offers. No need to download apps or have your phone with you, or worry about complex cable routing between the panel and your control box. Simply grab your panel and go!

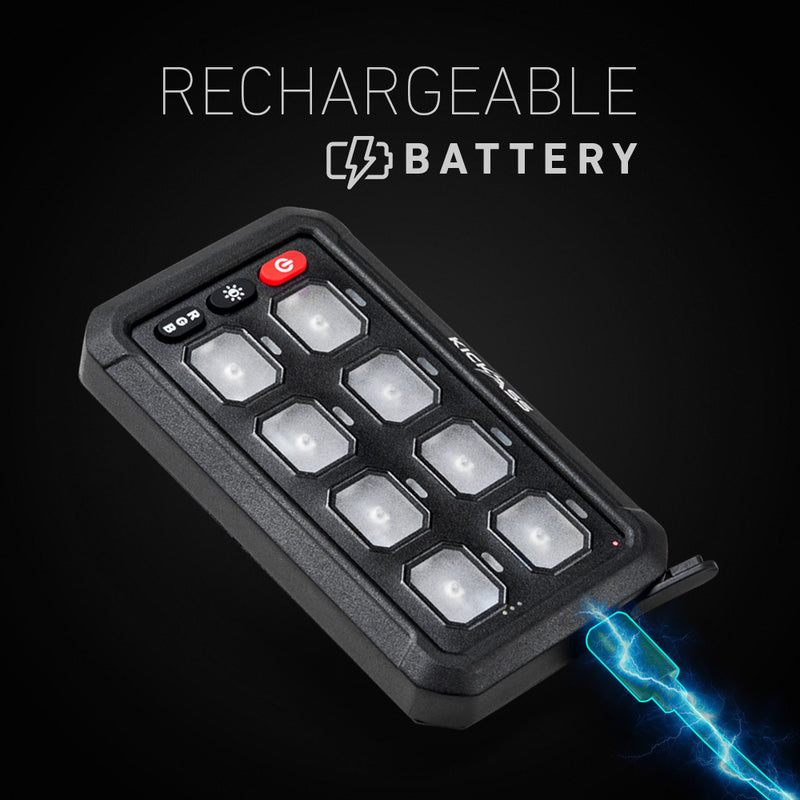

Rechargeable battery
The switch panel comes with a convenient, built-in rechargeable battery, meaning you can say goodbye to the hassle and expense of replacing disposable batteries – simply plug it in via the USB cable provided.
The battery charges fully in just 2-3 hours and can last for an impressive 5-6 days. Keep track of your battery status easily with the convenient battery indicator, which displays three clear levels: low, medium, and full.

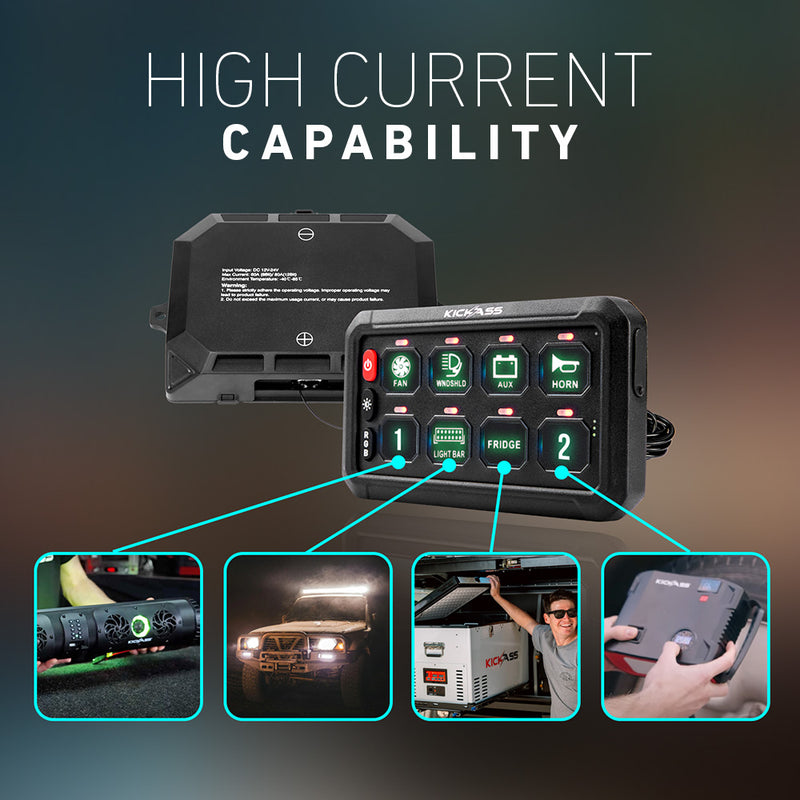

High current capability
The 8 Gang Switch Panel has a high current capability, and can handle up to 60A at either 12V or 24V. This means you can simultaneously use high and low current devices – for example a speaker, camping fridge, camping lights, winch, air compressor, etc.

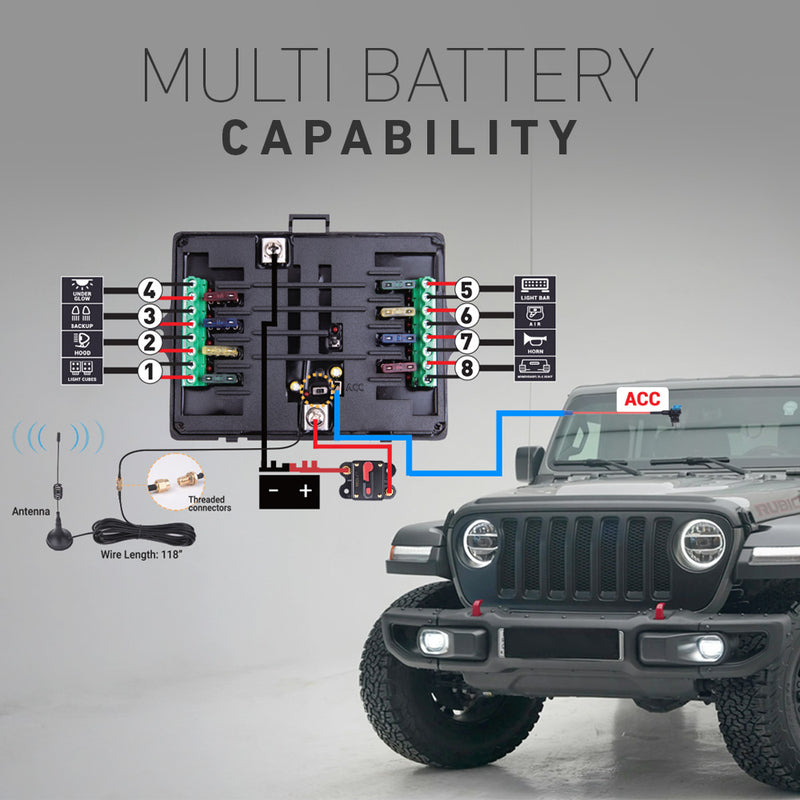

Multi battery capability
The control box switch offers two options to obtain power: you can connect ACC (Accessory power) to the starter battery, or alternatively to the auxiliary battery. If you prefer to operate your electrical devices (for example your horn, lights, and radio) only in ACC mode, selecting the ACC setup allows you to do so.
IP65 Dust & Water Resistance Rating
With an IP65 rating, the 8 Gang Switch Panel is perfect for outdoor adventures. It can withstand some dust and moisture exposure and continue to function. It should not be submerged in water.

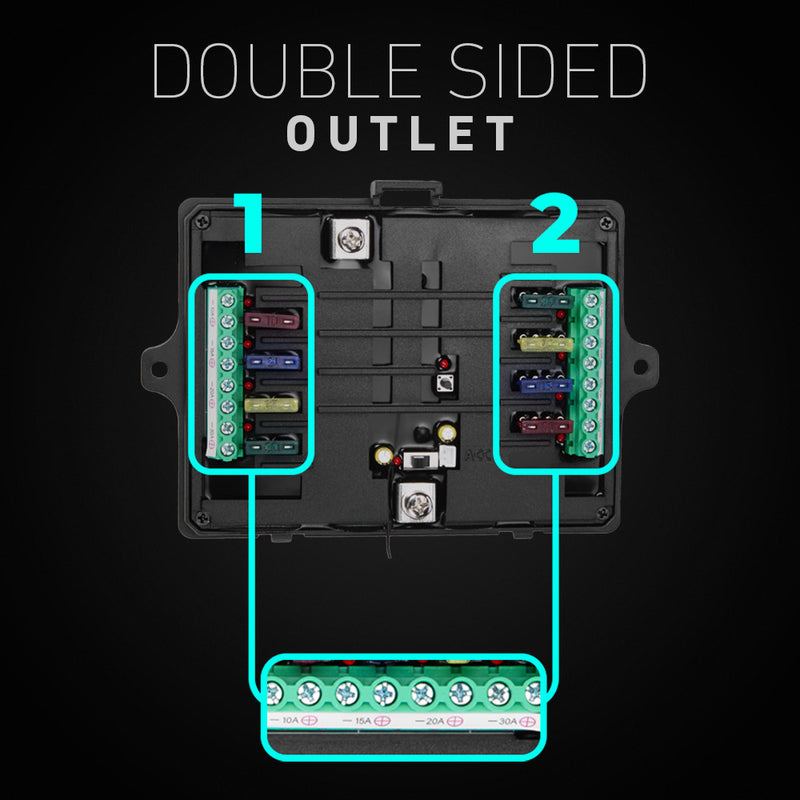

Double sided outlet
The switch panel features a current control box that splits the output into two sides, allowing for versatile wiring configurations and minimising wire clutter. It includes two 30A, two 20A, two 15A, and two 10A outlets, with one of each type on either side of the panel.

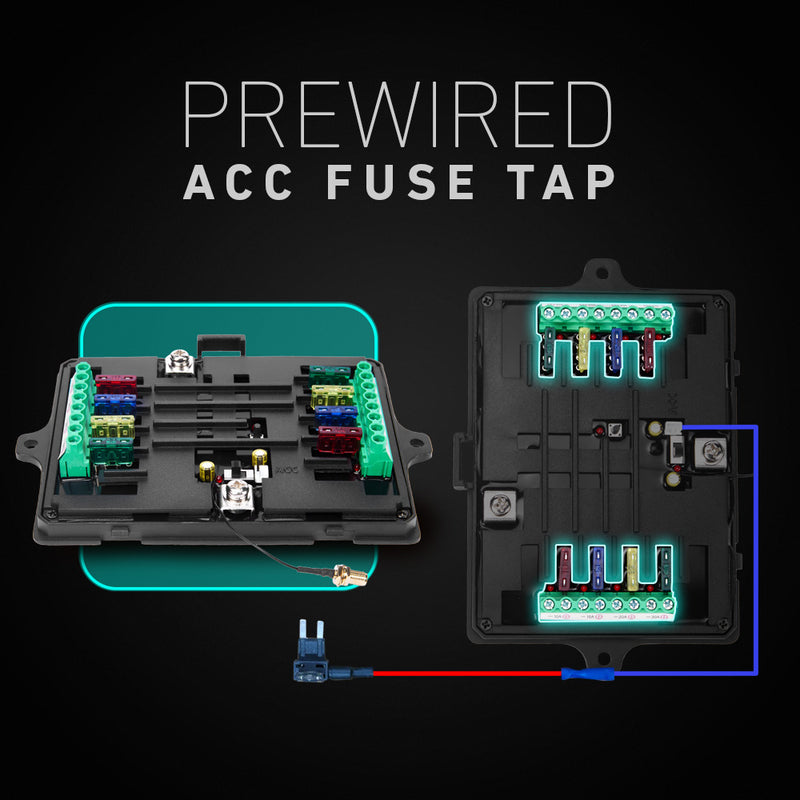

Prewired ACC fuse tap
The pre-wired ACC fuse adapter makes it easy to connect the control box to the vehicle’s fuse box, without having to cut, splice or damage the vehicle’s existing wiring. Quick, easy installation!

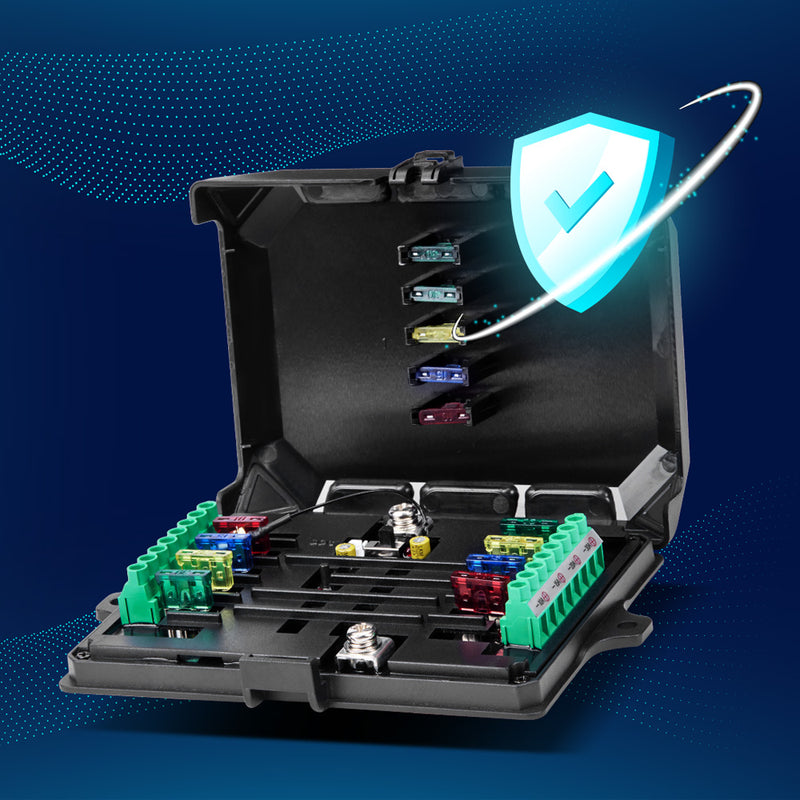

Enhanced safety features
The 8 Gang Switch Panel is equipped with a 60/80A circuit breaker, blade fuses (plus a spare), and compact solid-state relays. This protects the switch panel from damage caused by thermal, overload and over-currents.

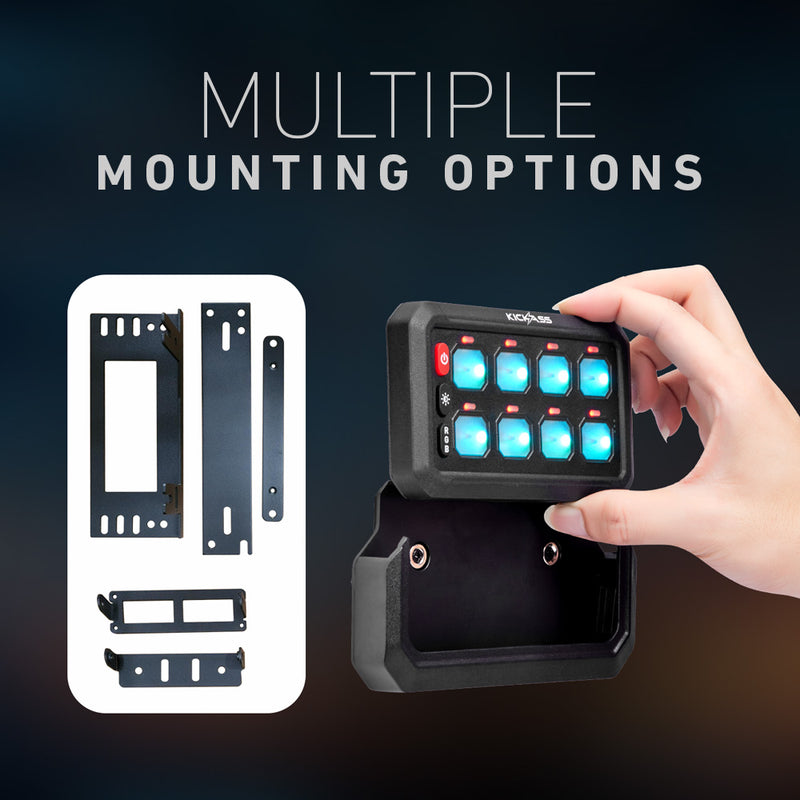

Multiple mounting options

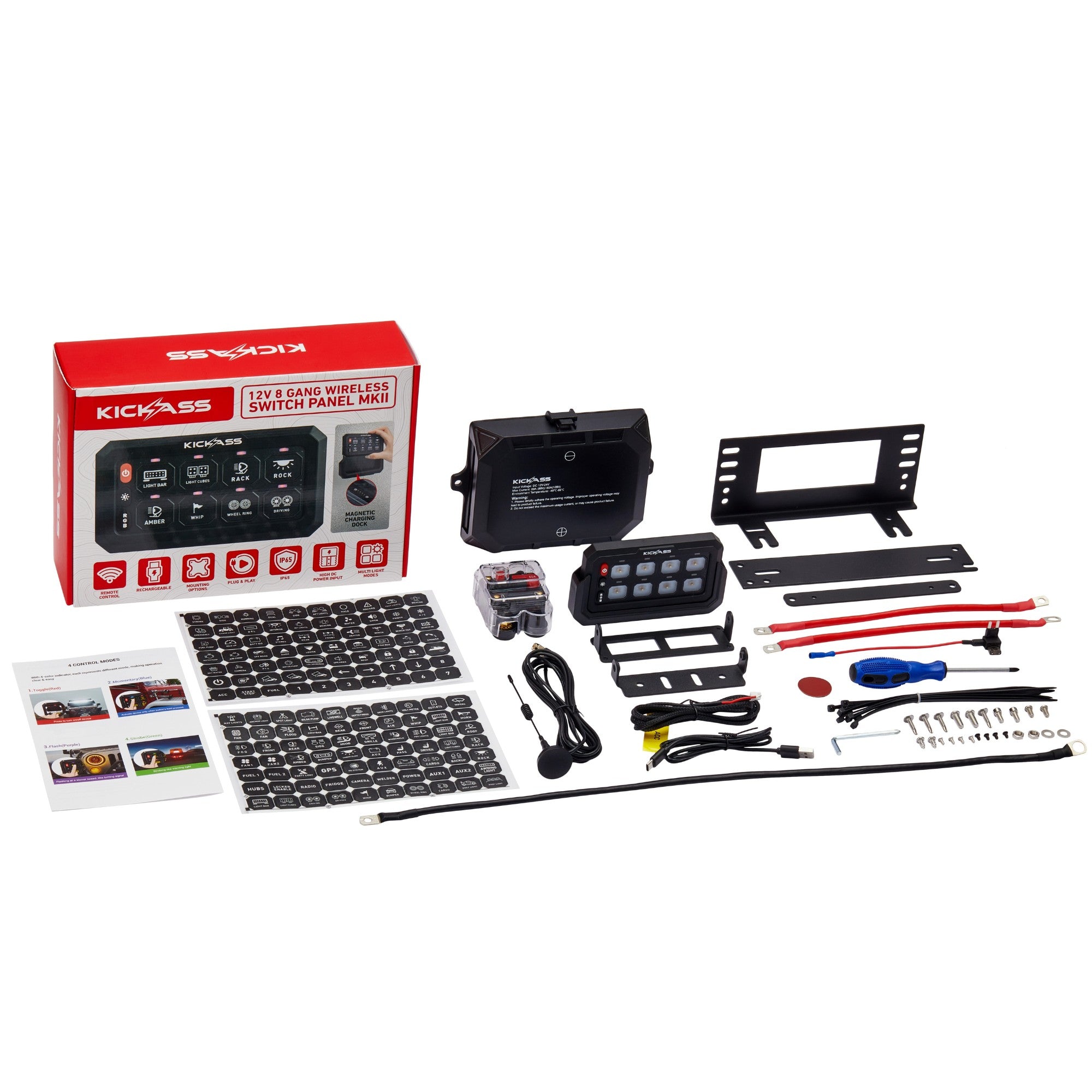

Comes with two bracket mounting options for the switch panel and control box. All essential mounting hardware is included, as well as instructions and suggestions for optimal placement within your vehicle.

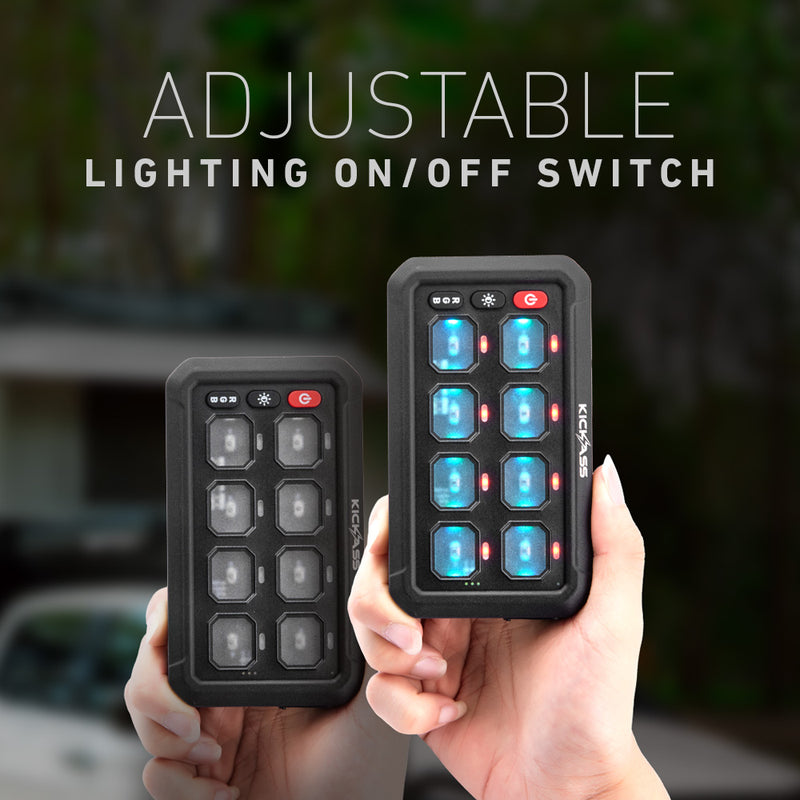

Adjustable lighting & on/off switch
There are three lighting modes: a constant light, a momentary light, and strobe modes. You can also choose between five brightness levels, as well as a number of colours and a dedicated switch to turn the backlight on and off. Enjoy total control of your setup.

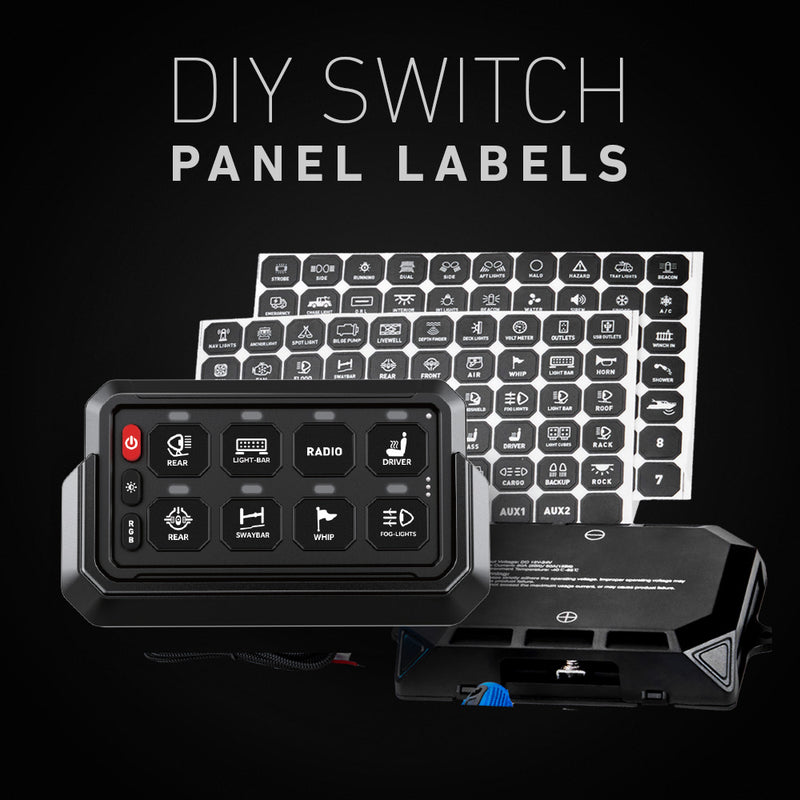

DIY switch panel labels
Comes with 140 stickers to label each switch and its connection. Almost everything is covered!

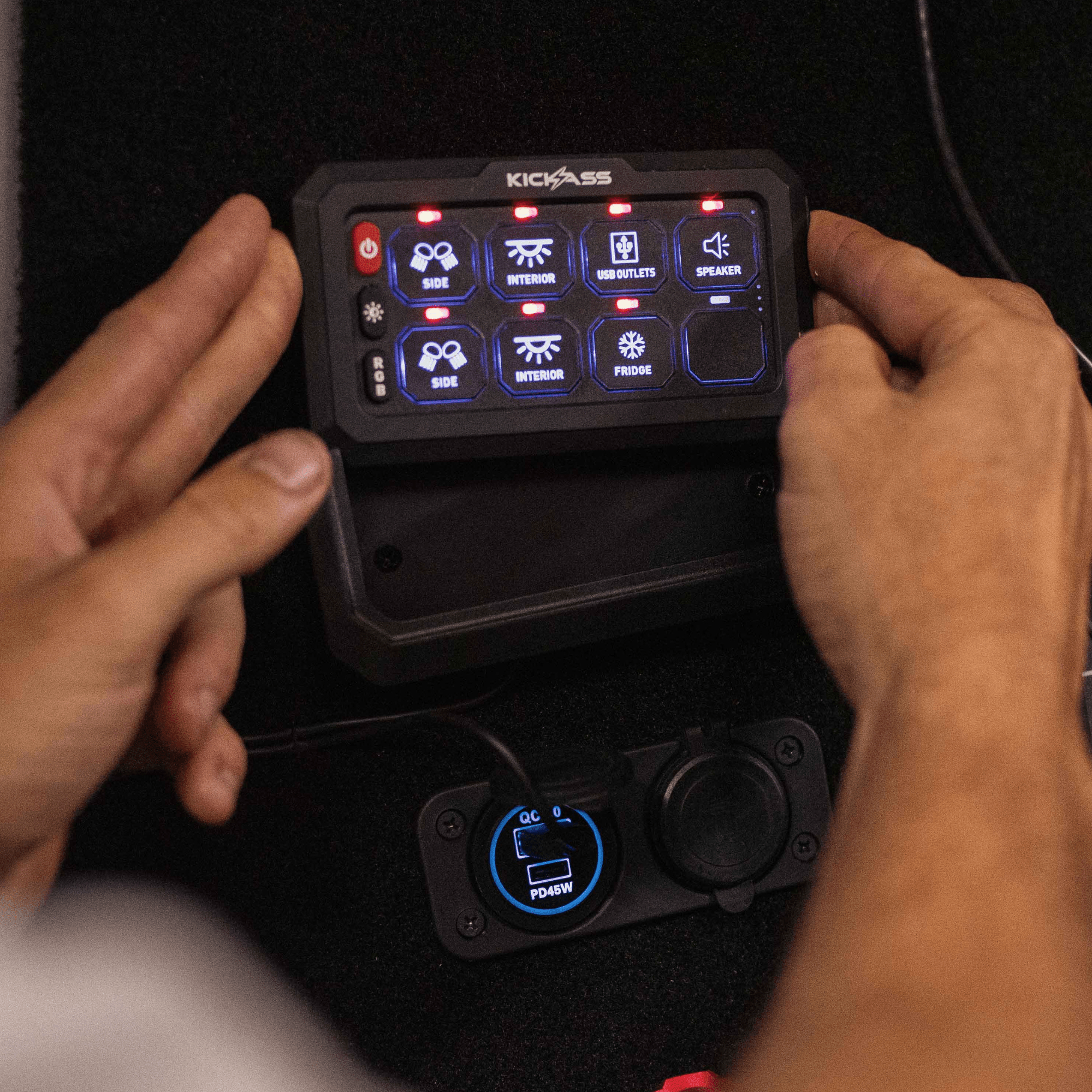

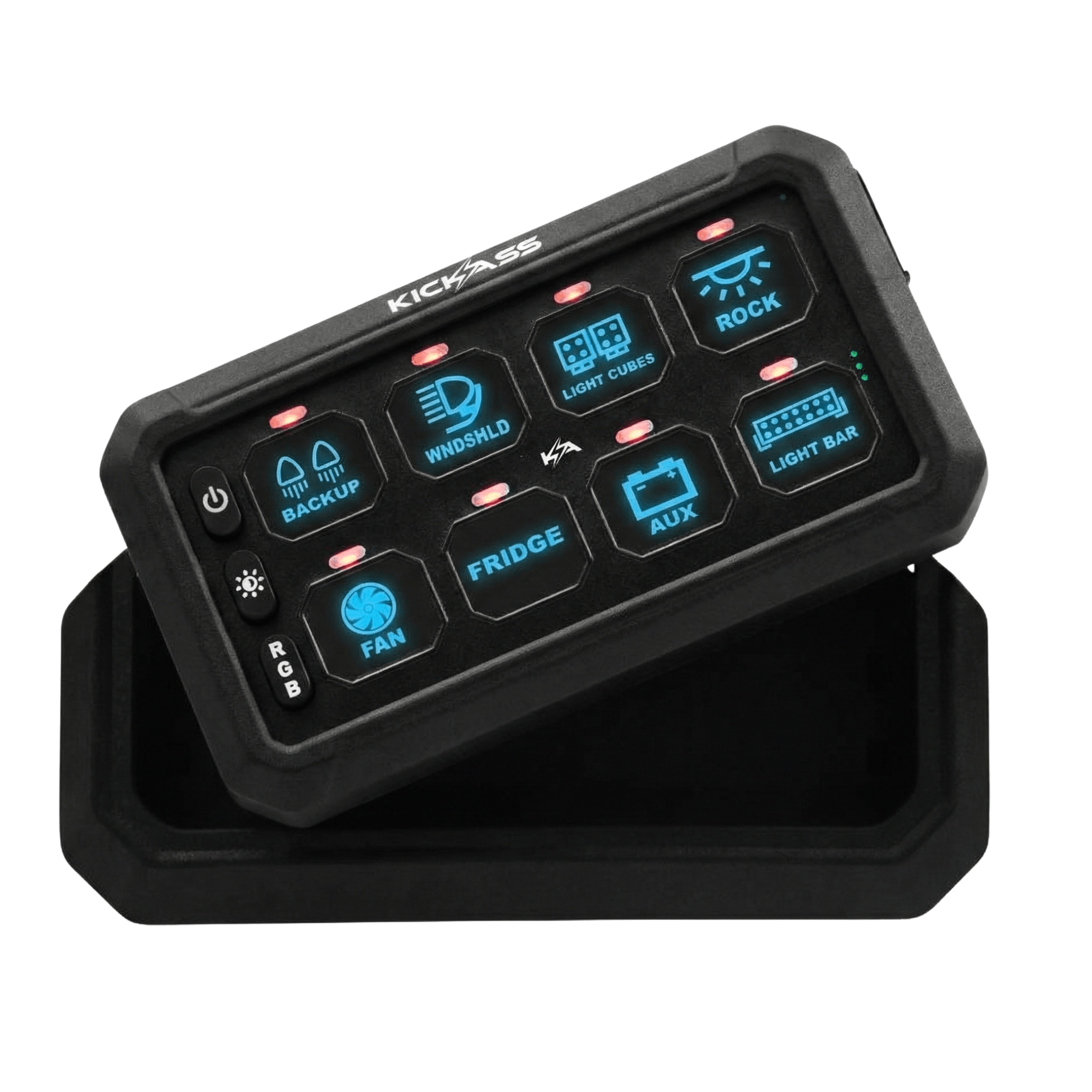

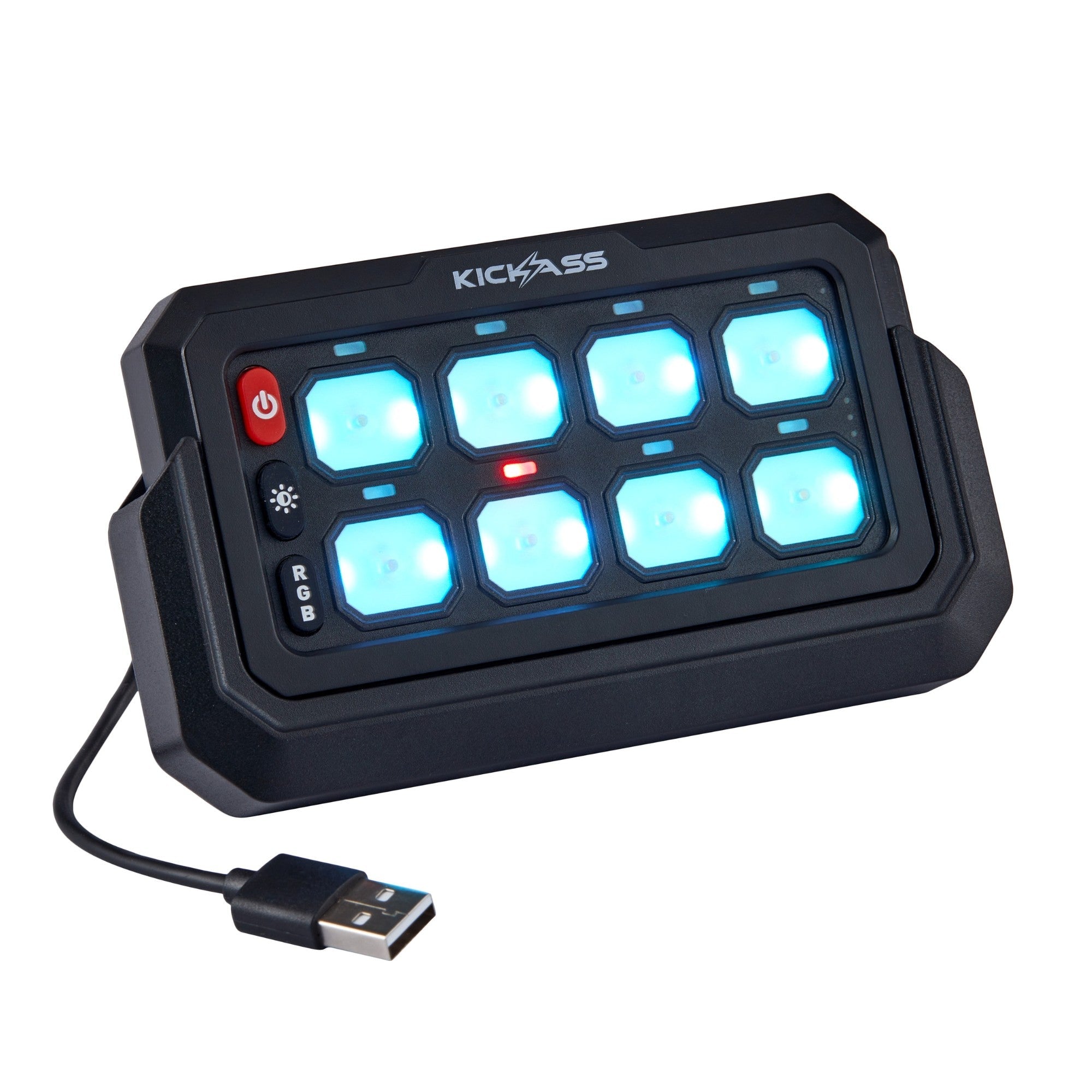

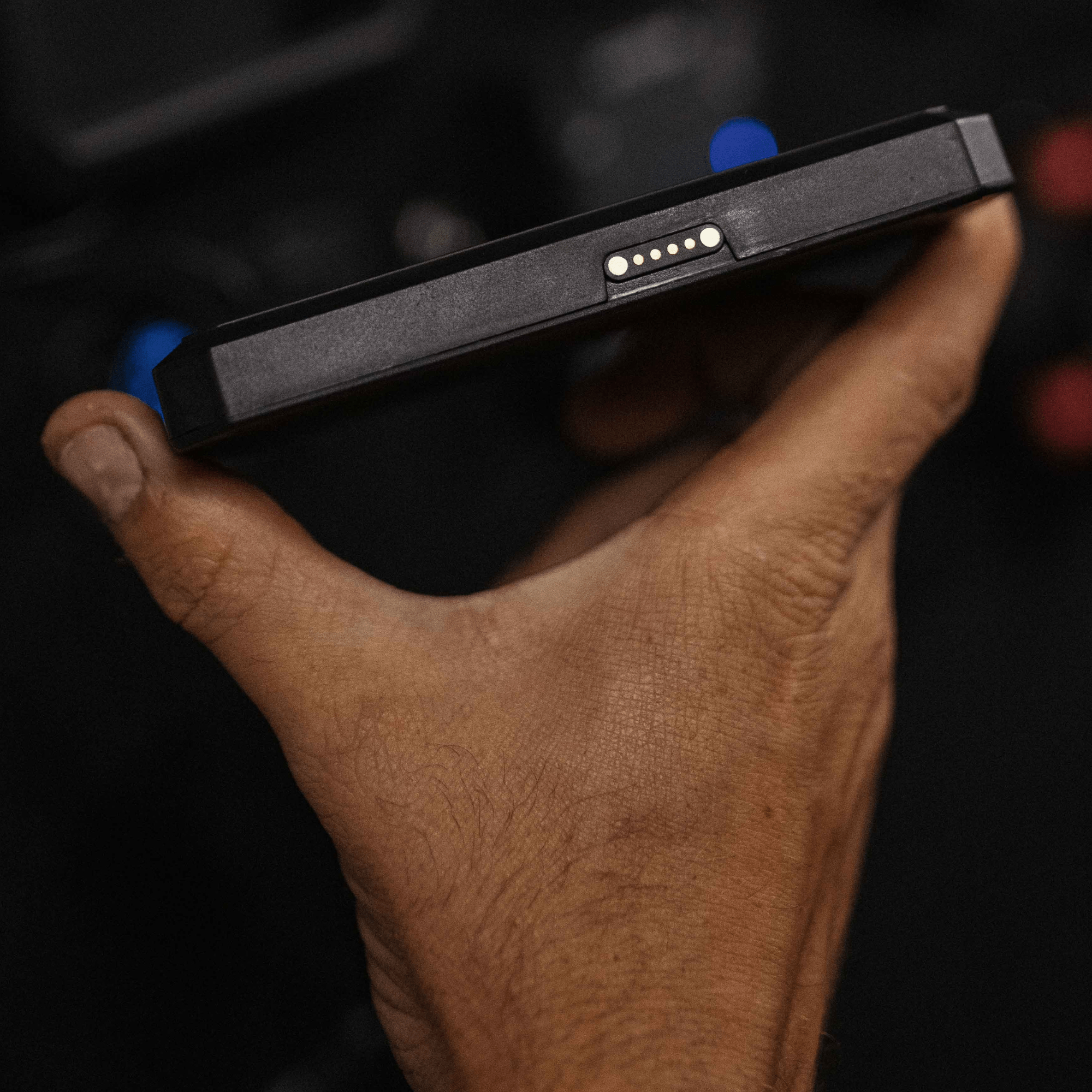

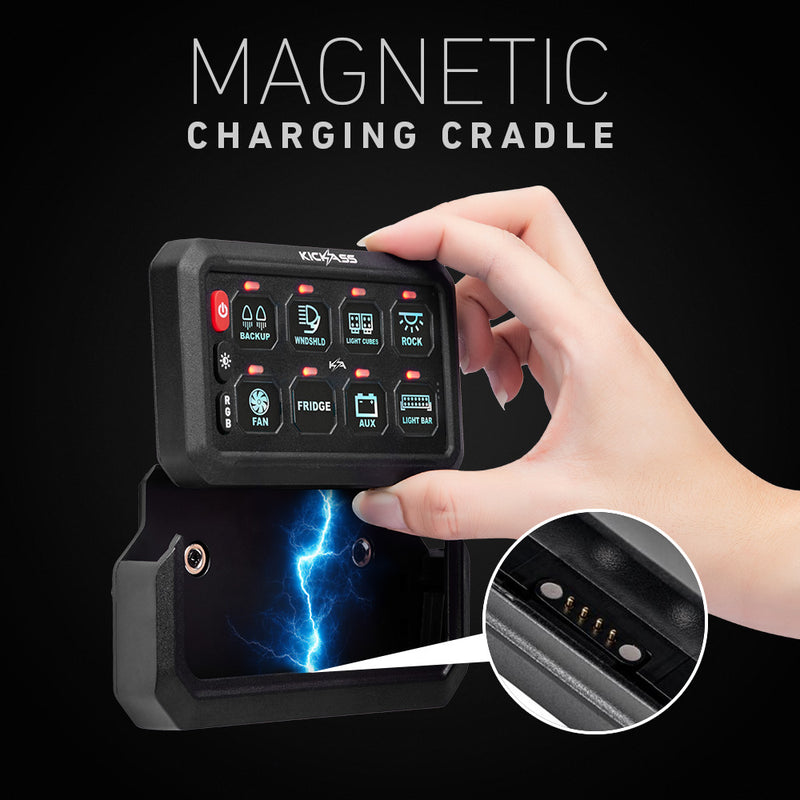

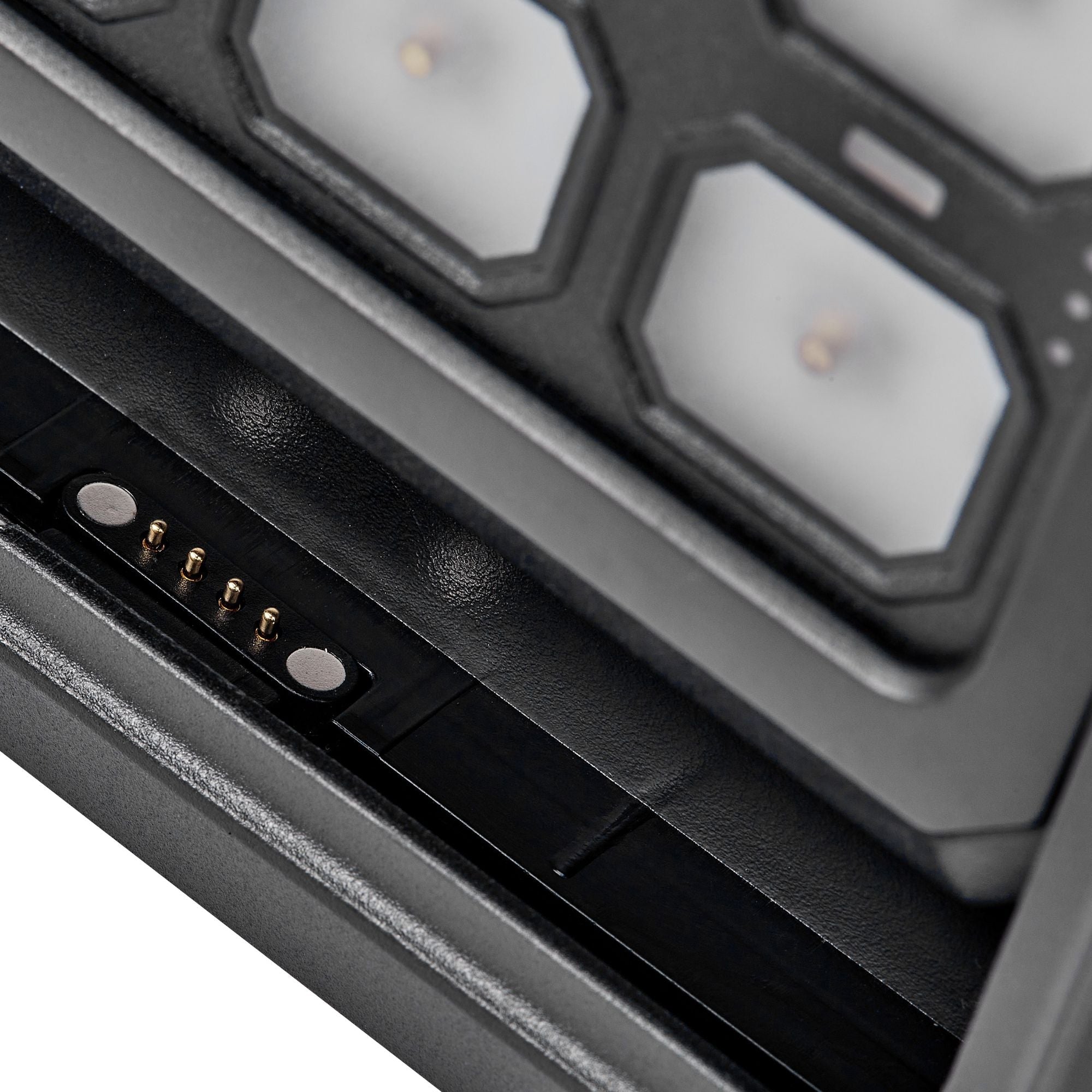

Magnetic Charging Cradle
The unit comes with a magnetic charging cradle, which will keep your switch panel powered up without the hassle of loose cables or worn-out USB ports. Just line up the panel with the dock and it snaps neatly into place, delivering a safe, secure charge every time. It’s a seamless way to ensure your unit is always ready to go – clean, simple, and completely cable-free.
Specifications
| Voltage | 12V/24V DC |
| Power | 720W at 12V / 1440W at 24V |
| Maximum Current | 60A Total |
| Operating Temperature | -40°C to 85°C |
| Standby Power | <3mA |
| Battery | Rechargeable |
| Operation | Wireless |
| Weight | 2kg |
| Switch Panel Dimensions | 127mm x 69mm x 14mm |
| Fuse Panel Dimensions | 192mm x 133mm |
| Certification | EN 6100 |
User Manual and Support
KickAss has warehouses located on both the East and West Coast of Australia. Express orders are dispatched same business day if ordered before 12pm AEST. Standard orders are dispatched within 2-3 business days. Deliveries are made during business hours, Monday to Friday.
At KickAss, we take full control of our product journey - from concept to creation - by designing, engineering, and manufacturing our own batteries and 12V accessories in our wholly owned facilities located in Australia, China, and the USA. This end-to-end approach allows us to maintain strict quality standards, drive innovation, and deliver unbeatable value. By owning our production facilities, we ensure every product that carries the KickAss name is built tough, tested rigorously, and ready for off-grid adventure.
Change your mind? No worries, our quick & easy online or in-store returns process has you covered. Learn more.
BUNDLE & SAVE!

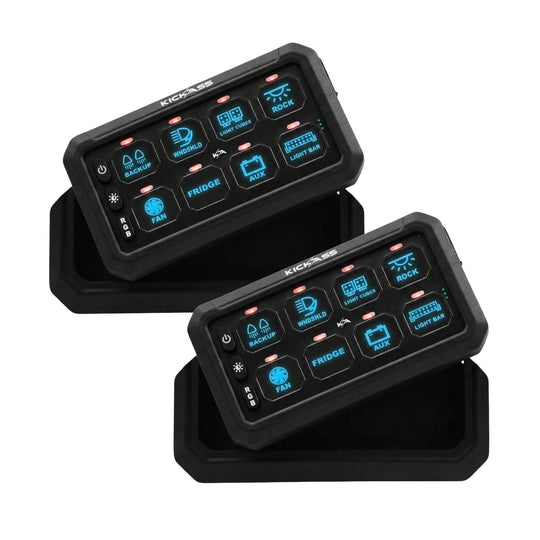

Dual wireless panels with magnetic charging cradle for clean, flexible 12V control.
8 gang wireless switch panel with 2x 60cm magnetic LED strips for easy camp lighting control.

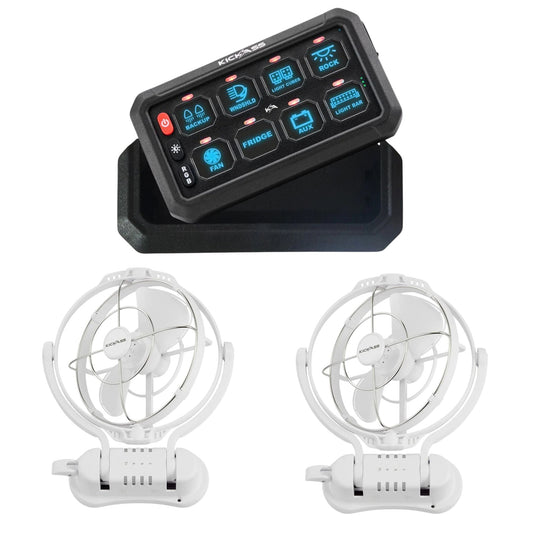

8 gang switch panel with 2x white 360° hardwired fans for easy control and cooling.

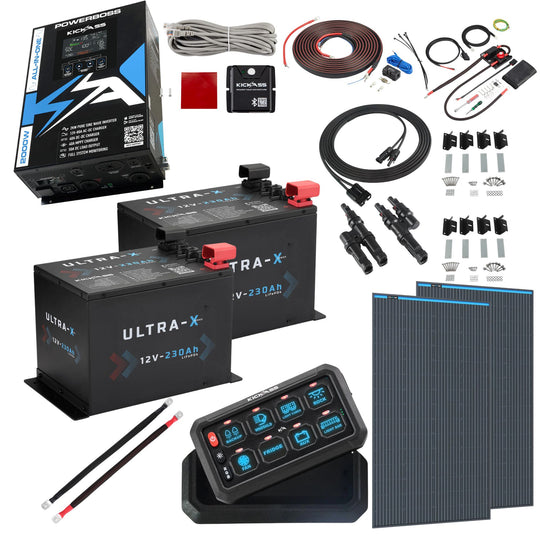

2 x 12V 230Ah Ultra-X Lithium Deep Cycle Battery LiFePO4, PowerBoss, PowerBoss Connections Kit, 2 x 12V 170W Fixed Solar Panel, Glass Roof Top, 12/24V 8 Gang Wireless Switch Panel, PowerBoss to Alt...

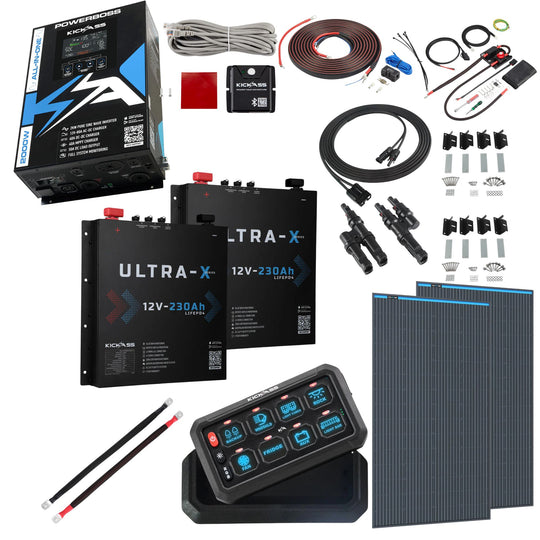

2 x 12V 230Ah Ultra-X Lithium Compact Deep Cycle Battery LiFePO4, PowerBoss, PowerBoss Connections Kit, 2 x 12V 170W Fixed Solar Panel, Glass Roof Top, 12/24V 8 Gang Wireless Switch Panel, PowerBos...
Wireless control
Rechargeable battery
Magnetic Charging Cradle
Dual Wireless Control Panels with Real-Time State Synchronisation
Note: An additional switch panel must be purchased separately. Panels must be the same model to pair – for example, two 8-Gang panels or two 12-Gang panels. Different models cannot be synced together.
High current capability
Multi battery capability
IP65 Dust & Water Resistance Rating
Double sided outlet
Prewired ACC fuse tap
Enhanced safety features
Multiple mounting options
Adjustable lighting & on/off switch
DIY switch panel labels

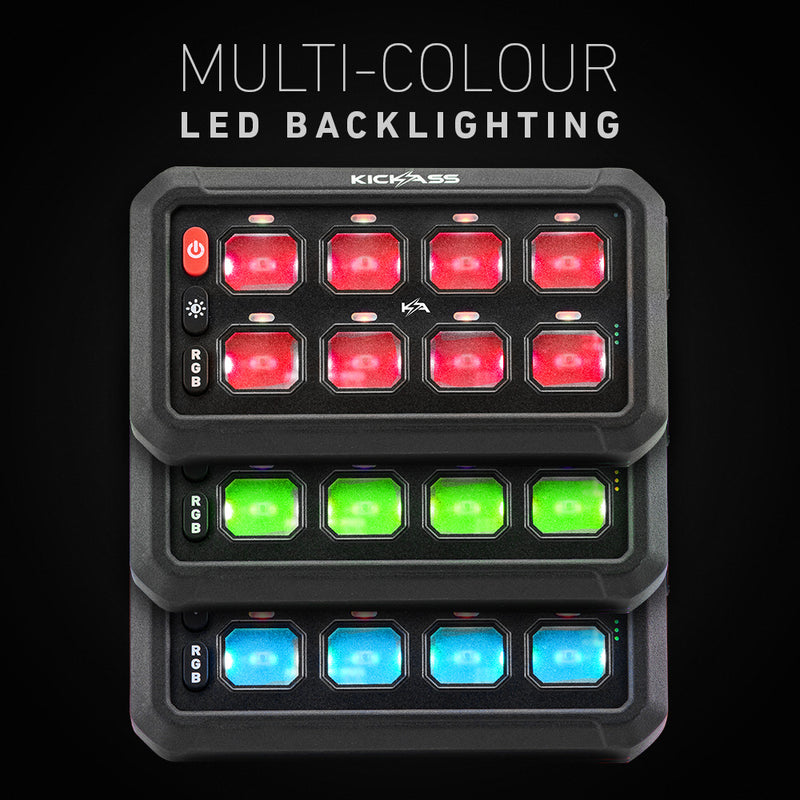

Multi-Colour LED Backlighting
