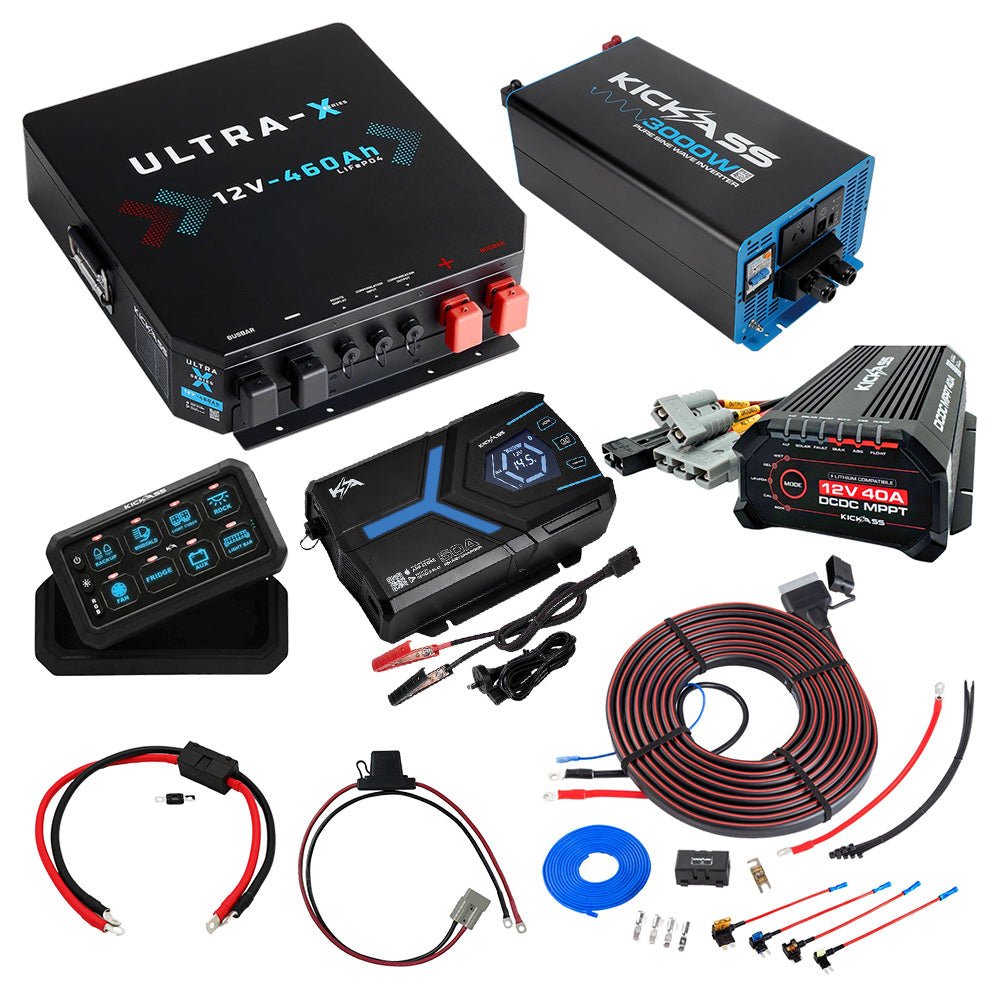

KickAss 460Ah Ultra-X Lithium Complete Dual Battery Kit with 3000W Inverter, 50A AC/DC Charger & 40A DCDC Charger

KickAss 12V to 240V Pure Sine Wave 3000W Inverter Feature Overview

3000W Continuous Output

Plenty of power to run all your AC essentials while on the move—induction cooktops, coffee machines, battery chargers for your power tools, and more!

Pure Sine Waveform

Delivers a clean and reliable sine wave output that replicates the AC signal you get from a home power point. Unlike modified sine wave inverters that don't produce a true sine wave, the KickAss Pure Sine Wave Inverter is ideal for running sensitive electronic devices like laptops, Starlink, and CPAP machines.

AC Automatic Transfer Switch

Simplify your off-grid installation with the Automatic Transfer Switch. Power your AC devices from your batteries, then once you’re back on-grid, simply plug in the AC input cable to switch over to mains power. If the mains supply cuts out, the inverter will seamlessly switch back to battery power.

Multiple Protective Features

Multi-level safety protection utilises both software and hardware features to protect you, your inverter, and your devices. The inverter continuously monitors operation and will trigger protection mode if an unsafe condition is detected. Integrated Residual Current Devices (RCD) and Circuit Breakers (CB) provide additional hardware protection, making the inverter suitable for commercial environments.

Optional Remote Control Display (Not Included in Base Version)

The optional remote display allows you to monitor and manage power usage wherever needed. The low-profile screen is discreet and can be flush-mounted into any panel—for example, near your camp kitchen. The remote also features an integrated on/off switch to conserve battery power.

Note: Only compatible with the blue KickAss remote inverter screen.

Surge Power – Reaches 6000W in 2 Seconds

With a peak surge rating of 6000W for up to 2 seconds, this inverter is ideal for supporting devices with a high current draw, like power tool battery chargers, microwaves, and induction cooktops.

High 94% Conversion Efficiency

Inefficient inverters waste energy when converting DC to AC. The KickAss 3000W Pure Sine Wave Inverter achieves 94% efficiency, maximising the usable capacity of your battery bank.

Integrated USB Charging Ports

Includes an integrated 5V 2.1A USB port for convenient charging of your small devices directly from the inverter.

Smart Cooling System

The smart fans automatically adjust their speed to keep the inverter cool, increasing efficiency and maintaining optimal power output.

High Quality Circuitry Components

Built using premium quality components and the latest technology, this inverter delivers reliable performance. Even under heavy loads and peak surges up to 4000W, it remains protected against spikes and surges.

Multiple Mounting Options

Four convenient mounting points allow easy installation into your caravan, camper, or canopy 12V power setup.

The KickAss Flexicharge 12V 50A ACDC Smart Battery Charger is built for serious off-grid, touring, and workshop setups. Engineered for fast charging high-capacity batteries like the KickAss Ultra-X range, it delivers powerful performance, intelligent control, and flexibility across multiple battery types – keeping your system running reliably on the road, on-site, or on shore power.

Fast, Controlled 50A Charging

Delivering up to 50 amps of output, this charger rapidly restores power to large lithium batteries and high-capacity systems. Capable of recharging a 200Ah lithium battery in as little as four hours, it’s engineered for serious power users who need their batteries charged efficiently and safely.

Fully Adjustable Output

Choose from 50A, 32A, 16A, or 4A charging modes to suit your setup. Whether you’re maintaining a small vehicle’s starter battery or powering a large lithium bank, this charger gives you precise control to ensure optimal performance and battery longevity.

Smart Bluetooth Control

Monitor and manage your charging system directly from your smartphone. With built-in Bluetooth connectivity, you can set battery type, adjust charge parameters, and view live voltage, current, and system status – all without touching the charger.

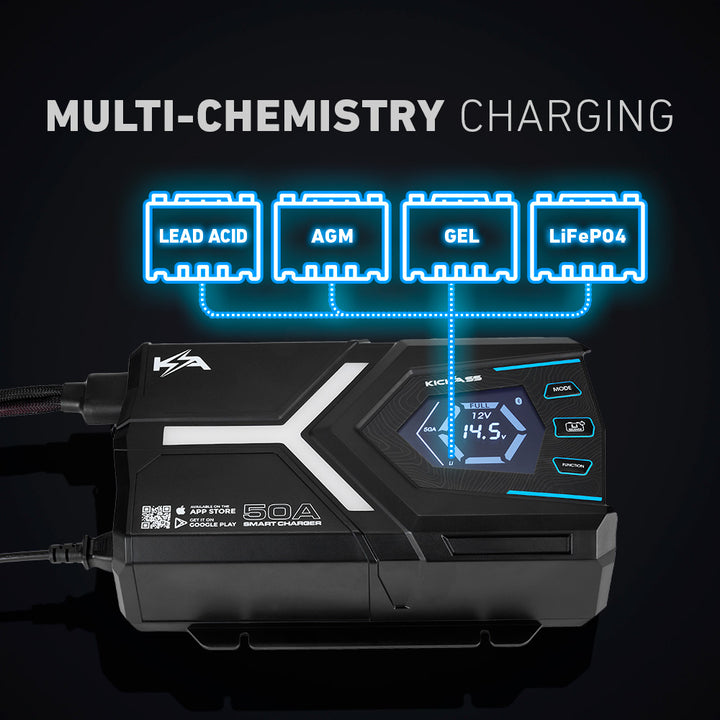

Multi-Chemistry Compatibility

Designed for total flexibility, this charger supports Lead Acid, AGM, Gel, Calcium, and Lithium batteries. It automatically applies the correct charging profile for each chemistry, ensuring the right balance of speed, safety, and battery protection.

Integrated Vehicle Diagnostics

Doubles as a diagnostic tool, checking alternator output, starter battery health, and cranking performance. Instantly identify weak points in your vehicle’s electrical system before they become roadside problems.

Dynamic Battery Maintenance

Once your battery reaches full charge, the charger switches to intelligent maintenance mode, monitoring voltage and applying a top-up only when needed. This prevents overcharging and keeps your system fully charged and ready.

Advanced Multi-Stage Charging

The smart 3-stage algorithm – bulk, absorption, and float – ensures fast, safe, and complete charging. Throughout the process, voltage and current are constantly monitored to deliver precision control, maximise efficiency, and extend battery life.

Intelligent Cooling & Quiet Mode

Temperature-controlled fans automatically adjust speed for efficient cooling with minimal noise. Activate Quiet Mode to further reduce fan operation and output current – ideal for overnight use or low-noise environments.

Simple Plug & Play Setup

With Anderson-style DC output and IEC AC input, installation is fast and flexible. Use the supplied Anderson-to-ring terminal cable for fixed installs or optional alligator clips for portable use, giving you connection options for any charging scenario.

Lithium Recovery & Starter Battery Replacement Mode

Includes a recovery function to safely revive lithium batteries that have entered low-voltage protection mode. It also operates as a regulated 12V DC power supply, for maintaining system voltage during battery replacement to avoid ECU resets or data loss.

EV and Hybrid Inverter Enabled Dual Battery Charger

Utilise the inverter in your EV, Hybrid or mild hybrid vehicle to charge our dual battery system through the 50A Smart AC Charger. Simply connect the charger input to the inverter output in the vehicle and you’ve got a plug-and-play dual battery system.

Clear LCD Display & Status Indicators

Stay informed with the integrated LCD screen, showing live voltage, current, and charge stage data. A status LED provides at-a-glance confirmation of charger operation and progress.

Built-In Protection & AGM Reconditioning

The Charge Guard system includes reverse polarity, short circuit, over-voltage, over-temperature, and over-current protection to safeguard your gear. Plus, an AGM Recondition Mode helps restore ageing AGM batteries by dissolving sulphate buildup and recovering lost capacity.

Powerful 40A Dual Battery Charging

With a high 40A output, this charger is perfect for keeping larger lithium and lead acid battery systems topped up and ready for action. It ensures fast, safe charging for demanding off-road or touring applications.

Bluetooth Monitoring & App Control

Connect your charger to your smartphone via Bluetooth to monitor performance in real time. The KickAss App gives you complete visibility over charging status, voltages, current flow, and system alerts – all from your pocket.

Simple Plug & Play Installation

Thanks to Anderson-style connectors, installation is quick and hassle-free with no complex wiring required. It’s designed for DIY setups and easy integration into your existing system.

Dual Input: Alternator & Solar Charging

Charge from your vehicle’s alternator while driving or connect a solar panel when stationary – this charger handles both. Its built-in MPPT solar regulator ensures maximum efficiency when using solar input.

Built for Aussie Conditions

Rated IP66, the KickAss 40A DCDC Charger is waterproof, dustproof, and rugged enough to handle corrugated tracks, extreme heat, and remote adventures. It’s built tough for Australian conditions.

Compatible with 12V & 24V Alternators

Highly versatile, this charger is compatible with both 12V and 24V alternators, making it suitable for a wide range of vehicle types including trucks, commercial vehicles, and 4WDs.

Adjustable Max Input Current – Hybrid Compatible

The maximum input current can be configured via the Bluetooth app, allowing the charger to limit the draw from your vehicle’s alternator, without reducing the maximum charge current when charging from solar. This makes it ideal for some hybrid vehicles or those with low-output alternators, helping prevent overload and ensuring stable, efficient charging without placing strain on your electrical system.

Smart Alternator Ready

Modern vehicles with smart alternators are no problem. The unit supports both smart and fixed-voltage alternators and includes an ignition trigger wire to start or stop charging based on engine status.

Lithium Battery Compatible

Fully lithium-ready, this charger includes an automatic lithium wakeup function that can safely restore LiFePO4 batteries from low voltage protection or sleep mode – no manual intervention needed.

Advanced Multi-Stage Charging

Precision charging algorithms help extend the life of your auxiliary battery. The charger delivers multi-stage charging tailored to the battery type, helping maintain peak performance over the long haul.

Starter Battery Isolation

To protect your starting battery, the charger only delivers current to your auxiliary battery when the engine is running, and automatically disconnects when the vehicle is off – eliminating unwanted drain.

Supports Multiple Battery Chemistries

Whether you’re using lithium, AGM, wet, gel, or calcium batteries, this charger has you covered. It’s a versatile solution designed to support a wide range of battery types.

Perfect for 4WDs, caravans, camper trailers, and off-grid touring setups, the KickAss 40A DCDC Charger with Solar MPPT and Bluetooth delivers intelligent charging for serious adventurers.

When you're running a full caravan setup far from the nearest power point, you need a battery that won't let you down. The KickAss Ultra-X 460Ah Deep Cycle Lithium Battery is built for exactly that, delivering massive useable capacity, intelligent protection, and the flexibility to scale your system as your needs grow.

460Ah of Useable Capacity, Run Everything, Go Anywhere

At the heart of the Ultra-X is a huge 460Ah of useable capacity, giving you the freedom to run high-draw appliances like air conditioners and induction cooktops simultaneously, without constantly watching your power levels. Whether you're parked up for a week in the outback or running a fully loaded caravan, this battery has the grunt to keep everything running exactly the way you want it.

300A Continuous Discharge, Stable, High-Output Power

The Ultra-X delivers strong, consistent 300A output capable of running a 3000W inverter while still leaving headroom for additional 12V appliances. With a surge capacity of up to 660A for 30 seconds, it handles the demands of multiple high current devices starting simultaneously.

Stackable Design, Maximum Capacity, Minimum Space

Space is always at a premium in a caravan or camper build, and the Ultra-X is designed with that in mind. It is specifically designed to be installed lying down flat in a locker or cabinet to make the most of tight spaces. When you need more capacity, simply stack multiple units together. A linking kit is included, complete with busbars for parallel connection and mounting brackets to lock the batteries together securely.

Intelligent BMS, Built-In Protection You Can Count On

The Ultra-X features an intelligent multi-level BMS that continuously monitors key internal components to keep the battery operating safely under all conditions. Protection covers temperature extremes, overcharge, over-discharge, and short circuits, so whether you're in the middle of a scorching summer or a frosty alpine night, the battery manages itself so you don't have to.

Bluetooth Monitoring, Your Power System in Your Pocket

Stay on top of your power with the KickAss Bluetooth app. Monitor state of charge, wattage, voltage, current, temperature, and real-time system alerts, all from your smartphone. No more guesswork, no more surprises. Having live data at your fingertips means you can make smarter decisions about your power usage and get the most out of every charge cycle.

Remote Display Monitoring, At-a-Glance Power Data

The Ultra-X pairs seamlessly with the KickAss Smart Lithium Battery Remote Display Unit (sold separately), letting you monitor battery levels, temperature, current, time to full/empty, voltage and more from inside your vehicle's cabin or wherever you choose to mount it. Clear, real-time data, always within sight.

Parallel & Series Configuration, Scale Your Setup Your Way

The Ultra-X is built to grow with your power needs. Connect up to four batteries in parallel to build a 12V bank of up to 1840Ah, or wire them in series to create a 48V system at 460Ah. The Ultra-X gives you the flexibility to configure your system exactly the way you need it.

Whole-System Monitoring, No External Shunt Required

Monitoring a multi-battery setup usually means adding an external shunt to the equation, but not with the Ultra-X. Simply connect each battery using an RJ45 cable, and both the optional KickAss Remote Display Unit and the Bluetooth app can monitor the entire bank as a single unit. Consolidated data, no extra hardware, no hassle.

Built to Last, Rugged, Certified, and Ready for Anything

The Ultra-X is housed in a tough metal case with integrated mounting points and anti-vibration pads, making it equally at home in a hard-working caravan, 4WD, or off-grid setup. With a cycle life of 4000+ cycles at 80% depth of discharge and IEC 62619 certification confirming it meets stringent international safety standards, this is a battery engineered for the long haul.

This 3-pin Anderson-style connector with built-in ignition wire makes connecting your 12V dual battery system easy. Perfect for wiring DC/DC chargers, battery boxes & auxiliary batteries.

KickAss Features:

• Wireless control
• Magnetic charging cradle (NEW!)
• Rechargeable battery
• High current capability
• Multi battery capability
• IP65 Dust & Water Resistant Rating
• Double sided outlet
• Prewired ACC fuse tap
• Enhanced safety features
• Multiple mounting options
• Adjustable lighting & on/off switch
• DIY switch panel labels

Wireless control

Operate your DC appliances remotely from a distance of up to 60 meters, which is a much greater range than Bluetooth offers. No need to download apps or have your phone with you, or worry about complex cable routing between the panel and your control box. Simply grab your panel and go!

Rechargeable battery

The switch panel comes with a convenient, built-in rechargeable battery, meaning you can say goodbye to the hassle and expense of replacing disposable batteries – simply plug it in via the USB cable provided.

The battery charges fully in just 2-3 hours and can last for an impressive 5-6 days. Keep track of your battery status easily with the convenient battery indicator, which displays three clear levels: low, medium, and full.

High current capability

The 8 Gang Switch Panel has a high current capability, and can handle up to 60A at either 12V or 24V. This means you can simultaneously use high and low current devices – for example a speaker, camping fridge, camping lights, winch, air compressor, etc.

Multi battery capability

The control box switch offers two options to obtain power: you can connect ACC (Accessory power) to the starter battery, or alternatively to the auxiliary battery. If you prefer to operate your electrical devices (for example your horn, lights, and radio) only in ACC mode, selecting the ACC setup allows you to do so.

IP65 Dust & Water Resistance Rating

With an IP65 rating, the 8 Gang Switch Panel is perfect for outdoor adventures. It can withstand some dust and moisture exposure and continue to function. It should not be submerged in water.

Double sided outlet

The switch panel features a current control box that splits the output into two sides, allowing for versatile wiring configurations and minimising wire clutter. It includes two 30A, two 20A, two 15A, and two 10A outlets, with one of each type on either side of the panel.

Prewired ACC fuse tap

The pre-wired ACC fuse adapter makes it easy to connect the control box to the vehicle’s fuse box, without having to cut, splice or damage the vehicle’s existing wiring. Quick, easy installation!

Enhanced safety features

The 8 Gang Switch Panel is equipped with a 60/80A circuit breaker, blade fuses (plus a spare), and compact solid-state relays. This protects the switch panel from damage caused by thermal, overload and over-currents.

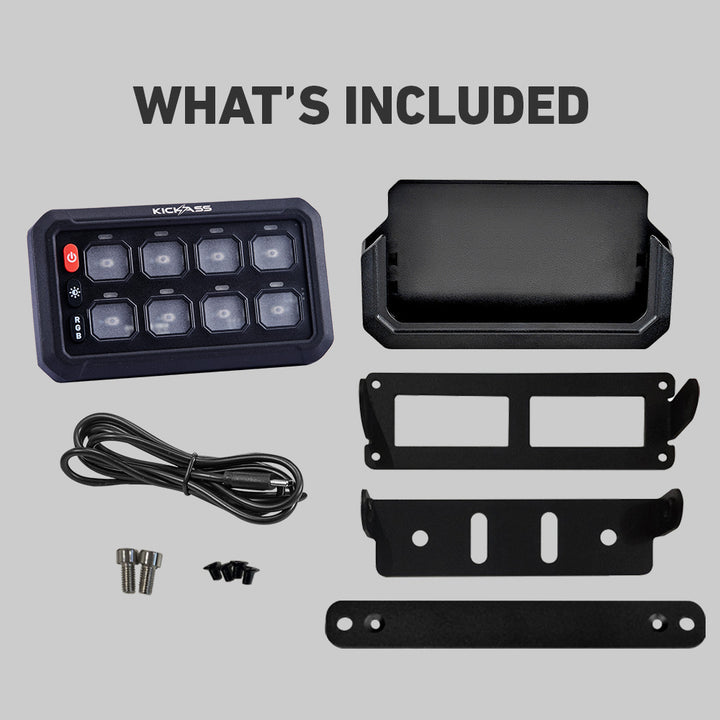

Multiple mounting options

Comes with two bracket mounting options for the switch panel and control box. All essential mounting hardware is included, as well as instructions and suggestions for optimal placement within your vehicle.

Adjustable lighting & on/off switch

There are three lighting modes: a constant light, a momentary light, and strobe modes. You can also choose between five brightness levels, as well as a number of colours and a dedicated switch to turn the backlight on and off. Enjoy total control of your setup.

DIY switch panel labels

Comes with 140 stickers to label each switch and its connection. Almost everything is covered!

Magnetic Charging Cradle

The unit comes with a magnetic charging cradle, which will keep your switch panel powered up without the hassle of loose cables or worn-out USB ports. Just line up the panel with the dock and it snaps neatly into place, delivering a safe, secure charge every time. It’s a seamless way to ensure your unit is always ready to go – clean, simple, and completely cable-free.

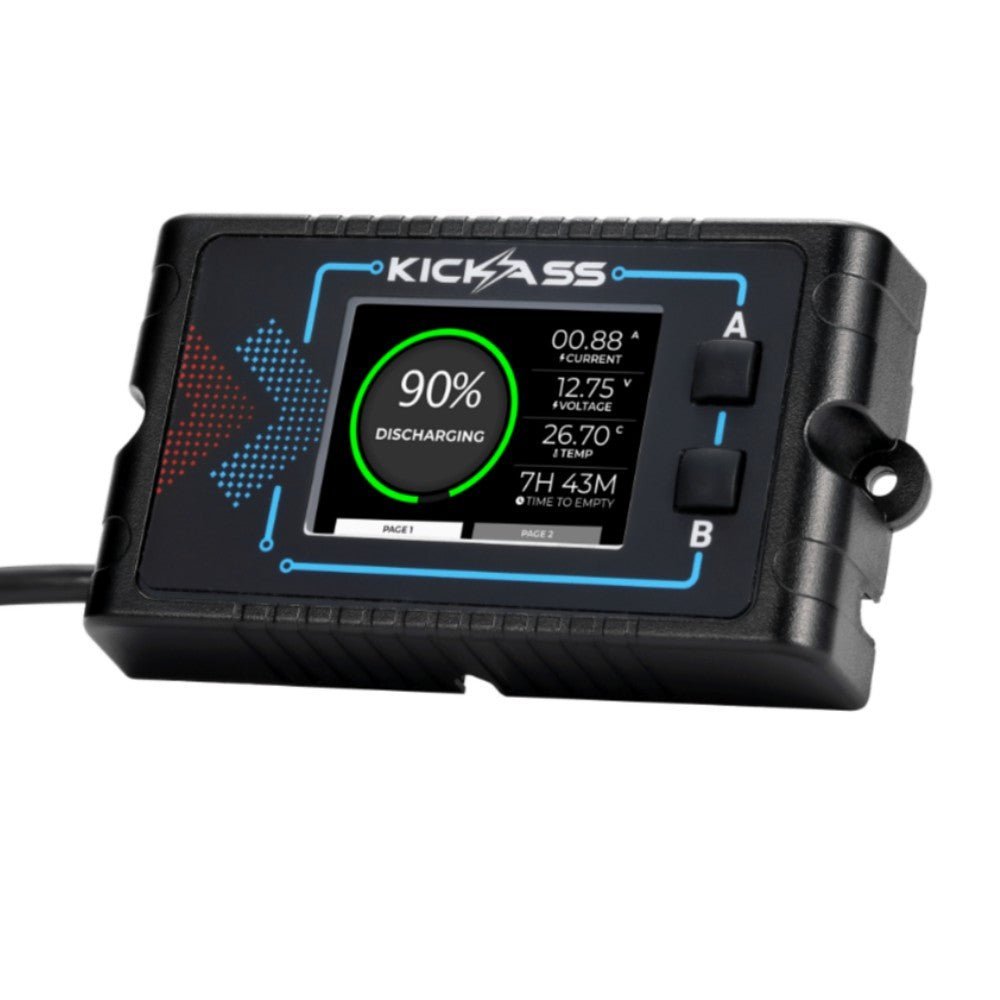

The KickAss Remote Smart Lithium Battery Display Unit is compatible with the KickAss Smart and Ultra-X series batteries. Simple plug-and-play via the RJ45 connector, it allows you to monitor State of Charge (SOC), voltage, real-time current, and temperature of either a single battery or multiple batteries connected in parallel or series. Includes 5m extension cable.

Take full control of your battery system with the KickAss Battery Display Monitor – your window into real-time performance, protection, and peace of mind.

Monitor Your Battery Like a Pro

Never guess your battery’s health again. With a full-colour screen, you can instantly view:

• Battery temperature
• Current draw
• Voltage
• Charge status
• Time to empty/full
• Cell balance and more

Built-In Battery Management System (BMS)

The integrated KickAss BMS keeps your battery safe — actively protecting against:

• Overvoltage and undervoltage
• Short circuits
• Overload
• High temperatures

Stay alerted with smart error messages and stay in control from your display or compatible mobile device.

Easy Flush-Mount Design

Install it where you need it most. Whether it's in your canopy, van, or camper setup, the flush-mount design with included screws and universal hole spacing makes installation fast and secure.

Compact Dimensions

• Display: 126mm (W) x 66.61mm (H) x 23mm (D)
• Cable Length: 440mm
• Mounting holes for quick surface installation

The KickAss Battery Display Monitor isn’t just for looks – it’s your off-grid command centre. Whether you're heading bush or running gear off your canopy, this screen keeps your system protected and your trips worry-free.

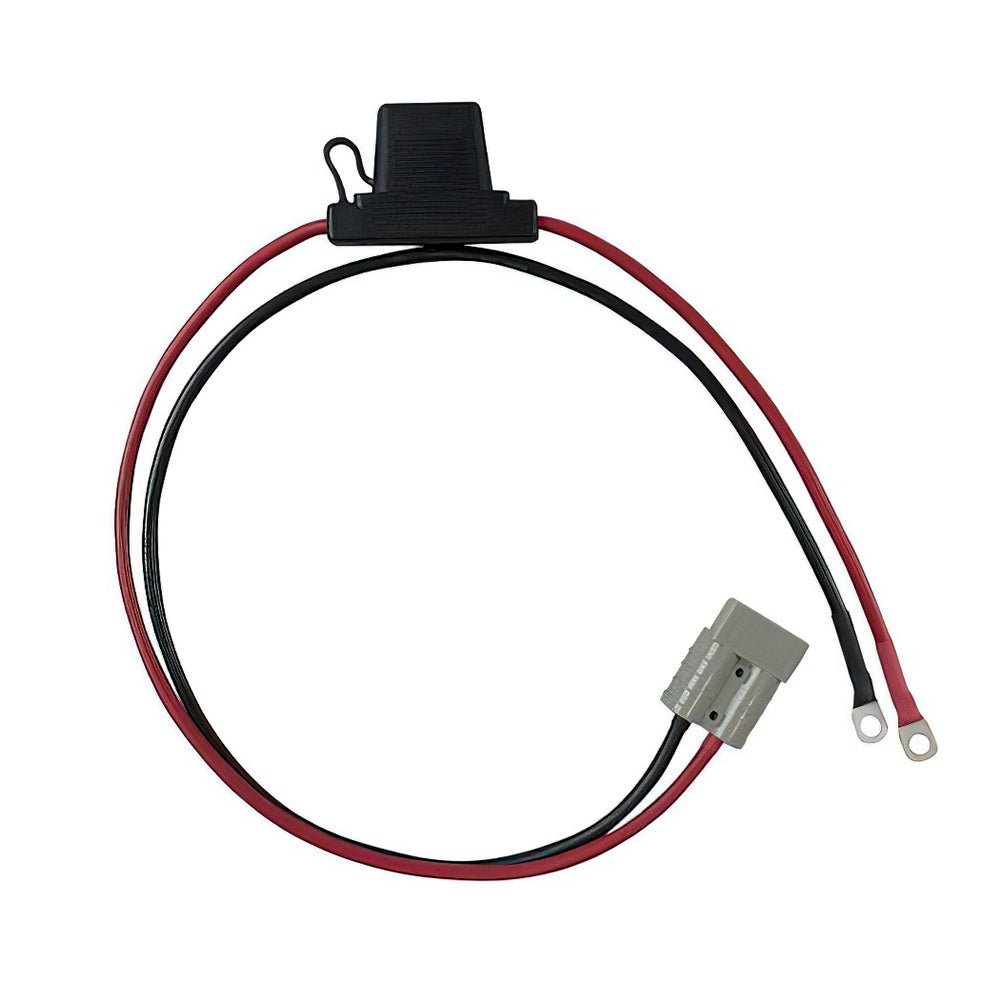

KickAss MAXI Fuse Anderson Cable

The KickAss MAXI Fuse Anderson Cable is the perfect solution for connecting a battery to virtually any device. It offers superior circuit protection through an inline 80A MAXI Fuse, safeguarding against short circuits and potential system damage.

With a purpose-designed length, this cable easily reaches vehicle starting batteries and integrates seamlessly with dual battery setups. The built-in weatherproof MAXI Fuse holder simplifies installation, eliminating the need for mounting traditional fuse holders or circuit breakers.

One end of the cable features a 50 Amp Anderson style connector for effortless connection to battery boxes, solar panels, or other compatible devices. The other end includes high-quality 8mm ring terminals for secure battery attachment. A spare 80A MAXI Fuse is included for added convenience.

Features:

• In-line weatherproof MAXI Fuse holder with 80A MAXI Fuse
• Length: 750mm
• Cable type: Twin 8B&S (7.71mm²) Red/Black Sheathed
• 1 x 80A MAXI Fuse pre-installed in holder
• 1 x 80A MAXI Fuse spare
• 8mm ring terminals

See links below for replacement fuses:

Spare 50A MAXI Fuse - Red
