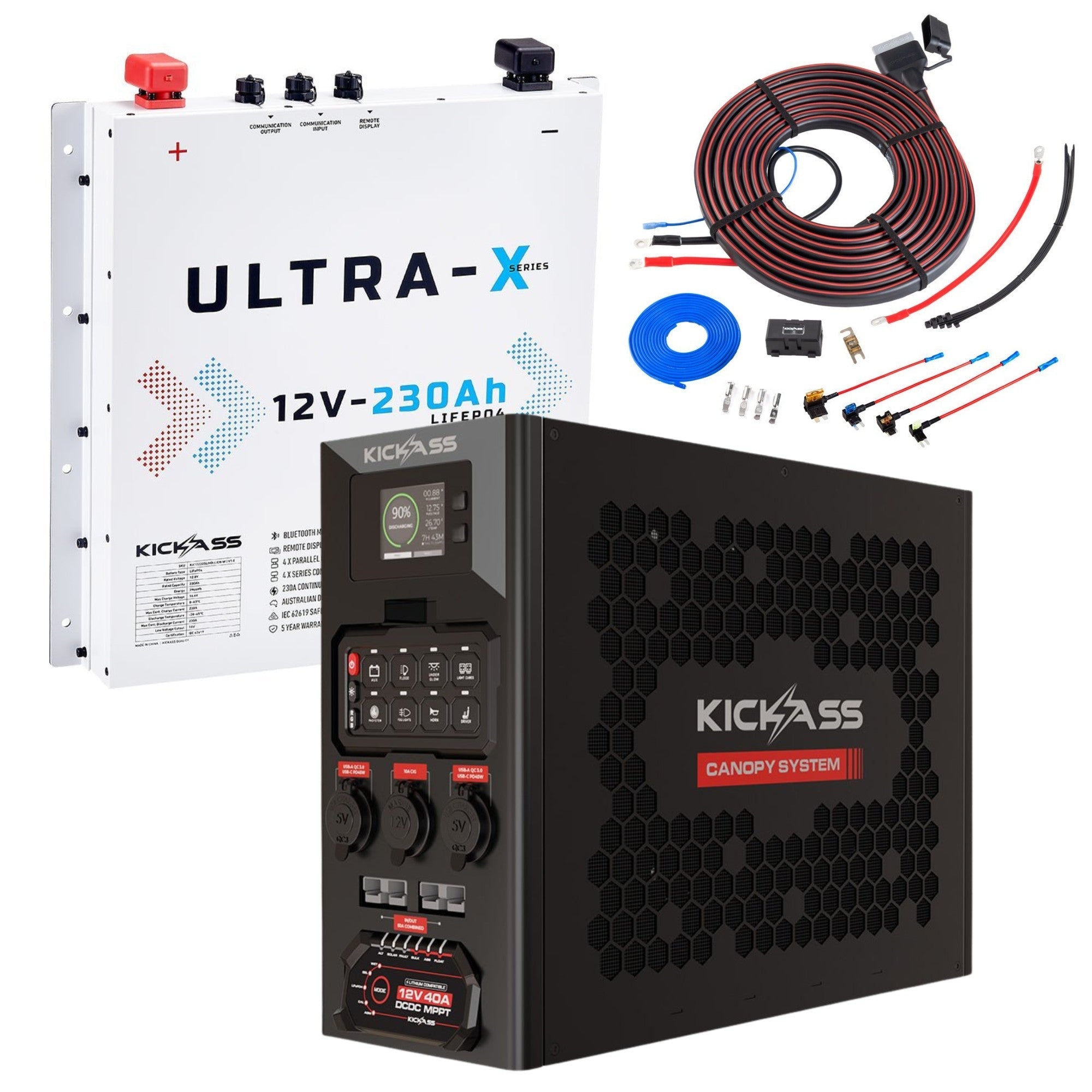

Get reliable, long-lasting power for your adventures with the KickAss 230Ah Slimline Lithium Premium Dual Battery Kit. Featuring our 230Ah Ultra-X Slimline Battery, the 12V Wireless Canopy Power System with 40A DCDC charger and Bluetooth, plus a 6.5m Heavy Duty Plug and Play DCDC Wiring Kit. Perfect for 4WDs, caravans, and campers.
Everything that is included in this KickAss kit!

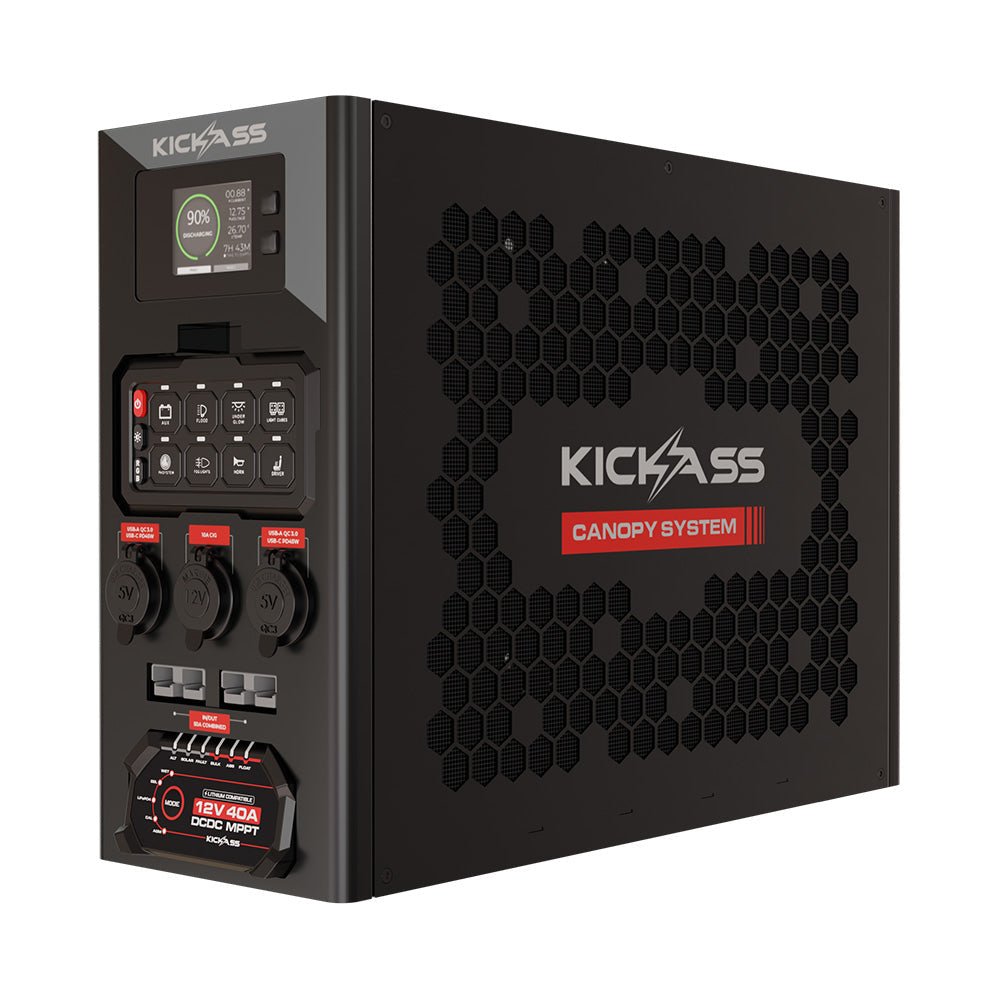

The new and improved KickAss Canopy System makes 12V setups even easier. It now features wireless digital switching and built-in Bluetooth, so you can monitor charging status and performance straight from your phone. With its MPPT solar controller, 40A DCDC charger, and fast-charging outputs, it’s specifically designed to be an off-grid solution for canopies.
The new and improved KickAss Canopy Power System takes the hassle out of building a reliable 12V setup. Instead of sourcing multiple components and wiring them together, this upgraded all-in-one unit brings everything into a single, streamlined package that’s easy to install and ideal for DIYers. It integrates your MPPT solar controller, 40A DCDC charger, USB fast-charging outputs, and a fully redesigned wireless 8-gang switching panel.
This latest version now features wireless digital switching, giving you the freedom to control your accessories from a detachable panel you can carry anywhere around your setup. When the switch panel’s battery runs low, simply return it to the magnetic charging dock… it snaps in securely and tops up automatically. The system also includes new Bluetooth monitoring of the DCDC charger, allowing you to connect via the supporting app to configure the device and view real-time charging data such as solar and alternator input current, battery charge current, charging stage, and system alerts.
Engineered for seamless pairing with KickAss Smart Series and KickAss Ultra-X LiFePO₄ batteries, the updated Canopy Power System delivers maximum compatibility, safety, and efficiency. Select the KickAss lithium battery that suits your build and enjoy a complete, modernised off-grid power solution.
Note: The display and Bluetooth app monitoring features are compatible only with KickAss Smart Series and KickAss Ultra-X Lithium Batteries.

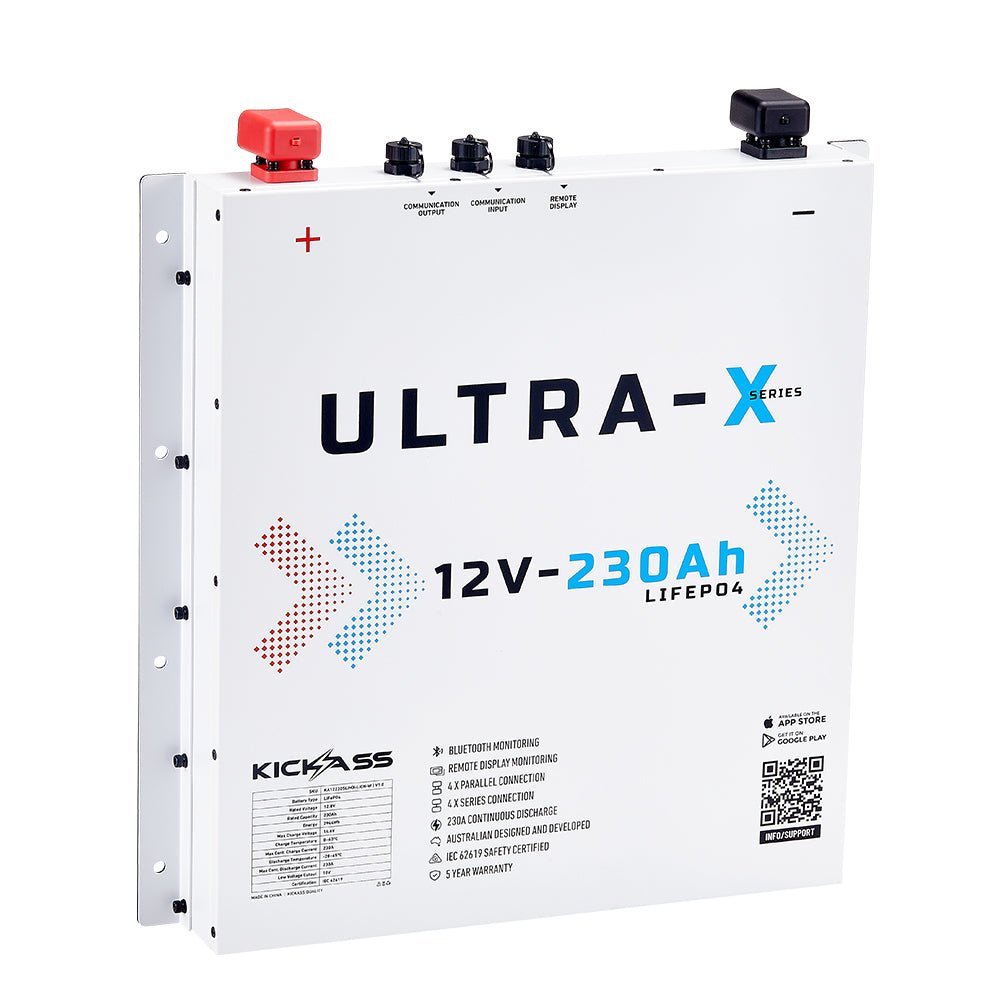

The KickAss 12V 230Ah Slimline Lithium Battery in Arctic White delivers serious power in a sleek, space-saving design. Boasting 230Ah of usable capacity, Bluetooth monitoring, and the ability to connect in series or parallel, it’s ideal for demanding off-grid setups. With 4000+ cycles at 80% DoD and a built-in BMS for reliable safety protection, you can link up to four for a massive 920Ah system.
KickAss Features:
Ultra Compact, Slimline Design
The ultra-compact, slimline design is ideal for those who have minimal space but need maximum power. Measuring only 500mm x 510mm x 70mm, this compact powerhouse is perfect for installing in canopies, under false floors in caravans, behind seats, and anywhere where space is tight. This KickAss battery delivers big power in a small package.
Supporting Bluetooth App
No more guesswork – stay in control of your power system by using the supporting Bluetooth app. Monitor critical battery parameters such as SoC, level, voltage, current, temperature, and real-time system alerts right from your smartphone. Having real-time data at your fingertips ensures optimal performance and peace of mind during all your off-grid adventures.
BMS with Multiple Safety Features
The KickAss 12V 230Ah Deep Cycle Lithium Battery is equipped with an advanced Battery Management System (BMS) that ensures safety and reliability. The BMS actively monitors and protects the battery from common issues such as overcharging, over-discharging, short circuits, and overheating, ensuring safe operation at all times.
Create a Battery Bank with Over 900Ah of Usable Capacity
These batteries support parallel and series configurations for maximum versatility. Link up to four in parallel to create a massive battery bank with over 900Ah of usable capacity, delivering serious power for extended off-grid use. This capability allows you to tailor your power setup to your exact needs.
Monitor Your Battery Bank Remotely
Monitoring multiple batteries in a series or parallel setup usually requires an external shunt, but these batteries eliminate that need. Simply connect each Ultra-X series battery using an RJ45 cable, and the optional KickAss Remote Display Unit (RDU) will seamlessly interface with the entire battery bank. Alternatively, use the supporting Bluetooth app for system monitoring without additional hardware.
230Ah Usable Capacity
With 230Ah of usable capacity, the KickAss 12V Deep Cycle Lithium Battery offers an abundance of power for extended off-grid adventures. This large capacity means you can run devices and appliances for longer periods without frequent recharges.
230A Continuous Charge & Discharge with 460A Pulse Capacity
This battery delivers exceptional performance with its 230A continuous charge and discharge capability, ensuring a steady and reliable flow of power for demanding applications. The impressive 460A pulse capacity allows it to handle sudden power surges, making it incredibly versatile.
4000+ Cycles @ 80% DoD 0.5C
Designed for longevity, this battery offers over 4000 charge and discharge cycles at 80% Depth of Discharge (DoD) and a 0.5C charge/discharge rate. This durability ensures a long-lasting, high-performance battery for years to come.
Metal Case with Integrated Mounting Points
The durable metal housing with integrated mounting points eliminates the need for a separate battery tray. The heavy-duty metal casing not only protects the battery from the elements and rough conditions but also makes installation easier and more secure.

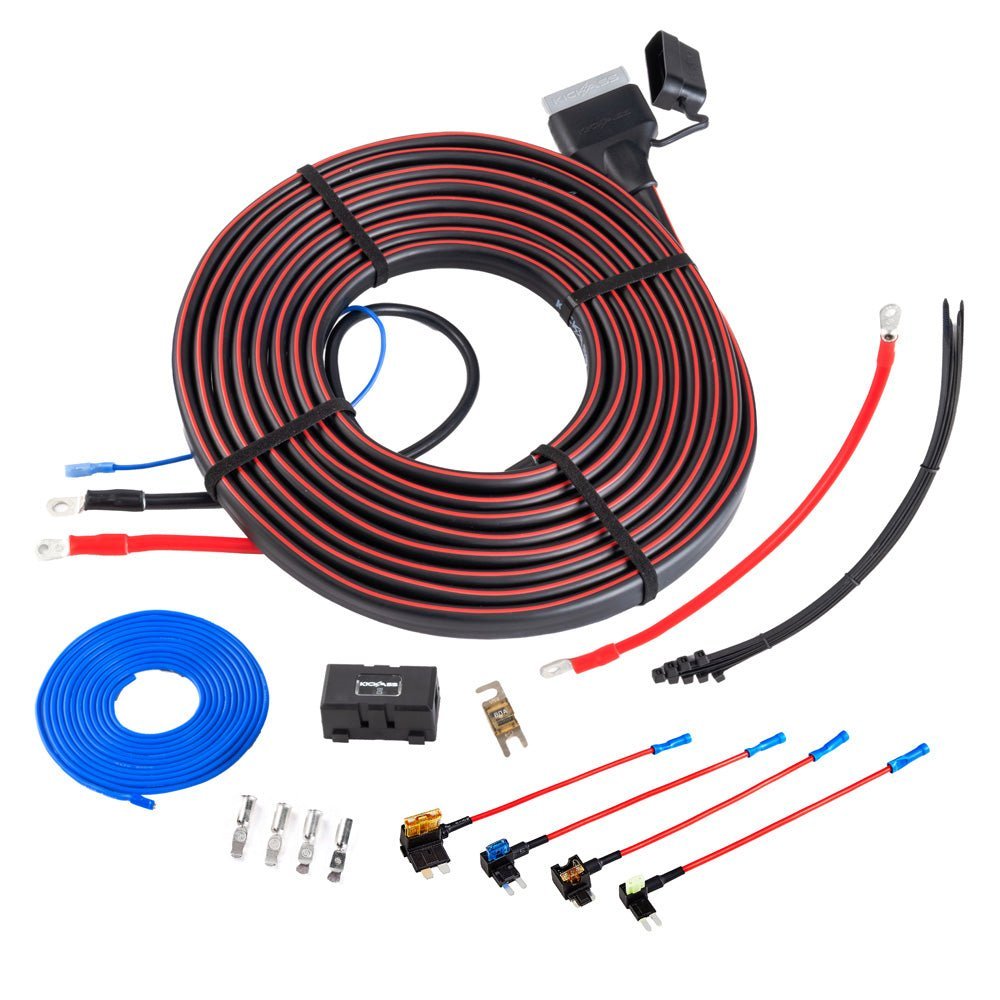

This 3-pin Anderson-style connector with built-in ignition wire makes connecting your 12V dual battery system easy. Perfect for wiring DC/DC chargers, battery boxes & auxiliary batteries.
This 3-pin Anderson-style connector with built-in ignition wire makes connecting your 12V dual battery system easy. Perfect for wiring DC/DC chargers, battery boxes & auxiliary batteries.
| Main Cable Length | 6.5M - 3 Core |
| Ignition Cable Extension | 3M - 14AWG Single Core |
| Cable Size - 3 Core | 2x 6AWG (13.5mm²), 1x 14AWG (1.8mm²) |
| Insulation Material | Inner - Silicon / Outer - PVC |
| Rated Temperature | Max. 105°C |
| Ring Terminals | M8 - Battery / M6 - Fuse |
| Fuse | 80A MIDI Fuse with Holder |
| Connections | 3 Pin Anderson Style / Bullet |
| Voltage | 12.8V |
| Capacity | 230Ah |
| Cell Type | Prismatic |
| Max Continuous Discharge | 230A |
| Max Continuous Charge | 230A |
| Peak Discharge | 430A (30s) |
| Max Charge Temp | 60°C |
| Min Charge Temp | 0°C |
| Max Discharge Temp | 65°C |
| Min Discharge Temp | -20°C |
| Cycle Life | 4000+ cycles | 80% DoD | 1C Charge / 0.5C Discharge |
| Bluetooth | Yes |
| Remote Display | Optional |
| Parallel / Series | 4 | 4 |
| Parallel / Series Remote Monitoring | Bluetooth | Remote Display |
| Dimensions (Battery) | 450 x 70 x 500 mm |
| Dimensions (with Terminals and Housing) | 510 x 70 x 540mm |
| Weight | 26.9 kg |
| Certifications | IEC62619 |
| Warranty | 5 years |
| Cig Socket Outputs | 1 x 10A |
| USB Outputs | 2 x USB-C 45W | 2 x QC3.0 |
| Anderson Input / Outputs | 5 |
| Anderson Inputs | 3 Pin Alternator | Unregulated Solar |
| Digitally Switched Outputs | 8 |
| Battery Connection | 175A Anderson |
| Operating Temperature | -20°C to +50°C |
| Product Dimensions | 440 x 160 x 320mm (L x W x H) |
| Product Weight | 9.35kg |
| DCDC-MPPT | |
| Charger Output Voltage Range | 3–16V DC |
| Alternator Input Voltage Range | 9–32V DC |
| Solar Input Voltage Range | 9–32V DC |
| Maximum Input Current | 56A |
| Maximum Continuous Charging Current | 40A |
| Efficiency | Solar - 99% Max | Alternator - 92% Max |
| No Load Current Draw | 10 mA |
| Charge Profile | |
| Absorption Voltage | GEL - 14.1V | WET - 14.4V | AGM - 14.7V | CAL - 15.3V | LiFePO4 - 14.5V |
| Float Voltage | GEL - 13.5V | WET - 13.4V | AGM - 13.4V | CAL - 13.6V | LiFePO4 - NA |
| Minimum Auxiliary Battery Voltage | GEL/WET/AGM/CAL - 9V | LiFePO4 - 0V |
| Alternator Charge Conditions | |
| 12V Alternator Input (Ignition OFF) | CUT-IN 13.2V | CUT-OUT 12.6V |
| 12V Alternator Input (Ignition ON) | CUT-IN 12.2V | CUT-OUT 10.5V |
| 24V Alternator Input (Ignition OFF) | CUT-IN 26.4V | CUT-OUT 25.2V |
| 24V Alternator Input (Ignition ON) | CUT-IN 24.4V | CUT-OUT 21V |
| KickAss Heavy Duty Plug and Play DCDC Wiring Kit - 6.5m | |
| KickAss Smart 12V 230Ah Ultra-X Lithium Slimline Deep Cycle Battery LiFePO4 - Arctic White | |
| KickAss 12V Wireless Canopy Power System with 40A DCDC Charger + Integrated Bluetooth |
Power up your adventures with the KickAss 230Ah Slimline Lithium Premium Dual Battery Kit. This ultimate setup combines our powerful 230Ah Ultra-X Lithium Slimline Deep Cycle Battery with the innovative 12V Wireless Canopy Power System, featuring an integrated 40A DCDC charger and Bluetooth connectivity. Get everything connected seamlessly with the included 6.5m Heavy Duty Plug and Play DCDC Wiring Kit. Perfect for 4WDs, caravans, and campers, this kit provides reliable, long-lasting power for all your off-grid needs. Monitor your system with ease via the integrated Bluetooth, ensuring you're always in control.
