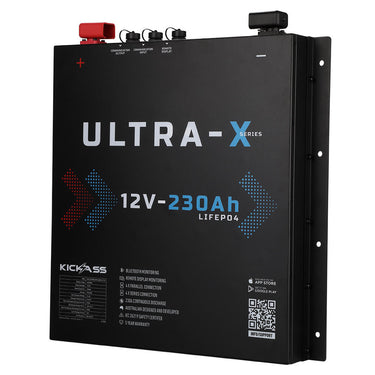

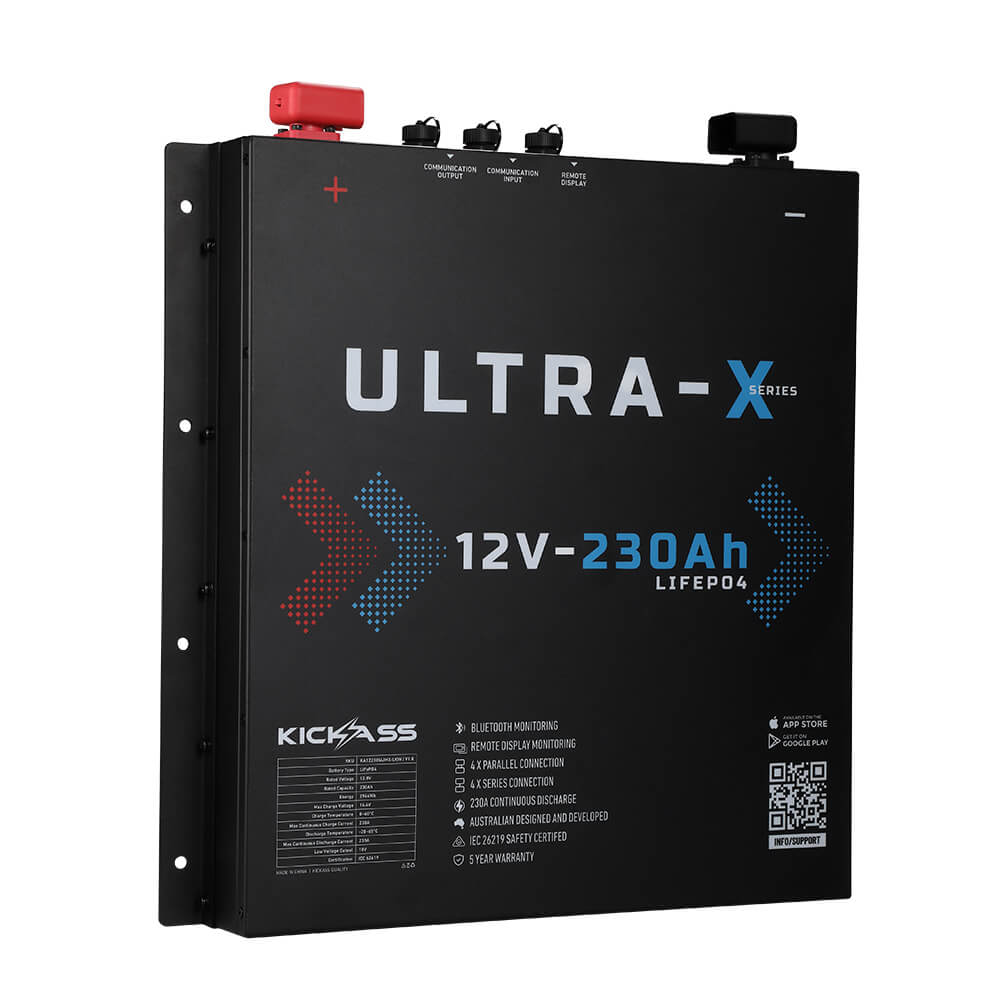

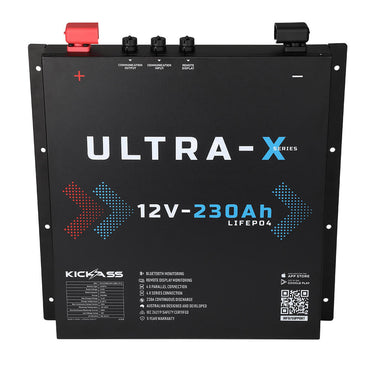

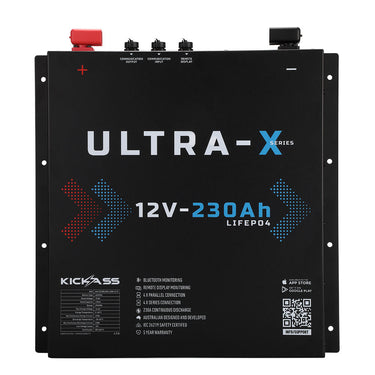

KickAss Smart 12V 230Ah Ultra-X Lithium Slimline Deep Cycle Battery LiFePO4

KickAss Smart 12V 230Ah Ultra-X Lithium Slimline Deep Cycle Battery LiFePO4

Support Page User Manual

KickAss Features:

• Ultra compact, slimline design
• Supporting Bluetooth app
• BMS with multiple safety features
• Connect in parallel or series
• Monitor your battery bank remotely
• 230Ah usable capacity
• 230A continuous charge & discharge with 460A pulse capacity
• 4000+ Cycles @ 80% DoD 0.5C
• Metal case with integrated mounting points
• Australian Safety Certified
• Designed & developed in Australia

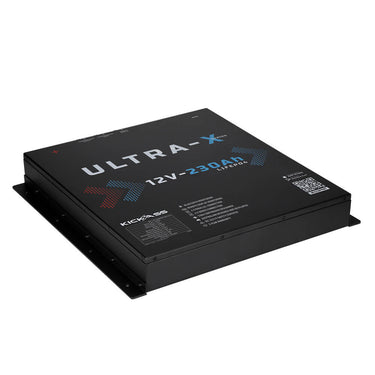

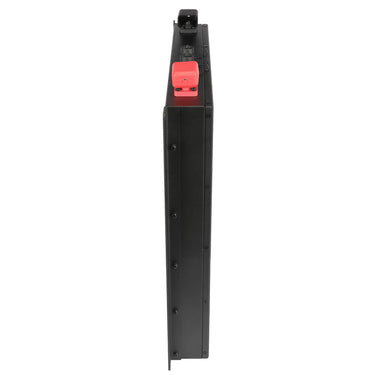

Ultra Compact, Slimline Design

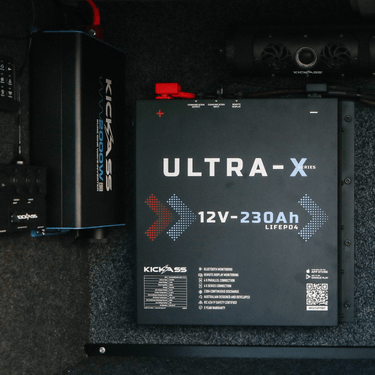

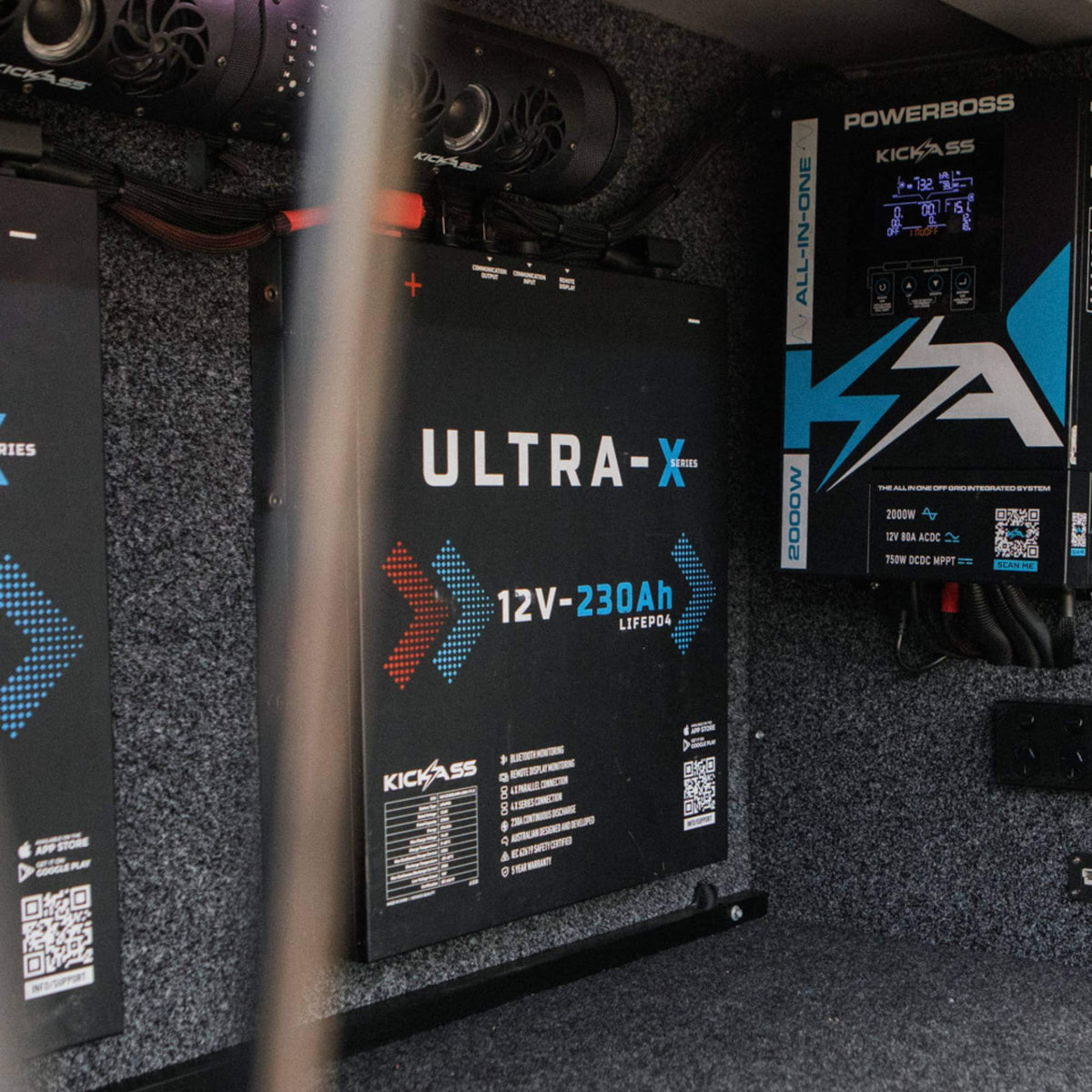

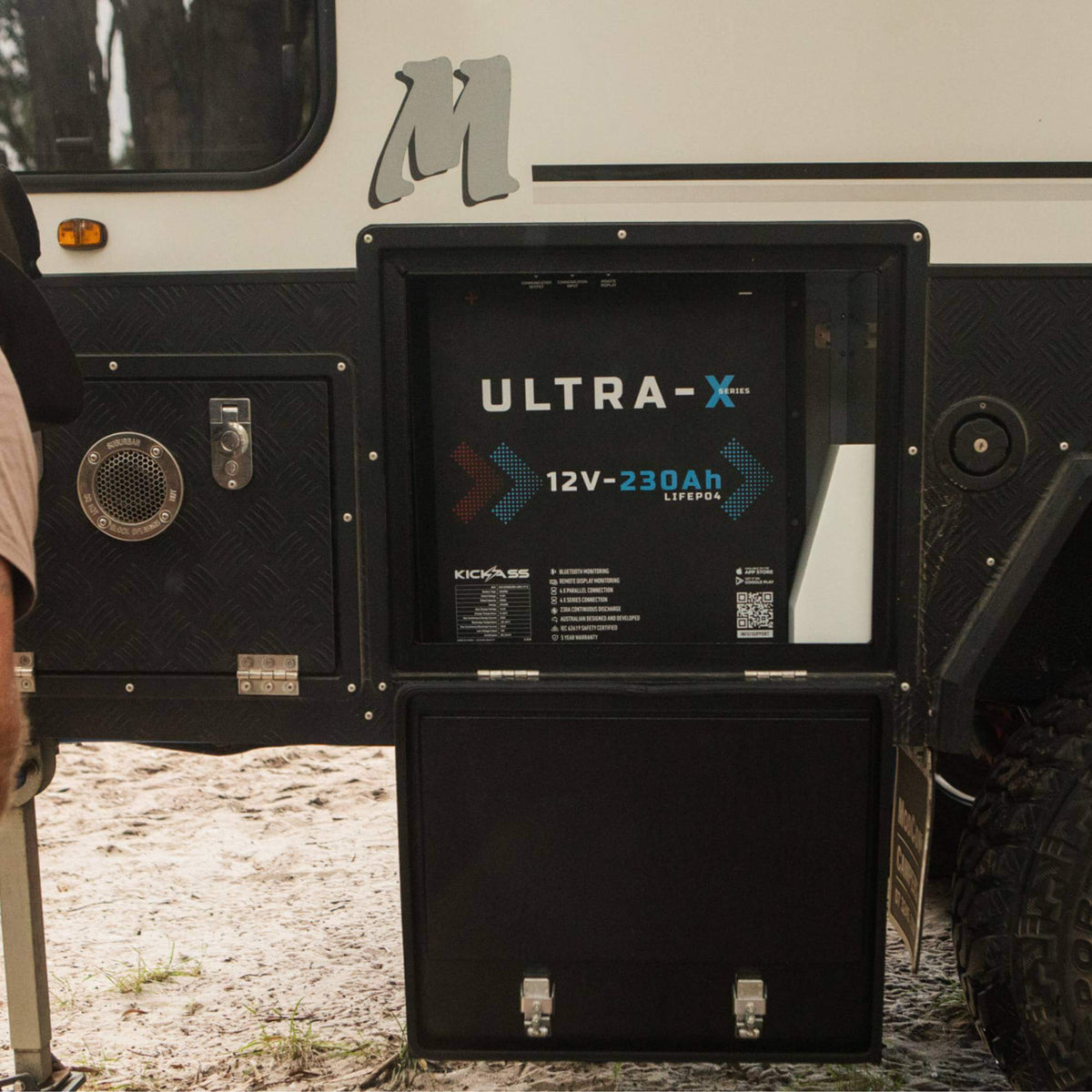

The ultra-compact, slimline design is ideal for those who have minimal space but need maximum power. Measuring only 500mm x 510mm x 70mm, this compact powerhouse is perfect for installing in canopies, under false floors in caravans, behind seats, and anywhere where space is tight. This KickAss battery delivers big power in a small package.

Supporting Bluetooth App

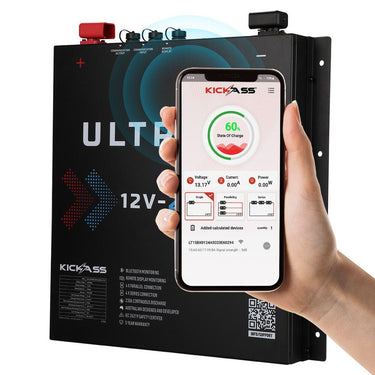

No more guesswork – stay in control of your power system by using the supporting Bluetooth app. Monitor critical battery parameters such as SoC, level, voltage, current, temperature, and real-time system alerts right from your smartphone. Having real-time data at your fingertips ensures optimal performance and peace of mind during all your off-grid adventures.

BMS with Multiple Safety Features

The KickAss 12V 230Ah Deep Cycle Lithium Battery is equipped with an advanced Battery Management System (BMS) that ensures safety and reliability. The BMS actively monitors and protects the battery from common issues such as overcharging, over-discharging, short circuits, and overheating, ensuring safe operation at all times.

Create a Battery Bank with Over 900Ah of Usable Capacity

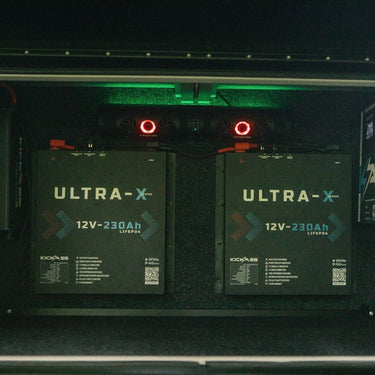

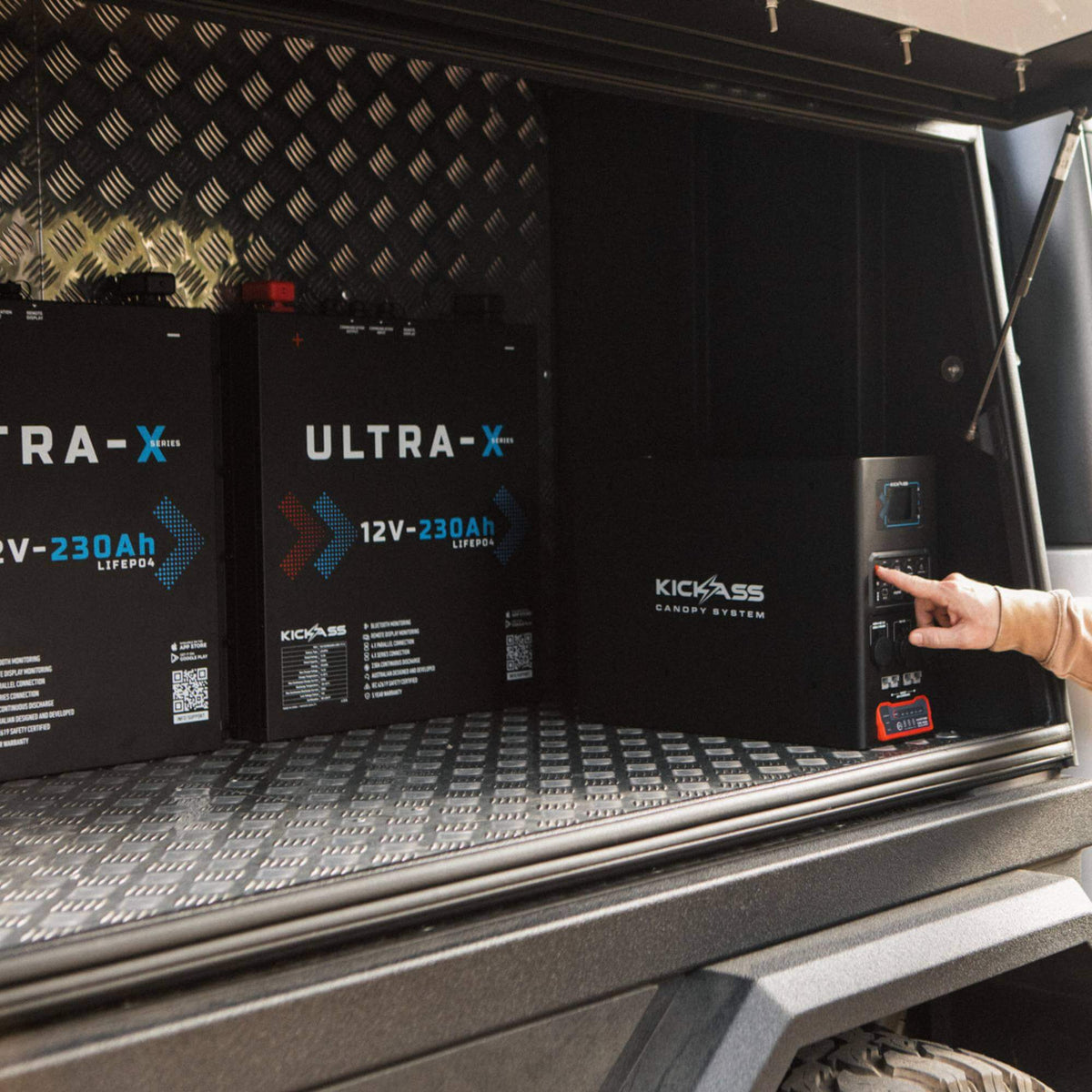

These batteries support parallel and series configurations for maximum versatility. Link up to four in parallel to create a massive battery bank with over 900Ah of usable capacity, delivering serious power for extended off-grid use. This capability allows you to tailor your power setup to your exact needs.

Monitor Your Battery Bank Remotely

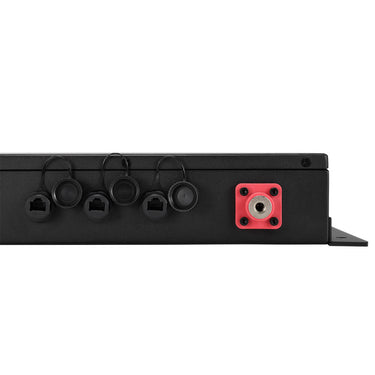

Monitoring multiple batteries in a series or parallel setup usually requires an external shunt, but these batteries eliminate that need. Simply connect each Ultra-X series battery using an RJ45 cable, and the optional KickAss Remote Display Unit (RDU) will seamlessly interface with the entire battery bank. Alternatively, use the supporting Bluetooth app for system monitoring without additional hardware.

230Ah Usable Capacity

With 230Ah of usable capacity, the KickAss 12V Deep Cycle Lithium Battery offers an abundance of power for extended off-grid adventures. This large capacity means you can run devices and appliances for longer periods without frequent recharges.

230A Continuous Charge & Discharge with 460A Pulse Capacity

This battery delivers exceptional performance with its 230A continuous charge and discharge capability, ensuring a steady and reliable flow of power for demanding applications. The impressive 460A pulse capacity allows it to handle sudden power surges, making it incredibly versatile.

4000+ Cycles @ 80% DoD 0.5C

Designed for longevity, this battery offers over 4000 charge and discharge cycles at 80% Depth of Discharge (DoD) and a 0.5C charge/discharge rate. This durability ensures a long-lasting, high-performance battery for years to come.

Metal Case with Integrated Mounting Points

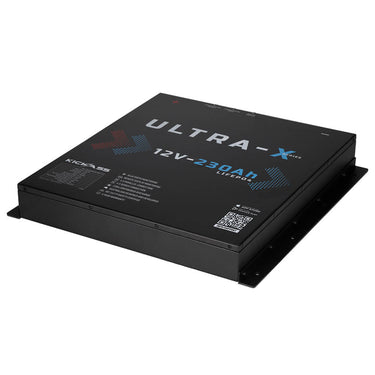

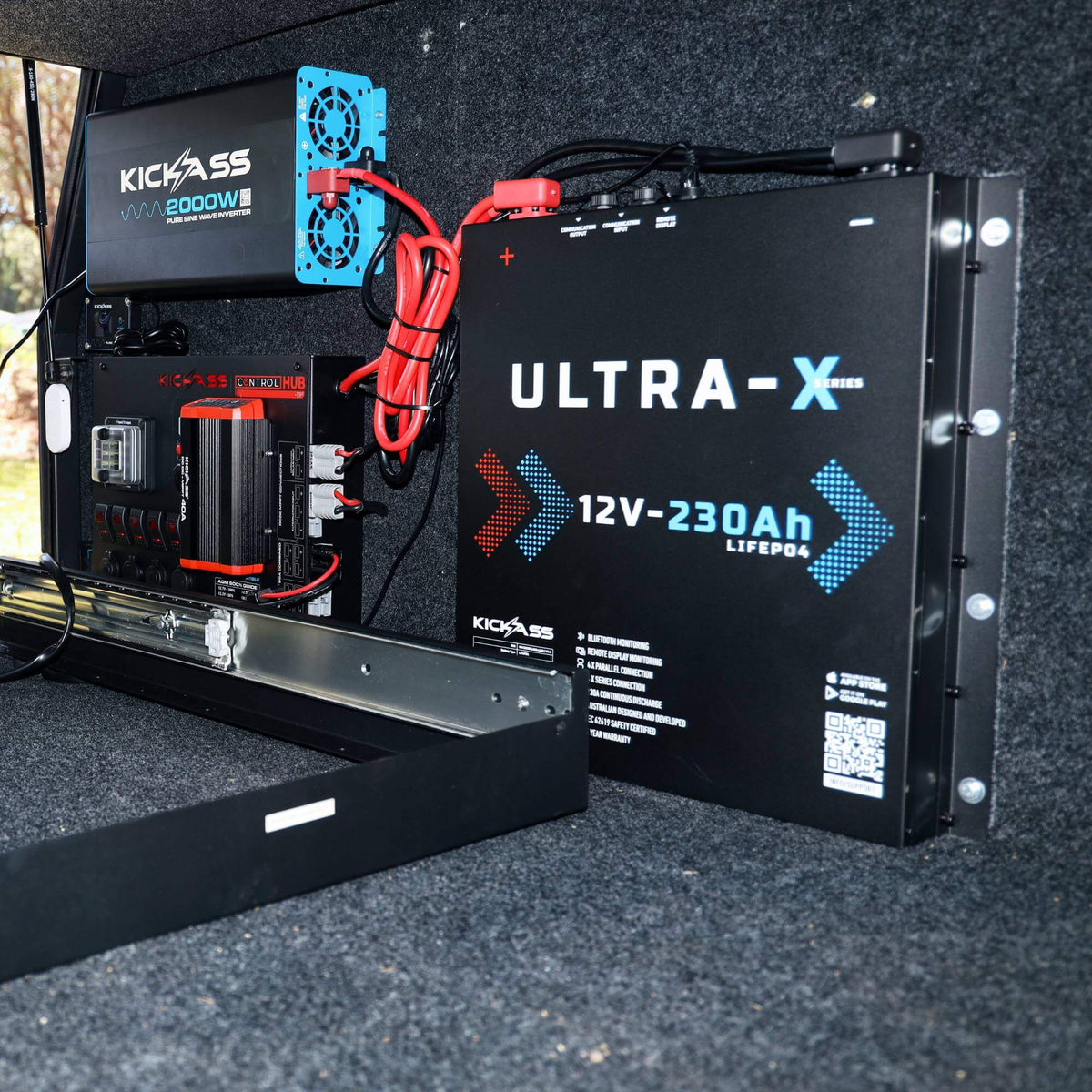

The durable metal housing with integrated mounting points eliminates the need for a separate battery tray. The heavy-duty metal casing not only protects the battery from the elements and rough conditions but also makes installation easier and more secure.

The KickAss Smart Ultra-X Lithium Slimline Deep Cycle Battery boasts a substantial rated capacity of 230Ah and delivers an impressive 2944Wh of energy, ensuring reliable power for your off-grid adventures. This 12.8V LiFePO4 battery is engineered for sustained performance, providing ample power for various applications. Its robust design ensures you have consistent energy whenever you need it, making it an excellent choice for demanding setups.

Absolutely, you can connect up to four KickAss Ultra-X batteries in either parallel or series configurations to significantly boost your power system. In a parallel setup, the system capacity can reach up to 920Ah, while a series connection can increase the system voltage to 51.2V. This flexibility allows you to tailor your power solution precisely to your needs, whether you require more capacity or higher voltage for your setup.

You can conveniently monitor your KickAss Ultra-X Lithium Battery's performance using the KA Lithium App via Bluetooth, or through an optional remote display connected via an RJ45 cable. Both monitoring methods provide real-time data on State of Charge (SOC), battery pack voltage, charge/discharge current, and temperature. This comprehensive monitoring ensures you always have crucial information at your fingertips, allowing for optimal management and peace of mind during your travels.

The KickAss Ultra-X Lithium Battery is equipped with a sophisticated Battery Management System (BMS) that continuously monitors key parameters like cell voltage, charge/discharge rates, and temperature. This BMS ensures safe operation by initiating protective measures if deviations occur, and it also performs cell balancing to enhance battery longevity. This advanced system safeguards your investment and provides a secure power source, allowing you to focus on your adventure without concern.

The KickAss Smart Ultra-X Lithium Slimline Battery (KA12230SLIMX-LION) is designed with compact dimensions of 500 x 70 x 510 mm, making it ideal for installations where space is at a premium. Weighing in at 26.9kg, it offers a robust yet manageable solution for your power needs. Its slimline profile allows for versatile mounting options, ensuring it fits seamlessly into various setups without compromising on power or performance.

The Ultra-X battery is designed to charge within a temperature range of 0°C to +55°C and discharge between -0°C and +60°C, ensuring reliable performance across diverse Australian conditions. This broad operating range highlights the battery's resilience and suitability for various environments, providing consistent power whether you're in cooler climates or experiencing warmer temperatures. Always ensure proper ventilation to maintain optimal operating conditions.

The KickAss Ultra-X Lithium Battery offers an impressive cycle life of 4000 cycles at 80% Depth of Discharge (DOD) and 0.5C, ensuring long-term durability and value. This exceptional cycle life means you can rely on consistent performance for many years, making it a highly cost-effective and dependable power solution for all your off-grid requirements. Its robust construction and advanced LiFePO4 technology contribute to its extended lifespan.
