Power your off-grid adventures with the KickAss complete dual battery kit. Reliable 230Ah lithium battery, 2200W inverter, and DCDC charger for seamless power.

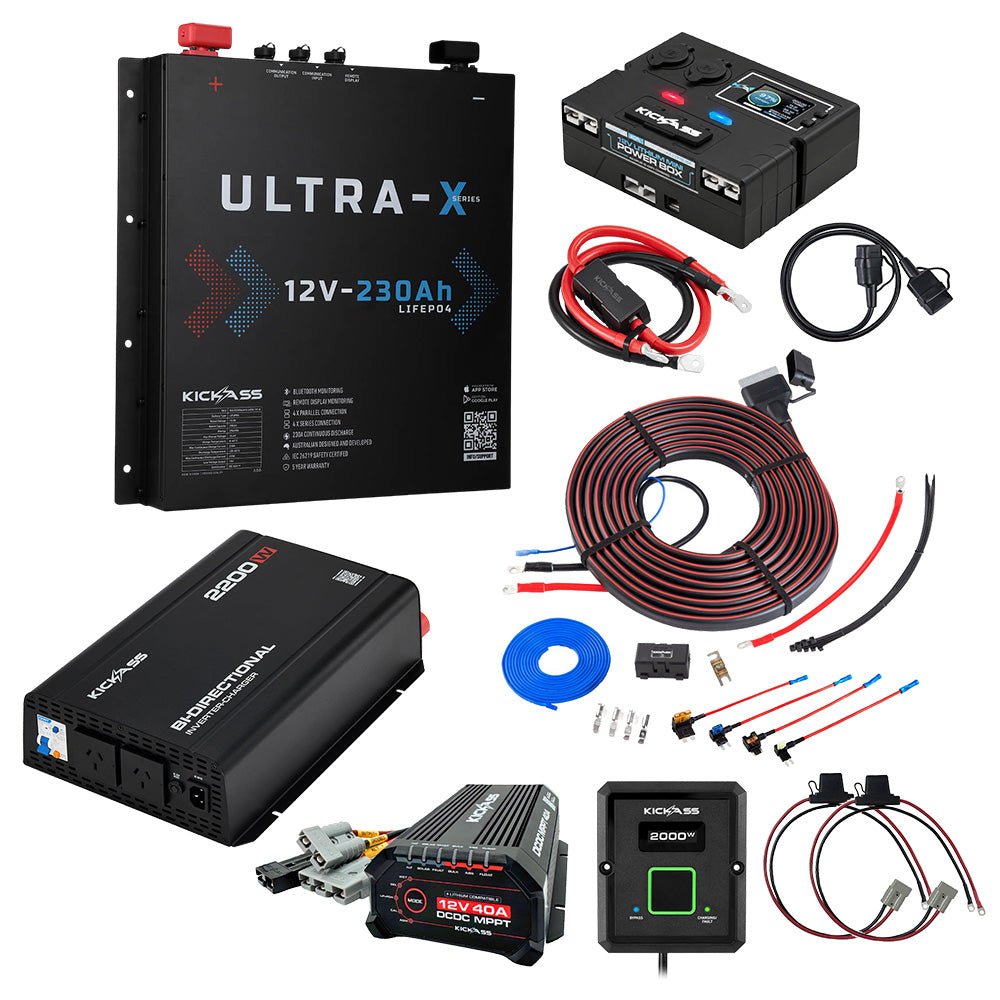

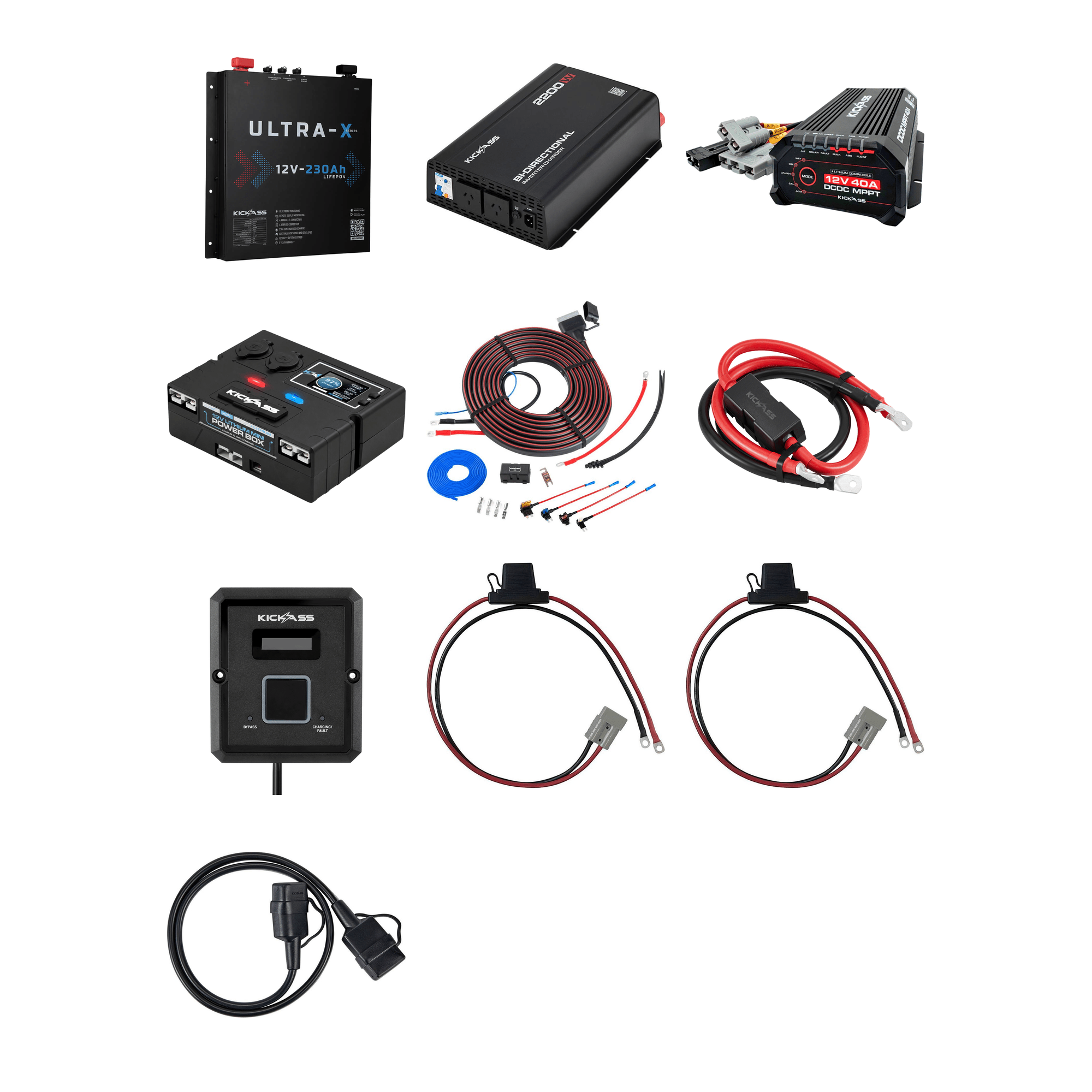

Everything that is included in this KickAss kit!

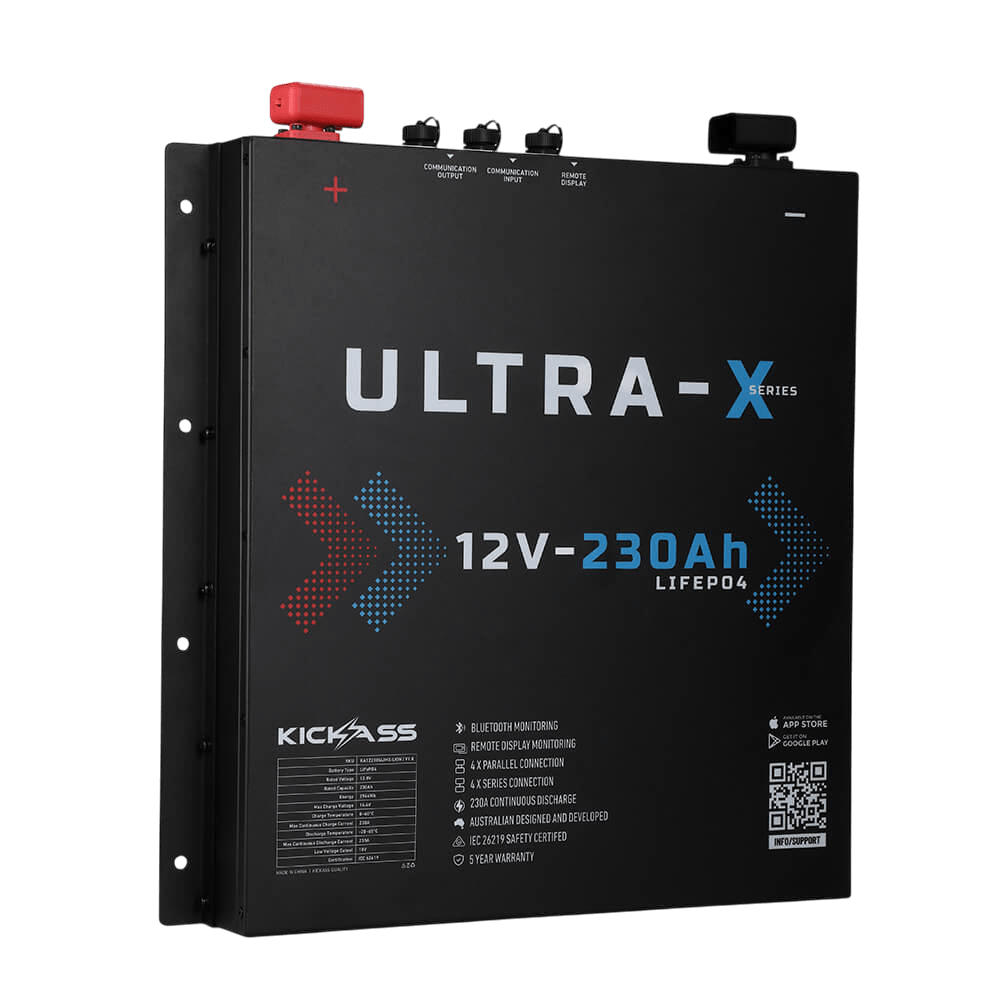

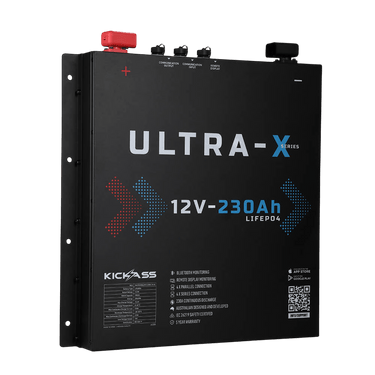

The Slimline KickAss 12V 230Ah Lithium Battery delivers huge power in a compact, advanced design. With 230Ah of useable energy, 4000+ cycles at 80% DoD, Bluetooth monitoring, and support for series or parallel setups, it’s perfect for serious off-grid use. Link up to four for over 900Ah, with a built-in BMS for safety.
KickAss Features:
Ultra Compact, Slimline Design
The ultra-compact, slimline design is ideal for those who have minimal space but need maximum power. Measuring only 500mm x 510mm x 70mm, this compact powerhouse is perfect for installing in canopies, under false floors in caravans, behind seats, and anywhere where space is tight. This KickAss battery delivers big power in a small package.
Supporting Bluetooth App
No more guesswork – stay in control of your power system by using the supporting Bluetooth app. Monitor critical battery parameters such as SoC, level, voltage, current, temperature, and real-time system alerts right from your smartphone. Having real-time data at your fingertips ensures optimal performance and peace of mind during all your off-grid adventures.
BMS with Multiple Safety Features
The KickAss 12V 230Ah Deep Cycle Lithium Battery is equipped with an advanced Battery Management System (BMS) that ensures safety and reliability. The BMS actively monitors and protects the battery from common issues such as overcharging, over-discharging, short circuits, and overheating, ensuring safe operation at all times.
Create a Battery Bank with Over 900Ah of Usable Capacity
These batteries support parallel and series configurations for maximum versatility. Link up to four in parallel to create a massive battery bank with over 900Ah of usable capacity, delivering serious power for extended off-grid use. This capability allows you to tailor your power setup to your exact needs.
Monitor Your Battery Bank Remotely
Monitoring multiple batteries in a series or parallel setup usually requires an external shunt, but these batteries eliminate that need. Simply connect each Ultra-X series battery using an RJ45 cable, and the optional KickAss Remote Display Unit (RDU) will seamlessly interface with the entire battery bank. Alternatively, use the supporting Bluetooth app for system monitoring without additional hardware.
230Ah Usable Capacity
With 230Ah of usable capacity, the KickAss 12V Deep Cycle Lithium Battery offers an abundance of power for extended off-grid adventures. This large capacity means you can run devices and appliances for longer periods without frequent recharges.
230A Continuous Charge & Discharge with 460A Pulse Capacity
This battery delivers exceptional performance with its 230A continuous charge and discharge capability, ensuring a steady and reliable flow of power for demanding applications. The impressive 460A pulse capacity allows it to handle sudden power surges, making it incredibly versatile.
4000+ Cycles @ 80% DoD 0.5C
Designed for longevity, this battery offers over 4000 charge and discharge cycles at 80% Depth of Discharge (DoD) and a 0.5C charge/discharge rate. This durability ensures a long-lasting, high-performance battery for years to come.
Metal Case with Integrated Mounting Points
The durable metal housing with integrated mounting points eliminates the need for a separate battery tray. The heavy-duty metal casing not only protects the battery from the elements and rough conditions but also makes installation easier and more secure.

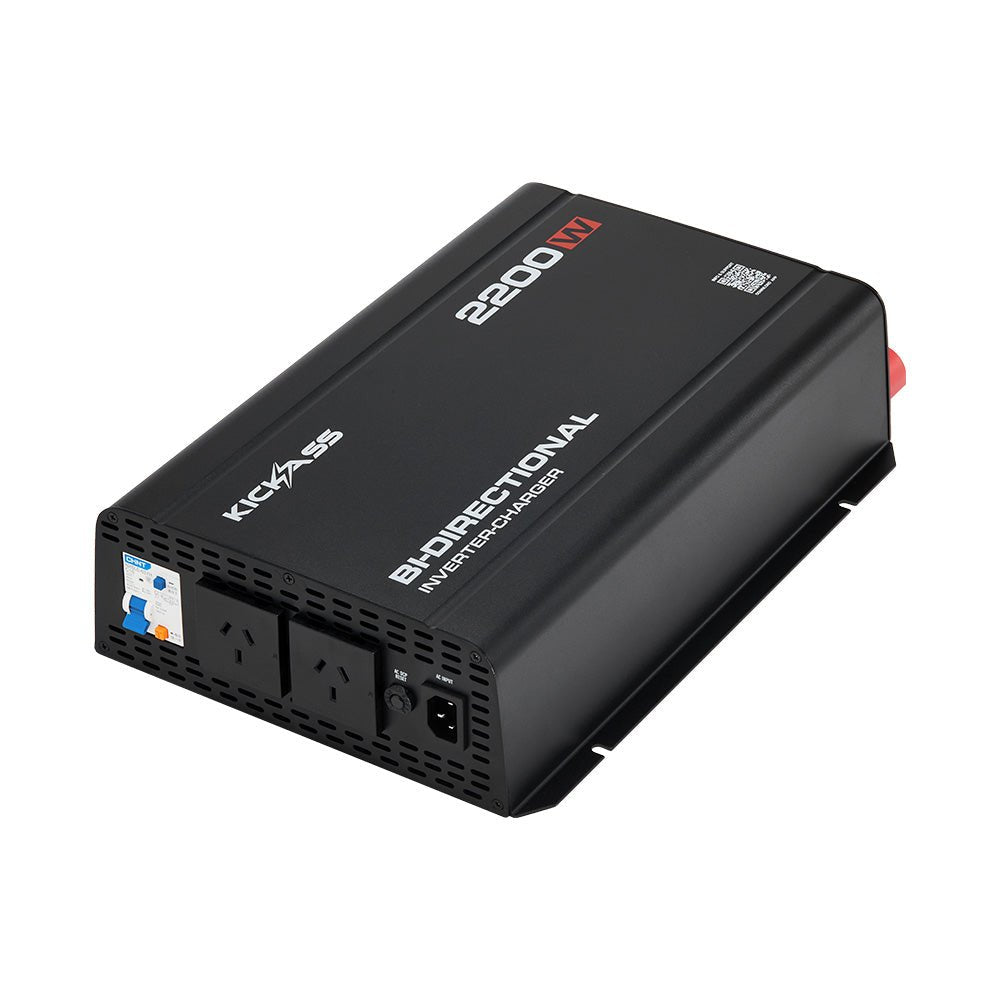

This 2200W pure sine wave inverter-charger delivers clean, stable power for your everyday appliances, and rapidly charges your battery from shore power via 1800W AC ultra-fast charging. Bluetooth monitoring, plug-and-play install, built-in safety protection, and support for multiple battery chemistries make it a smart, space-saving upgrade for any setup.
The KickAss 2200W Bi-Directional Inverter-Charger delivers mains-quality power in a compact, all-in-one unit. Combining a 2200W pure sine wave inverter with an 1800W AC ultra-fast charger, it provides both AC power and battery charging without the need for separate devices, additional wiring or extra installation space.
The 2200W pure sine wave inverter converts 12V DC battery power into clean, stable 230V AC power, making it suitable for everyday appliances, sensitive electronics and motor-driven equipment. When connected to shore power, the built-in 1800W AC charger provides up to 135A of charging current.
Bluetooth monitoring and control via the KA Charge app allows you to select battery chemistry, choose a charging mode, switch the unit on or off and view up to 32 hours of performance history. An optional remote switch with OLED display and LED indicators provides additional control and system status monitoring.
Dynamic power adjustment technology prioritises available power to connected AC equipment, helping maintain operation when the incoming power supply fluctuates.
Plug-and-play AC connectivity includes an IEC input and two AC outlets, eliminating the need for hardwiring. Built-in RCBO protection provides overload and earth leakage protection, while intelligent variable-speed cooling fans help regulate operating temperature and minimise unnecessary fan noise.
The compact slimline design is suited to space-limited vehicle and off-grid installations. The unit supports LiFePO4, AGM, CAL and GEL battery chemistries and also includes a USB-A output for charging compatible phones, tablets and other devices.

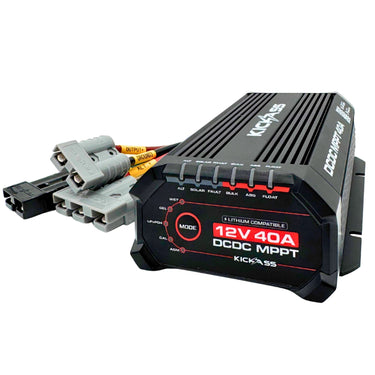

Charge your dual battery system fast with this 40A DCDC Charger. Ideal for lithium & lead acid batteries, it suits medium to large setups. Solar MPPT, Bluetooth, lithium wakeup, and multi-stage charging – all in a tough, IP66-rated, plug & play unit built for Aussie conditions. Note this charger requires the KickAss Heavy Duty Wiring Kit or 6AWG cable from the starter battery.
Powerful 40A Dual Battery Charging
With a high 40A output, this charger is perfect for keeping larger lithium and lead acid battery systems topped up and ready for action. It ensures fast, safe charging for demanding off-road or touring applications.
Bluetooth Monitoring & App Control
Connect your charger to your smartphone via Bluetooth to monitor performance in real time. The KickAss App gives you complete visibility over charging status, voltages, current flow, and system alerts – all from your pocket.
Simple Plug & Play Installation
Thanks to Anderson-style connectors, installation is quick and hassle-free with no complex wiring required. It’s designed for DIY setups and easy integration into your existing system.
Dual Input: Alternator & Solar Charging
Charge from your vehicle’s alternator while driving or connect a solar panel when stationary – this charger handles both. Its built-in MPPT solar regulator ensures maximum efficiency when using solar input.
Built for Aussie Conditions
Rated IP66, the KickAss 40A DCDC Charger is waterproof, dustproof, and rugged enough to handle corrugated tracks, extreme heat, and remote adventures. It’s built tough for Australian conditions.
Compatible with 12V & 24V Alternators
Highly versatile, this charger is compatible with both 12V and 24V alternators, making it suitable for a wide range of vehicle types including trucks, commercial vehicles, and 4WDs.
Adjustable Max Input Current – Hybrid Compatible
The maximum input current can be configured via the Bluetooth app, allowing the charger to limit the draw from your vehicle’s alternator, without reducing the maximum charge current when charging from solar. This makes it ideal for some hybrid vehicles or those with low-output alternators, helping prevent overload and ensuring stable, efficient charging without placing strain on your electrical system.
Smart Alternator Ready
Modern vehicles with smart alternators are no problem. The unit supports both smart and fixed-voltage alternators and includes an ignition trigger wire to start or stop charging based on engine status.
Lithium Battery Compatible
Fully lithium-ready, this charger includes an automatic lithium wakeup function that can safely restore LiFePO4 batteries from low voltage protection or sleep mode – no manual intervention needed.
Advanced Multi-Stage Charging
Precision charging algorithms help extend the life of your auxiliary battery. The charger delivers multi-stage charging tailored to the battery type, helping maintain peak performance over the long haul.
Starter Battery Isolation
To protect your starting battery, the charger only delivers current to your auxiliary battery when the engine is running, and automatically disconnects when the vehicle is off – eliminating unwanted drain.
Supports Multiple Battery Chemistries
Whether you’re using lithium, AGM, wet, gel, or calcium batteries, this charger has you covered. It’s a versatile solution designed to support a wide range of battery types.
Perfect for 4WDs, caravans, camper trailers, and off-grid touring setups, the KickAss 40A DCDC Charger with Solar MPPT and Bluetooth delivers intelligent charging for serious adventurers.

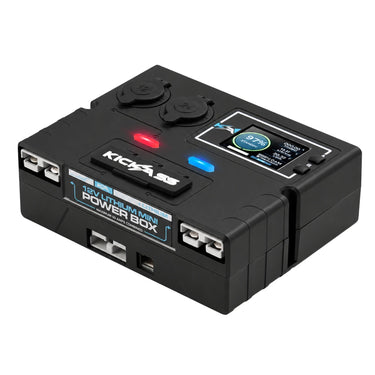

Charge 10 different devices at once, with 6x USB ports, 2x 12V cig sockets, and 2x Anderson-style input/outputs. An ideal portable power supply for phones, tablets and 12V appliances. Note: This control box is only compatible with KickAss Smart or Ultra-X batteries.
Power up to 10 Devices Simultaneously
The KickAss 12V Mini Power Box distributes power from your auxiliary battery to up to 10 different devices at once. Built with 6 x USB ports, 2 x 12V cigarette sockets, and 2 x Anderson input/output ports, it can power phones, tablets, 12V fridges, ovens, vacuum sealers, projectors, and more.
4 x USB Ports Featuring USB-C & QC3 Ports
Enjoy fast charging with USB-C and QC3 (Quick Charge 3.0) ports. Charge up to 6 USB devices simultaneously—perfect for phones, tablets, and other devices.
2 x Anderson Input/Outputs – Charge from Solar
Use the Anderson connectors to run 12V appliances or charge your auxiliary battery from regulated solar panels with quick-connect convenience.
Built-in 3-Stage LED Light
Includes a handy 3-stage LED light—ideal when you need illumination in a pinch and can’t find your torch or phone.
Multiple Mounting Options
Two convenient mounting points make it easy to install in your canopy, camper, or caravan.
Anti-Slip Rubber Feet
Rubber feet prevent the box from sliding and protect surfaces from scratches.
Protective Dust Cover & Anderson Cable Cover
Protect your ports with the USB dust cover and safeguard your Anderson cable from dust and disconnection with the protective end cover.
Warning: A battery must be connected before connecting a regulated solar panel. Disconnect the panel before disconnecting the battery. Failure to follow this may void your warranty.
Note: This unit is not waterproof and should not be mounted outside. It is not a standalone power source—must be connected to a battery or power supply.
Product Compatibility: This control box is only compatible with KickAss Smart or Ultra-X batteries. It is not compatible with other brands. KickAss will not cover restocking costs for incompatibility-related change of mind returns.
This 3-pin Anderson-style connector with built-in ignition wire makes connecting your 12V dual battery system easy. Perfect for wiring DC/DC chargers, battery boxes & auxiliary batteries.
This 3-pin Anderson-style connector with built-in ignition wire makes connecting your 12V dual battery system easy. Perfect for wiring DC/DC chargers, battery boxes & auxiliary batteries.
Built for reliable high-current performance, this heavy-duty 75mm² cable features flexible silicone insulation, corrosion-resistant tinned copper conductors and an included MEGA fuse with spare – making it the ideal connection for your KickAss 2200W Bi-Directional Inverter Charger.
Complete your inverter setup with the KickAss 2200W Inverter Premium Wiring Kit, designed specifically for use with the KickAss 2200W Bi-Directional Inverter Charger. The heavy-duty 75mm² cable provides a reliable high-current connection, with tinned copper conductors offering excellent conductivity and added corrosion resistance for demanding 12V, mobile and off-grid applications.
A flexible silicone outer sheath makes the cable easier to route and install, particularly in tight or confined spaces. The kit also includes a high-current MEGA fuse for essential circuit protection, plus a spare for added convenience. It’s a purpose-built wiring solution for creating a reliable, professional inverter installation in caravans, camper trailers, 4WDs and other off-grid power setups.
Control and monitor your KickAss Bi-Directional Inverter Charger from a convenient location. This plug-and-play remote features an OLED screen displaying real-time AC output power, dedicated status LEDs, flexible flush or surface mounting and an included two-metre RJ45 cable. Compatible with both 2200W and 3200W models.
Put convenient inverter control and monitoring within easy reach with this remote for KickAss 2200W and 3200W Bi-Directional Inverter Chargers. Switch your inverter on and off without needing direct access to the unit, while the integrated OLED screen displays real-time AC output power so you can keep an eye on appliance loads at a glance. Dedicated LED indicators also provide quick confirmation of bypass and battery-charging status.
Designed for a clean, flexible installation, the inverter remote can be flush mounted or surface mounted using the included frame, making it easy to position where it works best in your caravan, camper trailer, 4WD or off-grid setup. The included two-metre RJ45 cable provides a simple plug-and-play connection, while multi-remote capability lets multiple connected remotes work together for convenient inverter control from different locations.
Extend your placement options for your 12V devices. Minimal voltage drop with Anderson style connectors for a strong & secure connection.
Extend the reach of your 12V devices with ease using the KickAss 8B&S 1 Metre Extension Lead. Featuring heavy-duty 8B&S twin core cable and Anderson style connectors, this extension ensures minimal voltage drop for a reliable and secure connection. Built with a smooth PVC outer for added durability and resistance to grease, oil, and acids, it's the perfect accessory for uncompromising performance.
This heavy duty cable features weatherproof casing to protect the fuse from dust and damage. The durable 8 B&S cable is encased in a smooth PVC outer layer for protection and ease of use.
KickAss MAXI Fuse Anderson Cable
The KickAss MAXI Fuse Anderson Cable is the perfect solution for connecting a battery to virtually any device. It offers superior circuit protection through an inline 80A MAXI Fuse, safeguarding against short circuits and potential system damage.
With a purpose-designed length, this cable easily reaches vehicle starting batteries and integrates seamlessly with dual battery setups. The built-in weatherproof MAXI Fuse holder simplifies installation, eliminating the need for mounting traditional fuse holders or circuit breakers.
One end of the cable features a 50 Amp Anderson style connector for effortless connection to battery boxes, solar panels, or other compatible devices. The other end includes high-quality 8mm ring terminals for secure battery attachment. A spare 80A MAXI Fuse is included for added convenience.
Features:
See links below for replacement fuses:
Spare 50A MAXI Fuse - Red
| Length | 830mm |
| Cable Type | 8B&S (8.3mm²) single core |
| MAXI Fuse Rating | 80A |
| Ring Terminals | 8mm Ring Terminals |
| Specification | Details |
|---|---|
| Voltage | 12V DC Nominal |
| Max Current | 50A Input / Output |
| Anderson Circuit Protection | 50A Autoresettable Circuit Breaker |
| Cig Socket Protection | 15A Share Fuse (Spare Included) |
| USB-A | 4 x 2.1A |
| USB-C PD | 1 x 18W |
| QC 3.0 | 1 x 18W |
| Lithium Battery Status | SOC, Current, Voltage, Temperature, System Alerts |
| Power Input Connection | 50A Anderson Style Connector |
| Battery Data Connection | RJ45 |
| Supported Batteries | KickAss Smart and Ultra-X Series |
| Dimensions | 180 x 120 x 58mm |
| Main Cable Length | 6.5M - 3 Core |
| Ignition Cable Extension | 3M - 14AWG Single Core |
| Cable Size - 3 Core | 2x 6AWG (13.5mm²), 1x 14AWG (1.8mm²) |
| Insulation Material | Inner - Silicon / Outer - PVC |
| Rated Temperature | Max. 105°C |
| Ring Terminals | M8 - Battery / M6 - Fuse |
| Fuse | 80A MIDI Fuse with Holder |
| Connections | 3 Pin Anderson Style / Bullet |
| Voltage | 12.8V |
| Capacity | 230Ah |
| Cell Type | Prismatic |
| Max Continuous Discharge | 230A |
| Max Continuous Charge | 230A |
| Peak Discharge | 430A (30s) |
| Max Charge Temp | 60°C |
| Min Charge Temp | 0°C |
| Max Discharge Temp | 65°C |
| Min Discharge Temp | -20°C |
| Cycle Life | 4000+ cycles | 80% DoD | 1C Charge / 0.5C Discharge |
| Bluetooth | Yes |
| Remote Display | Optional |
| Parallel / Series | 4 | 4 |
| Parallel / Series Remote Monitoring | Bluetooth | Remote Display |
| Dimensions (Battery) | 450 x 70 x 500 mm |
| Dimensions (with Terminals and Housing) | 510 x 70 x 540mm |
| Weight | 26.9 kg |
| Certifications | IEC62619 |
| Warranty | 5 years |
| Charger Output Voltage Range | 3–16V DC |
| Alternator Input Voltage Range | 9–32V DC |
| Solar Input Voltage Range | 9–32V DC |
| Maximum Input Current | 56A |
| Maximum Continuous Charging Current | 40A |
| Recommended Output Fuse Size | 50A |
| No Load Current Draw | 10 mA |
| Battery Chemistry | LiFePO4 | AGM | GEL | CAL | WET |
| Efficiency | Solar - 99% Max | Alternator - 92% Max |
| Operating Temperature | -20 °C to +80 °C |
| Ingress Protection | IP66 |
| Certifications | RCM Mark | FCC |
| Recommended Battery Capacity | |
| Lead Acid (WET, GEL, AGM, CAL) | 160 – 500Ah |
| LiFePO4 | 50 – 500Ah |
| Charge Profile | |
| Absorption Voltage | GEL - 14.1V | WET - 14.4V | AGM - 14.7V | CAL - 15.3V | LiFePO4 - 14.5V |
| Float Voltage | GEL - 13.5V | WET - 13.4V | AGM - 13.4V | CAL - 13.6V | LiFePO4 - NA |
| Minimum Auxiliary Battery Voltage | GEL/WET/AGM/CAL - 9V | LiFePO4 - 0V |
| Alternator Charge Conditions | |
| 12V Alternator Input (Ignition OFF) | CUT-IN 13.2V | CUT-OUT 12.6V |
| 12V Alternator Input (Ignition ON) | CUT-IN 12.2V | CUT-OUT 10.5V |
| 24V Alternator Input (Ignition OFF) | CUT-IN 26.4V | CUT-OUT 25.2V |
| 24V Alternator Input (Ignition ON) | CUT-IN 24.4V | CUT-OUT 21V |
| Warranty | 2 Year |
| DC Input Voltage | 10.5–15 VDC |
| Charger Output Voltage | AGM 14.8V | STD 14.4V | GEL 14.2V | LiFePO4 14.4V |
| Charger Input Power | 1800W Fast Charge | 600W Slow Charge |
| Supported Battery Chemistries | AGM, Standard (STD), GEL, LiFePO4 |
| AC Input Voltage | 196–264 VAC (nominal 230V / 50Hz) |
| AC Output Power | 2200W | 230VAC ±5% | 50Hz ±1 | Pure Sine Wave |
| AC Output Surge Power | 4400W |
| Inverter Efficiency | ≥88% |
| Transfer Time | 15ms max |
| Standby Power | ≤20mA |
| USB | 2 x USB-A (18W Max) |
| Bluetooth | Yes |
| Communications | RS485 |
| Operating Temperature | -20 to +40°C |
| Dimensions | 439mm x 277mm x 96mm |
| Weight | 7.7kg |
| Certifications | CISPR14 | CISPR32 | IEC60335-1 | IEC60335-2-29 | AS/NZS4763 | AS/NZS4268 |
| Input Voltage | 9-16V |
| Communications | RS485 |
| Standby Power | 10mA |
| Operating Temperature | -20 to +50°C |
| Dimensions | 79mm x 68mm x 20mm |
| Weight | TBC |
| Certifications | RCM |
| Wire Size | 75mm² |
| Cable Length | 1000mm |
| Insulation | Silicone |
| Conductor | Tinned Copper |
| KickAss Automotive Inline Maxi Fuse Holder with Anderson Plug | |
| KickAss 12V Control Box & Battery Monitor - with LCD Screen | |
| KickAss Heavy Duty Plug and Play DCDC Wiring Kit - 6.5m | |
| KickAss Smart 12V 230Ah Ultra-X Lithium Slimline Deep Cycle Battery LiFePO4 | |
| KickAss 8B&S Extension Lead with Anderson Style Connectors - 1m | |
| KickAss Smart 12V/24V 40A DCDC Charger With Solar MPPT + Integrated Bluetooth + Pre-Wired Anderson | |
| KickAss 12V to 230V Pure Sine Wave 2200W Bi-Directional Inverter-Charger + Integrated Bluetooth |
Experience the ultimate in off-grid power solutions with the KickAss 12V 230Ah Lithium Complete Dual Battery Kit. This top-tier setup includes our ultra-reliable 230Ah Ultra-X Lithium Slimline Deep Cycle Battery, a 2200W pure sine wave inverter-charger with Bluetooth, and our advanced 40A DCDC charger with solar MPPT. All components are designed to seamlessly connect, offering a high-performance power system that delivers reliability and peace of mind. Perfect for those looking to power their off-road adventures and extend their stay off-grid without worry. Includes everything you need for a robust dual battery setup, including a control box, pre-wired kits, fuse holders, extension lead, and more.
