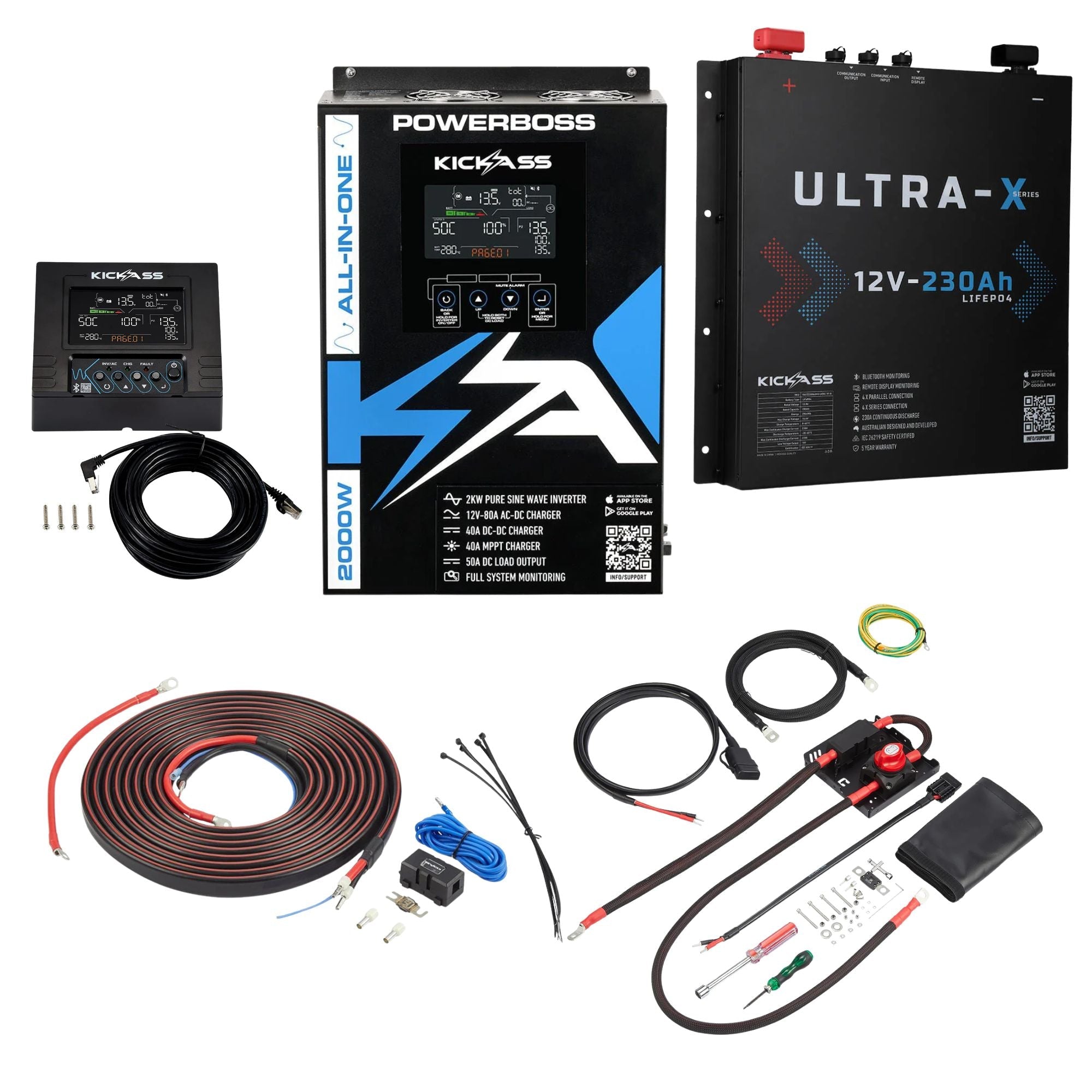

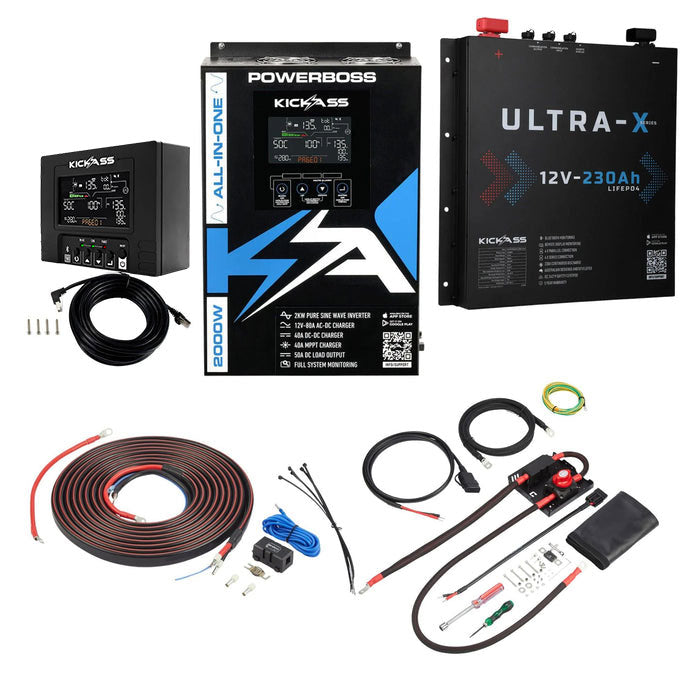

KickAss PowerBoss Canopy Base Bundle with 230Ah Slimline Lithium Battery & Remote Display

Revolutionise your off-grid adventures with the KickAss PowerBoss, the flagship all-in-one power system designed for canopies, 4WDs, campervans, motorhomes, vans, and work trailers. Combining a 2000W pure sine wave inverter, 80A ACDC charger, 40A DCDC MPPT charger, and 50A DC load monitoring, this ultra-compact unit offers unparalleled convenience and efficiency. With Bluetooth monitoring, seamless integration with KickAss Smart Lithium and Ultra-X batteries the PowerBoss makes complex setups a thing of the past. Featuring plug-and-play installation, simultaneous AC and solar charging, and advanced customisation options, the PowerBoss is the all-in-one unit that will take your setup to the next level.

KickAss Features:

• Ultra compact, slimline design
• Supporting Bluetooth app
• BMS with multiple safety features
• Connect in parallel or series
• Monitor your battery bank remotely
• 230Ah usable capacity
• 230A continuous charge & discharge with 460A pulse capacity
• 4000+ Cycles @ 80% DoD 0.5C
• Metal case with integrated mounting points
• Australian Safety Certified
• Designed & developed in Australia

Ultra Compact, Slimline Design

The ultra-compact, slimline design is ideal for those who have minimal space but need maximum power. Measuring only 500mm x 510mm x 70mm, this compact powerhouse is perfect for installing in canopies, under false floors in caravans, behind seats, and anywhere where space is tight. This KickAss battery delivers big power in a small package.

Supporting Bluetooth App

No more guesswork – stay in control of your power system by using the supporting Bluetooth app. Monitor critical battery parameters such as SoC, level, voltage, current, temperature, and real-time system alerts right from your smartphone. Having real-time data at your fingertips ensures optimal performance and peace of mind during all your off-grid adventures.

BMS with Multiple Safety Features

The KickAss 12V 230Ah Deep Cycle Lithium Battery is equipped with an advanced Battery Management System (BMS) that ensures safety and reliability. The BMS actively monitors and protects the battery from common issues such as overcharging, over-discharging, short circuits, and overheating, ensuring safe operation at all times.

Create a Battery Bank with Over 900Ah of Usable Capacity

These batteries support parallel and series configurations for maximum versatility. Link up to four in parallel to create a massive battery bank with over 900Ah of usable capacity, delivering serious power for extended off-grid use. This capability allows you to tailor your power setup to your exact needs.

Monitor Your Battery Bank Remotely

Monitoring multiple batteries in a series or parallel setup usually requires an external shunt, but these batteries eliminate that need. Simply connect each Ultra-X series battery using an RJ45 cable, and the optional KickAss Remote Display Unit (RDU) will seamlessly interface with the entire battery bank. Alternatively, use the supporting Bluetooth app for system monitoring without additional hardware.

230Ah Usable Capacity

With 230Ah of usable capacity, the KickAss 12V Deep Cycle Lithium Battery offers an abundance of power for extended off-grid adventures. This large capacity means you can run devices and appliances for longer periods without frequent recharges.

230A Continuous Charge & Discharge with 460A Pulse Capacity

This battery delivers exceptional performance with its 230A continuous charge and discharge capability, ensuring a steady and reliable flow of power for demanding applications. The impressive 460A pulse capacity allows it to handle sudden power surges, making it incredibly versatile.

4000+ Cycles @ 80% DoD 0.5C

Designed for longevity, this battery offers over 4000 charge and discharge cycles at 80% Depth of Discharge (DoD) and a 0.5C charge/discharge rate. This durability ensures a long-lasting, high-performance battery for years to come.

Metal Case with Integrated Mounting Points

The durable metal housing with integrated mounting points eliminates the need for a separate battery tray. The heavy-duty metal casing not only protects the battery from the elements and rough conditions but also makes installation easier and more secure.

Plug and Play Installation Kit for the PowerBoss: Everything you need to wire up your Powerboss is included, from battery linking cables and solar/DC load cables to earthing cable, installation tools, and cable sheath.

0AWG Cable + Isolator + 300A Fuse: This kit includes premium heavy-duty 0AWG cable, a sturdy isolator plate, and a 300A mega fuse with isolator for safe, high-current connections.

Included Installation Tools: All essential tools are provided—13mm socket driver, multi-bit screwdriver, allen key, 4-way socket tool, and cable wrap—so you can handle every electrical connection with ease.

Solar + DC Load Quick Connection Cables: The kit also features bootlace crimp-to-Anderson cables for fast, plug-and-play solar input and DC load output connections.

What's Included:

• 1.5m 0AWG cable kit with 300A mega fuse, isolator, and mounting bracket
• Anderson quick connect solar cable
• Anderson quick connect DC load cable
• Chassis ground connection cable
• 13mm socket driver
• Multi-bit screwdriver
• Cable wrap
• 4-way socket tool
• Xmm Allen key
• 2 spare 8AWG lugs
• Spare isolator mounting hardware
• Spare 300A mega fuse

Plug and Play Wiring Kit Alternator to PowerBoss: Quickly connect the PowerBoss directly to your vehicle's alternator for a seamless power supply.

Pre-Crimped Terminals: All terminations are pre-crimped, ensuring a fast and straightforward installation without the need for additional tools.

80A Midi Fuse: Includes an 80A midi fuse housed in a weatherproof casing, making it perfect for under bonnet installation.

Premium Heavy Duty Cable: Features heavy duty 6AWG cable for reliable, high-capacity performance.

Remote LCD Display: Enjoy real-time system monitoring from an easily accessible location, perfect for off-grid installations.

Enables Bluetooth Communications with the PowerBoss: The integrated BT module lets you wirelessly connect and control your PowerBoss system via your mobile device.

Flush and Surface Mounting Options: Easily install the display using either flush or surface mounting, adapting to any space.

Integrated System On/Off Switch: An inbuilt hardware switch powers the system on and off. RJ45 cable and mounting hardware are included for straightforward setup.
