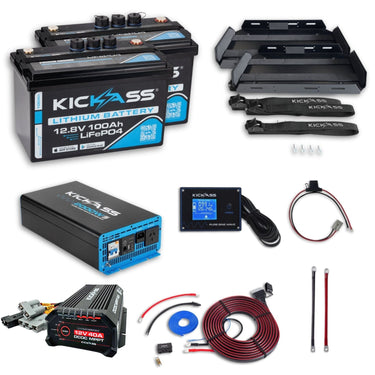

KickAss 200Ah Complete Lithium Dual Battery Kit

KickAss Features:

• Bluetooth Mobile App
• Remote Display Screen (optional)
• Parallel & Series Configuration
• 100A Continuous Discharge
• Intelligent BMS
• A-Grade LiFePO4 Battery Chemistry
• Lightweight
• Substantial Useable Capacity
• Certification

Bluetooth Mobile App

Easily monitor your system with your smartphone. The convenient Bluetooth app displays data from your 100Ah battery, including Voltage, Current, State of Charge, Temperature, and other useful information provided by the BMS. If you need even more power, up to four batteries can be connected in series or parallel to boost your output. The Bluetooth app will then connect with each battery simultaneously, and provide data on the entire battery bank as a single unit, without the need for an external shunt.

Remote Display Screen (optional)

Enhance your lithium battery setup with our optional LED remote Display Screen. This convenient add-on allows you to monitor your battery’s performance in hard-to-reach installations, or in high-use areas like your camp kitchen. If you have connected multiple batteries in series or parallel via a data cable, the RDU will show the combined information of the entire battery bank without the need for an external shunt. Data displayed includes SOC, current, time to full charge, and time to empty for the entire bank. Eliminate guesswork and stay on top of your power usage more easily.

Parallel & Series Configuration

The 100Ah lithium battery can be connected to other batteries in series or parallel to create a more powerful battery bank. Configure up to 48V systems in series or 400Ah systems in parallel. This flexibility allows you to build the power system you need, whether you're running high-power inverters or expanding your off-grid setup.

100A Continuous Discharge With 200A Pulse Discharge

The 100A discharge BMS provides ample power to run multiple devices simultaneously, and the 200A pulse discharge makes this battery ideal for inverters that require a high charge capacity. For increased discharge rates, connect multiple batteries in parallel – achieve 200A with 2 batteries (2000W inverter), 300A with 3 batteries (3000W Inverter), and so on.

Intelligent BMS

The cutting-edge BMS features 11 layers of hardware & software protection to ensure safe battery operation at all times. Temperature sensors track multiple points within the lithium cells and BMS, and prevent it from operating if conditions are unsafe. The BMS also includes a cell balancing function, which ensures each cell charges and discharges evenly, enhancing performance and prolonging the life of your battery.

A-Grade LiFePO4 Battery Chemistry

The LiFePO4 battery chemistry is safe, reliable, and uses A-Grade Prismatic Lithium Cells to provide stable power for extended periods. Achieve more than 4000 cycles at 80% depth of discharge, with a discharge rate of 0.5C.

Lightweight

Lithium batteries are half the weight of AGM equivalents, meaning you get more power without being weighed down.

Substantial Useable Capacity

With more usable capacity, a higher discharge rate, and a higher cycle count, a single lithium battery will give you much more power over its lifespan than the AGM equivalent. So you get more power for your money.

Certification

The battery is fully compliant with Australian Standards - IEC 62619

KickAss 12V to 240V Pure Sine Wave 2000W Inverter Feature Overview

2000W Continuous Output

Plenty of power to run all your AC essentials while one the move - induction cooktops, coffee machines, battery chargers for your power tools and more!

Pure Sine Waveform

Delivers a clean and reliable output sine wave that replicates the AC signal you get from the power point in your home. unlike modified sine wave inverters that don't produce a true sine wave, out KickAss Pure Sine wave inverter is ideal for running sensitive electronic devices like laptops, Starlink and CPAP machine.

AC Automatic Transfer Switch

Simplify your off-grid installation with the Automatic Transfer Switch. Power your AC devices from your batteries, then once you’re back on-grid simply plug in the AC input cable to switch over to mains power. Similarly, if your mains power supply cuts out, your inverter will seamlessly switch back to battery supply.

Multiple Protective Features

The multilevel safety protection utilises both software and hardware features to protect you, your inverter and your devices. The inverter continuously monitors and will trigger a protection mode if the unit is detected to be operating in an unsafe state. The integrated Residual Current Devices (RCD) and Circuit Breaker (CB) provides and additional layer of hardware protection making this devices suitable for use in commercial environments.

Optional Remote Control Display (Not Included In Base Version)

The optional remote control display allows you to monitor and manage your power usage wherever and whenever you need to. The low-profile screen is discrete, and can be flush mounted into any panel. for example, install near your camp kitchen to monitor your power usage when running high-powered kitchen appliances. The integrated remote on/off switch allows you to easily power down your inverter once done and conserve your battery power.

(Please note only the blue remote inverter screen is compatible).

Surge Power – reaches 4000W in 2 seconds

With a peak surge rating of 4000W for up to 2 seconds, this inverter is perfect for for supporting devices with a high currently like power tool battery chargers, microwaves and induction cooktops.

High 94% conversion efficiency

Inefficient inverters lose massive amounts of energy when converting DC current to AC current. Our KickAss 2000W Pure Sine Wave Inverter has 94% conversion efficiency, so you’ll get the most out of your battery bank.

Integrated USB charging ports

Integrated 5V 2.1A USB port, so you can conveniently charge your devices directly from the inverter.

Smart cooling system

The integrated smart fans dramatically adjust their speed to keep the inverter running cool, increasing efficiency and optimising your power output.

High Quality Circuitry Components

The inverter is built with the highest quality components and the latest technology for power you can rely on. Even with 4000W peak power (double the rated power), this inverter will be protected against power spikes and surges.

Multiple Mounting Options

Four convenient mounting points allow for easy installation to your caravan, camper or canopy’s 12V power setup.


KickAss 12V/24V 40A DCDC Charger With Solar MPPT + Pre-Wired Anderson Feature Overview

Charge your secondary battery from the vehicle’s alternator
Charge your secondary or auxiliary battery from the vehicle's alternator. Suitable for 12V or 24V vehicle setups and compatible with standard or smart alternators.

Lithium BMS Sleep Mode & Recovery Feature
In Lithium mode, when the voltage drops below the safety parameters, the DCDC charger will begin recovery mode. The DCDC will trickle-charge the battery until it reaches the cut-in voltage and begins normal chagrin.

Plug and Play Pre-wired Anderson Connection
Provides a strong and secure connection you can rely on every time. Perfect for DIY installation.

True 3-stage Charging
Advanced algorithms enhancing the overall charging performance.

Automatic Battery Isolation
Automatically isolates your starter battery when no charge is detected, preventing parasitic drain by your auxiliary battery. Meaning you’ll never drain your starter battery.

Built in 40amp MPPT With Separate solar input
Extracts the maximum available power from your solar panels, then converts to the best voltage to get maximum current into your battery.

IP66 Dust & Water Protected
Protected against dust and strong jets of water.

Backwards Compatibility
Compatible with common two pin Anderson connectors, allowing for a normal positive & negative wire connection in the even the ignition wire is not needed.

This 3-pin Anderson-style connector with built-in ignition wire makes connecting your 12V dual battery system easy. Perfect for wiring DC/DC chargers, battery boxes & auxiliary batteries.

400mm Length Pair (Black & Red) Battery Joiner Pack

Combine batteries in parallel to create a battery bank and increase your power storage capabilities. These cables can also be used for series connections to gain 24 Volt from two 12 Volt batteries.

Note: Always ensure your batteries are connected together correctly for your desired application.

KickAss Pure Sine Wave Inverter Remote Display Panel Feature Overview

Real Time Monitoring:

Unexpected power fluctuations can damage your equipment and waste your power. With real-time monitoring, you can track your energy generation and power usage, and spot any problems early on. This will keep your setup running smoothly and efficiently at all times.

Remote Control

Monitor and manage your power consumption from a distance – for example, if you’re sitting in the front seat, and have your inverter installed in the back of your truck. You’ll be able to access and manage your inverter system from anywhere within reach of the 3 metre cable.

Fault diagnostics

If your system malfunctions, it can be challenging and time consuming to figure out the cause. This KickAss Inverter Remote Display automatically identifies and reports faults within the inverter system, and delivers detailed diagnostics. Troubleshooting made easy!

Intuitive User Interface:

Information on the screen is clear and easy to understand. You can easily navigate through the settings, view energy metrics, and set alerts. No more guesswork – just clear data.

Compatible With Most KickAss Inverters

The remote display unit is compatible with KickAss 2000W and 3000W Inverters (not compatible with 700W or 1200W inverters). You can seamlessly integrate it into your existing setup, or upgrade your existing components easily.

Please note: This remote screen is not compatible with the older 700W, 1200W, 2000W or 3000W red KickAss Inverters.

KICKASS^® MAXI Fuse Anderson Cable

We have developed and designed our all-new KICKASS^® MAXI Fuse Anderson cable to be the perfect solution for connecting up a battery to just about anything. This cable provides the ultimate circuit protection ensuring your battery is fused correctly through an 80A inline MAXI Fuse thus preventing a major meltdown should you ever have a short circuit in your system.

The length of this cable has been specially designed to provide adequate reach when connecting to the vehicle starting battery. The provided length allows the cable to be expertly run through the battery compartment and connect to other cables such as dual battery wiring. The MAXI Fuse holder is weatherproof and integrated into the cable making it very easy and fast to install - there is no need to spend time mounting like traditional fuse holders or circuit breakers.

The cable includes a 50 Amp Anderson style connector at one end providing a seamless connection to any device or electrical systems such as battery boxes or solar panels that use Anderson style connectors. At the other end of the cable, two high-quality 8mm ring terminals simply connect to your battery making this cable the main fused connection point. A spare 80A MAXI Fuse is also included with the cable so you have a backup if needed.

Features

• In-line weatherproof MAXI Fuse holder with 80A MAXI Fuse
• Length 750mm
• Cable type: Twin 8B&S (7.71mm2) Red / Black Sheathed
• 1 x 80A MAXI Fuse pre-installed in holder
• 1 x 80A MAXI Fuse spare
• 8mm ring terminals
