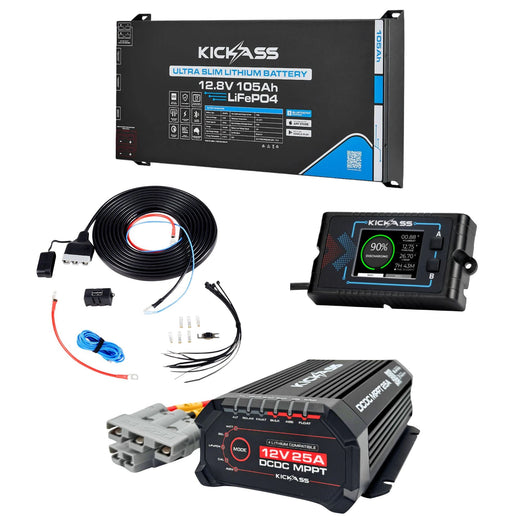

KickAss Smart 105Ah Ultra Slimline Lithium Dual Battery Kit

For connecting the KickAss Remote Smart Lithium Battery Display Unit (KARDUV2) with the following KickAss Batteries:

• KickAss 105AH Ultra Slim 12V Lithium Deep Cycle Battery (KA12105ULTRASLIM-LI)
• KickAss 12V 120Ah Smart Lithium Deep Cycle Battery LiFeP04  (KA12120-LION)

This adapter is not required for other KickAss Smart Lithium batteries that already support RJ45 connectors.

Welcome to the next generation of DCDC vehicle battery charging. KickAss has developed and delivered an onboard vehicle charging solution like no other. Engineered for durability and expertly designed for charging performance, the KickAss DC-DC charger is the new weapon of choice in dual battery systems.

KickAss DC charging at a glance:

The True 4-stage charging features BULK, ABSORPTION, FLOAT and PULSE modes with advanced algorithms enhancing the overall charging performance of auxiliary batteries. This ensures your auxiliary battery is charged the correct way enabling it to reach maximum charge capacity while also maintaining the battery to its optimum. When coupled with the powerful 25 Amp maximum output capability, it provides exceptionally fast and effective charging.

This charger eliminates the issues associated with smart charging systems and variable voltage alternators in modern vehicles, as it provides a consistent charge output to the auxiliary battery. It provides the reliable charging output required to charge, maintain and and prolong the life of your auxiliary battery, in new and old vehicles.

Inbuilt isolation prevents your auxiliary battery from draining your start battery when your vehicle is not running or charging. The smart tech of our charger detects the charging status automatically, so you never need to worry about engaging or isolating batteries manually, it’s all managed for you from the moment you turn the key.

KickAss DCDC Features

Three Pin Anderson Style Connector

Take the hassle out of connecting your 12V DCDC Charger with the new three-pin Anderson Connection. Run your positive alternator, negative ground and ignition wires together with the new three-pin Anderson connection. Fully Compatible with common two-pin Anderson style connectors.

Lithium BMS Sleep Mode Recovery Feature

When in Lithium Mode and the voltage drops below the safety parameters and the Lithium battery enters sleep mode, the DC-DC charger will begin recovery mode. The DC-DC will trickle charge the battery until it reaches the cut-in voltage and will start normal charging cycles. Most Lithium batteries are built with a Battery Management System (BMS) inside to protect the battery from overcharging, over-discharging and extreme temperature changes.

One of the key functions of the BMS is to protect your battery by internally disconnecting the load when voltage drops below specific parameters, this will then result in the battery entering into a "sleep" mode (Load includes any accessories and/or device/s drawing charge from the battery. Eg: fridges, pumps, food sealers, etc)

The KickAss DCDC MPPT Solar Battery charger has a lithium battery recovery function. This function has been designed to recover lithium batteries from sleep mode. Lithium battery sleep mode indication: when the lithium battery has entered sleep mode, the charger will show fault codes of the output open circuit until all loads are disconnected and a sufficient charge source is connected

You must select 'LITHIUM' as the battery type by using the 'MODE' button prior to connecting it to a lithium battery in sleep mode to attempt recovery.

How to wake a lithium battery to begin recovery mode:

1. Disconnect any load connected to the lithium battery

2. Connect alternator input or solar input to the KickAss DCDC MPPT Solar Battery Charger.

3. Connect the output from the DCDC Charger to the lithium battery

4. The charger will have all battery types flashing and the BULK and PULSE LED lights will remain on for 30 seconds before entering Recovery Mode

5. When the lithium battery has entered recovery mode, the KickAss DCDC MPPT Solar Battery Charger display will have the source indicator illuminated (eg: Solar) and the battery type LITHIUM will be flashing

6. When the battery voltage has been recovered, the DCDC charger will automatically change to normal stage charging and programs and loads may be reconnected

Maximum Solar Gains with Integrated MPPT

Charge your Auxiliary battery from your solar panel, our charger has an second input with an integrated maximum power point tracking solar controller (MPPT)  perfect for caravan or camper applications when you still want to charge, without your vehicle running. What’s more, the MPPT ensures your getting the most effective charging from your solar panels to give your auxiliary battery as much charge as possible from the power of the sun.

Plug & Play by Design

Easily install using our Plug & Play Anderson style connectors, you will have this charger installed in mere minutes, especially when combined with our KickAss dual battery wiring kit or a KickAss battery box.

Crisp LED Display and Control

The easy to read and easy to see display gives you the chargers status in the blink of an eye. The coloured  LED indicators show charging mode and charging stage so you know exactly how your batteries are being charged. You can take control with the soft touch mode button allowing you to set the battery type with ease.

Multi Battery Type Compatibility - Including Lithium

At KickAss we understand that everyone uses different batteries in their dual battery systems, whether by application requirements or trusted personal preference. Therefore it's great to know that our charger has been designed and built to give perfect charging  with the most common types of batteries you will find out there, GEL, AGM, WET, CALCIUM and yes, also LITHIUM LiFePo4, for those of you looking for the ultimate dual battery set up.

Ultra Compatible

We have made this charger suit as many applications as possible, use it on 24V systems if you have a truck to charge your 12V auxiliary battery. For later model vehicles with smart charging systems, simply connect up our special voltage sense wire and you are good to go.

Fully Sealed, IP67

Built tougher than nails, our charger is fully sealed against water and dust to IP67 making it solid as a rock. The internal electronics are thermally conformal coated which provides the ultimate protection against moisture and corrosion and any other nasties that may try to get inside. Basically, it's built to last.

The Best Protection, Ever!

One of the most important features in any dual battery system controller or charger is how it protects in case of a mishap. Our charger offers real KickAss protection including:>

• Short Circuit Protection
• Reverse Polarity Protection
• Over Voltage Protection
• Over Temperature Protection
• Temperature Compensation

KickAss is proud to bring you this next generation in on-board vehicle charging. As always we have worked hard to ensure this great product meets and exceeds the tough operating conditions of Australia and we are sure it will provide the very best performance as the heart of your dual battery system.

What's Included in the box:

25Amp DC-DC Charger

Cable Ties

Red Crimp Wire Joiners

6mm x 50mm Red Heat Shrink

User Manual

Charge Table Sticker

The KickAss Remote Smart Lithium Battery Display Unit is compatible with the KickAss Smart and Ultra-X series batteries. Simple plug-and-play via the RJ45 connector, it allows you to monitor State of Charge (SOC), voltage, real-time current, and temperature of either a single battery or multiple batteries connected in parallel or series. Includes 5m extension cable.

Take full control of your battery system with the KickAss Battery Display Monitor - your window into real-time performance, protection, and peace of mind.

Monitor Your Battery Like a Pro

Never guess your battery’s health again. With a full-colour screen, you can instantly view:

• Battery temperature
• Current draw
• Voltage
• Charge status
• Time to empty/full
• Cell balance and more!

Built-In Battery Management System (BMS)

The integrated KickAss BMS keeps your battery safe — actively protecting against:

• Overvoltage and undervoltage
• Short circuits
• Overload
• High temperatures

Stay alerted with smart error messages and stay in control from your display or compatible mobile device.

Easy Flush-Mount Design

Install it where you need it most. Whether it's in your canopy, van, or camper setup, the flush-mount design with included screws and universal hole spacing makes installation fast and secure.

Compact Dimensions

• Display: 126mm (W) x 66.61mm (H) x 23mm (D)
• Cable Length: 440mm
• Mounting holes for quick surface installation

The KickAss Battery Display Monitor isn’t just for looks - it’s your off-grid command centre. Whether you're heading bush or running gear off your canopy, this screen keeps your system protected and your trips worry-free.

KickAss Premium Plug & Play DC-DC Wiring Kit

Introducing our all new ultimate dual battery system wiring kit now featuring three pin 50 amp Anderon style connector with ignition wire.There is nothing like having the right parts to get the job done and the team at KICKASS have done just that in developing a premium plug and play wiring kit for installing a range of dual battery systems. We have carefully designed this premium kit for ultra easy DIY fittings. This wiring kit is now even easier to install with the pre-installed 80amp maxifuse and now features a three pin 50 amp Anderson connector with an ignition wire.

These kits are completely plug and play for any system that uses Anderson connectors for chagrin input and have everything you need for a professional wiring installation.The premium wiring kit now has our famous Maxifuse cable pre-installed into 6 Metres of Heavy Duty 8 B&S Cable, providing 50A of circuit protection. Now featuring the all new 3 Pin Anderson plug. Take the hassle out of connecting your 12V dual battery system. The built-in ignition wire into a three pin Anderson connector allows for easier installation, and removes the need to run multiple cables through your vehicle.

This cable is pre-crimped with Anderson connector terminals which makes it easy to run through holes and grommets. Once the cable is run, all you need to do is clip the Three Pin Anderson connector on. The kit also includes cable ties for securing the main cables, a spare 80A Maxifuse, 3m tail ignition wire and spare Anderson connector terminals

Backwards compatibility

The three pin Anderson is backwards compatible, meaning a two pin Anderson connection will work even if the ignition wire is not connected.

The KICKASS Premium DC-DC wiring kit is specifically designed for our DCDC charger and will not work with VSRs

Please use Dual Battery Wiring Kit for the following:

• Wiring to Battery System in the cargo area of the vehicle
• VSR's see our KAVSRAND which is fully compatible with this kit
• KickAss battery boxes and power packs
• Auxiliary Batteries - By using our KickAss Maxifuse Cable and Optional VSR

This kit includes:

• 6 x 50 Amp Anderson terminals
• 1 x 50 Amp 3 Pin anderson Connector
• 1 x 80Amp spare Maxifuse
• 10 x Black cable ties (300mm )
• 1x 3M tail Ignition cable

Bluetooth & RDU Connectivity

Never question your Lithium battery's health again! The Bluetooth App takes the guesswork out of battery maintenance. Monitor your battery temperature, voltage, current draw, time to empty, charge status & more!

Superior Selection of Connections

Fitted with more connections than any other Ultra Slim on the market.

• 2 x 50A Anderson Style connectors,
• 2 x 175A Anderson Style connectors,
• 1 x Cig Socket,
• 1 x QC3.0 USB
• 1 x USB C PD

Slim, Compact and Versatile

Measuring at only 66mm wide, The new KickAss Ultra Slim Lithium Battery is the perfect solution for canopies, behind seats or small, tight spaces.

Wiring size & cabling

Quality is key when wiring up your 12V set up. The internal cables have been upgraded to prevent voltage drop when running large loads.

Safe LiFePO4 Chemistry

LiFePO4 is one of the most stable and safest lithium chemistry types available. This means KickAss LiFePO4 Batteries are safe even for the toughest of tracks. Giving you a minimum 2000 cycles at 80% depth of discharge.

KickAss Compatible Lithium Range

Enjoy the convenience of seamless integration. Compatible with the full range of KickAss Lithium Accessories. Easily connect to your pre-existing RDU, DCDC or Solar Panel.

Versatile Mounting Options

Use bolts or screws to surface mount the unit via the four welded brackets. No need for additional mounting kits or brackets.

Powder Coated Steel Casing

Designed to withstand coastal conditions, with a premium powdered coated finish to prevent rust or corrosion. The heavy duty casing will protect the internal components for years to come.

Manual Reset Button

Forget the hassle of replacing fuses when you trip a circuit. Simply press the external reset button to reset the fuse and re-engage the circuit.

16.5kg

Unlike other typical lead acid batteries, the new KickAss Ultra Slim Lithium Battery weighs only 16.5kg! Making it far easier to move and install into your setup.

High Current Input/Output

Power up to a 1200W inverter with a single battery. With 2 x 175A high powered Andersons to connect an inverter and charger with ease.
