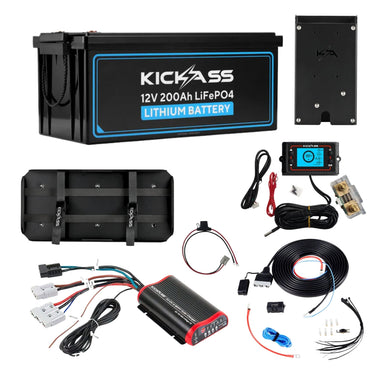

KickAss 200Ah Base Essential Lithium Dual Battery Kit

Welcome to the next generation of DCDC vehicle battery charging. KickAss has developed and delivered an onboard vehicle charging solution like no other. Engineered for durability and expertly designed for charging performance, the KickAss DC-DC charger is the new weapon of choice in dual battery systems.

KickAss DC charging at a glance:

The True 4-stage charging features BULK, ABSORPTION, FLOAT and PULSE modes with advanced algorithms enhancing the overall charging performance of auxiliary batteries. This ensures your auxiliary battery is charged the correct way enabling it to reach maximum charge capacity while also maintaining the battery to its optimum. When coupled with the powerful 25 Amp maximum output capability, it provides exceptionally fast and effective charging.

This charger eliminates the issues associated with smart charging systems and variable voltage alternators in modern vehicles, as it provides a consistent charge output to the auxiliary battery. It provides the reliable charging output required to charge, maintain and and prolong the life of your auxiliary battery, in new and old vehicles.

Inbuilt isolation prevents your auxiliary battery from draining your start battery when your vehicle is not running or charging. The smart tech of our charger detects the charging status automatically, so you never need to worry about engaging or isolating batteries manually, it’s all managed for you from the moment you turn the key.

KickAss DCDC Features

Three Pin Anderson Style Connector

Take the hassle out of connecting your 12V DCDC Charger with the new three-pin Anderson Connection. Run your positive alternator, negative ground and ignition wires together with the new three-pin Anderson connection. Fully Compatible with common two-pin Anderson style connectors.

Lithium BMS Sleep Mode Recovery Feature

When in Lithium Mode and the voltage drops below the safety parameters and the Lithium battery enters sleep mode, the DC-DC charger will begin recovery mode. The DC-DC will trickle charge the battery until it reaches the cut-in voltage and will start normal charging cycles. Most Lithium batteries are built with a Battery Management System (BMS) inside to protect the battery from overcharging, over-discharging and extreme temperature changes.

One of the key functions of the BMS is to protect your battery by internally disconnecting the load when voltage drops below specific parameters, this will then result in the battery entering into a "sleep" mode (Load includes any accessories and/or device/s drawing charge from the battery. Eg: fridges, pumps, food sealers, etc)

The KickAss DCDC MPPT Solar Battery charger has a lithium battery recovery function. This function has been designed to recover lithium batteries from sleep mode. Lithium battery sleep mode indication: when the lithium battery has entered sleep mode, the charger will show fault codes of the output open circuit until all loads are disconnected and a sufficient charge source is connected

You must select 'LITHIUM' as the battery type by using the 'MODE' button prior to connecting it to a lithium battery in sleep mode to attempt recovery.

How to wake a lithium battery to begin recovery mode:

1. Disconnect any load connected to the lithium battery

2. Connect alternator input or solar input to the KickAss DCDC MPPT Solar Battery Charger.

3. Connect the output from the DCDC Charger to the lithium battery

4. The charger will have all battery types flashing and the BULK and PULSE LED lights will remain on for 30 seconds before entering Recovery Mode

5. When the lithium battery has entered recovery mode, the KickAss DCDC MPPT Solar Battery Charger display will have the source indicator illuminated (eg: Solar) and the battery type LITHIUM will be flashing

6. When the battery voltage has been recovered, the DCDC charger will automatically change to normal stage charging and programs and loads may be reconnected

Maximum Solar Gains with Integrated MPPT

Charge your Auxiliary battery from your solar panel, our charger has an second input with an integrated maximum power point tracking solar controller (MPPT)  perfect for caravan or camper applications when you still want to charge, without your vehicle running. What’s more, the MPPT ensures your getting the most effective charging from your solar panels to give your auxiliary battery as much charge as possible from the power of the sun.

Plug & Play by Design

Easily install using our Plug & Play Anderson style connectors, you will have this charger installed in mere minutes, especially when combined with our KickAss dual battery wiring kit or a KickAss battery box.

Crisp LED Display and Control

The easy to read and easy to see display gives you the chargers status in the blink of an eye. The coloured  LED indicators show charging mode and charging stage so you know exactly how your batteries are being charged. You can take control with the soft touch mode button allowing you to set the battery type with ease.

Multi Battery Type Compatibility - Including Lithium

At KickAss we understand that everyone uses different batteries in their dual battery systems, whether by application requirements or trusted personal preference. Therefore it's great to know that our charger has been designed and built to give perfect charging  with the most common types of batteries you will find out there, GEL, AGM, WET, CALCIUM and yes, also LITHIUM LiFePo4, for those of you looking for the ultimate dual battery set up.

Ultra Compatible

We have made this charger suit as many applications as possible, use it on 24V systems if you have a truck to charge your 12V auxiliary battery. For later model vehicles with smart charging systems, simply connect up our special voltage sense wire and you are good to go.

Fully Sealed, IP67

Built tougher than nails, our charger is fully sealed against water and dust to IP67 making it solid as a rock. The internal electronics are thermally conformal coated which provides the ultimate protection against moisture and corrosion and any other nasties that may try to get inside. Basically, it's built to last.

The Best Protection, Ever!

One of the most important features in any dual battery system controller or charger is how it protects in case of a mishap. Our charger offers real KickAss protection including:>

• Short Circuit Protection
• Reverse Polarity Protection
• Over Voltage Protection
• Over Temperature Protection
• Temperature Compensation

KickAss is proud to bring you this next generation in on-board vehicle charging. As always we have worked hard to ensure this great product meets and exceeds the tough operating conditions of Australia and we are sure it will provide the very best performance as the heart of your dual battery system.

What's Included in the box:

25Amp DC-DC Charger

Cable Ties

Red Crimp Wire Joiners

6mm x 50mm Red Heat Shrink

User Manual

Charge Table Sticker

KickAss 500A Battery Monitoring Shunt with Remote Display

Accurate Charge Status of Battery

Feel confident knowing your battery’s state of charge at all times. No more replying on voltage to determine battery.

Compatible with Most Modern Battery Types

Compatible with AGM, GEL, Sealed Lead Acid, Flooded Lead Acid, and LiFePO4 batteries. Perfect for charging several battery types including starter, deep-cycle, marine, powersports and more.

Preserve Battery Life with Battery Input/Outputs Monitoring

Get more out of your battery than ever before. Understand both the charge and draw of your battery on one informative screen.

Audible Low Battery Voltage Alarm

Don’t let a flat battery ruin your trip! The audible alarm will notify you when your battery has low voltage. The audible alarm is easily programmable.

Capable of Monitoring up to 500A Load

Perfect for running heavy loads with your inverter, or other high powered appliances.

Mounts Directly to your Battery Terminal

Get accurate information fast, straight from the source.

An optional 5m extension cable also available, for versatile mounting.

KickAss Premium Plug & Play DC-DC Wiring Kit

Introducing our all new ultimate dual battery system wiring kit now featuring three pin 50 amp Anderon style connector with ignition wire.There is nothing like having the right parts to get the job done and the team at KICKASS have done just that in developing a premium plug and play wiring kit for installing a range of dual battery systems. We have carefully designed this premium kit for ultra easy DIY fittings. This wiring kit is now even easier to install with the pre-installed 80amp maxifuse and now features a three pin 50 amp Anderson connector with an ignition wire.

These kits are completely plug and play for any system that uses Anderson connectors for chagrin input and have everything you need for a professional wiring installation.The premium wiring kit now has our famous Maxifuse cable pre-installed into 6 Metres of Heavy Duty 8 B&S Cable, providing 50A of circuit protection. Now featuring the all new 3 Pin Anderson plug. Take the hassle out of connecting your 12V dual battery system. The built-in ignition wire into a three pin Anderson connector allows for easier installation, and removes the need to run multiple cables through your vehicle.

This cable is pre-crimped with Anderson connector terminals which makes it easy to run through holes and grommets. Once the cable is run, all you need to do is clip the Three Pin Anderson connector on. The kit also includes cable ties for securing the main cables, a spare 80A Maxifuse, 3m tail ignition wire and spare Anderson connector terminals

Backwards compatibility

The three pin Anderson is backwards compatible, meaning a two pin Anderson connection will work even if the ignition wire is not connected.

The KICKASS Premium DC-DC wiring kit is specifically designed for our DCDC charger and will not work with VSRs

Please use Dual Battery Wiring Kit for the following:

• Wiring to Battery System in the cargo area of the vehicle
• VSR's see our KAVSRAND which is fully compatible with this kit
• KickAss battery boxes and power packs
• Auxiliary Batteries - By using our KickAss Maxifuse Cable and Optional VSR

This kit includes:

• 6 x 50 Amp Anderson terminals
• 1 x 50 Amp 3 Pin anderson Connector
• 1 x 80Amp spare Maxifuse
• 10 x Black cable ties (300mm )
• 1x 3M tail Ignition cable

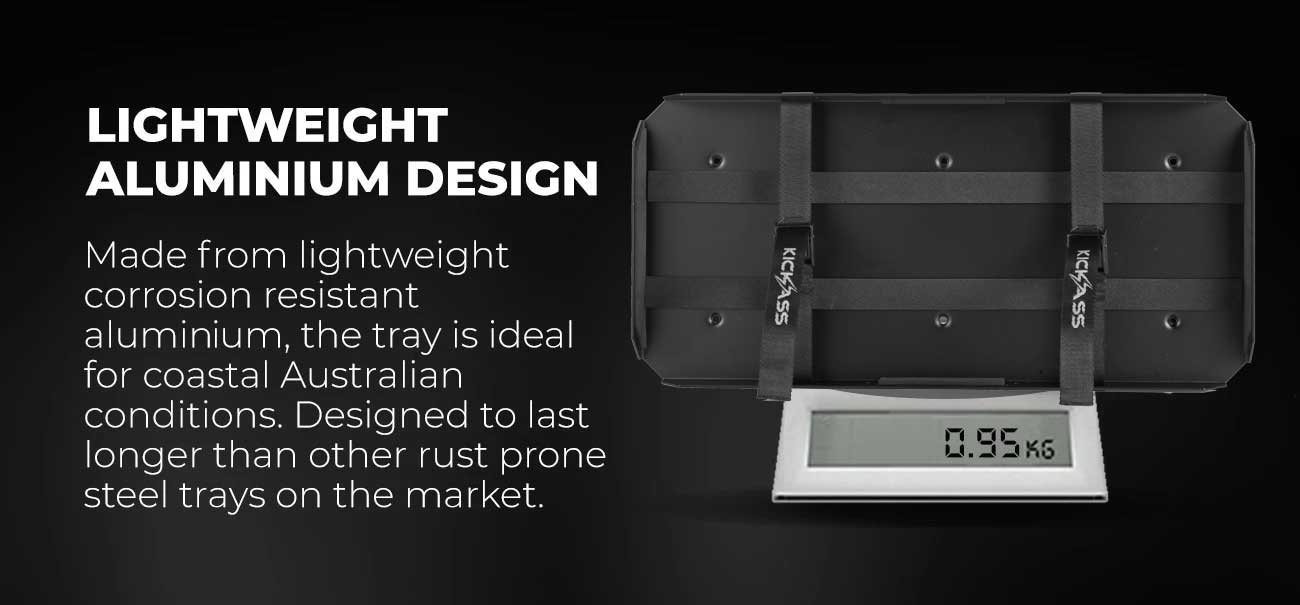

Lightweight Aluminum Design

Made from lightweight corrosion-resistant aluminum, the tray is ideal for coastal Australian conditions. Designed to last longer than other rust prone steel trays on the market.

Adjustable Tie Down Straps

Ensuring your battery stays in place for those tough Australian tracks. The innovative, heavy duty straps are adjustable, so you can easily remove your battery.

Simple Installation

The pre-drilled, countersunk holes mean your battery sits flush in the tray preventing damage to your battery.

Padded Internally

The cushioning foam padding prevents the battery from rubbing against the tray and ensures a secure fit for 200AH batteries.

KICKASS^® MAXI Fuse Anderson Cable

We have developed and designed our all-new KICKASS^® MAXI Fuse Anderson cable to be the perfect solution for connecting up a battery to just about anything. This cable provides the ultimate circuit protection ensuring your battery is fused correctly through an 80A inline MAXI Fuse thus preventing a major meltdown should you ever have a short circuit in your system.

The length of this cable has been specially designed to provide adequate reach when connecting to the vehicle starting battery. The provided length allows the cable to be expertly run through the battery compartment and connect to other cables such as dual battery wiring. The MAXI Fuse holder is weatherproof and integrated into the cable making it very easy and fast to install - there is no need to spend time mounting like traditional fuse holders or circuit breakers.

The cable includes a 50 Amp Anderson style connector at one end providing a seamless connection to any device or electrical systems such as battery boxes or solar panels that use Anderson style connectors. At the other end of the cable, two high-quality 8mm ring terminals simply connect to your battery making this cable the main fused connection point. A spare 80A MAXI Fuse is also included with the cable so you have a backup if needed.

Features

• In-line weatherproof MAXI Fuse holder with 80A MAXI Fuse
• Length 750mm
• Cable type: Twin 8B&S (7.71mm2) Red / Black Sheathed
• 1 x 80A MAXI Fuse pre-installed in holder
• 1 x 80A MAXI Fuse spare
• 8mm ring terminals

See links below for replacement fuses:

Spare 50A MAXI Fuse - Red
