Description
KickAss 500A Battery Monitoring Shunt with Remote Display
Accurate Charge Status of Battery
Feel confident knowing your battery’s state of charge at all times. No more relying on voltage alone to determine battery health.
Compatible with Most Modern Battery Types
Works with AGM, GEL, Sealed Lead Acid, Flooded Lead Acid, and LiFePO4 batteries. Ideal for charging starter, deep-cycle, marine, powersports batteries and more.
Preserve Battery Life with Battery Input/Output Monitoring
Monitor both charge and power draw on one clear screen to extend battery life and performance.
Audible Low Battery Voltage Alarm
Avoid trip interruptions—an audible alarm alerts you when voltage drops. The alarm is easily programmable for custom thresholds.
Capable of Monitoring up to 500A Load
Perfect for high-powered setups including inverters and other heavy-duty appliances.
Mounts Directly to Your Battery Terminal
Fast, accurate data straight from the source. Includes optional 5m extension cable for flexible mounting.
Specifications
| Working Voltage Range | 10–30V DC |
| Working Dissipation (backlight on) | ~100 mA |
| Standby Dissipation (backlight off) | ~1–2 mA |
| Accuracy | 1% |
| Battery Capacity Range | 0 – 999Ah |
| Operating Temperature Range | -10° to 60° |
| Display Housing Dimensions | 126L x 66.6H |
| B+ Wire Length | 100cm |
| Wire Length to LCD | 50cm |
| Wire Length to Shunt Sampler | 50cm |
| Optional Extension Cable Wire Length | Up to two 5m extension cables |
User Manual and Support
Fast Dispatch Available
Buy Direct & Save
Hassle Free Returns
KickAss has warehouses located on both the East and West Coast of Australia. Express orders are dispatched same business day if ordered before 12pm AEST. Standard orders are dispatched within 2-3 business days. Deliveries are made during business hours, Monday to Friday.
At KickAss, we take full control of our product journey - from concept to creation - by designing, engineering, and manufacturing our own batteries and 12V accessories in our wholly owned facilities located in Australia, China, and the USA. This end-to-end approach allows us to maintain strict quality standards, drive innovation, and deliver unbeatable value. By owning our production facilities, we ensure every product that carries the KickAss name is built tough, tested rigorously, and ready for off-grid adventure.
Change your mind? No worries, our quick & easy online or in-store returns process has you covered. Learn more.
BUNDLE & SAVE!
Save even more when you buy a KickAss 500A Battery Monitoring Shunt with Remote Display in a KickAss Bundle!
KickAss 500A Battery Monitoring Shunt with Remote Display + Extension Cable Bundle
Reg Price $159.90
$
127
95
SAVE
20%
500A Battery Monitoring Shunt with Remote Display, and Extension Cable for Remote Display Unit - 5m
KickAss 12V 120Ah Lithium Battery Bundle with Shunt & Tray
Reg Price $1,079.85
$
616
95
SAVE
$462.90
12V 120Ah Lithium Deep Cycle Battery LiFePO4, 500A Battery Monitoring Shunt with Remote Display, and N70 Battery Tray
KickAss 12V 120Ah Deep Cycle AGM Premium Dual Battery Kit with 25A DCDC Charger, Shunt, Tray & Wiring
Reg Price $879.70
$
741
95
SAVE
$137.75
12V/24V 25A DCDC Charger with Solar MPPT & Plug, 12V 120Ah AGM Deep Cycle Battery, 500A Battery Monitoring Shunt with Remote Display, Plug & Play Wiring Kit - 6m, N70 Battery Tray, and Automotive I...
KickAss 12V 120Ah Slimline Deep Cycle AGM Complete Dual Battery Kit with 25A DCDC Charger, Shunt, Tray & Wiring
Reg Price $1,009.65
$
824
95
SAVE
$184.70
12V 120Ah AGM Deep Cycle Battery, 12V/24V 25A DCDC Charger with Solar MPPT & Plug, 120Ah Battery Tray, 500A Battery Monitoring Shunt with Remote Display, Plug & Play Wiring Kit - 6m, Battery Tray A...
KickAss 12V 170Ah Slimline Deep Cycle AGM Complete Dual Battery Kit with 25A DCDC Charger, Shunt, Tray & Wiring
Reg Price $1,239.65
$
954
95
SAVE
$284.70
12V 170Ah AGM Deep Cycle Battery, 12V/24V 25A DCDC Charger with Solar MPPT & Plug, 170Ah Battery Tray, 500A Battery Monitoring Shunt with Remote Display, Plug & Play Wiring Kit - 6m, Battery Tray A...
KickAss 120Ah Lithium Complete Dual Battery Kit with 1000W Inverter, 25A DCDC Charger, Shunt, Tray & Wiring
Reg Price $1,949.55
$
1309
SAVE
$640.55
12V 120Ah Lithium Deep Cycle Battery LiFePO4, 12V to 240V Pure Sine Wave 1000W Inverter, 12V/24V 25A DCDC Charger with Solar MPPT & Plug, 500A Battery Monitoring Shunt with Remote Display, Plug & P...
KickAss Twin 12V 120Ah Deep Cycle AGM Complete Dual Battery Kit with 1000W Inverter, 40A DCDC Charger, Tray & Wiring - 240Ah Capacity
Reg Price $1,979.45
$
1370
SAVE
$609.45
2 x 12V 120Ah AGM Deep Cycle Battery, 12V/24V 40A DCDC Charger with Solar MPPT & Plug, 12V to 240V Pure Sine Wave 1000W Inverter, Plug and Play DCDC Wiring Kit - 6.5m, 2 x N70 Battery Tray, 500A Ba...
KickAss 12V 200Ah Lithium Essentials Dual Battery Kit with 25A DCDC Charger, Shunt, Tray & Wiring
Reg Price $2,258.70
$
1434
SAVE
$824.70
12V 200Ah Lithium Deep Cycle Battery LiFePO4, 12V/24V 25A DCDC Charger with Solar MPPT & Plug, 500A Battery Monitoring Shunt with Remote Display, Plug & Play Wiring Kit - 6m, 200Ah Battery Tray, Ba...
KickAss Twin 12V 120Ah Slimline Deep Cycle AGM Complete Dual Battery Kit with 1000W Inverter, 40A DCDC Charger, Tray & Wiring - 240Ah Capacity
Reg Price $2,189.40
$
1519
SAVE
$670.40
2 x 12V 120Ah AGM Deep Cycle Battery, 12V/24V 40A DCDC Charger with Solar MPPT & Plug, 2 x 120Ah Battery Tray, 12V to 240V Pure Sine Wave 1000W Inverter, Plug and Play DCDC Wiring Kit - 6.5m, 500A ...
KickAss 12V 200Ah Lithium Essentials Dual Battery Kit with 40A DCDC Charger, Shunt, Tray & Wiring
Reg Price $2,548.70
$
1564
SAVE
$984.70
12V 200Ah Lithium Deep Cycle Battery LiFePO4, 12V/24V 40A DCDC Charger with Solar MPPT & Plug, Plug and Play DCDC Wiring Kit - 6.5m, 500A Battery Monitoring Shunt with Remote Display, 200Ah Battery...
KickAss Twin 12V 170Ah Slimline Deep Cycle AGM Complete Dual Battery Kit with 1000W Inverter, 40A DCDC Charger, Tray & Wiring - 340Ah Capacity
Reg Price $2,649.40
$
1778
SAVE
$871.40
2 x 12V 170Ah AGM Deep Cycle Battery, 12V/24V 40A DCDC Charger with Solar MPPT & Plug, 2 x 170Ah Battery Tray, 12V to 240V Pure Sine Wave 1000W Inverter, Plug and Play DCDC Wiring Kit - 6.5m, 500A ...
KickAss 12V 200Ah Lithium Dual Battery Kit with 2000W Inverter, 40A DCDC Charger, Shunt, Display Panel, Tray & Wiring
Reg Price $3,548.60
$
2037
SAVE
$1,511.60
12V 200Ah Lithium Deep Cycle Battery LiFePO4, 12V to 240V Pure Sine Wave 2000W Inverter, 12V/24V 40A DCDC Charger with Solar MPPT & Plug, Plug and Play DCDC Wiring Kit - 6.5m, 500A Battery Monitori...
KickAss 12V 200Ah Lithium Dual Battery Kit with 2000W Inverter, 40A DCDC Charger, Shunt, Control Box, Display Panel, Tray & Wiring
Reg Price $3,758.50
$
2175
SAVE
$1,583.50
12V 200Ah Lithium Deep Cycle Battery LiFePO4, 12V to 240V Pure Sine Wave 2000W Inverter, 12V/24V 40A DCDC Charger with Solar MPPT & Plug, Plug and Play DCDC Wiring Kit - 6.5m, 12V Mini Control Box ...
KickAss Twin 12V 120Ah Lithium Dual Battery Kit with 2000W Inverter, 40A DCDC Charger, Shunt, Display Panel, Tray & Wiring - 240Ah Capacity
Reg Price $3,819.40
$
2244
SAVE
$1,575.40
2 x 12V 120Ah Lithium Deep Cycle Battery LiFePO4, 12V to 240V Pure Sine Wave 2000W Inverter, 12V/24V 40A DCDC Charger with Solar MPPT & Plug, Plug and Play DCDC Wiring Kit - 6.5m, 2 x N70 Battery T...
KickAss Twin 12V 120Ah Lithium Dual Battery Kit with 2000W Inverter, 40A DCDC Charger, Shunt, Control Box, Display Panel, Tray & Wiring - 240Ah Capacity
Reg Price $4,029.30
$
2382
SAVE
$1,647.30
2 x 12V 120Ah Lithium Deep Cycle Battery LiFePO4, 12V to 240V Pure Sine Wave 2000W Inverter, 12V/24V 40A DCDC Charger with Solar MPPT & Plug, Plug and Play DCDC Wiring Kit - 6.5m, 12V Mini Control ...
KickAss 12V 200Ah Lithium Dual Battery Kit with 3000W Inverter, 40A DCDC Charger, Display Panel, Tray & Wiring - 400Ah Capacity
Reg Price $5,597.50
$
3247
SAVE
$2,350.50
2 x 12V 200Ah Lithium Deep Cycle Battery LiFePO4, 12V to 240V Pure Sine Wave 3000W Inverter, 12V/24V 40A DCDC Charger with Solar MPPT & Plug, Plug and Play DCDC Wiring Kit - 6.5m, 500A Battery Moni...
KickAss Twin 12V 200Ah Lithium Dual Battery Kit with 3000W Inverter, 40A DCDC Charger, Shunt, Control Box, Display Panel, Tray & Wiring - 400Ah Capacity
Reg Price $5,807.40
$
3386
SAVE
$2,421.40
2 x 12V 200Ah Lithium Deep Cycle Battery LiFePO4, 12V to 240V Pure Sine Wave 3000W Inverter, 12V/24V 40A DCDC Charger with Solar MPPT & Plug, Plug and Play DCDC Wiring Kit - 6.5m, 2 x 200Ah Battery...
STILL ON THE FENCE?
See why our customers are all in—these reviews speak for themselves!
Frequently Asked Questions
How much current can the KickAss 500A Battery Monitoring Shunt handle safely?
The KickAss Battery Monitor includes a 500A shunt designed to accurately measure current up to 500 amps. This high capacity allows it to monitor large 12V battery banks used in off-grid and adventure setups, ensuring precise current flow readings whether charging or discharging.
This 500A rating means you can confidently use it with substantial battery systems, making it ideal for serious camping rigs or off-grid power stations. The shunt’s robust design ensures reliable performance even under heavy loads.
This 500A rating means you can confidently use it with substantial battery systems, making it ideal for serious camping rigs or off-grid power stations. The shunt’s robust design ensures reliable performance even under heavy loads.
Can I use the KickAss Battery Monitor with different types of 12V batteries?
Yes, the KickAss 500A Battery Monitoring Shunt is compatible with all 12V battery types and supports battery capacities from 0.1Ah up to 999.9Ah. It accurately tracks state of charge, voltage, and current for deep cycle, AGM, and other 12V batteries.
This flexibility means you can integrate it with your existing battery setup or upgrade your system without compatibility concerns. The monitor’s calibration feature lets you tailor it precisely to your battery bank’s capacity for optimal accuracy.
This flexibility means you can integrate it with your existing battery setup or upgrade your system without compatibility concerns. The monitor’s calibration feature lets you tailor it precisely to your battery bank’s capacity for optimal accuracy.
How do I install the KickAss 500A Battery Monitoring Shunt and display?
Installation involves bolting the 500A shunt directly to the negative battery terminal or mounting it with the included holder and connecting via a short cable. The display connects to the shunt using supplied cables and features a remote display option with a backlit LCD screen for easy viewing.
The manual provides clear step-by-step instructions, including wiring the B+ wire with a 3A fuse for protection. This plug-and-play design ensures a straightforward setup, even in rugged outdoor conditions, enhancing your camping experience with real-time battery data.
The manual provides clear step-by-step instructions, including wiring the B+ wire with a 3A fuse for protection. This plug-and-play design ensures a straightforward setup, even in rugged outdoor conditions, enhancing your camping experience with real-time battery data.
How do I calibrate the KickAss Battery Monitor to ensure accurate readings?
Calibration is done by fully charging your battery bank to 100% state of charge (SOC) and then pressing and holding the UP arrow on the display for 3 seconds. This manual calibration aligns the monitor’s SOC reading with your battery’s actual charge level.
Calibration should be performed when the charger is in float stage to ensure accuracy. This simple process guarantees your monitor provides precise battery status, helping you manage power consumption and avoid unexpected battery depletion during your adventures.
Calibration should be performed when the charger is in float stage to ensure accuracy. This simple process guarantees your monitor provides precise battery status, helping you manage power consumption and avoid unexpected battery depletion during your adventures.
What safety features does the KickAss 500A Battery Monitoring Shunt include?
The KickAss Battery Monitor features a low battery and low SOC audible alarm, which can be muted if desired, alerting you before your battery runs too low. It also requires installation with suitable gauge wiring and a 3A fuse on the B+ wire to protect the system from electrical faults.
These safety measures ensure your battery system remains protected while giving you peace of mind. The remote display should be kept away from excessive moisture, dust, and direct sunlight to maintain longevity and reliability in harsh outdoor environments.
These safety measures ensure your battery system remains protected while giving you peace of mind. The remote display should be kept away from excessive moisture, dust, and direct sunlight to maintain longevity and reliability in harsh outdoor environments.

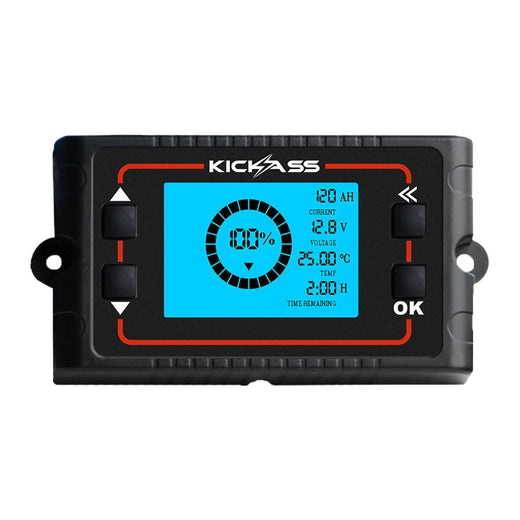

What kind of information can I see on the KickAss Battery Monitor display?
The remote display shows battery state of charge (SOC %) with an energy ring, instantaneous current flow (positive for charging, negative for discharging), battery voltage, ambient temperature, and remaining time to full or empty.
This comprehensive data lets you monitor your battery system’s health and performance at a glance. The backlit LCD screen ensures visibility day or night, making it easy to manage your power use while camping or off-grid, optimising battery life and efficiency.
This comprehensive data lets you monitor your battery system’s health and performance at a glance. The backlit LCD screen ensures visibility day or night, making it easy to manage your power use while camping or off-grid, optimising battery life and efficiency.
Can I extend the distance between the shunt and the display unit?
Yes, the KickAss Battery Monitor supports an optional 5-metre extension cable (SKU: KARDUEXT5M) for remotely mounting the display. This allows flexible installation options to suit your vehicle or campsite layout.
Using the recommended extension cable ensures signal integrity and convenience, so you can place the display in the most accessible location without compromising accuracy or ease of use.
Using the recommended extension cable ensures signal integrity and convenience, so you can place the display in the most accessible location without compromising accuracy or ease of use.
How does the KickAss Battery Monitor handle multiple batteries connected in parallel?
When using batteries in parallel, the shunt must be wired correctly with all system negative connections going to the P- side of the shunt, not directly to the battery terminal. This setup prevents false readings and ensures accurate monitoring of the entire battery bank.
The manual provides wiring diagrams and recommends using suitable fuses or circuit breakers for all loads, maintaining system safety and reliability. This design consideration makes the KickAss monitor ideal for complex off-grid power configurations.
The manual provides wiring diagrams and recommends using suitable fuses or circuit breakers for all loads, maintaining system safety and reliability. This design consideration makes the KickAss monitor ideal for complex off-grid power configurations.
