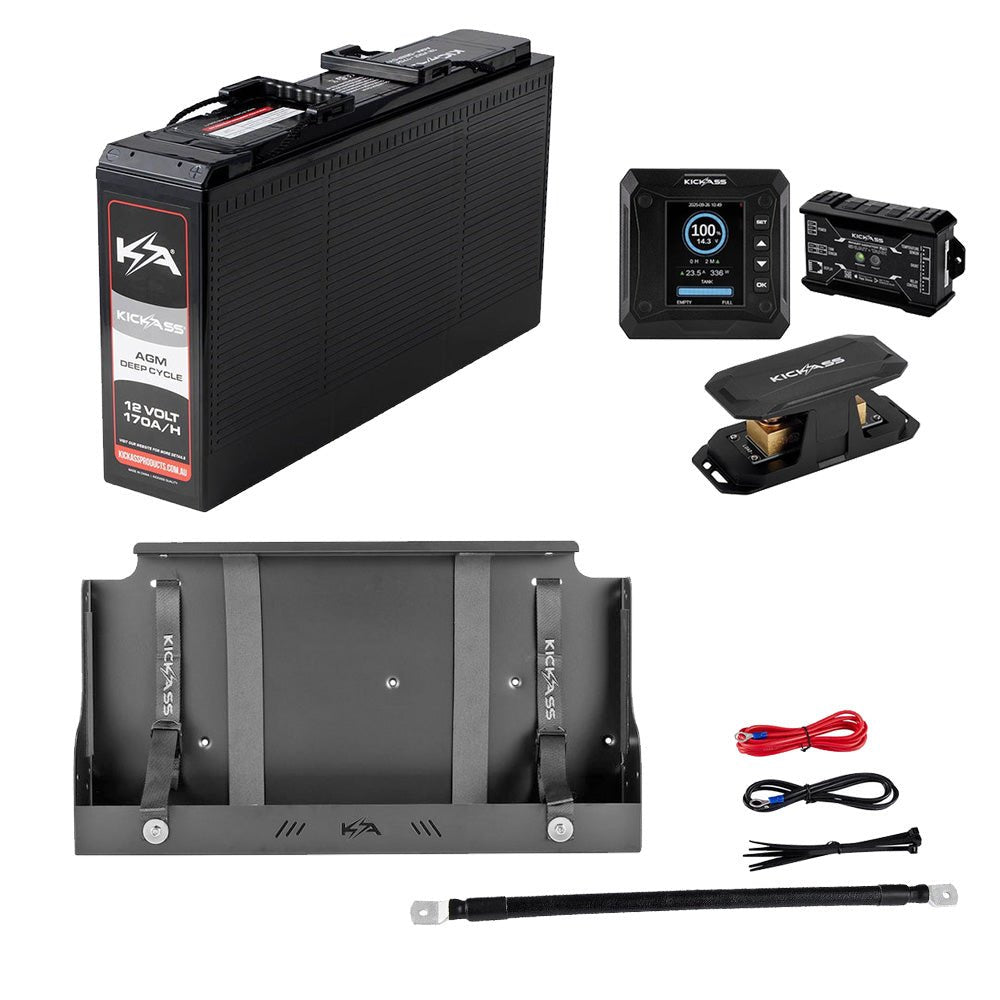

Includes the KickAss 12V 170Ah Slimline AGM Battery, 170Ah Slimline Battery Tray, 600A Smart Shunt with Battery and Tank Monitor, and Power Connections Kit. A high capacity slimline power solution.
Everything that is included in this KickAss kit!
Durable 12V auxiliary battery for caravan, camping and 4WD dual battery systems. Charge from solar panel, alternator & 240V mains power. 5 year warranty.
Battery Comparison Table
*Please note: Use of this battery under your bonnet, to power trolling motors or in electric golf buggies will void your warranty. More suitable battery types for these applications are CCA-rated batteries. KickAss Batteries are not CCA rated and should not be used to start vehicles.

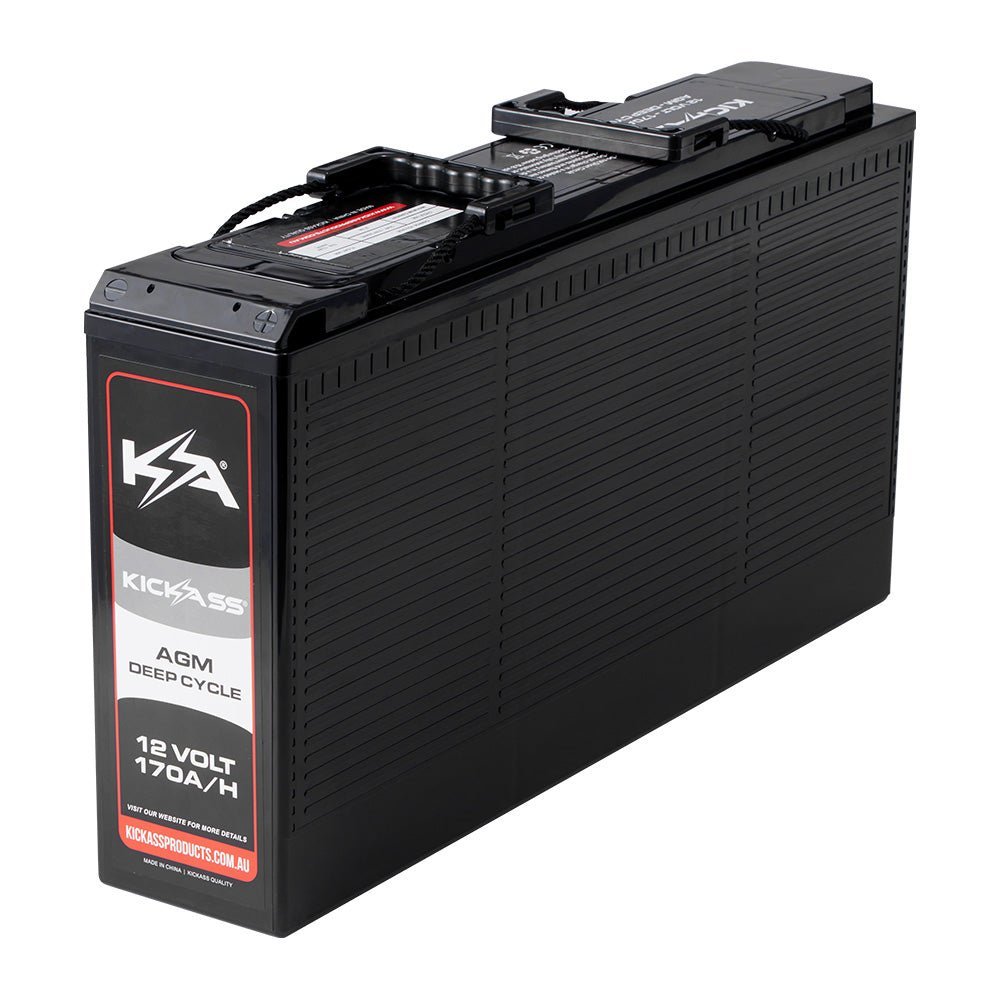

KickAss Slim 12V 170Ah Deep Cycle AGM Dual Battery
The slimline range of AGM batteries are the solution to tight applications in your 4X4 vehicle, caravan or campervan. Easily install our KickAss Slimline Batteries into areas that otherwise would have been impossible with a normal sized battery. Combine with the KickAss 170Ah Battery Tray and easily install your KickAss Battery behind the rear seat of your dual cab ute.
Power 12V lights, fridge/freezers, inverters, phones, laptops, and other 12/24V camping accessories. With a KickAss Battery on the road your power and electricity troubles will become a thing of the past. They are even suitable for saltwater/marine applications like your boat.
Additional Features
Applications:

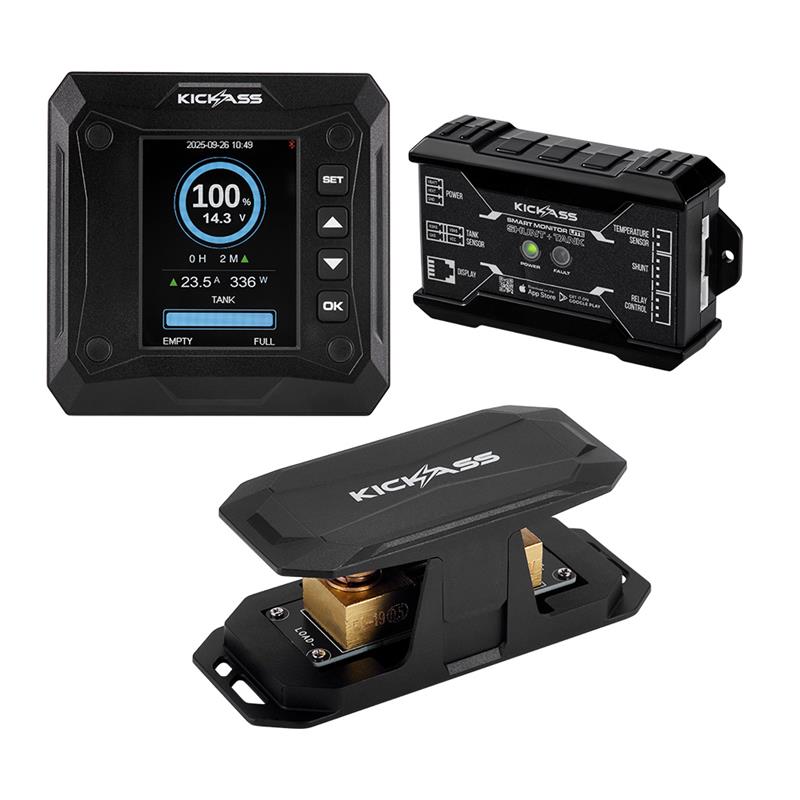

Take the guesswork out of managing your power with the KickAss Smart Monitor Lite Shunt + Tank Sensor. Track charge, discharge and State of Charge in real time, see how long your battery has left to run or recharge, and even monitor water tank levels from one smart system. View data via Bluetooth or the colour LCD for total off-grid confidence.
Please check the specifications table to confirm compatible tank sensor types before installation.
The KickAss Smart Monitor Lite Shunt + Tank Sensor is a powerful, easy-to-use solution for monitoring your off-grid power and water systems. Designed for touring rigs, caravans and 4WD setups, it gives you clear, reliable insight into how your battery bank is performing, how long you can keep running your gear, and when it’s time to recharge or top up the tank.
At the heart of the system is a high-capacity 600A shunt that accurately measures charge and discharge current, battery voltage and State of Charge. This allows you to understand exactly what’s happening inside your battery bank, helping you manage power more efficiently and avoid unexpected shutdowns when running fridges, lighting, inverters and other essential off-grid equipment. As loads and charging sources change, the system continuously provides real-time calculations and updates how long your battery has left to run or how long it will take to recharge. This takes the guesswork out of power management and makes it easier to plan your usage while travelling off-grid.
The Smart Monitor Lite can also connect to your tank sensor or sender, allowing you to monitor both your battery data and water level from a single unit. It’s compatible with resistive and voltage-type tank senders and can be calibrated to suit virtually any tank size or shape.
Monitoring and setup are simple thanks to Bluetooth connectivity and the dedicated mobile app. View real-time voltage, current, power and State of Charge from your smartphone, configure battery and tank settings, and review historical performance data whenever you need it. For quick checks without reaching for your phone, the colour LCD remote display provides clear, at-a-glance system information right where you want it.
Installation and configuration are straightforward, even for more complex setups. The intuitive app interface guides you through setup with clear menus and prompts, making it easy to tailor the system to your specific battery chemistry and capacity. The shunt supports AGM, lithium and other common battery types, from small single-battery systems through to large dual-battery lithium banks.
Integrated data logging records voltage, current and temperature for up to 35 days, allowing you to review power usage trends over the course of a trip. With a wide input voltage range and flexible power options, the unit can be powered directly from the battery or an external supply and used with battery banks of any voltage. For added control and protection, the external relay output allows you to automate system behaviour based on voltage, current, power or temperature.

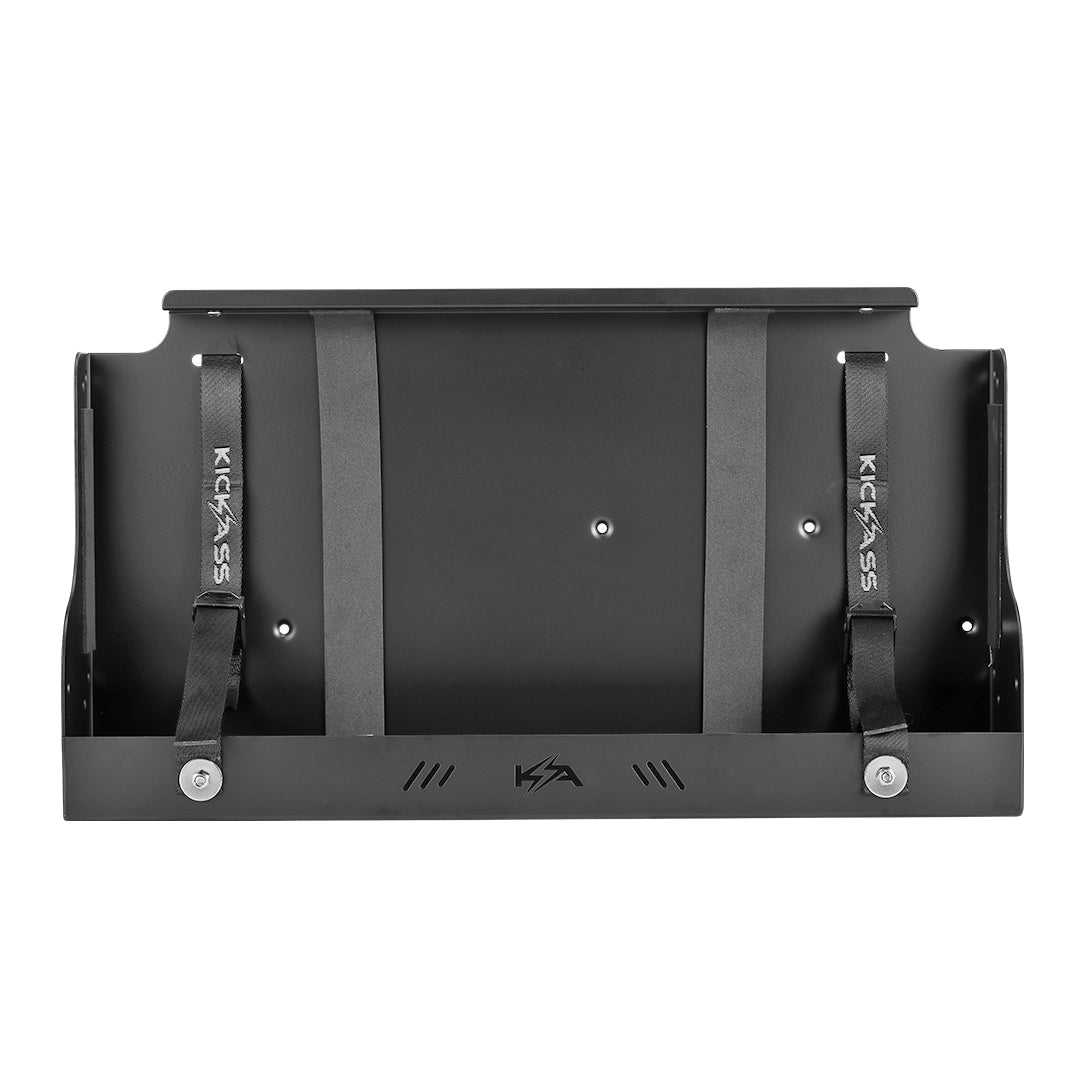

Secure your battery with the KickAss Battery Tray for rear seat mounting in Dual Cab Utes. Made in Australia, includes factory mounting points.
Our brand new KickAss Slimline 170ah Battery Tray is the customised solution to securing your battery, built specifically for the KickAss Slim 12V 170AH Portable Deep Cycle AGM Battery.
The KickAss 170ah Battery Tray is made from lightweight aluminuim for a secure and safe battery, when driving in tough Australian conditions.
The KickAss 170ah Battery Tray utilise factory mounting points meaning, no aditional drilling required. Secure with the screws and bolts provided.
Our Slimline brackets are made from 100% Australian materials for guaranteed quality. Tested for harsh Australian off-road conditions. Ensure your battery is always secure when traveling, with the KickAss Slimline 170ah Battery tray.
Hold Down Straps
Our Slimline Battery features two heavy duty straps to secure your battery. The can easily detached, allowing for access to your battery.
Please Note - KickAss is not responsible or liable for any modification performed on your vehicle.

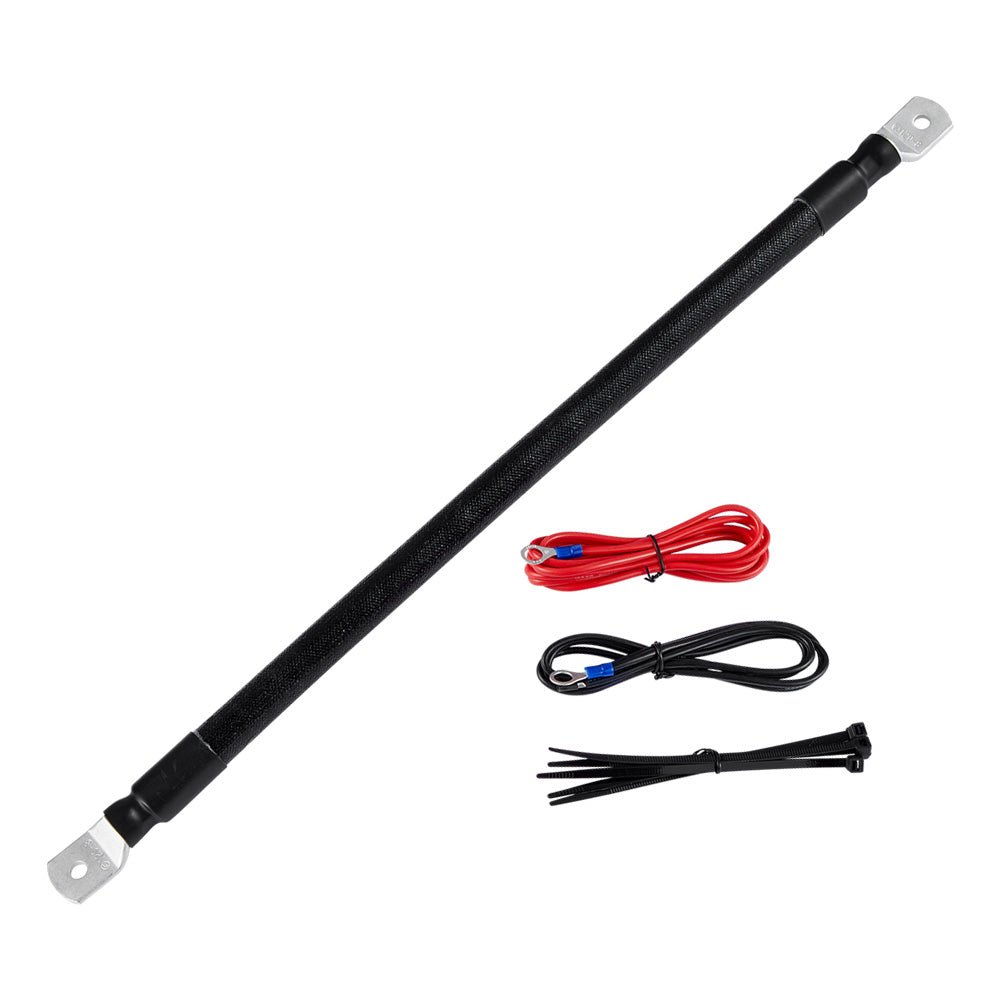

Designed to pair seamlessly with the KickAss 600A Smart Shunt with Battery & Tank Monitor, this Power Connections Kit takes the hassle out of installation. It includes a heavy-duty 95mm² negative hookup cable plus the smaller positive and negative power leads required to run the shunt, delivering a quick, clean, reliable setup.
The KickAss 600A Smart Shunt Power Connections Kit is the perfect companion to your KickAss 600A Smart Shunt with Battery & Tank Monitor, designed to make installation quick, clean and easy. This purpose-built kit includes the main heavy-duty negative connection between your battery and shunt, along with the smaller positive and negative power cables required to run the shunt itself. With everything sized correctly and ready to go, it eliminates guesswork and ensures your monitoring system is powered safely and accurately from day one.
Built for serious off-grid and touring setups, the kit features a rugged 95mm² negative hookup cable designed to handle high-current loads with minimal voltage drop. Whether you're running a lithium battery bank, dual battery system or high-draw accessories, these cables deliver dependable performance in harsh environments. By using the correct cabling for your shunt installation, you'll get more accurate readings, improved reliability and a cleaner, more professional finish to your power system.
| Battery Hook Up Cable | 500mm / 95mm2 |
| Power Hook Up Cable | Positive - 1950mm 14AWG | Negative - 1100mm 14AWG |
| Nominal Voltage | 12.8V |
| Nominal Capacity | 170Ah @ 20 hour rate F.V. (1.80V/cell) |
| Dimensions | 551±2mm (length) x 110±2mm (width) x 288±2mm (height) |
| Approx. Weight | 45.00 kg |
| Terminals | B3 (Fitting M8 bolt & nut), I2 is optional |
| Internal Resistance | 0.045Ω (Fully Charged) |
| Max Peak Discharge Current | 1200A (5 sec) |
| Max Continuous Discharge Current | 37.5A |
| Max Charge Current | 37.5A |
| Operating Temperature Range (Charge) | -10°C ~ 40°C (14°F ~ 104°F) |
| Maximum Operating Temperature | 65°C |
| Operating Temperature Range (Discharge) | -20°C ~ 50°C (-4°F ~ 122°F) |
| Storage Temperature Range | -20°C ~ 40°C (-4°F ~ 104°F) |
| Self Discharge | 3% of capacity declined per month at 25°C |
| Operating Voltage | Battery: 10–60 V DC / External: 0–60 V DC |
| Operating Temp. | −20 ~ +60 °C |
| Standby Power | 0.9 W |
| Current Range | ±600 A |
| Current Accuracy | ±0.4 % |
| Voltage Accuracy | ±0.4 % |
| Battery Temp. Sens. Range | −20 ~ +120 °C |
| Battery Types | LiFePO₄ / AGM / Lead Acid / Calcium / Gel |
| Tank Sensor Resistive Input | 0 ~ 500Ω |
| Tank Sensor Voltage Input | 0 ~ 12V |
| Tank Sensor Compatibility | Compatible: Resistive tank sensor/sender with single signal output or voltage-type sensors. Not compatible: Resistive tank sensors with multiple signal outputs. |
| Relay Output | Rated to Battery or External Supply Voltage |
| Display Dimensions | 94 x 94 x 33mm |
| Shunt Dimensions | 133 x 54 x 50mm |
| Gateway Dimensions | 109 x 65 x 34mm |
| Certifications | AS/NZS 62368.1:2022, AS/NZS CISPR32:2015+AMD1:2020 |
| KickAss 600A Smart Shunt with Battery and Tank Monitor - Power Connections Kit | |
| KickAss 12V 170Ah AGM Slimline Deep Cycle Battery | |
| KickAss 170Ah Slimline Battery Tray | |
| KickAss 600A Smart Shunt with Battery and Tank Monitor |
Step up your off grid capability with the KickAss 12V 170Ah Slimline AGM Battery Bundle. This bundle combines the high capacity 170Ah Slimline AGM deep cycle battery with the purpose built 170Ah Slimline Battery Tray for a secure and space saving installation, the 600A Smart Shunt with Battery and Tank Monitor for complete power and tank visibility, and the Power Connections Kit for a clean and straightforward setup. The 170Ah slimline battery is fully sealed, maintenance free, and backed by a 5 year warranty. Track your battery state of charge, charge and discharge rates, and tank levels in real time via Bluetooth or the colour LCD display. Whether you are running a dual battery system in your 4WD or powering a full caravan setup, this bundle delivers more capacity and complete system awareness in one great value package.
