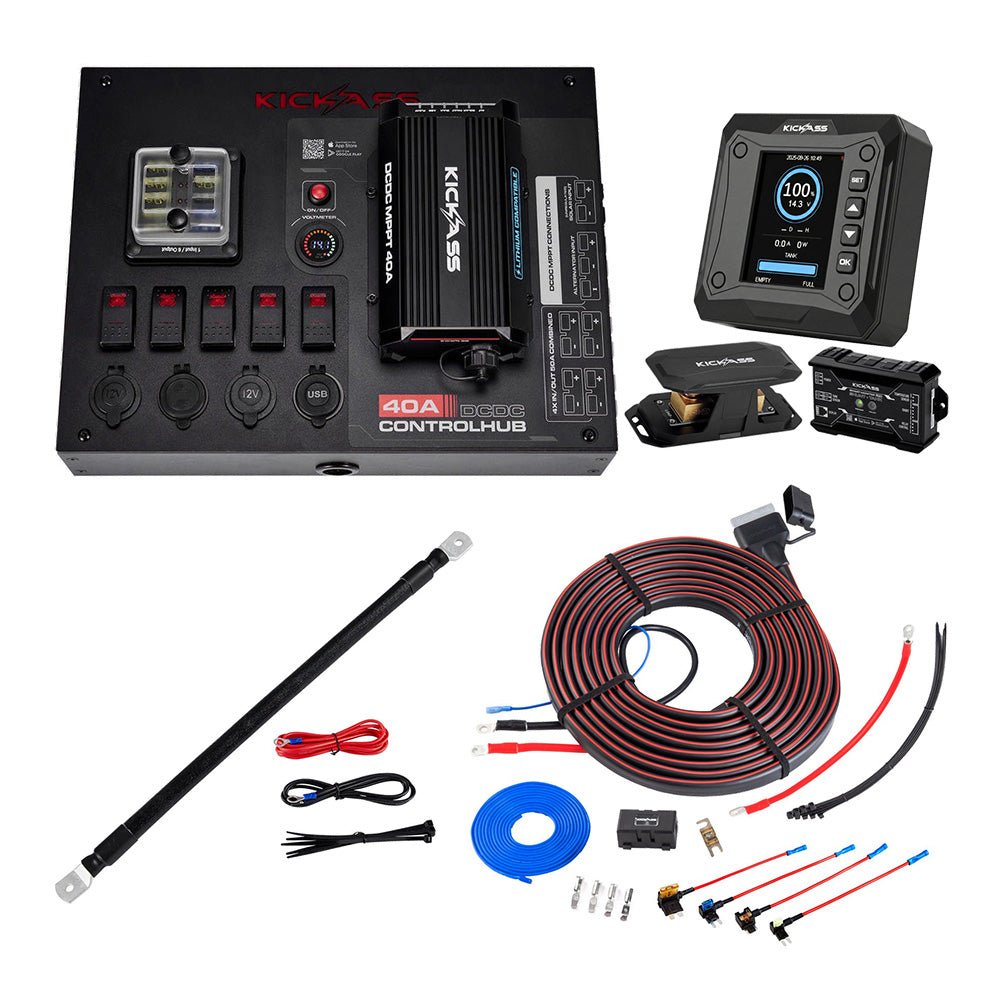

Includes the KickAss Control Hub with 40A DCDC Charger, a 600A Smart Shunt with Tank Monitor, a heavy duty DCDC wiring kit, and a smart shunt power connections kit. Everything you need for a complete, monitored dual battery system.
Everything that is included in this KickAss kit!

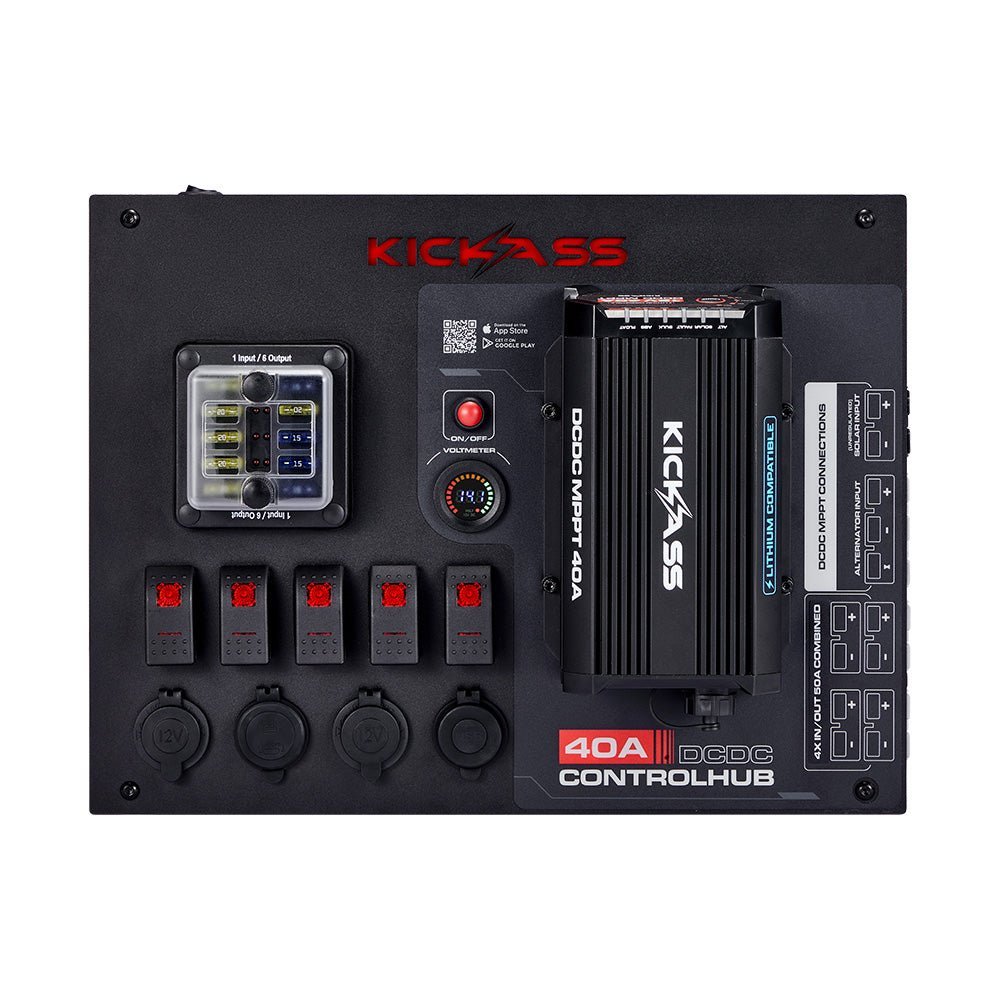

Simplify your setup with the new KickAss Control Hub, now integrated with our newest smart 40A DCDC charger with Bluetooth for easy monitoring on your phone. It lets you power up to 15 devices at once while charging your auxiliary battery from alternator or solar directly from the unit, no need to install multiple devices. Perfect for any 4WD canopy or DIY build.
Take the hassle out of building your dual battery system with the updated KickAss Control Hub, now featuring our new Smart 40A DCDC Charger with integrated Bluetooth. This all-in-one panel brings your key 12V essentials together in one tidy, easy-to-mount unit.

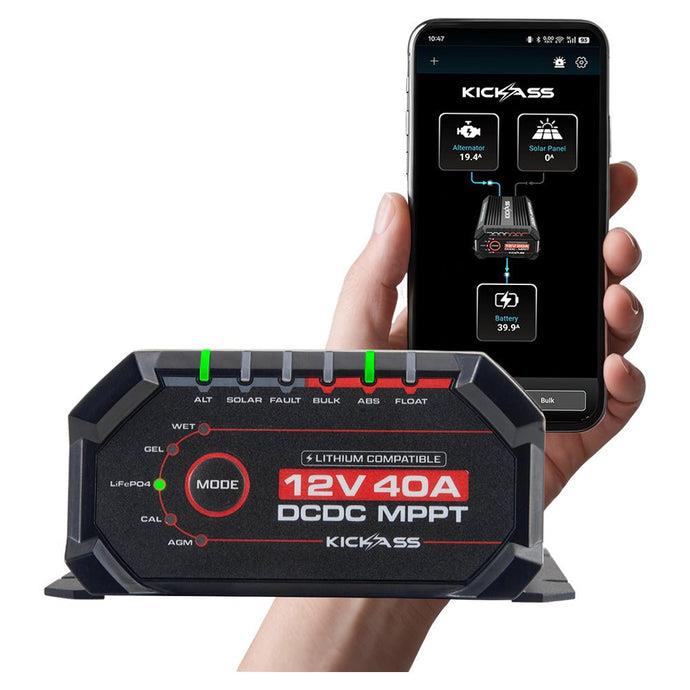

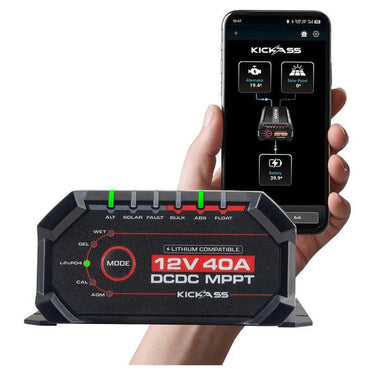

The upgraded Smart 40A DCDC Charger simplifies your setup by eliminating the need for separate charging devices. It delivers reliable charging from both your vehicle’s alternator and solar input, ensuring your auxiliary battery stays topped up whether you’re on the move or off-grid. With Bluetooth capability built in, you can now configure and monitor your charger directly from your mobile device. View real-time voltage, current, charge status and system health, and receive instant alerts or warnings if anything needs attention.
This control hub is built to power up to 15 devices at once, giving you a central point to manage lights, fridges, pumps, inverters and more. The clean front panel layout and simple mounting options make installation straightforward, even in tight canopy builds. Whether you're running a full touring setup or building your first 12V system, this panel keeps everything organised, protected and easy to use.

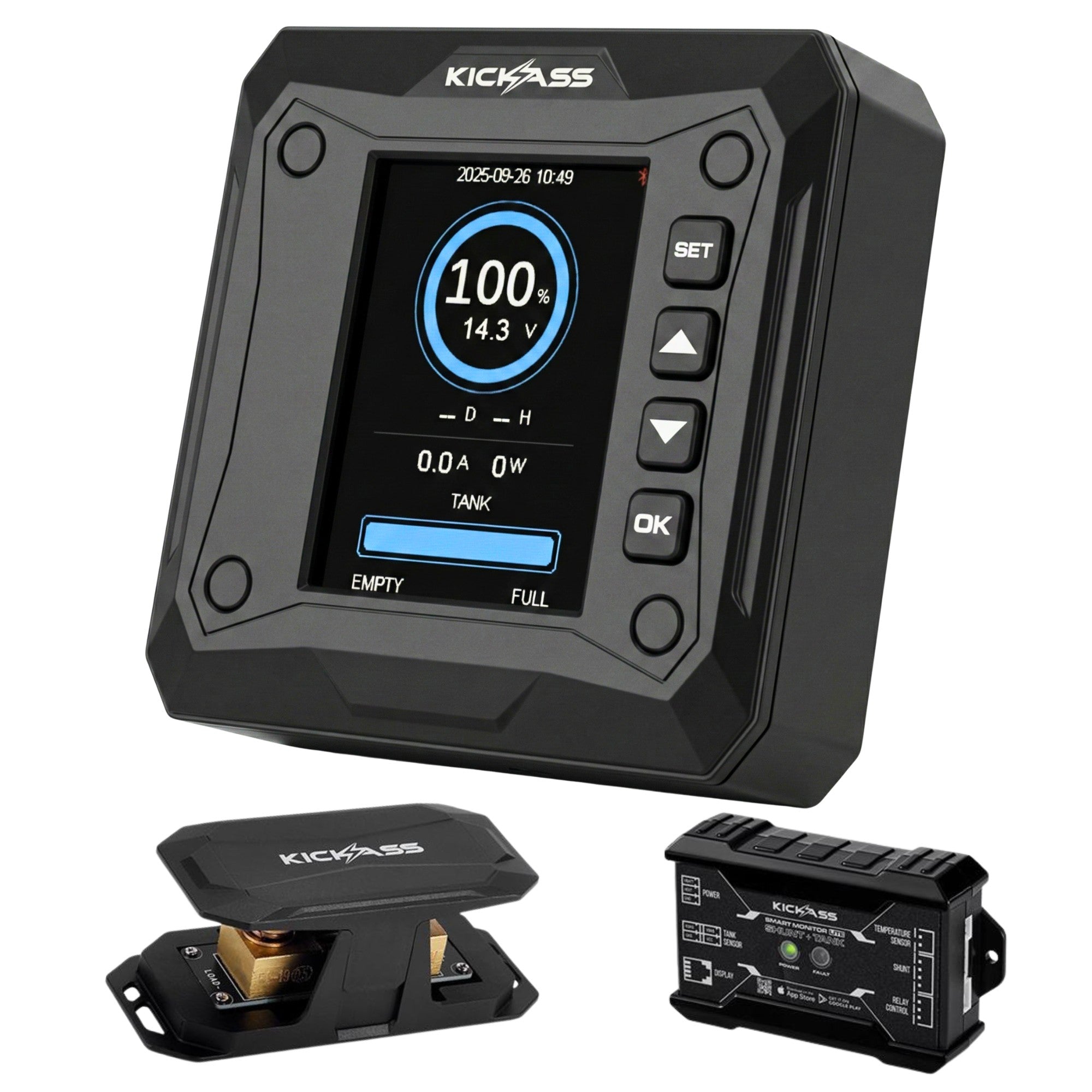

Take the guesswork out of managing your power with the KickAss Smart Monitor Lite Shunt + Tank Sensor. Track charge, discharge and State of Charge in real time, see how long your battery has left to run or recharge, and even monitor water tank levels from one smart system. View data via Bluetooth or the colour LCD for total off-grid confidence.
Please check the specifications table to confirm compatible tank sensor types before installation.
The KickAss Smart Monitor Lite Shunt + Tank Sensor is a powerful, easy-to-use solution for monitoring your off-grid power and water systems. Designed for touring rigs, caravans and 4WD setups, it gives you clear, reliable insight into how your battery bank is performing, how long you can keep running your gear, and when it’s time to recharge or top up the tank.
At the heart of the system is a high-capacity 600A shunt that accurately measures charge and discharge current, battery voltage and State of Charge. This allows you to understand exactly what’s happening inside your battery bank, helping you manage power more efficiently and avoid unexpected shutdowns when running fridges, lighting, inverters and other essential off-grid equipment. As loads and charging sources change, the system continuously provides real-time calculations and updates how long your battery has left to run or how long it will take to recharge. This takes the guesswork out of power management and makes it easier to plan your usage while travelling off-grid.
The Smart Monitor Lite can also connect to your tank sensor or sender, allowing you to monitor both your battery data and water level from a single unit. It’s compatible with resistive and voltage-type tank senders and can be calibrated to suit virtually any tank size or shape.

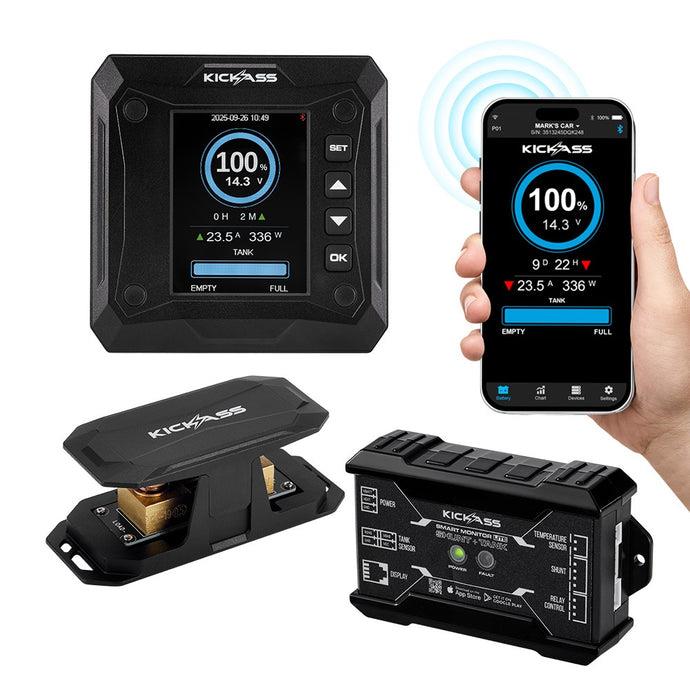

Monitoring and setup are simple thanks to Bluetooth connectivity and the dedicated mobile app. View real-time voltage, current, power and State of Charge from your smartphone, configure battery and tank settings, and review historical performance data whenever you need it. For quick checks without reaching for your phone, the colour LCD remote display provides clear, at-a-glance system information right where you want it.
Installation and configuration are straightforward, even for more complex setups. The intuitive app interface guides you through setup with clear menus and prompts, making it easy to tailor the system to your specific battery chemistry and capacity. The shunt supports AGM, lithium and other common battery types, from small single-battery systems through to large dual-battery lithium banks.
Integrated data logging records voltage, current and temperature for up to 35 days, allowing you to review power usage trends over the course of a trip. With a wide input voltage range and flexible power options, the unit can be powered directly from the battery or an external supply and used with battery banks of any voltage. For added control and protection, the external relay output allows you to automate system behaviour based on voltage, current, power or temperature.
This 3-pin Anderson-style connector with built-in ignition wire makes connecting your 12V dual battery system easy. Perfect for wiring DC/DC chargers, battery boxes & auxiliary batteries.
This 3-pin Anderson-style connector with built-in ignition wire makes connecting your 12V dual battery system easy. Perfect for wiring DC/DC chargers, battery boxes & auxiliary batteries.

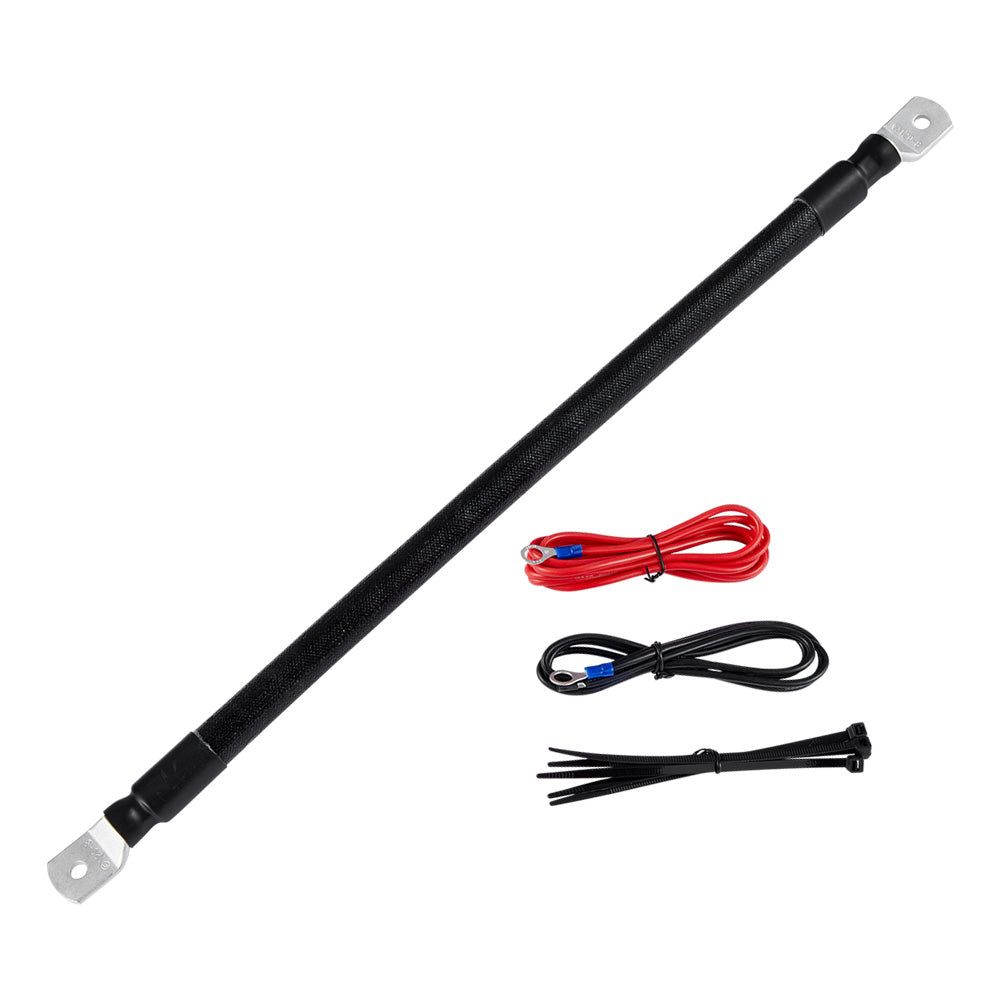

Designed to pair seamlessly with the KickAss 600A Smart Shunt with Battery & Tank Monitor, this Power Connections Kit takes the hassle out of installation. It includes a heavy-duty 95mm² negative hookup cable plus the smaller positive and negative power leads required to run the shunt, delivering a quick, clean, reliable setup.
The KickAss 600A Smart Shunt Power Connections Kit is the perfect companion to your KickAss 600A Smart Shunt with Battery & Tank Monitor, designed to make installation quick, clean and easy. This purpose-built kit includes the main heavy-duty negative connection between your battery and shunt, along with the smaller positive and negative power cables required to run the shunt itself. With everything sized correctly and ready to go, it eliminates guesswork and ensures your monitoring system is powered safely and accurately from day one.
Built for serious off-grid and touring setups, the kit features a rugged 95mm² negative hookup cable designed to handle high-current loads with minimal voltage drop. Whether you're running a lithium battery bank, dual battery system or high-draw accessories, these cables deliver dependable performance in harsh environments. By using the correct cabling for your shunt installation, you'll get more accurate readings, improved reliability and a cleaner, more professional finish to your power system.
| Cig Socket Outputs | 2 x 10A |
| USB Outputs | 2 x USB-A | 1 x USB-C | 1 x QC3.0 |
| Anderson Input / Outputs | 4 (50A Shared) |
| Anderson Inputs | 3 Pin Alternator | Unregulated Solar |
| Rocker Switches | 5 (Fused) |
| DCDC-MPPT | |
| Alternator Input Voltage Range | 9-32V DC |
| Solar Input Voltage Range | 9-32V DC |
| Maximum Input Current | 56A |
| Maximum Continuous Charging Current | 40A |
| Maximum Output Power | 500W |
| Recommended Output Fuse Size | 50A |
| No Load Current Draw | <10 mA |
| Efficiency | Approx. 93% when full load |
| Ambient Operating Temperature | 20 °C to +80 °C |
| Recommended Battery Capacity | |
| Lead Acid (WET, GEL, AGM, CAL) | 160 – 500Ah |
| LiFePO4 | 50 – 500Ah |
| Charge Profile | |
| Compatible Battery Type | GEL | WET | AGM | CAL | LiFePO4 |
| Absorption Voltage | 14.1V | 14.4V | 14.7V | 15.3V | 14.5V |
| Float Voltage | 13.5V | 13.4V | 13.6V | NA |
| Minimum Auxiliary Battery Voltage | 9V | 0V |
| Alternator Input Conditions | |
| Input Voltage (Ignition OFF) | CUT IN 13.2V | CUT OUT 12.6V | CUT IN 26.4V | CUT OUT 25.2V |
| Input Voltage (Ignition ON) | CUT IN 12.2V | CUT OUT 10.5V | CUT IN 24.4V | CUT OUT 21.0V |
| Battery Hook Up Cable | 500mm / 95mm2 |
| Power Hook Up Cable | Positive - 1950mm 14AWG | Negative - 1100mm 14AWG |
| Main Cable Length | 6.5M - 3 Core |
| Ignition Cable Extension | 3M - 14AWG Single Core |
| Cable Size - 3 Core | 2x 6AWG (13.5mm²), 1x 14AWG (1.8mm²) |
| Insulation Material | Inner - Silicon / Outer - PVC |
| Rated Temperature | Max. 105°C |
| Ring Terminals | M8 - Battery / M6 - Fuse |
| Fuse | 80A MIDI Fuse with Holder |
| Connections | 3 Pin Anderson Style / Bullet |
| Operating Voltage | Battery: 10–60 V DC / External: 0–60 V DC |
| Operating Temp. | −20 ~ +60 °C |
| Standby Power | 0.9 W |
| Current Range | ±600 A |
| Current Accuracy | ±0.4 % |
| Voltage Accuracy | ±0.4 % |
| Battery Temp. Sens. Range | −20 ~ +120 °C |
| Battery Types | LiFePO₄ / AGM / Lead Acid / Calcium / Gel |
| Tank Sensor Resistive Input | 0 ~ 500Ω |
| Tank Sensor Voltage Input | 0 ~ 12V |
| Tank Sensor Compatibility | Compatible: Resistive tank sensor/sender with single signal output or voltage-type sensors. Not compatible: Resistive tank sensors with multiple signal outputs. |
| Relay Output | Rated to Battery or External Supply Voltage |
| Display Dimensions | 94 x 94 x 33mm |
| Shunt Dimensions | 133 x 54 x 50mm |
| Gateway Dimensions | 109 x 65 x 34mm |
| Certifications | AS/NZS 62368.1:2022, AS/NZS CISPR32:2015+AMD1:2020 |
| KickAss 12V Control Hub / Panel with Smart 40A DCDC Charger + Integrated Bluetooth | |
| KickAss 600A Smart Shunt with Battery and Tank Monitor - Power Connections Kit | |
| KickAss Heavy Duty Plug and Play DCDC Wiring Kit - 6.5m | |
| KickAss 600A Smart Shunt with Battery and Tank Monitor |
Power your entire off grid adventure with the KickAss Control Hub 40A Complete Dual Battery Kit. This comprehensive package combines the all in one KickAss Control Hub with our smart 40A DCDC charger, a 600A Smart Shunt for precision battery monitoring, and all the premium plug and play wiring you need for a seamless, professional installation. It is the ultimate solution for managing your vehicle’s power, giving you complete control and monitoring over your entire dual battery system from a single, centralised hub. Effortlessly charge from solar or your vehicle's alternator and power all your essential devices on the go.
