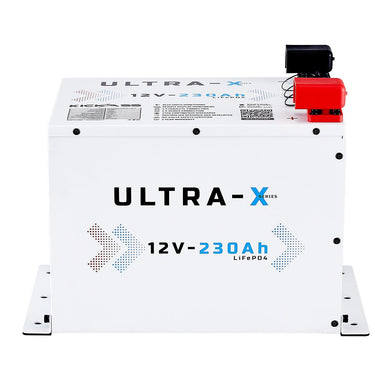

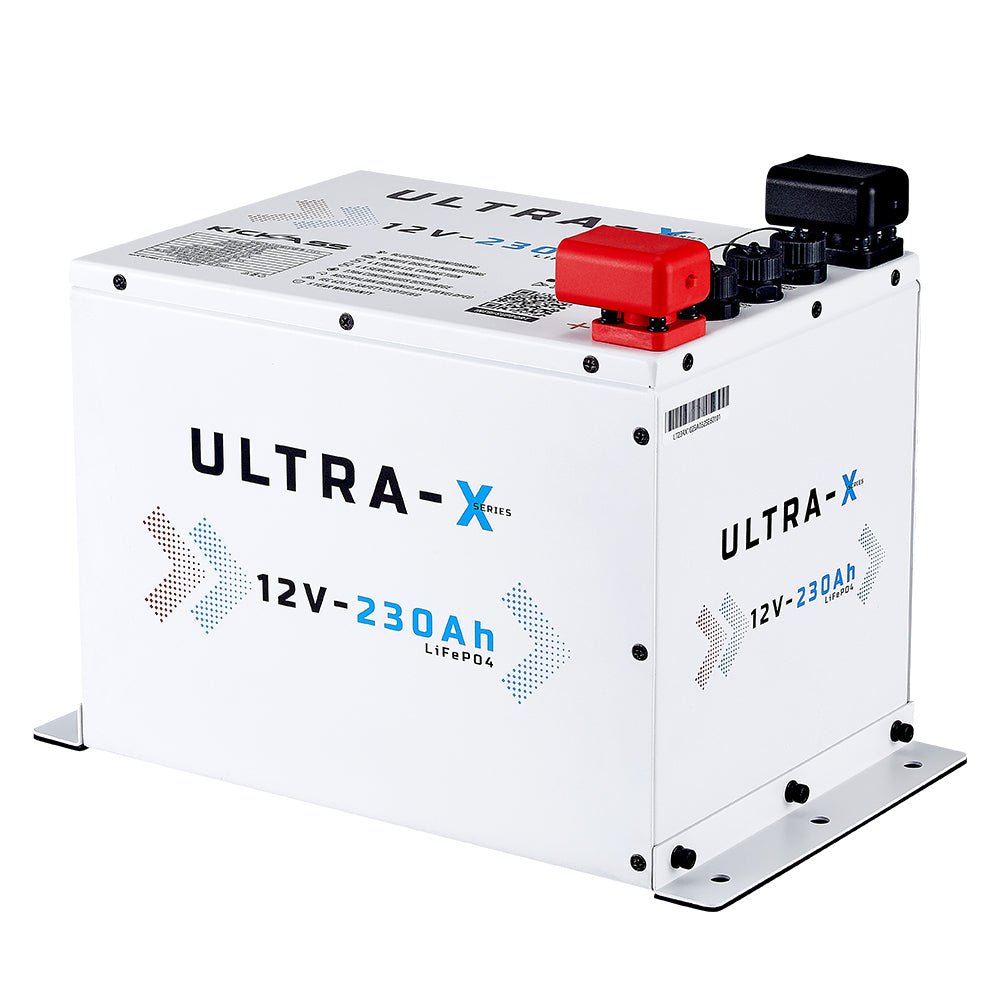

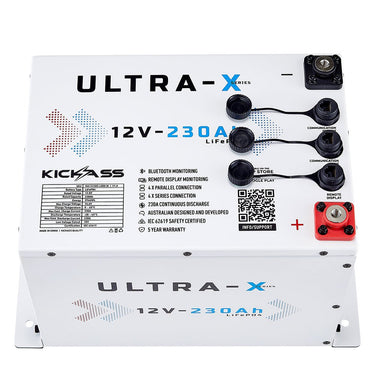

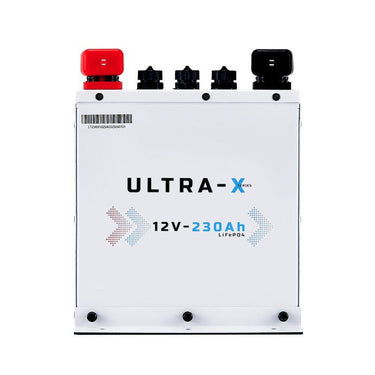

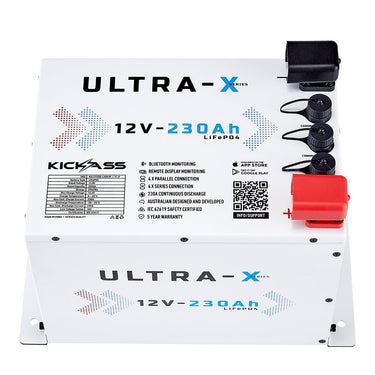

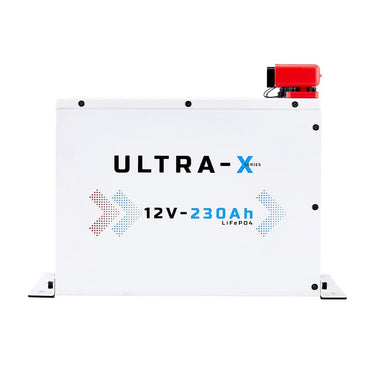

KickAss Smart 12V 230Ah Ultra-X Lithium Compact Deep Cycle Battery LiFePO4 - Arctic White

KickAss Smart 12V 230Ah Ultra-X Lithium Compact Deep Cycle Battery LiFePO4 - Arctic White

Support Page User Manual

KickAss Features:

• Ultra compact design
• Supporting Bluetooth app
• BMS with multiple safety features
• Connect in parallel or series
• Monitor your battery bank remotely
• 230Ah usable capacity
• 230A continuous charge & discharge with 460A pulse capacity
• 4000+ Cycles @ 80% DoD 0.5C
• Metal case with integrated mounting points
• Australian Safety Certified
• Designed & developed in Australia

Ultra Compact Design

The ultra-compact design is ideal for those who have minimal space but need maximum power. Despite being only slightly larger than a standard N70 battery, it delivers double the usable capacity – perfect for tight spots & tricky installations. This KickAss battery delivers big power in a small package.

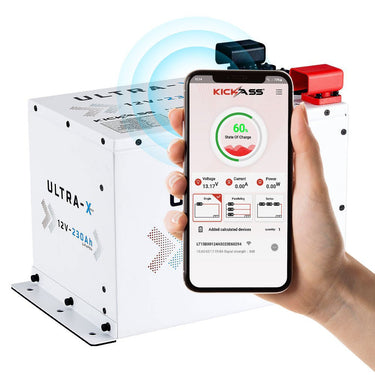

Supporting Bluetooth App

No more guesswork – stay in control of your power system by using the supporting Bluetooth app. Monitor critical battery parameters such as SoC, level, voltage, current, temperature, and real-time system alerts right from your smartphone. Having real-time data at your fingertips ensures optimal performance and peace of mind during all your off-grid adventures.

BMS with Multiple Safety Features

The KickAss 12V 230Ah Deep Cycle Lithium Battery is equipped with an advanced Battery Management System (BMS) that ensures safety and reliability. The BMS actively monitors and protects the battery from common issues such as overcharging, over-discharging, short circuits, and overheating, ensuring safe operation at all times.

Create a Battery Bank with Over 900Ah of Usable Capacity

These batteries support parallel and series configurations for maximum versatility. Link up to four in parallel to create a massive battery bank with over 900Ah of usable capacity, delivering serious power for extended off-grid use. This capability allows you to tailor your power setup to your exact needs.

Monitor Your Battery Bank Remotely

Monitoring multiple batteries in a series or parallel setup usually requires an external shunt, but these batteries eliminate that need. Simply connect each Ultra-X series battery using an RJ45 cable, and the optional KickAss Remote Display Unit (RDU) will seamlessly interface with the entire battery bank. Alternatively, use the supporting Bluetooth app for system monitoring without additional hardware.

230Ah Usable Capacity

With 230Ah of usable capacity, the KickAss 12V Deep Cycle Lithium Battery offers an abundance of power for extended off-grid adventures. This large capacity means you can run devices and appliances for longer periods without frequent recharges.

230A Continuous Charge & Discharge with 460A Pulse Capacity

This battery delivers exceptional performance with its 230A continuous charge and discharge capability, ensuring a steady and reliable flow of power for demanding applications. The impressive 460A pulse capacity allows it to handle sudden power surges, making it incredibly versatile.

4000+ Cycles @ 80% DoD 0.5C

Designed for longevity, this battery offers over 4000 charge and discharge cycles at 80% Depth of Discharge (DoD) and a 0.5C charge/discharge rate. This durability ensures a long-lasting, high-performance battery for years to come.

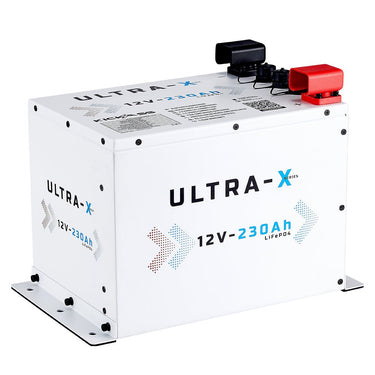

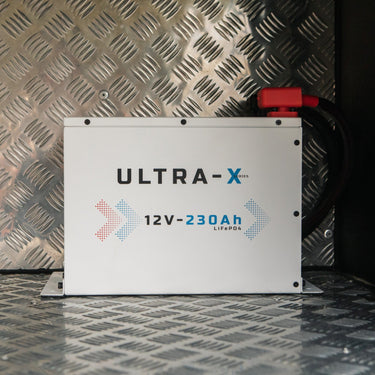

Metal Case with Integrated Mounting Points

The durable metal housing with integrated mounting points eliminates the need for a separate battery tray. The heavy-duty metal casing not only protects the battery from the elements and rough conditions but also makes installation easier and more secure.

The KickAss Ultra-X Lithium battery boasts a nominal voltage of 12.8V and a rated capacity of 230Ah, delivering a substantial 2944Wh of energy. It supports a maximum continuous charge and discharge current of 230A, with a pulse discharge current of 460A for 30 seconds, ensuring robust performance for your off-grid needs.
This powerful LiFePO4 battery is engineered for reliability, offering a cycle life of 4000 cycles at 80% Depth of Discharge (DOD) and 0.5C, providing long-lasting and consistent power for various applications. Its impressive energy storage and discharge capabilities make it an ideal choice for demanding Australian conditions.

Absolutely, the KickAss Ultra-X Lithium batteries are designed for flexible expansion, allowing you to connect up to a maximum of four batteries in either parallel or series configurations. This enables you to significantly increase your system's capacity or voltage as required for your specific setup.
When connecting in parallel, the system capacity and continuous charge/discharge ratings increase while maintaining a 12.8V system voltage. In a series configuration, the system voltage increases up to 51.2V with four batteries, while the capacity remains at 230Ah. Please ensure all batteries are of the same model and batch for optimal performance and safety.

You can conveniently monitor your KickAss Ultra-X Lithium battery's performance through two advanced methods: the KA Lithium App via Bluetooth or a dedicated remote display unit. Both options provide real-time data on critical parameters, ensuring you're always informed about your battery's status.
The KA Lithium App, available on iOS and Google Play, allows remote Bluetooth monitoring of State of Charge (SOC), voltage, current, power, time to full/empty, cycle count, cell voltage, temperature, and system alerts. The remote display offers similar comprehensive monitoring via an RJ45 cable, providing a fixed solution for your battery or battery bank.

The KickAss Ultra-X Lithium battery is equipped with a sophisticated Battery Management System (BMS) that continuously monitors key parameters to ensure safe and efficient operation. This crucial system actively tracks cell voltage, charge/discharge rates, and temperature, initiating protective measures if any deviations occur.
The BMS performs vital functions such as cell balancing during charging to enhance longevity and protects against battery pack under/over voltage, cell under/over voltage, continuous overcharge/discharge current, pulse overcharge/discharge current, short circuits, and charge/discharge over/under temperature. This comprehensive protection ensures peace of mind and extends the lifespan of your battery.

For optimal performance and longevity, the KickAss Ultra-X Lithium battery is designed to charge within a temperature range of 0°C to +55°C and discharge between 0°C and +60°C. These specified ranges ensure the battery operates efficiently and safely in various Australian environmental conditions.
It's important to install the battery in a well-ventilated area to prevent overheating and to avoid exposing it to extreme temperatures outside these recommended ranges. Adhering to these guidelines helps maintain the battery's health and ensures consistent power delivery for your adventures.

The KickAss Ultra-X Lithium battery measures 360mm in length, 213mm in width, and 223mm in height, making it a compact yet powerful solution for your off-grid power needs. Weighing in at 23.5kg, it offers a robust build while remaining manageable for installation.
These dimensions ensure that the battery can be integrated into various setups, from caravans to camper trailers, without occupying excessive space. Its solid construction and manageable weight contribute to its versatility and ease of use in diverse applications across Australia.
