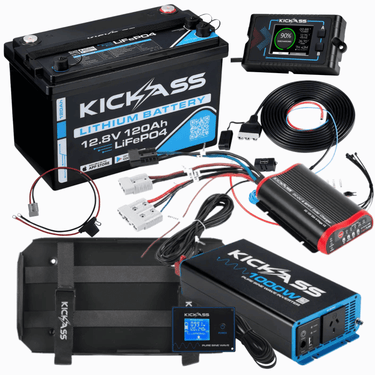

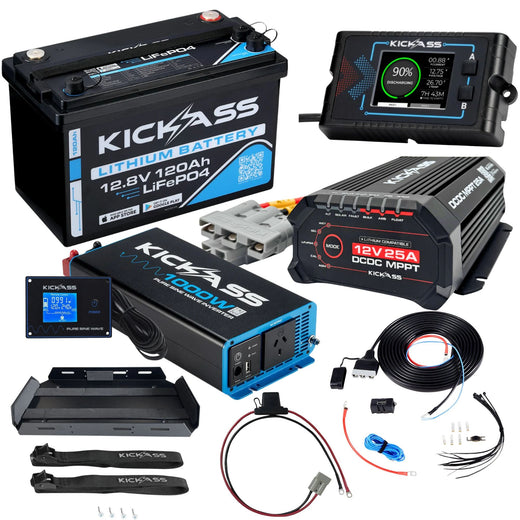

KickAss Smart 120Ah Lithium Dual Battery Kit With 1000W Inverter

Welcome to the next generation of DCDC vehicle battery charging. KickAss has developed and delivered an onboard vehicle charging solution like no other. Engineered for durability and expertly designed for charging performance, the KickAss DC-DC charger is the new weapon of choice in dual battery systems.

KickAss DC charging at a glance:

The True 4-stage charging features BULK, ABSORPTION, FLOAT and PULSE modes with advanced algorithms enhancing the overall charging performance of auxiliary batteries. This ensures your auxiliary battery is charged the correct way, enabling it to reach maximum charge capacity while also maintaining optimal performance. With a powerful 25 Amp maximum output, it provides fast and effective charging.

This charger overcomes issues caused by smart charging systems and variable voltage alternators in modern vehicles, delivering a consistent output to your auxiliary battery. It ensures reliable charging in both new and older vehicles, helping to maintain and extend battery life.

Inbuilt isolation prevents your auxiliary battery from draining your start battery when the vehicle is off. Smart tech detects charging status automatically, so no manual switching is needed — it's all handled for you from the moment you start your engine.

KickAss DCDC Features

Three Pin Anderson Style Connector
Easily connect your 12V DCDC Charger with the new three-pin Anderson connection, combining positive alternator, negative ground, and ignition wires. Fully compatible with standard two-pin Anderson connectors.

Lithium BMS Sleep Mode Recovery Feature
In Lithium Mode, if the battery drops below safe voltage and enters sleep mode, the charger will initiate recovery mode. It will trickle charge until the cut-in voltage is reached, then resume normal charging. This function helps revive lithium batteries protected by a built-in Battery Management System (BMS).

The charger will display fault codes for open circuit output if the battery is asleep. To attempt recovery, you must select 'LITHIUM' using the 'MODE' button before connecting the charger.

How to wake a lithium battery:

1. Disconnect all loads from the lithium battery.
2. Connect alternator or solar input to the DCDC Charger.
3. Connect the output from the charger to the battery.
4. The charger will flash all battery types; BULK and PULSE LEDs stay lit for 30 seconds before Recovery Mode starts.
5. When the source (e.g. Solar) is active and LITHIUM flashes, recovery is in progress.
6. Once voltage recovers, the charger resumes normal operation and loads can be reconnected.

Maximum Solar Gains with Integrated MPPT
Charge your auxiliary battery from solar using the integrated MPPT solar controller. Ideal for caravans and campers, it ensures efficient solar charging even without the vehicle running.

Plug & Play by Design
Quick installation with Plug & Play Anderson-style connectors — even faster when used with a KickAss wiring kit or battery box.

Crisp LED Display and Control
Bright, easy-to-read LED indicators show charging status and mode. Set battery type easily with the soft-touch MODE button.

Multi Battery Type Compatibility
Compatible with GEL, AGM, WET, CALCIUM, and LITHIUM (LiFePO4) batteries for flexible dual battery setups.

Ultra Compatible
Works with 24V systems for charging 12V batteries, and supports smart alternators with a dedicated voltage sense wire.

Fully Sealed, IP67
Built tough with full water and dust sealing to IP67. Internals are coated for extreme durability against corrosion and moisture.

The Best Protection, Ever!
Includes built-in safety features:

• Short Circuit Protection
• Reverse Polarity Protection
• Over Voltage Protection
• Over Temperature Protection
• Temperature Compensation

KickAss is proud to bring you the next generation in onboard charging, designed to

120Ah 12V Lithium Deep Cycle Battery

KickAss 120Ah 12V Lithium Deep Cycle Battery:

KickAss has dedicated over 10 years to the development and design of the 120Ah 12V Lithium Deep Cycle Battery. This battery offers twice the usable capacity compared to a traditional 120Ah AGM battery, making it equivalent to a 240Ah AGM battery in terms of capacity.

Safe Lithium Iron Phosphate Chemistry (LiFePO4)

Utilizing LiFePO4, one of the safest and most stable lithium chemistry types, ensures that the KickAss 120Ah 12V Lithium Deep Cycle Battery is safe for even the most rugged terrains, providing at least 4000 cycles at 80% depth of discharge.

Lightweight Design: Only 12.15KG

The new KickAss 120Ah 12V Lithium Deep Cycle Battery is significantly lighter, weighing only 12.15kg, which simplifies installation and transport within your setup.

Durable ABS Casing

Featuring a high-quality ABS container, the battery offers excellent resistance to impacts and chemical erosion, ensuring a long lifespan and reliability.

Audible Low Battery Voltage Alarm

Avoid the inconvenience of a flat battery! The built-in audible alarm alerts you when the 120Ah 12V Lithium Deep Cycle Battery reaches low voltage levels and can be managed via the app.

Exclusively Designed by KickAss

Years of development have culminated in the release of one of the most advanced remote display units on the market, designed to complement our 120Ah 12V Lithium Deep Cycle Battery.

Monitor Your Battery's Status Via the Remote Screen (Optional Extra)

Access comprehensive diagnostics and status information with a simple button press. Keep track of battery temperature, voltage, system current, draw, time to empty, and charge status effortlessly.

KickAss Premium Plug & Play DC-DC Wiring Kit

Introducing our all new ultimate dual battery system wiring kit now featuring three pin 50 amp Anderon style connector with ignition wire.There is nothing like having the right parts to get the job done and the team at KICKASS have done just that in developing a premium plug and play wiring kit for installing a range of dual battery systems. We have carefully designed this premium kit for ultra easy DIY fittings. This wiring kit is now even easier to install with the pre-installed 80amp maxifuse and now features a three pin 50 amp Anderson connector with an ignition wire.

These kits are completely plug and play for any system that uses Anderson connectors for chagrin input and have everything you need for a professional wiring installation.The premium wiring kit now has our famous Maxifuse cable pre-installed into 6 Metres of Heavy Duty 8 B&S Cable, providing 50A of circuit protection. Now featuring the all new 3 Pin Anderson plug. Take the hassle out of connecting your 12V dual battery system. The built-in ignition wire into a three pin Anderson connector allows for easier installation, and removes the need to run multiple cables through your vehicle.

This cable is pre-crimped with Anderson connector terminals which makes it easy to run through holes and grommets. Once the cable is run, all you need to do is clip the Three Pin Anderson connector on. The kit also includes cable ties for securing the main cables, a spare 80A Maxifuse, 3m tail ignition wire and spare Anderson connector terminals

Backwards compatibility

The three pin Anderson is backwards compatible, meaning a two pin Anderson connection will work even if the ignition wire is not connected.

The KICKASS Premium DC-DC wiring kit is specifically designed for our DCDC charger and will not work with VSRs

Please use Dual Battery Wiring Kit for the following:

• Wiring to Battery System in the cargo area of the vehicle
• VSR's see our KAVSRAND which is fully compatible with this kit
• KickAss battery boxes and power packs
• Auxiliary Batteries - By using our KickAss Maxifuse Cable and Optional VSR

This kit includes:

• 6 x 50 Amp Anderson terminals
• 1 x 50 Amp 3 Pin anderson Connector
• 1 x 80Amp spare Maxifuse
• 10 x Black cable ties (300mm )
• 1x 3M tail Ignition cable

KickAss Features:

• 1000W Continuous Output
• Pure Sine Wave
• 94% Efficiency Max
• Multi-level Protection
• Surge Power: 2000W in 2 seconds
• Intelligent Fan
• Integrated Charging Port
• Multiple Mounting Options
• Optional remote control display

1000W Continuous Output

Seamlessly convert 12V DC power from your battery into 240V AC power that can be used to run everyday household appliances. Your next camping trip will be a lot more fun if you take your coffee machine and electric BBQ!

Pure Sine Wave

The inverter produces a clean and reliable pure sine wave which replicates the AC power you get from your wall-based power point at home. It is much cleaner and more reliable than a modified sine-wave, and is so stable that you can use it to run sensitive electronic devices like laptops, Starlink and CPAP machines. It will also reduce electromagnetic interference, extend equipment life, and run so quietly you'll barely hear it.

94% Efficiency

The inverter is highly efficient and will convert your power at a rate of 94% max efficiency. That means minimal waste during the conversion from DC to AC, and you won’t waste your battery’s capacity.

Multi-level Protection

The multi-level safety protection utilises both software and hardware features to protect you, your inverter and your devices. The inverter continuously monitors the input and output signals and will trigger a protection mode if the unit is detected to be operating in an unsafe state. Safety protection includes over voltage, overload, overcurrent, short circuit and reverse polarity.

Surge Power: 2000W in 2 seconds

With a peak surge rating of 2000W for up to 2 seconds, the inverter can power devices with a high inrush current, making it perfect for power tool battery chargers, microwaves, and induction cooktops.

Intelligent Fan

Your inverter will never overheat thanks to the intelligent fan system, which dynamically adjusts the fan’s speed. The smart fan ensures that the inverter stays cool and efficient – a cool inverter is an efficient inverter, and this will maximize your power output.

Integrated Charging Port

Recharge your gadgets easily directly from the inverter via the integrated 5V 2.1 USB port.

Multiple Mounting Options

The inverter has four convenient mounting points, which make it a breeze to install it in your camper, caravan, or canopy.

Optional remote control display

The optional remote control display unit enables you to track your power usage anytime and anywhere. The screen is low-profile and discreet and is easy to flush-mount. Install it in your camp kitchen to keep an eye on power usage when operating high-powered appliances like coffee machines or kettles. Once finished, shut down the inverter via the integrated on/off switch to save your battery.

The KickAss Remote Smart Lithium Battery Display Unit is compatible with the KickAss Smart and Ultra-X series batteries. Simple plug-and-play via the RJ45 connector, it allows you to monitor State of Charge (SOC), voltage, real-time current, and temperature of either a single battery or multiple batteries connected in parallel or series. Includes 5m extension cable.

Take full control of your battery system with the KickAss Battery Display Monitor - your window into real-time performance, protection, and peace of mind.

Monitor Your Battery Like a Pro

Never guess your battery’s health again. With a full-colour screen, you can instantly view:

• Battery temperature
• Current draw
• Voltage
• Charge status
• Time to empty/full
• Cell balance and more!

Built-In Battery Management System (BMS)

The integrated KickAss BMS keeps your battery safe — actively protecting against:

• Overvoltage and undervoltage
• Short circuits
• Overload
• High temperatures

Stay alerted with smart error messages and stay in control from your display or compatible mobile device.

Easy Flush-Mount Design

Install it where you need it most. Whether it's in your canopy, van, or camper setup, the flush-mount design with included screws and universal hole spacing makes installation fast and secure.

Compact Dimensions

• Display: 126mm (W) x 66.61mm (H) x 23mm (D)
• Cable Length: 440mm
• Mounting holes for quick surface installation

The KickAss Battery Display Monitor isn’t just for looks - it’s your off-grid command centre. Whether you're heading bush or running gear off your canopy, this screen keeps your system protected and your trips worry-free.

KICKASS® MAXI Fuse Anderson Cable

The KICKASS® MAXI Fuse Anderson Cable is the perfect solution for connecting a battery to virtually any device. It offers superior circuit protection through an inline 80A MAXI Fuse, safeguarding against short circuits and potential system damage.

With a purpose-designed length, this cable easily reaches vehicle starting batteries and integrates seamlessly with dual battery setups. The built-in weatherproof MAXI Fuse holder simplifies installation, eliminating the need for mounting traditional fuse holders or circuit breakers.

One end of the cable features a 50 Amp Anderson style connector for effortless connection to battery boxes, solar panels, or other compatible devices. The other end includes high-quality 8mm ring terminals for secure battery attachment. A spare 80A MAXI Fuse is included for added convenience.

Features:

• In-line weatherproof MAXI Fuse holder with 80A MAXI Fuse
• Length: 750mm
• Cable type: Twin 8B&S (7.71mm²) Red/Black Sheathed
• 1 x 80A MAXI Fuse pre-installed in holder
• 1 x 80A MAXI Fuse spare
• 8mm ring terminals

See links below for replacement fuses:

Spare 50A MAXI Fuse - Red

KickAss Pure Sine Wave Inverter Remote Display Panel Feature Overview

Real Time Monitoring:

Unexpected power fluctuations can damage your equipment and waste your power. With real-time monitoring, you can track your energy generation and power usage, and spot any problems early on. This will keep your setup running smoothly and efficiently at all times.

Remote Control

Monitor and manage your power consumption from a distance – for example, if you’re sitting in the front seat, and have your inverter installed in the back of your truck. You’ll be able to access and manage your inverter system from anywhere within reach of the 3 metre cable.

Fault diagnostics

If your system malfunctions, it can be challenging and time consuming to figure out the cause. This KickAss Inverter Remote Display automatically identifies and reports faults within the inverter system, and delivers detailed diagnostics. Troubleshooting made easy!

Intuitive User Interface:

Information on the screen is clear and easy to understand. You can easily navigate through the settings, view energy metrics, and set alerts. No more guesswork – just clear data.

Compatible With Most KickAss Inverters

The remote display unit is compatible with KickAss 2000W and 3000W Inverters (not compatible with 700W or 1200W inverters). You can seamlessly integrate it into your existing setup, or upgrade your existing components easily.

Please note: This remote screen is not compatible with the older 700W, 1200W, 2000W or 3000W red KickAss Inverters.
