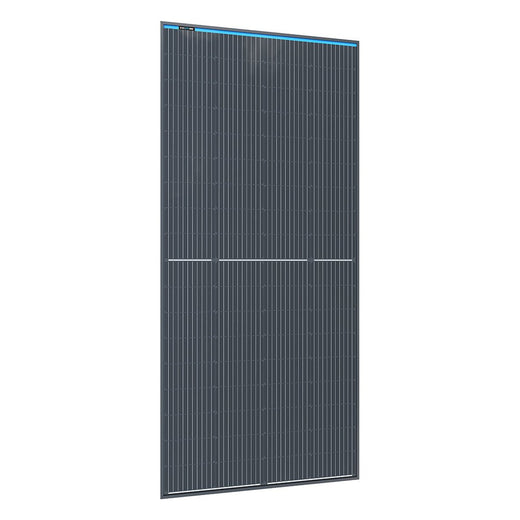

KickAss 12V 250W Fixed Solar Panel, Glass Roof Top

KickAss 12V 250W Fixed Solar Panel, Glass Roof Top

Support Page Manual

Glass Roof Top 12V Solar Panel 250W

Bypass Diode
The bypass diode will maintain the solar panel's output in the event the cells are partially shaded. This technology ensures superior performance by providing a more consistent power supply, ideal for rooftop mounting.

Perfect Sizing for Roof Top Mounting
The KickAss Engineering team has designed these panels with optimal dimensions for mounting on your 4WD, caravan, or trailer.

Permanent Power Solution
Elevate your 12V setup with the new KickAss 250W Fixed Solar Panel. Designed and tested for Australian conditions, it delivers efficient solar power for your 4WD, trailer, caravan, or boat. Fixed panels offer continuous operation once connected to your 12V system. With optional mounting accessories, installation is quick and secure.

A-Grade Monocrystalline Solar Cells
Made with premium monocrystalline cells, the KickAss 12V 250W Fixed Solar Panel offers 15–25% more efficiency than many alternatives. These panels also perform better in low-light conditions.

Thick Tempered Glass
The highly transparent, anti-reflective tempered glass provides strong resistance against hail, stones, and accidental knocks. Perfect for permanent mounting and built to withstand harsh Australian weather conditions.

The KickAss 12V 250W Fixed Solar Panel delivers a maximum power output of 250 watts with a maximum power voltage of 20.69V and a maximum power current of 12.37A under standard test conditions (1000W/m², AM1.5, 25°C). This high-efficiency A-grade monocrystalline panel is designed to reliably power your adventure equipment or off-grid system. Its 20.6% conversion efficiency and robust build ensure you get consistent, efficient energy generation for your needs.

The KickAss 250W solar panel must be used with a solar regulator (charge controller) of the correct input rating and suitable charge profile for your battery chemistry. It is not designed to be connected directly to a battery. Using the correct regulator protects your battery and optimises charging performance, making this panel a flexible choice for various off-grid battery systems when paired properly.

The panel measures 1725mm x 765mm x 35mm and weighs 13.8kg, featuring pre-drilled mounting holes and a black powder-coated aluminium frame for secure installation. The manual provides detailed guides for roof rack and flat roof mounting, plus bracket assembly instructions. For best results, angle the panel between 20° and 40° facing true north in Australia to maximise sunlight capture throughout the day.

Always use a solar regulator between the panel and battery to prevent damage and ensure safe charging. The battery should be in a well-ventilated area away from ignition sources, as lead-acid batteries can emit explosive gases. The panel’s diode-protected junction box and waterproof PV connectors add layers of safety and durability, giving you peace of mind during your off-grid adventures.

Yes, you can connect multiple panels in series, parallel, or series-parallel configurations, provided they are the same model (e.g., all KARTSP250). Ensure your charge controller and cables can handle the combined voltage and current. This flexibility lets you scale your solar power system efficiently while maintaining optimal performance and safety.

The panel features a heavy-duty black aluminium frame, tempered glass coating, and an IP67-rated waterproof PV connector, making it highly durable against weather and physical impacts. Its Class C fire safety rating and robust construction ensure it withstands harsh outdoor conditions, making it ideal for off-grid adventures and fixed roof installations.

For peak performance, position the panel facing true north and angle it between 20° and 40° from the ground. This orientation captures the most sunlight throughout the day and across seasons in the southern hemisphere, ensuring your KickAss 250W solar panel generates maximum power for your off-grid needs.

The panel weighs 13.8 kilograms and measures 1725mm by 765mm by 35mm, making it manageable for one or two people to handle safely during installation. Its pre-drilled mounting holes and robust frame simplify securing it to your roof or rack, combining durability with practical ease of setup for your adventure gear.
