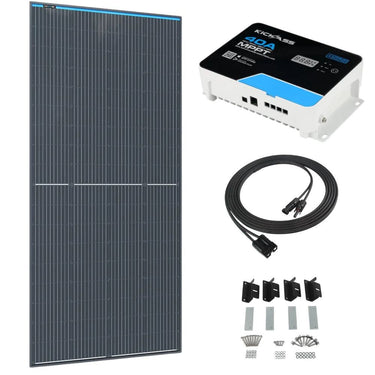

KickAss 250W Fixed Solar Panel & 40A MPPT Kit

Glass Roof Top 12V Solar Panel 250W

Bypass Diode

The bypass diode will maintain the solar panels output in the event the cells are partially shaded. This technology enables superior performance  by ensuring a more consistent supply of power, ideal for mounting to roof tops.

Perfect Sizing for Roof Top Mounting
The KickAss Engineering team has designed these panels to be the perfect dimensions for vehicle mounting on your 4WD, caravan or trailer.

Permanent Power Solution

Permanent Power Solution Elevate your 12V setup to the next level with the new KickAss 250W Fixed Solar Panel. It has been designed and tested in Australian conditions to offer the most efficient solar solution for your 4WD, trailer, caravan, or boat. One of the significant advantages of a fixed panel is its ability to operate continuously once it is connected to your 12V system. With the optional mounting accessories, you can effortlessly attach or affix the solar panel to your vehicle.

A-Grade Monocrystalline Solar Cells

Made with the highest quality monocrystalline cells our KickAss 12V 250W Fixed Solar Panels provide 15-25% more efficiency than other panel on the market. On top of this, monocrystalline panels have increased performance in low light conditions.

Thick Tempered Glass

The highly transparent anti reflective tempered glass solar panel provides high impact resistance against hail, stone and accidental knocks. Perfect for permanently mounting and withstanding the harsh Australian weather conditions.

KickAss 40A 12V/24V/36V/48V MPPT Solar Charge Controllers Features Overview

The KickAss 40A 12/24V MPPT Solar Controller uses the latest dual-peak and multi-peak tracking technology available today.

Highly Efficient MPPT

With a tracking efficiency of at least 99.5% and a peak conversion efficiency of 98%, you can be confident that your dual battery system is receiving the optimal charge.

The KickAss 12/24V MPPT Solar Controller series accurately identifies and tracks multiple power points, and includes built-in self-diagnostic technology to help prevent damage from installation and system failures.

Battery Temperature Sensor

Equipped with a temperature sensing probe, the KickAss 12/24V MPPT Solar Controller can limit the current output to your battery, preventing overheating and overcharging if a fault occurs with the connected battery.

LCD Display

The easy-to-read LCD display shows all crucial charging information dynamically (note that the LCD is not backlit).

Pair with

• KickAss Remote Control LCD Display For MPPT Controllers
• KickAss Bluetooth MPPT Module

These devices allow for convenient viewing of your controller in tight spaces and can connect to the KA Solar App on your smartphone for added convenience.

**Please Note: this unit is not a full battery management system, it is simply an MPPT with a load output**

Key features

• 99.5% tracking efficiency
• 98% peak conversion efficiency
• Built-in self-diagnostic technology
• LCD easy read display
• LED indicators for charging, battery, load, and faults
• RJ12 communication interface
• Temperature sensing probe
• Lithium compatible

Protective features

• Input power limit protection
• Battery reverse polarity protection
• Solar input high voltage protection
• Load overpower protection
• Load short circuit protection
• Reverse charge protection
• Over temperature protection for internal heat protection of the MPPT unit
• Over temperature protection for your battery (temperature sensing probe must be attached)

Do not get the controller wet, as it is not waterproof and will be damaged by moisture.

This device is a charge controller, not a complete battery management system. It is designed to power small accessories like LED lights. However, the load output is dependent on the solar input (daylight and darkness) and does not provide a consistent power supply suitable for running appliances like a fridge or freezer. Therefore, we advise against connecting electronics that need stable and reliable power directly to the MPPT Solar Controller. Instead, all accessories should be connected directly to your battery bank using appropriately fused circuits.

Heavy Duty Twin Core 10B&S Cable

Individually insulated then encased in a smooth PVC outer. Providing added strength.

Pre-Crimped Anderson Terminals For Ease Of Install

Setting up your solar has never been easier with the KickAss Solar Panel PV to Anderson Solar 5M Extension Cable. Can easily be plugged straight into your KickAss DCDC charger on your battery box or on your control or connect directly into your MPPT/PWM Solar controller.

MC4 compatible.

Mounting Kit for the KickAss Fixed Glass Solar Panel Range

Constructed from strong, light weight aluminum and contains all bolts, nuts and washesr required for mounting.

What's Included:

• 4 x Aluminum Solar Panel Mounting Brackets
• 4 x Threaded Aluminium Mounting Bars
• 8 x M6 x 40mm Stainless Bolts
• 4 x M6 x 16mm Stainless Bolts
• 8 x M6 x 38mm Self Tapping Screws
• 12 x Stainless Steel Nuts
• 12 x Stainless Steel Spring Washer
• 12 x Stainless Steel Washer

This mounting kit has everything you need to make it easy to affix your KickAss 170W Glass Solar Panel to the roof of your vehicle. The compact design maintains the aerodynamics of your vehicle.
