Pickup currently unavailable at Acacia Ridge Store
Available to ship

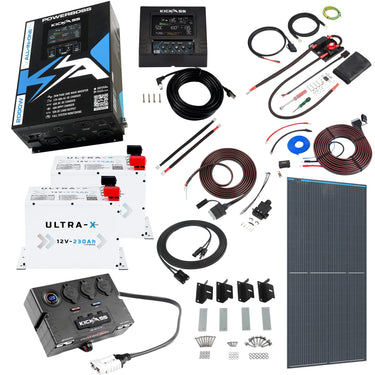

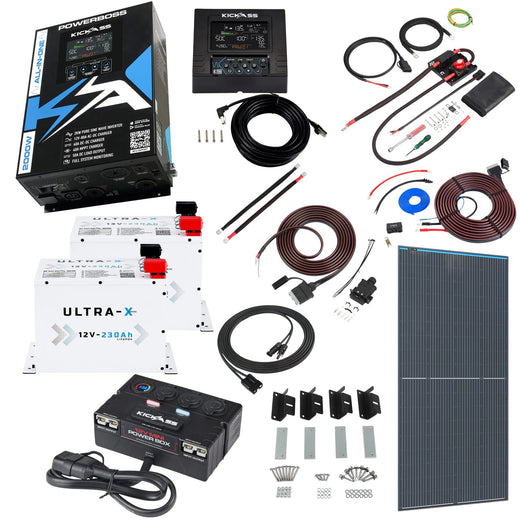

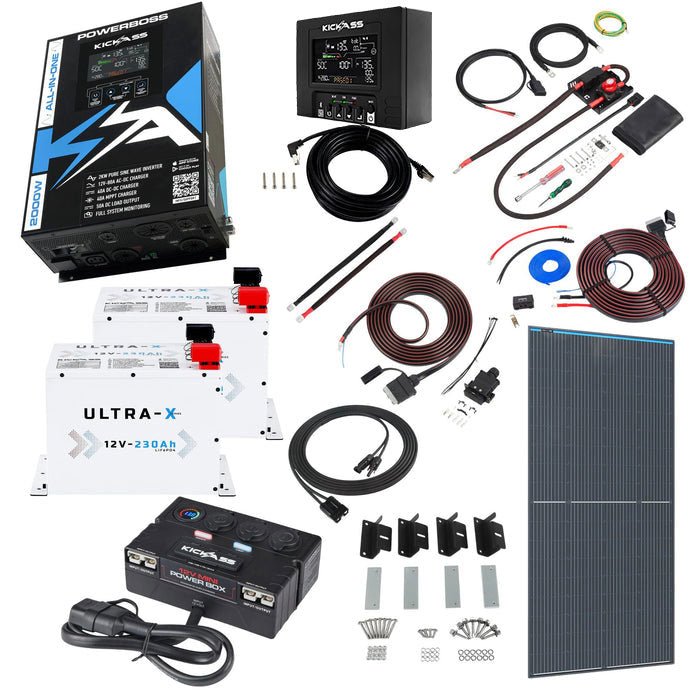

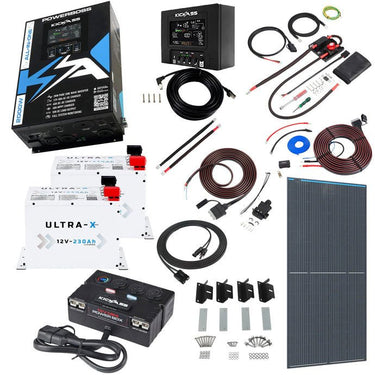

Everything that is included in this KickAss kit!
The KickAss 12V 230Ah Lithium Battery offers massive capacity in a compact, cutting-edge design finished in pristine polar white. Boasting 230Ah of usable power, Bluetooth connectivity, and support for series or parallel configurations, it’s built for demanding off-grid setups. Enjoy 4000+ cycles at 80% DoD, with a built-in BMS for reliable, safe operation. Link up to four units for a powerhouse 920Ah system.
KickAss Features:
Ultra Compact Design
The ultra-compact design is ideal for those who have minimal space but need maximum power. Despite being only slightly larger than a standard N70 battery, it delivers double the usable capacity – perfect for tight spots & tricky installations. This KickAss battery delivers big power in a small package.
Supporting Bluetooth App
No more guesswork – stay in control of your power system by using the supporting Bluetooth app. Monitor critical battery parameters such as SoC, level, voltage, current, temperature, and real-time system alerts right from your smartphone. Having real-time data at your fingertips ensures optimal performance and peace of mind during all your off-grid adventures.
BMS with Multiple Safety Features
The KickAss 12V 230Ah Deep Cycle Lithium Battery is equipped with an advanced Battery Management System (BMS) that ensures safety and reliability. The BMS actively monitors and protects the battery from common issues such as overcharging, over-discharging, short circuits, and overheating, ensuring safe operation at all times.
Create a Battery Bank with Over 900Ah of Usable Capacity
These batteries support parallel and series configurations for maximum versatility. Link up to four in parallel to create a massive battery bank with over 900Ah of usable capacity, delivering serious power for extended off-grid use. This capability allows you to tailor your power setup to your exact needs.
Monitor Your Battery Bank Remotely
Monitoring multiple batteries in a series or parallel setup usually requires an external shunt, but these batteries eliminate that need. Simply connect each Ultra-X series battery using an RJ45 cable, and the optional KickAss Remote Display Unit (RDU) will seamlessly interface with the entire battery bank. Alternatively, use the supporting Bluetooth app for system monitoring without additional hardware.
230Ah Usable Capacity
With 230Ah of usable capacity, the KickAss 12V Deep Cycle Lithium Battery offers an abundance of power for extended off-grid adventures. This large capacity means you can run devices and appliances for longer periods without frequent recharges.
230A Continuous Charge & Discharge with 460A Pulse Capacity
This battery delivers exceptional performance with its 230A continuous charge and discharge capability, ensuring a steady and reliable flow of power for demanding applications. The impressive 460A pulse capacity allows it to handle sudden power surges, making it incredibly versatile.
4000+ Cycles @ 80% DoD 0.5C
Designed for longevity, this battery offers over 4000 charge and discharge cycles at 80% Depth of Discharge (DoD) and a 0.5C charge/discharge rate. This durability ensures a long-lasting, high-performance battery for years to come.
Metal Case with Integrated Mounting Points
The durable metal housing with integrated mounting points eliminates the need for a separate battery tray. The heavy-duty metal casing not only protects the battery from the elements and rough conditions but also makes installation easier and more secure.
The KickAss PowerBoss Remote Display Unit provides provides real-time data in a unit that can be either surface or flush mounted to suit any installation. The integrated Bluetooth enables seamless connection between the PowerBoss and the mobile app, giving you complete control and real-time monitoring. The Remote Display Unit features a single system on/off switch, making it easy to power your setup on or off with just one touch.
Remote LCD Display: Enjoy real-time system monitoring from an easily accessible location, perfect for off-grid installations.
Enables Bluetooth Communications with the PowerBoss: The integrated BT module lets you wirelessly connect and control your PowerBoss system via your mobile device.
Flush and Surface Mounting Options: Easily install the display using either flush or surface mounting, adapting to any space.
Integrated System On/Off Switch: An inbuilt hardware switch powers the system on and off. RJ45 cable and mounting hardware are included for straightforward setup.
The KickAss Trailer Wiring Kit provides a plug and play solution between the PowerBoss in a trailer or caravan and the drawbar. The kit comes with a heavy duty surface mount hard cover for the 3-pin Anderson connector to be installed on the vehicle's tow bar. The hard cover is weather resistant and provides a secure locking mechanism.
Plug and Play Wiring Kit for Trailer and Caravan Installations: This kit simplifies PowerBoss trailer and caravan setups by providing a dedicated wiring solution from the PowerBoss to the draw bar. It includes a heavy-duty 3-pin Anderson cover that seamlessly integrates with 6.5m and 8m KickAss Heavy Duty Plug and Play DCDC Wiring Kits.
Off-Road Ready Housing: The surface mount hard cover ensures secure installation of the 3-pin Anderson connector from the vehicle’s alternator, making it ideal for rugged off-road conditions.
Compatible with KickAss 3 Pin DCDC Wiring Kits: Complete your trailer or caravan installation by pairing the KickAss DCDC to trailer wiring kit with either the 6.5m or 8m kits.
The 6.5m cable supports plug and play connection between the PowerBoss and the vehicle's alternator. The 3-core cable is comprised of 2 x 6AWG power conductors and a 14 AWG IGN wire.
Plug and Play Wiring Kit Alternator to PowerBoss: Quickly connect the PowerBoss directly to your vehicle's alternator for a seamless power supply.
Pre-Crimped Terminals: All terminations are pre-crimped, ensuring a fast and straightforward installation without the need for additional tools.
80A Midi Fuse: Includes an 80A midi fuse housed in a weatherproof casing, making it perfect for under bonnet installation.
Premium Heavy Duty Cable: Features heavy duty 6AWG cable for reliable, high-capacity performance.
KickAss 12V 250W Fixed Glass Solar Panel, built with A-grade monocrystalline cells. Generates power even when partially shaded, resistant to hail, stones and accidental knocks.
Glass Roof Top 12V Solar Panel 250W
Bypass Diode
The bypass diode will maintain the solar panel's output in the event the cells are partially shaded. This technology ensures superior performance by providing a more consistent power supply, ideal for rooftop mounting.
Perfect Sizing for Roof Top Mounting
The KickAss Engineering team has designed these panels with optimal dimensions for mounting on your 4WD, caravan, or trailer.
Permanent Power Solution
Elevate your 12V setup with the new KickAss 250W Fixed Solar Panel. Designed and tested for Australian conditions, it delivers efficient solar power for your 4WD, trailer, caravan, or boat. Fixed panels offer continuous operation once connected to your 12V system. With optional mounting accessories, installation is quick and secure.
A-Grade Monocrystalline Solar Cells
Made with premium monocrystalline cells, the KickAss 12V 250W Fixed Solar Panel offers 15–25% more efficiency than many alternatives. These panels also perform better in low-light conditions.
Thick Tempered Glass
The highly transparent, anti-reflective tempered glass provides strong resistance against hail, stones, and accidental knocks. Perfect for permanent mounting and built to withstand harsh Australian weather conditions.
An all-in-one off grid plug and play solution with a 2kW Inverter with automatic transfer switch, 40A DCDC-MPPT charger, 80A ACDC charger with DC load monitoring.
Revolutionise your off-grid adventures with the KickAss PowerBoss, the flagship all-in-one power system designed for canopies, 4WDs, campervans, motorhomes, vans, and work trailers. Combining a 2000W pure sine wave inverter, 80A ACDC charger, 40A DCDC MPPT charger, and 50A DC load monitoring, this ultra-compact unit offers unparalleled convenience and efficiency. With Bluetooth monitoring, seamless integration with KickAss Smart Lithium and Ultra-X batteries the PowerBoss makes complex setups a thing of the past. Featuring plug-and-play installation, simultaneous AC and solar charging, and advanced customisation options, the PowerBoss is the all-in-one unit that will take your setup to the next level.
The KickAss 12V Control Box distributes power from your auxiliary battery to charge up to 11 devices at once. Built with 6 USB ports, 3 12V Cig Sockets and 2 Anderson-style input/outputs.
Power up to 11 Devices Simultaneously
The KickAss 12V Mini Power Box distributes power from your auxiliary battery to power up to 11 different devices at once. Built with 6 x USB ports, 3 x 12V cigarette sockets, and 2 x Anderson input/output ports, you can power phones, tablets, 12V fridges, ovens, vacuum sealers, projectors, and more.
4 x USB Ports Featuring USB-C & QC3 Ports
Get blazing fast charging on all your USB devices with the USB-C and QC3 Port (Quick Charge 3.0). Charge phones, tablets, and more. Charge up to 6 USB devices simultaneously!
2 x Anderson Input/Outputs – Charge from Solar
Power 12V fridges, travel ovens, or even charge your auxiliary battery from regulated solar panels using the quick-connect Anderson connectors.
Built-in 3-Stage LED Light
Never be lost in the dark again. The KickAss Mini Box has a built-in 3-stage LED light, perfect for providing light when you cannot find your phone or torch.
LED Voltmeter Multi-Colour
The LED voltmeter shows your battery condition at a glance. With its multi-coloured display, you can clearly see the voltage of your battery day or night. Never end up with an unexpected flat battery. Please note the on/off switch is for the voltmeter only.
Multiple Mounting Options
Two convenient mounting points allow for easy installation into your canopy, camper, or caravan.
Anti-Slip Rubber Feet
The anti-slip rubber feet prevent your power box from slipping and help protect surfaces from scratches.
Protective Dust Cover & Anderson Cable Protective Cover
Protect the USB ports with the USB dust cover. The Anderson cable protective cover shields the cable end from dust and prevents disconnection.
Warning: A battery must be connected prior to connecting a regulated solar panel. The regulated solar panel must be disconnected before the battery is disconnected. Failure to do so may void your warranty.
Note: This unit is not waterproof and should not be mounted outside.
Note: This unit is not a standalone power source and must be connected to a power supply to power your devices.
Makes installing solar panels a breeze. Specially engineered to be paired with our KickAss DC/DC Charger and KickAss 170W, 250W, or 350W Fixed Glass Solar Panels, this extension cable is completely plug & play. MC4 compatible.
Heavy Duty Twin Core 10B&S Cable
Individually insulated and encased in a smooth PVC outer, providing added strength.
Pre-Crimped Anderson Terminals for Ease of Install
Setting up your solar has never been easier with the KickAss Solar Panel PV to Anderson Solar 5M Extension Cable. It can be plugged straight into your KickAss DCDC charger on your battery box, control hub, or directly into your MPPT/PWM solar controller. MC4 compatible.
These 400mm linking cables allow you to connect batteries in series or parallel to build a battery bank, increasing your power capacity. 12V, rated to 100amps. Appropriate for 4WDs & light commercial vehicles.
400mm Length Pair (Black & Red) Battery Joiner Pack
Combine batteries in parallel to create a battery bank and boost your power storage capacity. These cables can also be used in series to achieve 24V from two 12V batteries.
Note: Always ensure your batteries are connected correctly for your intended application.
The KickAss PowerBoss Power Connnections Kit contains all essential components and tools for wiring up the PowerBoss.
Plug and Play Installation Kit for the PowerBoss: Everything you need to wire up your Powerboss is included, from battery linking cables and solar/DC load cables to earthing cable, installation tools, and cable sheath.
0AWG Cable + Isolator + 300A Fuse: This kit includes premium heavy-duty 0AWG cable, a sturdy isolator plate, and a 300A mega fuse with isolator for safe, high-current connections.
Included Installation Tools: All essential tools are provided—13mm socket driver, multi-bit screwdriver, allen key, 4-way socket tool, and cable wrap—so you can handle every electrical connection with ease.
Solar + DC Load Quick Connection Cables: The kit also features bootlace crimp-to-Anderson cables for fast, plug-and-play solar input and DC load output connections.
What's Included:
This mounting kit has everything you need to make it easy to affix your KickAss 170W, 250W, or 350W Glass Solar Panel to the roof of your vehicle. The compact design maintains the aerodynamics of your vehicle.
Mounting Kit for the KickAss Fixed Glass Solar Panel Range
Constructed from strong, light weight aluminium and contains all bolts, nuts and washers required for mounting.
What's Included:
This mounting kit has everything you need to make it easy to affix your KickAss Fixed Glass Solar Panel to the roof of your vehicle. The compact design maintains the aerodynamics of your vehicle.
| Main Cable Length | 6.5m - 3 Core |
| Ignition Cable Extension | 3m - 14AWG Single Core |
| Cable Size - 3 Core | 2x 6AWG (13.5mm²), 1x 14AWG (1.8mm²) |
| Insulation Material | Inner - Silicon / Outer - PVC |
| Rated Temperature | Max. 105°C |
| Alternator Connection | Ring Terminals - M8 - Battery / M6 - Fuse |
| Anderson Connection | Anderson Pins |
| Fuse | 80A MIDI Fuse with Holder |
| Battery Connections Cable | 1.6m 0AWG Silicon Single Core Positive and Negative |
| Mega Fuse | 300A |
| Isolator | Single Pole |
| Solar Connection Cable | 0.5m 2 Core Silicon 8AWG |
| DC Load Connection Cable | 2m 2 Core Silicon 8AWG |
| Chassis Ground Cable | 4m single core 4mm² |
| Supplied tools | 13mm socket driver | multi bit screwdriver | Cable wrap | 4-way socket tool | 2mm Allen key |
| Voltage | 12.8V |
| Capacity | 230Ah |
| Cell Type | Prismatic |
| Max Continuous Discharge | 230A |
| Max Continuous Charge | 230A |
| Peak Discharge | 430A (30s) |
| Max Charge Temp | 60°C |
| Min Charge Temp | 0°C |
| Max Discharge Temp | 65°C |
| Min Discharge Temp | -20°C |
| Cycle Life | 4000+ cycles | 80% DoD | 1C Charge / 0.5C Discharge |
| Bluetooth | Yes |
| Remote Display | Optional |
| Parallel / Series | 4 | 4 |
| Parallel / Series Remote Monitoring | Bluetooth | Remote Display |
| Dimensions (Battery) | 300 x 215 x 225mm |
| Dimensions (with Terminals and Housing) | 360 x 215 x 265mm |
| Weight | 23.5 kg |
| Certifications | IEC62619 |
| Warranty | 5 years |
| Model | KAPB2K1280 |
| Dimensions | 278mm x 120mm x 400mm |
| Weight | 9.85kg |
| Operation Temperature Range | (-20 ºC ~ 50 ºC) |
| Inverter + Automatic Transfer Switch + ACDC Charger | |
| AC Output Power | 2000W |
| AC Input / Output Voltage | 240Vac |
| AC Input / Output Frequency | 50Hz |
| Battery Charge Current | 80A Max (Adjustable) |
| Efficiency | 93% Max |
| Overload Protection | <10s @ 100% Load | 5s @ 150% Load | <5s @ 200% Load |
| AC Input Type | IEC13 |
| AC Output Type | IEC14 |
| Transfer Time | 25ms |
| Circuit Protection | 10A (30mA) RCBO |
| M.E.N Link | Yes |
| Battery Output | |
| Nominal Voltage | 12V |
| Battery Type | GEL, AGM, FLD, LiFePO4, KickAss LiFePO4, USER |
| Battery Capacity | 50 - 500Ah |
| Battery Integration Integration | KickAss Smart and Ultra-X Series |
| DCDC-MPPT Charger | |
| Alt Input Voltage Range | 12V Alternator ~ 9-16V |
| Alt Battery Charging Current | 40A Max (Adjustable) |
| DCDC Efficiency | 88% Max |
| Solar Input Voltage Range | 14.5 - 50V |
| Solar Battery Charging Current | 40A Max (Adjustable) |
| MPPT Efficiency | 95% Max |
| DC Load | |
| Output | 12V 50A Max |
| Main Cable Length | 6.5m - 3 Core |
| Ignition Cable Extension | 3m - 14AWG Single Core |
| Cable Size - 3 Core | 2x 6AWG (13.5mm²), 1x 14AWG (1.8mm²) |
| Insulation Material | Inner - Silicon / Outer - PVC |
| Rated Temperature | Max. 105°C |
| Alternator Connection | Ring Terminals - M8 - Battery / M6 - Fuse |
| Powerboss Connection | Power terminals - Bootlace crimp | Ignition - bare wire |
| Fuse | 80A MIDI Fuse with Holder |
| Input Voltage | 12V |
| Input Current | 0.15A |
| Dimensions (Surface Mount) | 67 x 131 x 160mm |
| Weight | 0.4kg |
| Certifications | AS/NZS 4268 + AS/NZS 2772.2 |
| Connection Type | RJ45 |
| SKU | KARTSP250 |
| Cell type | High efficiency A-grade monocrystalline |
| Max power (Pmax) | 250W |
| Max power voltage (Vmp) | 20.69V |
| Max power current (Imp) | 12.37A |
| Open circuit voltage (Voc) | 24.86V |
| Short circuit current (Isc) | 13.06A |
| Dimensions | 1725mm x 765mm x 35mm |
| Weight | 13.80kg |
| Frame | Black powder coated aluminium |
| Application class | Class A |
| Fire safety class | Class C |
| Maximum system voltage | 1000VDC |
| Operating temperature | -40°C to 85°C |
| Nominal operating cell temperature | 47°C |
| Connector type | Water proof PV Connector |
| Standard test condition | 1000W/m² AM1.5 25° |
| Power tolerance | + / - 5% |
| Dimension tolerance | + / - 2mm |
| Conversion efficiency | 20.6% |
| Length | 400mm |
| Voltage | 12V |
| Current Rating | 100 Amps |
| Cable Size | 2 AWG |
| Lug Hole Size | 8mm |
| Voltage | 12V DC |
| Maximum Current |
|
| USB | 4 x 2.1A |
| USB-C PD | 1 x 18W |
| QC 3.0 | 1 x 18W |
| AGM Battery State of Charge Guide |
|
| Input Connection | 50A Anderson connector 1M 8B&S Cable |
| Weight | 905g |
| KickAss Smart 12V 230Ah Ultra-X Lithium Compact Deep Cycle Battery LiFePO4 - Arctic White | |
| KickAss PowerBoss | |
| KickAss Mounting Kit for Fixed Glass Solar Panels | |
| KickAss Solar Panel PV to Anderson Extension Cable - 5m | |
| KickAss 12V 250W Fixed Solar Panel, Glass Roof Top | |
| KickAss 12V Mini Control Box with 2 x Anderson, 6 x USB & 3 x Cig Sockets |
