KickAss 110W Ultra Slim Fixed Glass Solar Panel Bundle with 20A MPPT Solar Charge Controller & Extension Cable - 5m
Pickup available at Acacia Ridge Store
Usually ready in 1 hour
Harness off-grid energy with the KickAss 110W Ultra Slim Solar Panel + 20A MPPT Controller Bundle - compact, efficient, and ready for rugged adventures.

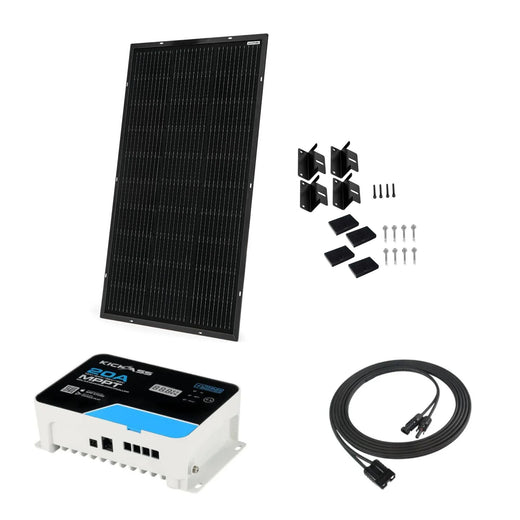

Everything that is included in this KickAss kit!
1 x KickAss 20A 12V/24V/36V/48V MPPT Solar Charge Controller
Harvest more energy! This ultra versatile charger will charge 12V, 24V, 36V and 48V battery systems. Monitor your system remotely via the Bluetooth App or an optional remote display screen.
20A 12V/24V/36V/48V MPPT Solar Charge Controllers Feature Overview
Wide Output Voltage Range
The MPPT controller can be used to charge a wide range of voltages, including 12V, 24V, 36V and 48V batteries. Perfect for setups in canopies, campervans or caravans.
Parallel Charge
This feature allows you to charge a single battery pack using two MPPT devices in parallel, so you get faster, more efficient charging.
Built-in Bluetooth Connectivity
Monitor your system’s performance in real time from your smartphone or tablet, without needing physical access to the controller.
Advanced MPPT Technology
The ultra-fast MPPT tracking is so effective that this solar controller has an efficiency rating of above 99%! Whether you’re operating in cloudy conditions or the hot outback sun, the MPPT technology will track the maximum power point available to ensure your system is operating as efficiently as possible and generating the maximum amount of power.
Wide Input Voltage Range
The MPPT controller is compatible with solar arrays with a Voc of up to 150V. This allows a variety of solar panels with different voltage outputs to be connected, so your system will be highly versatile and adaptable.
Temperature compensation
Other MPPT controllers on the market will fail in hot temperatures – the KickAss MPPT Controller will continue to function. The controller will adjust its charging parameters based on the ambient temperature, ensuring that your batteries are always charged efficiently even in hot conditions.
Lithium Recovery Mode
Safely reawaken lithium batteries that have been deeply discharged, preventing damage and maintaining their health.
Adjustable Parameters via App
The charging settings can be customised within the user-friendly app. Choose between battery types, and adjust parameters such as boost charge voltage, float voltage, boost charge recovery voltage, and auto temperature compensation.
High thermal performance
The integrated aluminium housing helps the unit keep cool so that it can continue to function and perform efficiently even in the hottest conditions, reducing the risk of overheating or system failure.
Multiple protective features
The controller has built-in protective features to protect your setup from damage caused by overload, overvoltage, overheating, reverse polarity, short circuiting and more. Your system will always operate safely.
Data logging and analysis
Your controller will track the performance of your system, and provide an analysis for optimisation. It will store historical data on a dedicated page, so you can monitor your solar consumption and performance on an ongoing basis. Keep track of features like maximum charge power, total running days, etc.
Low power consumption
The standby power used by the controller is very low, so it will maximise your overall system efficiency while using minimal power.
User-friendly interface
The controller is highly intuitive, and you’ll find it easy to setup, configure, and mange.
Battery temperature sensor
This sensor monitors the battery temperature for efficient charging, ensuring your system won’t overheat.
LCD Display/LED Indicators
The LCD display with LED indicators lets you see the exact status of your system at a glance. It’s the perfect way to monitor and manage your system in real time.
x2 Anderson to Bootlace Ferrule Connectors Included
The unit comes with x2 Anderson to Bootlace Ferrule Connectors – the Anderson plug makes setup simple, while the bootlace ferrule ensures a clean, secure fit into the controller’s terminals.
Optional Remote Display
As an alternative to Bluetooth monitoring, you can keep an eye on your system via the KickAss Remote Display Unit. Monitor and manage your power remotely.
1 x KickAss 12V 110W Ultra Slim Fixed Glass Solar Panel
The KickAss 110W Ultra Slim Fixed Glass Solar Panel weighs just 4.2kg – perfect for your 4WD, caravan or boat. Built with A-grade monocrystalline PERC cells, it performs even in low light. The 2mm tempered glass and slim aluminium frame reduce wind resistance. Includes a 3-year warranty.
KickAss 110W Ultra Thin Fixed Glass Solar Panel
- Lightweight – 4.2kg
- Ultra thin design
- Monocrystalline PERC cells
- Multi Busbar Technology
- Bypass Diode
- Full Tempered Glass Protection
- Aluminium Alloy Frame
- Series Configuration
- 3-year warranty
Weighing just 4.2kg, this solar panel is incredibly light and won’t add extra weight to your vehicle or impact fuel efficiency.
This ultra-thin 110W solar panel is a sleek, durable solution for those seeking efficient solar power. Perfect for compact spaces, it delivers reliable energy in a lightweight design. Ideal for installing on the roof of your 4WD, trailer or caravan.
These panels combine ultra-efficient A-grade monocrystalline cells with advanced PERC technology. The added layer on the back of each cell reflects unused light back in, improving efficiency and putting more energy into your battery.
Multi Busbar Technology ensures that electricity travels shorter distances, reducing power loss and increasing output. Even if a cell is partially damaged, energy can still be captured by other busbars, improving durability.
The bypass diode ensures the panel keeps producing power even when partially shaded – great for rooftop setups where conditions vary.
2mm full tempered glass offers excellent protection and durability while allowing maximum sunlight through. It’s a balance of strength, efficiency and convenience.
The aluminium frame is under 6mm thick, reducing wind resistance and keeping vehicle height low – ideal for streamlined travel.
Connect multiple panels in series to increase your output – they’re rated up to 1500V DC, perfect for powering devices like the KickAss Quickfire BBQ or Induction Cooktop.
Backed by a 3-year warranty for peace of mind.
1 x KickAss Solar Panel PV to Anderson Extension Cable - 5m
Makes installing solar panels a breeze. Specially engineered to be paired with our KickAss DC/DC Charger and KickAss 170W, 250W, or 350W Fixed Glass Solar Panels, this extension cable is completely plug & play. MC4 compatible.
Heavy Duty Twin Core 10B&S Cable
Individually insulated and encased in a smooth PVC outer, providing added strength.
Pre-Crimped Anderson Terminals for Ease of Install
Setting up your solar has never been easier with the KickAss Solar Panel PV to Anderson Solar 5M Extension Cable. It can be plugged straight into your KickAss DCDC charger on your battery box, control hub, or directly into your MPPT/PWM solar controller. MC4 compatible.
1 x Mounting Brackets Kit for the KickAss Ultra Slim Fixed Glass Solar Panels
Securely install your Kickass Ultra Slim Fixed Glass Solar Panel with this rugged Mounting Kit. Designed specifically for a reliable and hassle-free setup, it includes all the essentials for a sturdy attachment, ensuring your panel stays in place even in tough conditions. Perfect for permanent installations on caravans, campers, or boats, this kit helps you make the most of your solar power without the worry.
SPECIFICATIONS
Technical Details
KickAss 20A 12V/24V/36V/48V MPPT Solar Charge Controller
| Parameter | Specification | ||||
|---|---|---|---|---|---|
| System Voltage | 12V/24V/36V/48V AUTO in GEL/FLD/AGM AUTO; USER OR LI(MANUAL) | ||||
| Standby Power | 0.3W Max | ||||
| Battery Voltage | 9V TO 60V | ||||
|
|||||
| Max. Solar Input Voltage Range |
|
||||
| Min. Solar Input Voltage Range |
|
||||
| Max. System Input Power |
|
||||
| Rated Charging Current | 20A | ||||
| Conversion Efficiency | 0.98 | ||||
| MPPT Tracking Efficiency | >99% | ||||
| Operating Temperature | -35°C ~ +45°C | -31°F ~ +113°F | ||||
| Ingress Protection | IP43 | ||||
| Weight | 1.22kg | ||||
| Communication Method | RS485 & Integrated Bluetooth | ||||
| Altitude | ≤3000m | ||||
| Product Dimensions | 190*125*60mm |
KickAss 12V 110W Ultra Slim Fixed Glass Solar Panel
| Cell Type | Monocrystalline PERC |
| Max Power (Pmax) | 110W |
| Open Circuit Voltage (Voc) | 20.96V |
| Short Circuit Current (Isc) | 6.72A |
| Front Glass | 2mm Tempered Glass |
| Frame | Anodised Aluminium Alloy |
| Dimensions | 990 x 600 x 5.9mm |
| Weight | 4.2kg |
| Maximum System Voltage | 1500VDC |
| Maximum Series Fuse Rating | 15A |
| Operation Temperature | -40°C – 85°C |
| Nominal Operation Cell Temperature | 42 |
User Manual & Support Docs
| KickAss 20A 12V/24V/36V/48V MPPT Solar Charge Controller | |
| KickAss Solar Panel PV to Anderson Extension Cable - 5m | |
| KickAss 12V 110W Ultra Slim Fixed Glass Solar Panel |
Detailed Description
Take advantage of reliable solar power with the KickAss 110W Ultra Slim Fixed Glass Solar Panel + 20A MPPT Solar Charge Controller Bundle. This bundle combines the sleek 110W Ultra Slim Solar Panel with a powerful 20A MPPT Solar Charge Controller and a 5m extension cable, offering an efficient solar solution ideal for camping, caravanning, and off-grid setups.
110W Ultra Slim Fixed Glass Solar Panel
This 110W Ultra Slim Solar Panel is crafted with high-grade monocrystalline cells, providing efficient power generation in a compact, slim profile. Ideal for installation in tight spaces on vehicles, boats, or caravans, it maximises solar output without taking up valuable room. The durable tempered glass casing ensures long-lasting performance, even in rugged outdoor conditions.
20A MPPT Solar Charge Controller
The included 20A MPPT Solar Charge Controller optimises energy conversion from the solar panel, ensuring efficient charging for your battery system. With compatibility across 12V to 48V systems, this controller adapts to varying sunlight conditions, protecting your battery from overcharging while maximising solar input.
5m Solar Extension Cable
The 5m extension cable with Anderson connectors allows flexible panel placement, letting you position your solar panel in the best sunlight without hassle. Perfect for staying organised and efficient in your power setup.
Complete, Efficient Solar Solution
Built tough for outdoor adventures, this bundle is designed to provide a reliable power source wherever you are. Whether you’re camping, working remotely, or living off-grid, the 110W Ultra Slim Solar Panel and MPPT Charge Controller keep your batteries charged and your devices ready.
Enhance your off-grid setup with the KickAss 110W Ultra Slim Fixed Glass Solar Panel + 20A MPPT Solar Charge Controller Bundle—slim, powerful, and built to perform.
