KickAss KickCharge DC500 Lithium Power Station - 512Wh, 40Ah @ 12.8V

Product Support Page

Download Manual

KickCharge DC500 Lithium Power Station – 512Wh 40Ah @ 12.8 Volts

KickAss Features:

• 512Wh of Portable LiFePO4 Power
• LCD Display
• 25A DC Anderson Output
• 8 Ways to Charge
• Solar Compatible
• Two Independent 6W LED Lights
• Advanced BMS with Protective Features
• EVE LiFePO4 Battery Cells
• 3 Recharging Options
• Lightweight
• Durable and Long Lasting

512Wh of Portable LiFePO4 Power

Offers a reliable and convenient way to keep devices charged and ready. With 512Wh of power, it can charge up to eight devices simultaneously—perfect for outdoor adventures, camping, and emergency management.

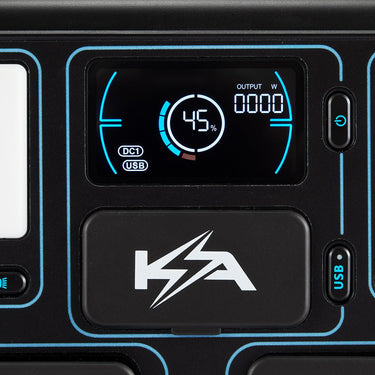

LCD Display

Real-time insights into your power consumption, charge status, and solar input power via the clear LCD display. Stay fully informed and in control.

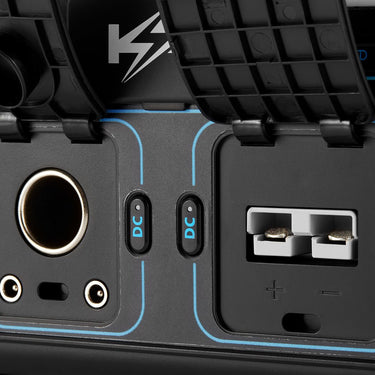

25A DC Anderson Output

The 25A Anderson Output delivers a steady connection, ideal for powering larger devices like 12V fridges and travel ovens.

8 Ways to Charge

Charge up to eight devices at once, with outputs including: 1 x 12V cig socket, 1 x 60W USB-C PD port, 3 x USB QC 3.0 ports, 1 x 25A Anderson output, 1 x DC 5521 port, and a wireless charging pad.

Solar Compatible

Supports up to 100W solar input, compatible with KickAss portable solar panels, providing a sustainable and reliable off-grid power solution.

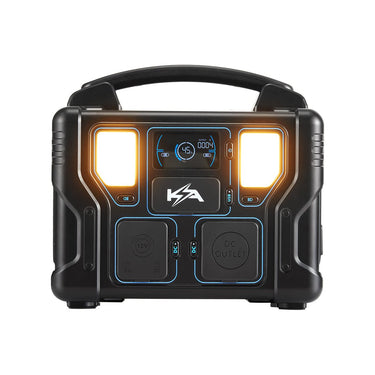

Two Independent 6W LED Lights

Two 6W LED lights integrated into the unit operate independently, offering bright illumination for night setups, cooking, or emergencies.

Advanced BMS with Protective Features

The integrated Battery Management System provides protection from overvoltage, overload, overheating, short circuits, low temperature, low voltage, and overcurrent for safe operation.

EVE LiFePO4 Battery Cells

Built with EVE LiFePO4 battery cells rated for over 3000 charge cycles, delivering a long service life and consistent, efficient power.

3 Recharging Options

Recharge via mains power, solar input, or a vehicle’s cig socket—giving you flexible options to top up your battery wherever you are.

Lightweight

Weighing only 5.5kg, the KickCharge DC500 is easy to transport—less than half the weight of comparable AGM alternatives.

Durable and Long Lasting

Engineered for durability, featuring a heavy-duty exterior built to withstand extreme temperatures and harsh outdoor conditions—ideal for camping, 4WDing, and worksites.

Approximate Device Charging Times:

• Mobile phones: approx. 38 times (based on 15Wh battery)
• Laptops: approx. 5.5 times (based on 85Wh battery)
• Tablets: approx. 7.8 times (based on 60Wh battery)
• Cameras: approx. 18 times (based on 30Wh battery)
• Portable game consoles: approx. 8.5 times (based on 60Wh battery)

Approximate Device Running Times:

• KickAss 12V portable outdoor projector: approx. 9.2 hours
• KickAss 12V electric blanket: approx. 9.2 hours
• 15W camping light: approx. 29 hours
• KickAss 12V 6L/PM portable pump pack: approx. 5.5 hours
• KickAss 75L Dual Zone fridge: approx. 6.6 hours (normal use)
• 12V TV: approx. 8.8 hours
• KickAss 12V sound bar: approx. 9 hours
• 12V 250W heater fan: approx. 1.7 hours
• 60W CPAP machine: approx. 7.5 hours

The KickCharge DC500 has a 512Wh (40Ah @ 12.8V) LiFePO4 battery and can power devices like a 45L fridge (50W) for 9 hours, a laptop (85Wh) for 5.5 recharges, or a smartphone (15Wh) for 38 recharges. It delivers up to 300W continuous power via its DC Anderson output.
This means you can confidently run multiple devices on your next adventure, from essential camping lights to your electronic gear, with reliable and long-lasting power.

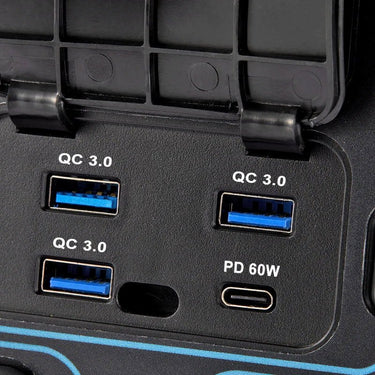

The power station supports multiple outputs: 12V Anderson output (25A max), USB C PD (60W max), three USB A QC 3.0 ports (18W max each), a 12V cigarette lighter output (10A max), and two 12V DC 5521 outputs (5A max each).
This wide range of outputs lets you charge everything from laptops and smartphones to 12V TVs, CPAP machines, drones, and camping lights simultaneously, making it perfect for off-grid adventures.

To operate, hold the power button for three seconds to turn it on. Then activate each output by short pressing its corresponding control button: Anderson output, USB C/A ports, or 12V cigarette lighter/DC 5521 outputs.
This intuitive control system allows you to power only the ports you need, conserving energy and giving you full control over your power usage on the go.

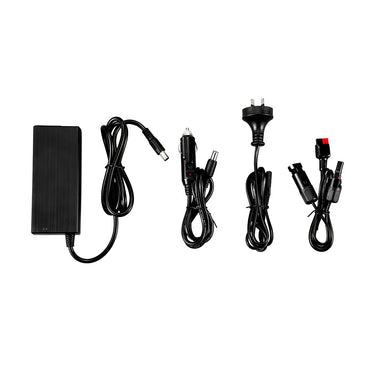

The KickCharge DC500 can be fully recharged in about 6.5 hours via the 240V AC adaptor, around 5 hours using solar panels (up to 100W max), or approximately 5.5 hours from a car charger.
These flexible charging options ensure you can recharge your power station quickly whether you’re at home, driving, or camping under the sun, keeping your devices powered wherever you are.

The power station must not be used in rain, snow, or high humidity and should be stored in a dry, ventilated place. It features built-in protections against overload, over temperature, and short circuits for safe operation.
While designed for rugged outdoor use, following these guidelines ensures your power station remains reliable and safe, giving you peace of mind on every trip.

Yes, you can use multiple outputs simultaneously, including all USB ports, cigarette lighter, DC 5521, and Anderson outputs, as long as the total power draw does not exceed the maximum continuous output limits (300W max on Anderson, 10A max on cigarette lighter).
This multi-output capability allows you to power or charge several devices at once, making the KickCharge DC500 a versatile and efficient power solution for camping and off-grid adventures.

The power station uses a 512Wh LiFePO4 (Lithium Iron Phosphate) battery, known for its long cycle life, safety, and stability compared to other lithium batteries.
This means you get a durable, safe, and reliable power source that can withstand many charge cycles while maintaining performance, ideal for frequent outdoor use and extended trips.

Clean the power station occasionally with a damp cloth, ensuring it is disconnected from any power source before cleaning. Avoid using sharp objects or alcohol-based cleaners to prevent damage.
Regular gentle cleaning helps maintain the product’s appearance and functionality, ensuring your KickCharge DC500 stays looking great and working perfectly for years to come.
