KickAss KickCharge 1200 Lithium Power Station - 1200W, 78.7Ah @ 12.8V

Product Support Page

Download Manual

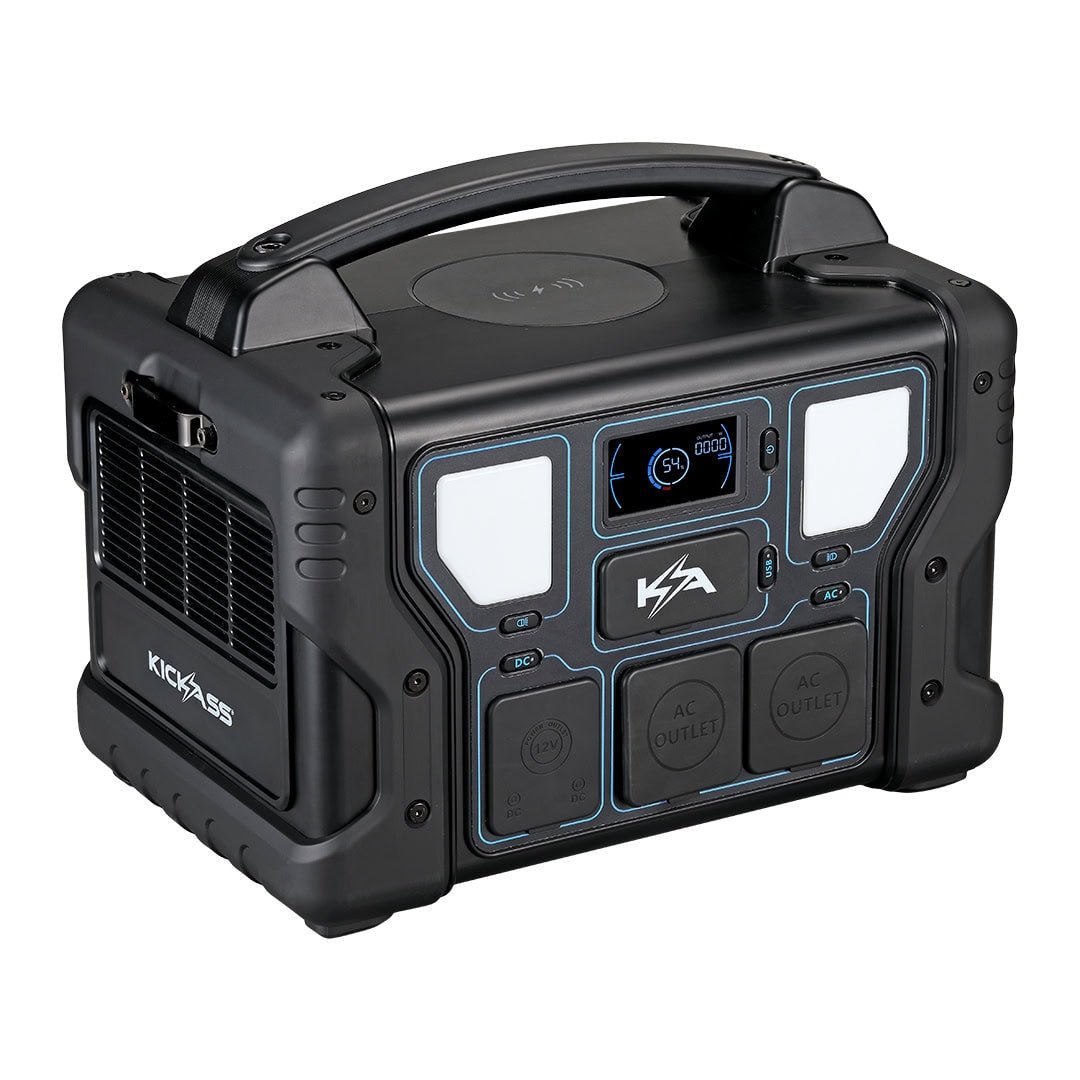

KickCharge 1200 Lithium Power Station – 1200W, 78.7Ah @ 12.8 Volts
1008Wh of Portable LiFePO4 Power

Containing a hefty 1008Wh lithium battery, this unit has enough power to keep all your appliances running and gadgets charged. It’s the ultimate portable power station for camping, canopies, and emergency management.

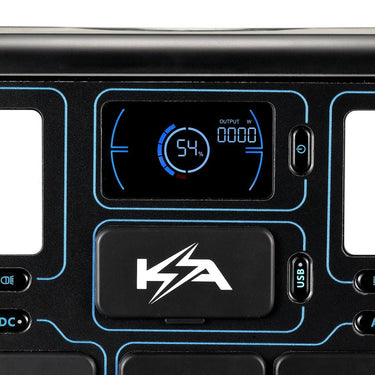

LCD Display

Real-time data on power consumption, charge status, and solar input via the LCD display screen. Stay fully informed and in control without guesswork.

1200W AC Output

Delivers clean, reliable energy for powering AC devices such as 1100W coffee machines, electric BBQs, and more.

8 Ways to Charge

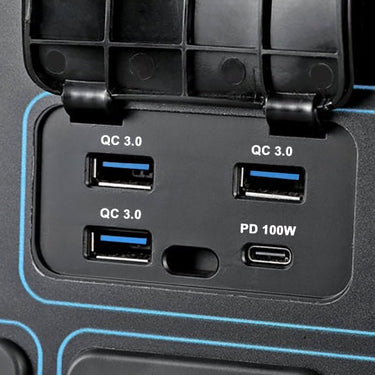

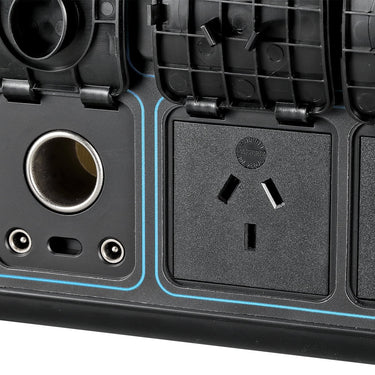

Versatile charging options include 1 x 12V cig socket, 100W USB-C PD, 3 x USB QC 3.0, 2 x AC outputs (1200W combined), and a wireless charging pad. Charge multiple devices simultaneously with ease.

Solar Compatible – 400W Solar Input

Pair with a compatible KickAss solar panel for a sustainable off-grid setup. Up to 400W solar input through the mini-Anderson port keeps your power supply strong even in remote areas.

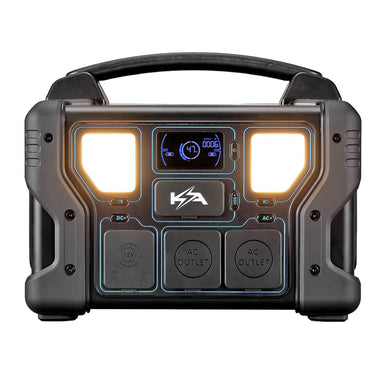

Two Independent 6W LED Lights

Integrated twin 6W LED lights provide bright illumination when needed, perfect for camping setups after dark.

Advanced BMS with Protective Features

Integrated advanced BMS protects against overvoltage, overload, overheating, short circuits, low temperature, low voltage, and overcurrent to safeguard your battery and connected appliances.

LiFePO4 Battery Cells

Top-quality LiFePO4 cells rated for over 2000 charge cycles, ensuring long life, steady performance, and efficient power delivery off-grid.

Flexible Recharging

Recharge via mains (approx. 1 hour 50 minutes), solar (approx. 2 hours 10 minutes), or vehicle cig socket (approx. 9 hours).

Uninterruptible Power Supply (UPS)

When fully charged and connected to mains, the battery is bypassed, and devices draw power directly from the grid. In case of power loss, the battery takes over within 10 milliseconds, protecting sensitive electronics and medical devices like CPAP machines.

Lightweight

At 11.5kg, it’s less than half the weight of an AGM equivalent, making installation, removal, and transport easy.

Durable and Long Lasting

Constructed from heavy-duty material for durability in extreme conditions, ideal for road trips, campsites, or worksites.

Approximate Device Charging Times:

• Mobile phones: approx. 76 times (based on 15Wh battery)
• Laptops: approx. 11 times (based on 85Wh battery)
• Tablets: approx. 15 times (based on 60Wh battery)
• Cameras: approx. 30 times (based on 30Wh battery)
• Portable game consoles: approx. 15 times (based on 60Wh battery)

Approximate Device Running Times:

• KA 12V Portable Projector: up to 20 hours
• KA 12V Electric Blanket: up to 19 hours
• 15W Camping Light: up to 65 hours
• KA 45Lt Fridge: approx. 25 hours (compressor runtime)
• 12V TV: up to 33 hours
• KA 12V Soundbar: up to 16 hours (depending on settings)
• 60W CPAP Machine: up to 16 hours
• KA QuickFire BBQ: approx. 1.5 hours
• 700W Camping Microwave: approx. 1.25 hours
• 700W Portable Pressure Cooker and Steamer: approx. 1.25 hours
• 700W Portable Blender: approx. 1.25 hours

The KickCharge 1200 delivers a continuous AC output of 1200W and has a battery capacity of 1008Wh (22.4V, 45Ah). It also offers a 100W USB-C PD output, three 18W USB-A QC3.0 ports, and 12V DC outputs with up to 10A continuous current. This makes it ideal for running multiple devices simultaneously on your adventures.

Yes, the KickCharge 1200 supports solar charging with an input of 12-55V / 12A and up to 400W max. Using the included Anderson-style to mini Anderson-style cable, it takes approximately 3 hours to fully charge at 240W solar input.

To turn on the power station, hold the power button for three seconds. Activate the AC output by short pressing the AC port power button, USB outputs by pressing the USB port power button, and DC outputs by pressing the DC port power button.

The KickCharge 1200 is designed with safety in mind, certified to IEC 62133-2:2017, IEC 62619:2022, and AS/NZS 62368.1:2022 standards. It includes built-in protections against overload, over-temperature, and short circuits, and features an internal cooling fan that activates automatically to regulate temperature.

The KickCharge 1200 supports Uninterruptible Power Supply (UPS) mode, automatically switching from grid power to battery power within 10 milliseconds (10ms) during an outage. When connected to mains and fully charged, devices draw power directly from the grid, bypassing the battery.

The KickCharge 1200 weighs 9.5kg and measures 328 x 221 x 263mm. It includes a carry handle and a shoulder strap for easy transport, plus cables for AC charging, DC vehicle charging, and solar input.

Yes, the KickCharge 1200 features an automatic wireless charging pad with a maximum output of 10W. It activates automatically when a compatible device is placed on the pad and turns off when the device is removed.

Using the included AUS 3-pin to IEC C13 AC power cable, the KickCharge 1200 takes approximately 2 hours to fully charge from a 240V AC outlet.
