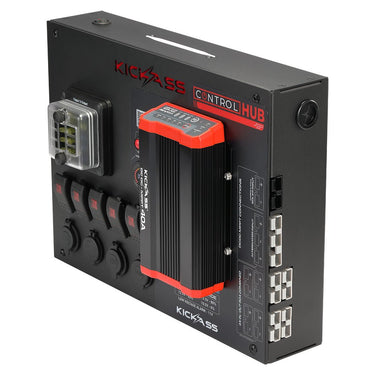

KickAss 12V Control Hub with 40A DCDC Charger

The ultimate power management solution for your dual battery system and off-grid setup. This all-in-one unit integrates a 40A DCDC charger, power distribution for up to 15 devices, and advanced safety features to keep your adventures powered.

Key Features:

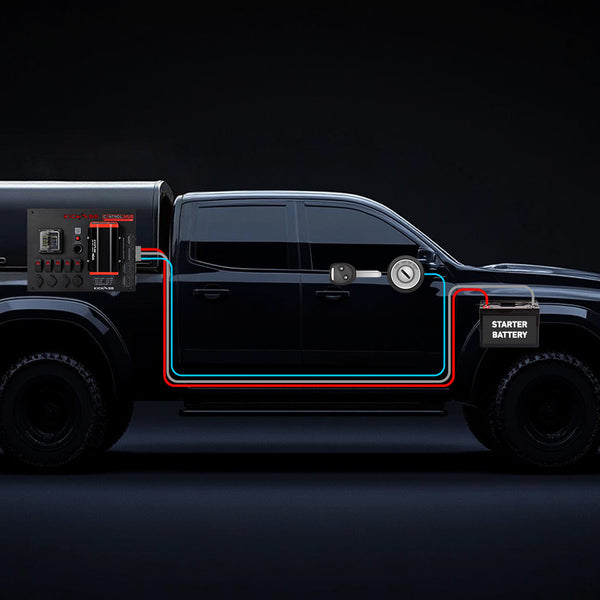

• Integrated 40A DCDC Charger – No need for separate devices, simplifying your dual battery setup.

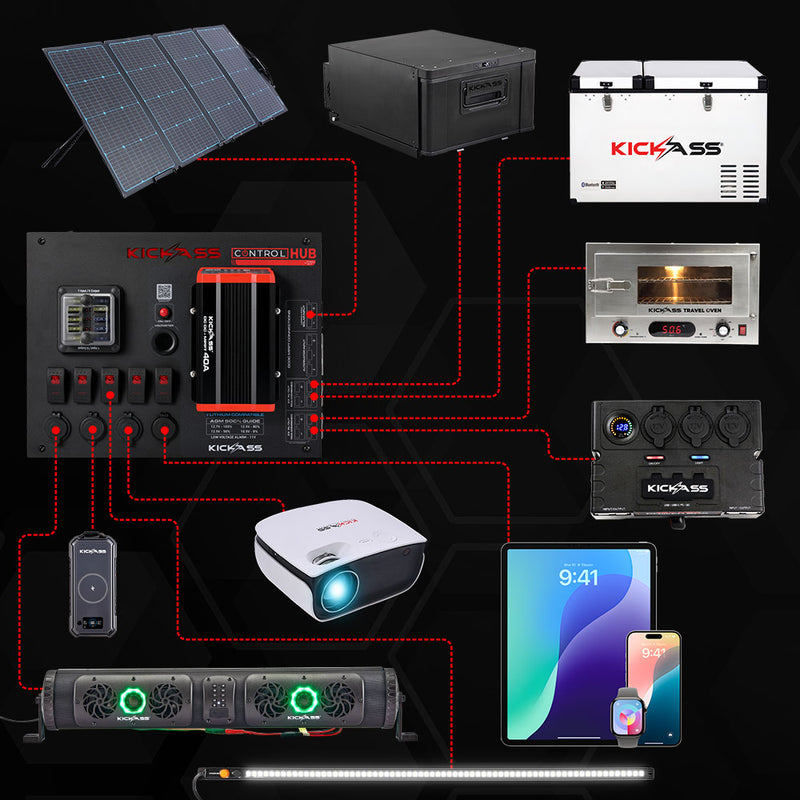

• Power Up to 15 Devices at Once
  • 5 x Hardwired rocker switches
  • 4 x Anderson outputs
  • 2 x Cigarette sockets
  • 1 x USB-C PD
  • 1 x USB QC3.0
  • 2 x USB-A
  • Hardwired connections for high-power devices (e.g., inverters)

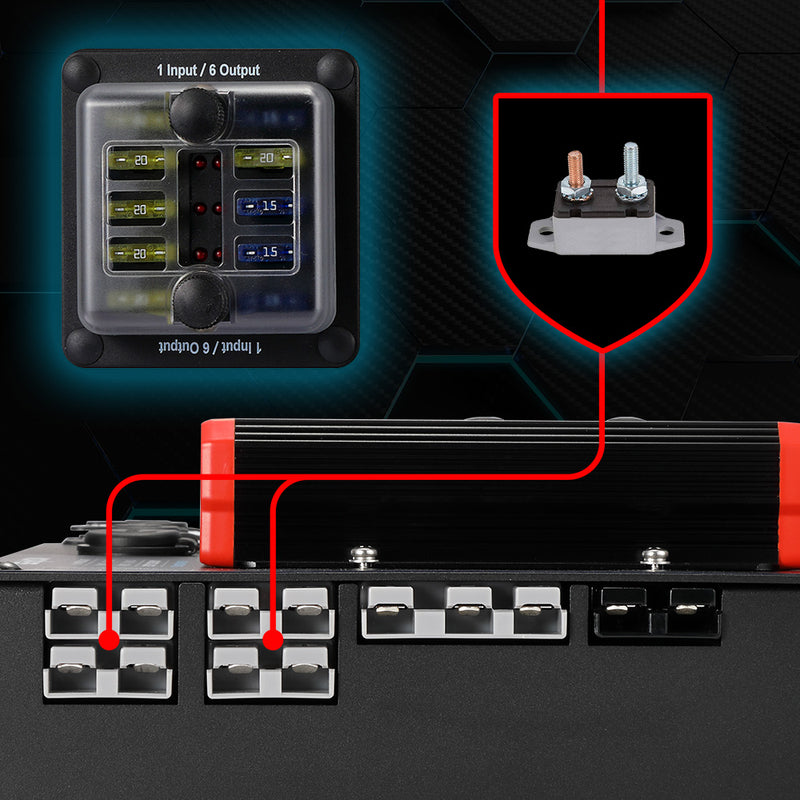

• Built-in Circuit Protection – Fuse block for rocker switches, cig sockets & USBs, plus auto-resettable breakers for Anderson outputs.

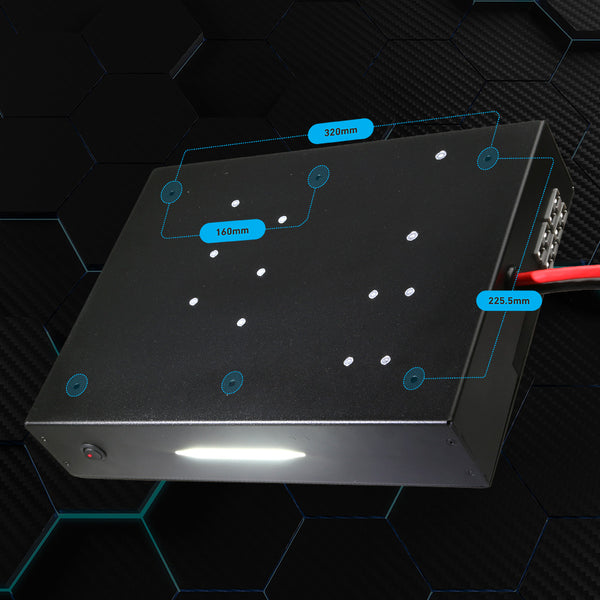

• Simple Installation – Pre-drilled mounting holes for easy setup using pop rivets, bolts, or screws. Three cable entry points provide flexible wiring options.

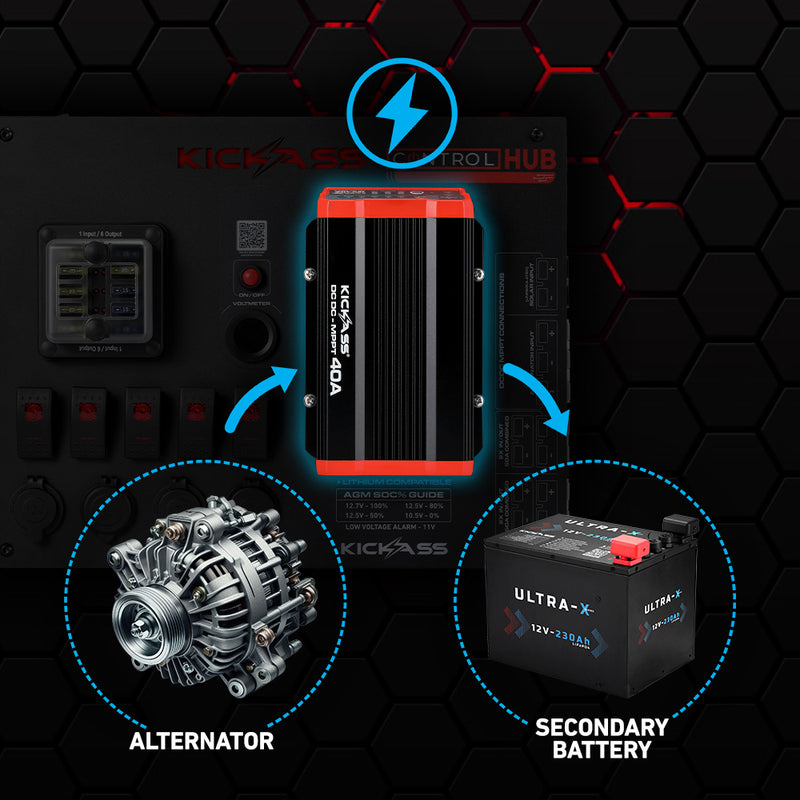

• Dual Battery Charging via Alternator – Compatible with 12V & 24V systems, including smart alternators.

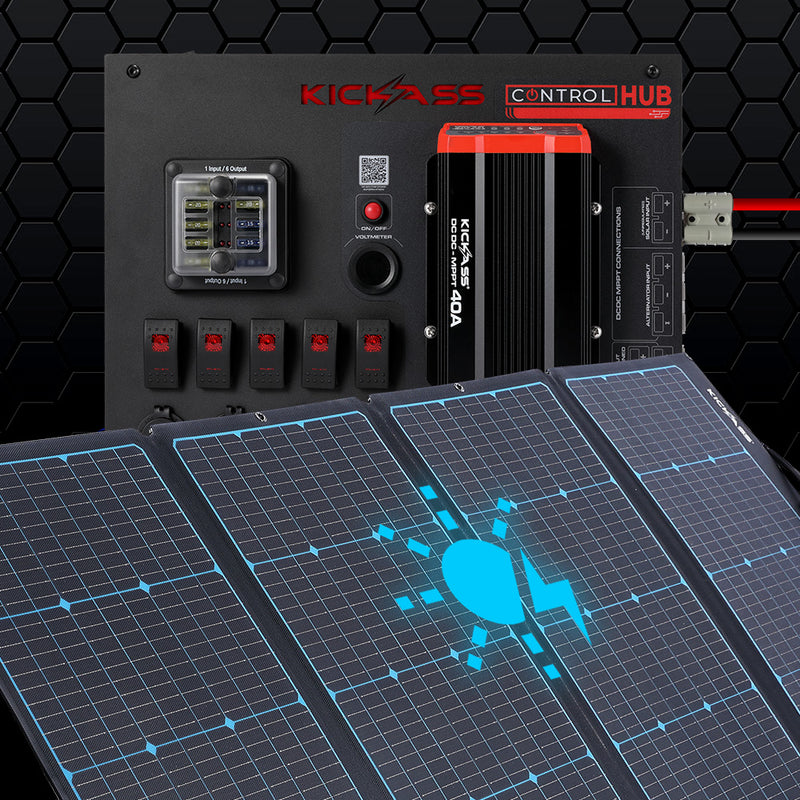

• 500W Solar Input – High-power solar charging ensures reliable off-grid energy.

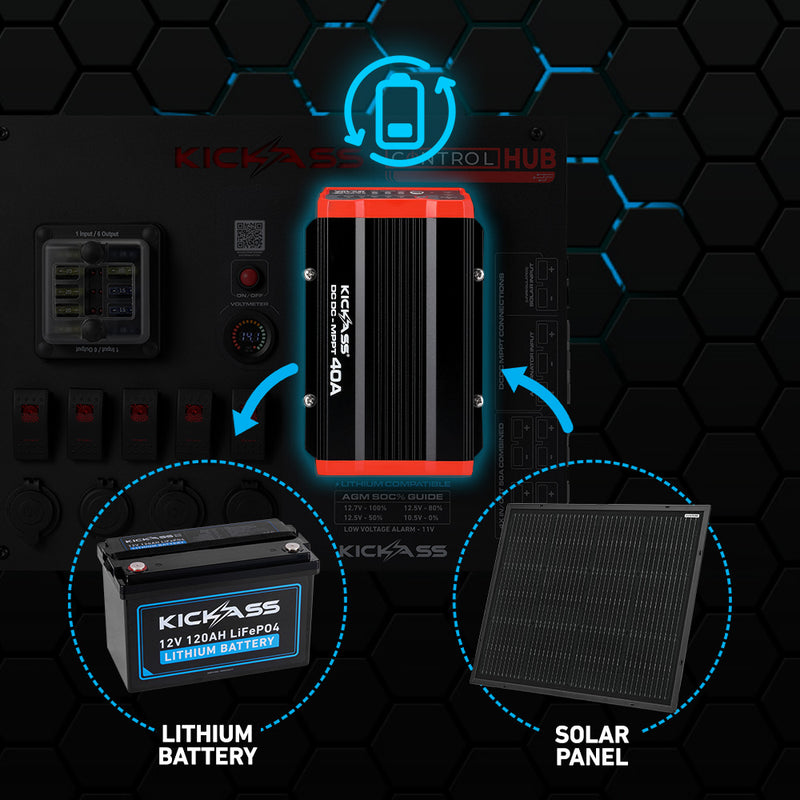

• Automatic Lithium Battery Recovery Mode – Restores flat lithium batteries automatically, no manual reset needed.

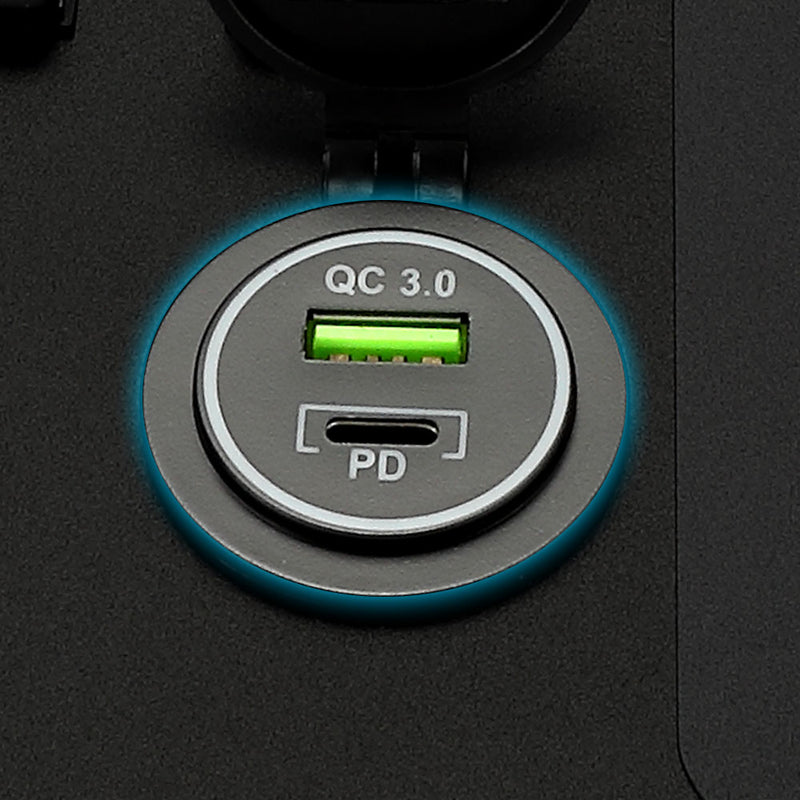

• QC3.0 & USB-C Fast Charging – Charges devices 70% faster than standard USB ports.

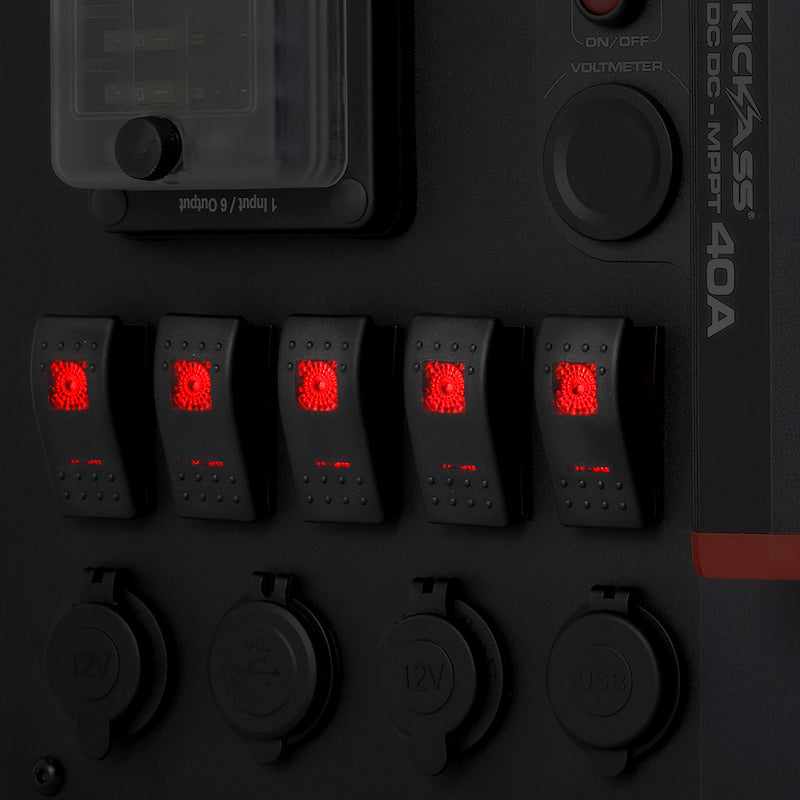

• 5 x 20A Light-Up Rocker Switches – Backlit for easy control, with replaceable fuses for extra protection.

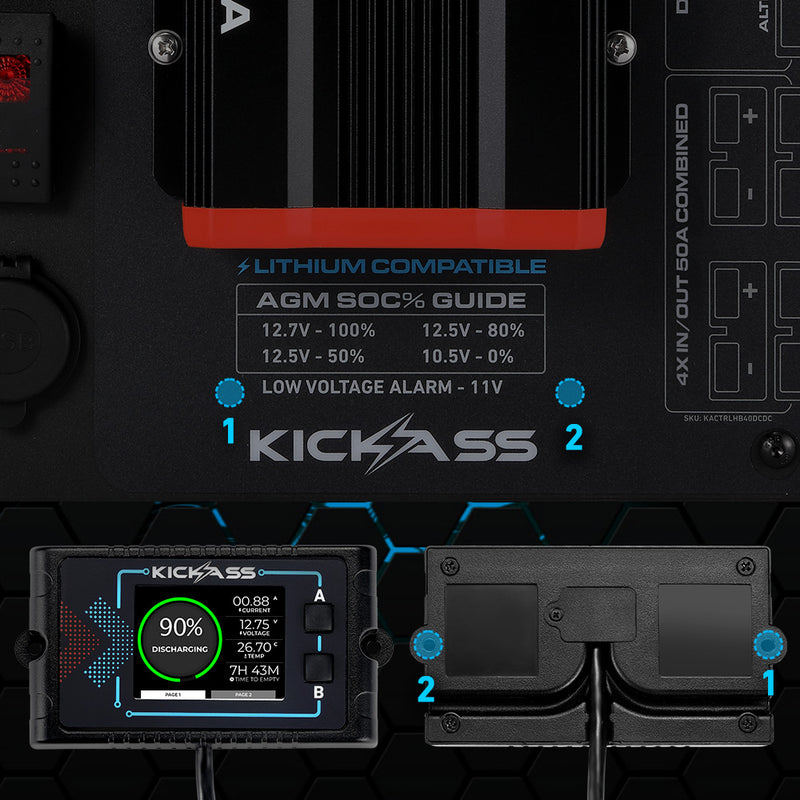

• Pre-Drilled Mounting for KickAss Lithium RDU – Seamlessly mount your Lithium Battery Remote Display for real-time battery monitoring.

Effortless power, wherever adventure takes you!

The KickAss 12V Control Hub with the 40A DCDC charger delivers a maximum continuous charging current of 40 amps and an output power of up to 500 watts. This ensures efficient and reliable charging for larger battery banks, making it ideal for extended off-grid adventures or heavy-duty setups.

Yes, the KickAss Control Hub with the 40A DCDC charger supports solar input with a voltage range of 10 to 32 volts DC and a maximum input current of 47 amps. This allows you to integrate solar panels directly for efficient off-grid solar charging.

You can power up to 15 different appliances at once using the KickAss 12V Control Hub. It features 4 Anderson Style connectors (50A combined), 2 cigarette sockets, 2 USB-A ports (2.4A each), a Quick Charge QC3.0 USB port, and a USB Type-C port (25W max).

The KickAss Control Hub must be installed with the lid closed and screws tightened before powering devices. Use suitable gauge wiring and ensure adequate ventilation to prevent heat build-up. Installation should be done by a professional to protect your unit and vehicle.

Yes, the KickAss Control Hub includes inbuilt circuit protection with fuses for rocker switches, cigarette sockets, and USB ports, plus auto-resettable breakers for Anderson outputs. It also features an alarmed low voltage disconnect that activates below 11 volts to protect your battery from deep discharge.

The KickAss 12V Control Hub with the 40A DCDC charger measures 400 x 305 x 110mm (including fuse height) and weighs 5.1 kilograms. Its powder-coated aluminium construction with a 2mm thick lid and 1.5mm thick box ensures durability and longevity.

The KickAss Control Hub features five backlit rocker switches that allow you to control all your 12V accessories easily, day or night. Each switch is fused individually and illuminated for clear visibility in low light conditions.

Yes, the KickAss 12V Control Hub with the 40A DCDC charger is compatible with GEL, WET, AGM, CAL, and LiFePO4 batteries. It supports battery capacities from 120 to 500Ah for LiFePO4 and 200 to 500Ah for lead acid types, with optimised absorption and float voltages for each chemistry.
