KickAss Complete Dual Battery Kit featuring 230Ah Lithium Battery, Inverter, DCDC Charger & more for ultimate power on the go.

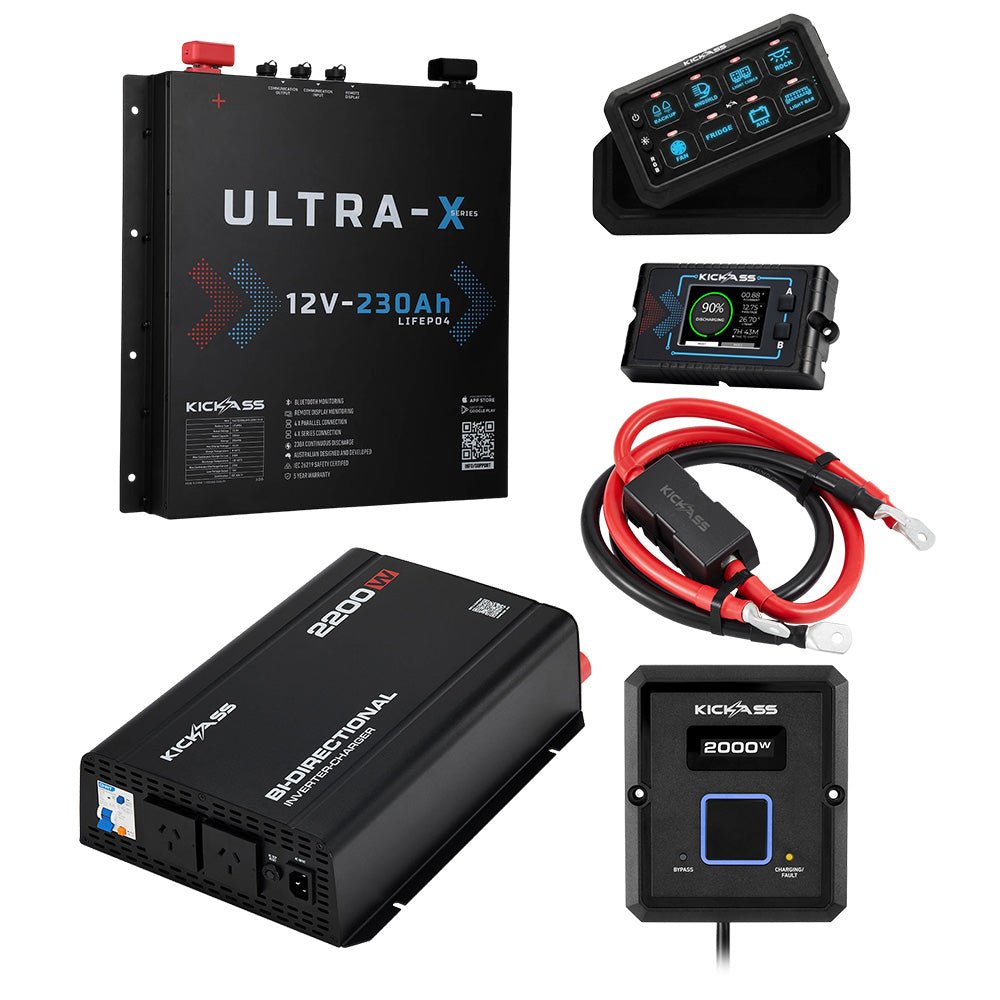

Everything that is included in this KickAss kit!

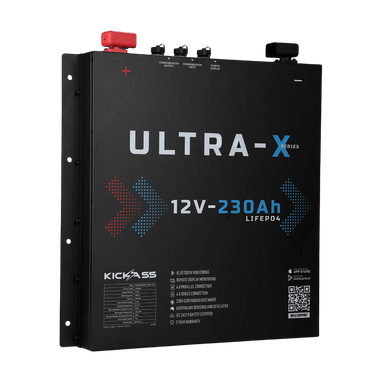

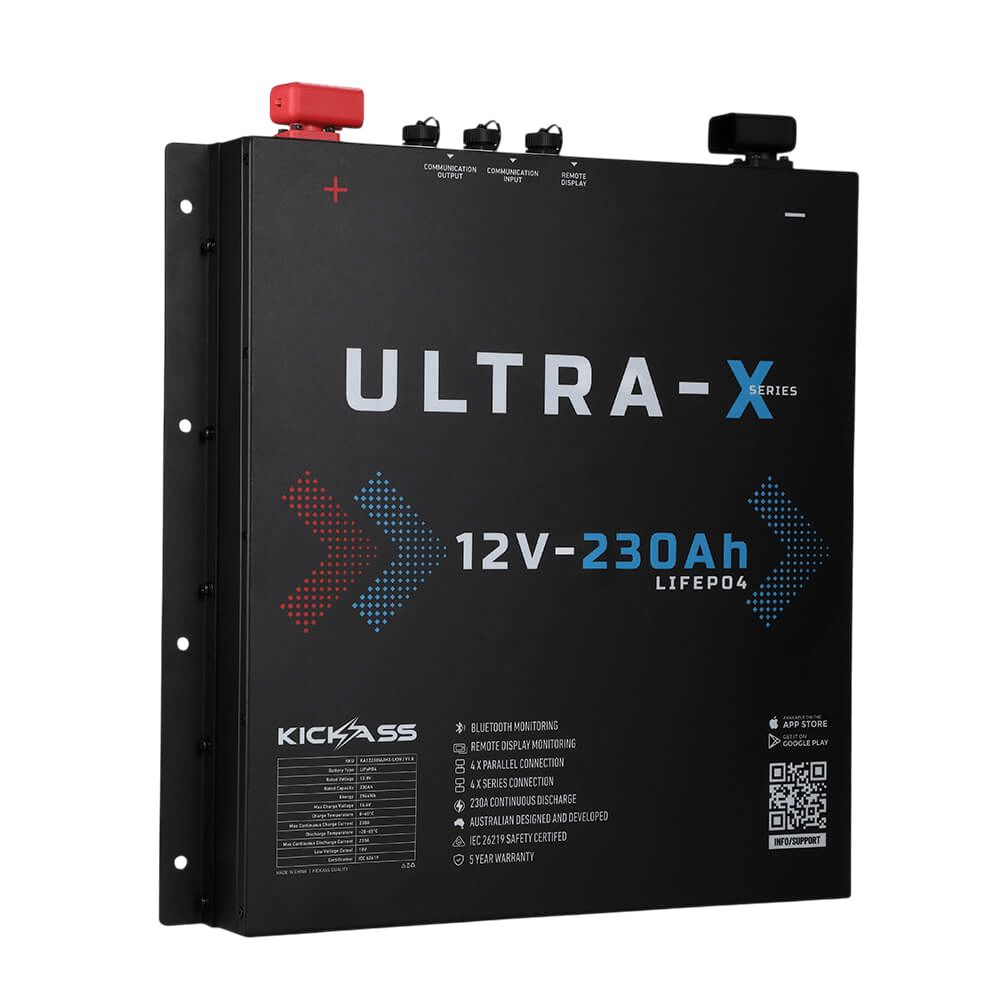

The Slimline KickAss 12V 230Ah Lithium Battery delivers huge power in a compact, advanced design. With 230Ah of useable energy, 4000+ cycles at 80% DoD, Bluetooth monitoring, and support for series or parallel setups, it’s perfect for serious off-grid use. Link up to four for over 900Ah, with a built-in BMS for safety.
KickAss Features:
Ultra Compact, Slimline Design
The ultra-compact, slimline design is ideal for those who have minimal space but need maximum power. Measuring only 500mm x 510mm x 70mm, this compact powerhouse is perfect for installing in canopies, under false floors in caravans, behind seats, and anywhere where space is tight. This KickAss battery delivers big power in a small package.
Supporting Bluetooth App
No more guesswork – stay in control of your power system by using the supporting Bluetooth app. Monitor critical battery parameters such as SoC, level, voltage, current, temperature, and real-time system alerts right from your smartphone. Having real-time data at your fingertips ensures optimal performance and peace of mind during all your off-grid adventures.
BMS with Multiple Safety Features
The KickAss 12V 230Ah Deep Cycle Lithium Battery is equipped with an advanced Battery Management System (BMS) that ensures safety and reliability. The BMS actively monitors and protects the battery from common issues such as overcharging, over-discharging, short circuits, and overheating, ensuring safe operation at all times.
Create a Battery Bank with Over 900Ah of Usable Capacity
These batteries support parallel and series configurations for maximum versatility. Link up to four in parallel to create a massive battery bank with over 900Ah of usable capacity, delivering serious power for extended off-grid use. This capability allows you to tailor your power setup to your exact needs.
Monitor Your Battery Bank Remotely
Monitoring multiple batteries in a series or parallel setup usually requires an external shunt, but these batteries eliminate that need. Simply connect each Ultra-X series battery using an RJ45 cable, and the optional KickAss Remote Display Unit (RDU) will seamlessly interface with the entire battery bank. Alternatively, use the supporting Bluetooth app for system monitoring without additional hardware.
230Ah Usable Capacity
With 230Ah of usable capacity, the KickAss 12V Deep Cycle Lithium Battery offers an abundance of power for extended off-grid adventures. This large capacity means you can run devices and appliances for longer periods without frequent recharges.
230A Continuous Charge & Discharge with 460A Pulse Capacity
This battery delivers exceptional performance with its 230A continuous charge and discharge capability, ensuring a steady and reliable flow of power for demanding applications. The impressive 460A pulse capacity allows it to handle sudden power surges, making it incredibly versatile.
4000+ Cycles @ 80% DoD 0.5C
Designed for longevity, this battery offers over 4000 charge and discharge cycles at 80% Depth of Discharge (DoD) and a 0.5C charge/discharge rate. This durability ensures a long-lasting, high-performance battery for years to come.
Metal Case with Integrated Mounting Points
The durable metal housing with integrated mounting points eliminates the need for a separate battery tray. The heavy-duty metal casing not only protects the battery from the elements and rough conditions but also makes installation easier and more secure.
This 2200W pure sine wave inverter-charger delivers clean, stable power for your everyday appliances, and rapidly charges your battery from shore power via 1800W AC ultra-fast charging. Bluetooth monitoring, plug-and-play install, built-in safety protection, and support for multiple battery chemistries make it a smart, space-saving upgrade for any setup.

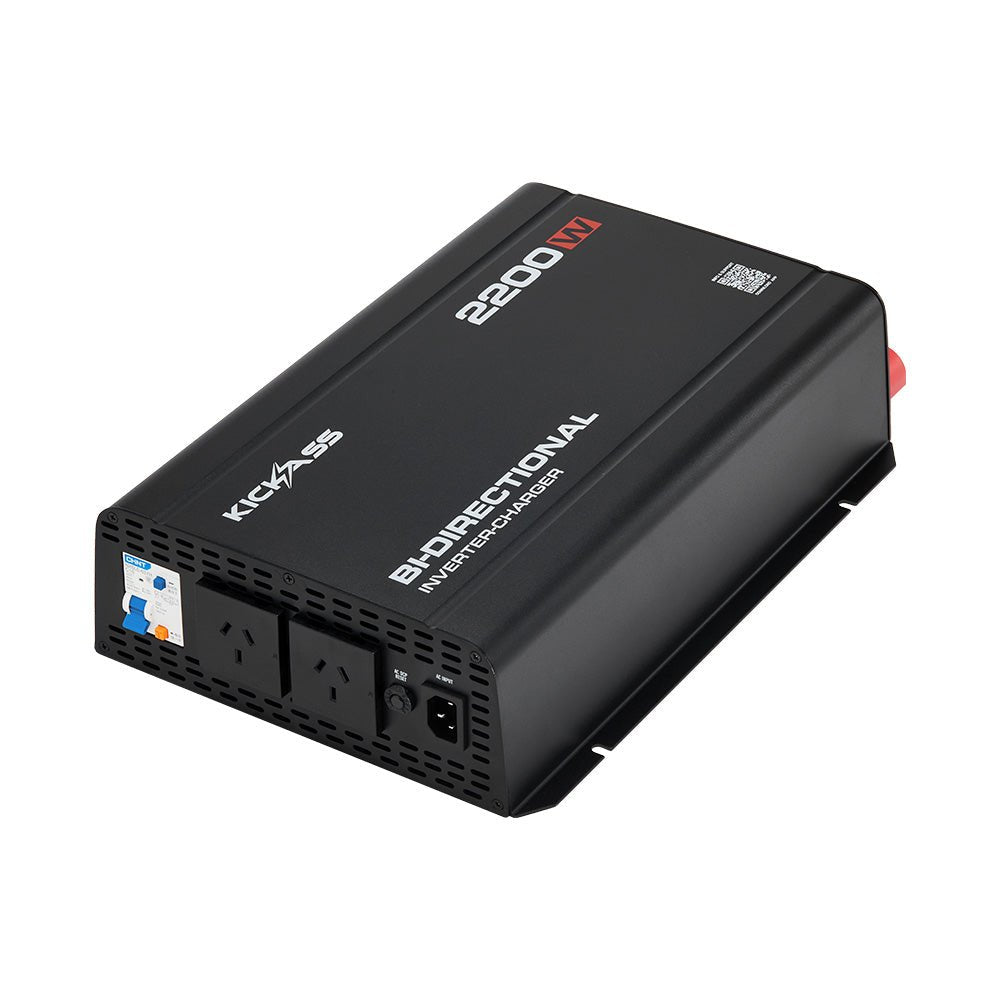

The KickAss 2200W Bi-Directional Inverter-Charger delivers mains-quality power in a compact, all-in-one unit. Combining a 2200W pure sine wave inverter with an 1800W AC ultra-fast charger, it provides both AC power and battery charging without the need for separate devices, additional wiring or extra installation space.
The 2200W pure sine wave inverter converts 12V DC battery power into clean, stable 230V AC power, making it suitable for everyday appliances, sensitive electronics and motor-driven equipment. When connected to shore power, the built-in 1800W AC charger provides up to 135A of charging current.
Bluetooth monitoring and control via the KA Charge app allows you to select battery chemistry, choose a charging mode, switch the unit on or off and view up to 32 hours of performance history. An optional remote switch with OLED display and LED indicators provides additional control and system status monitoring.
Dynamic power adjustment technology prioritises available power to connected AC equipment, helping maintain operation when the incoming power supply fluctuates.
Plug-and-play AC connectivity includes an IEC input and two AC outlets, eliminating the need for hardwiring. Built-in RCBO protection provides overload and earth leakage protection, while intelligent variable-speed cooling fans help regulate operating temperature and minimise unnecessary fan noise.
The compact slimline design is suited to space-limited vehicle and off-grid installations. The unit supports LiFePO4, AGM, CAL and GEL battery chemistries and also includes a USB-A output for charging compatible phones, tablets and other devices.
Note: An additional switch panel must be purchased separately. Panels must be the same model to pair – for example, two 8-Gang panels or two 12-Gang panels. Different models cannot be synced together.

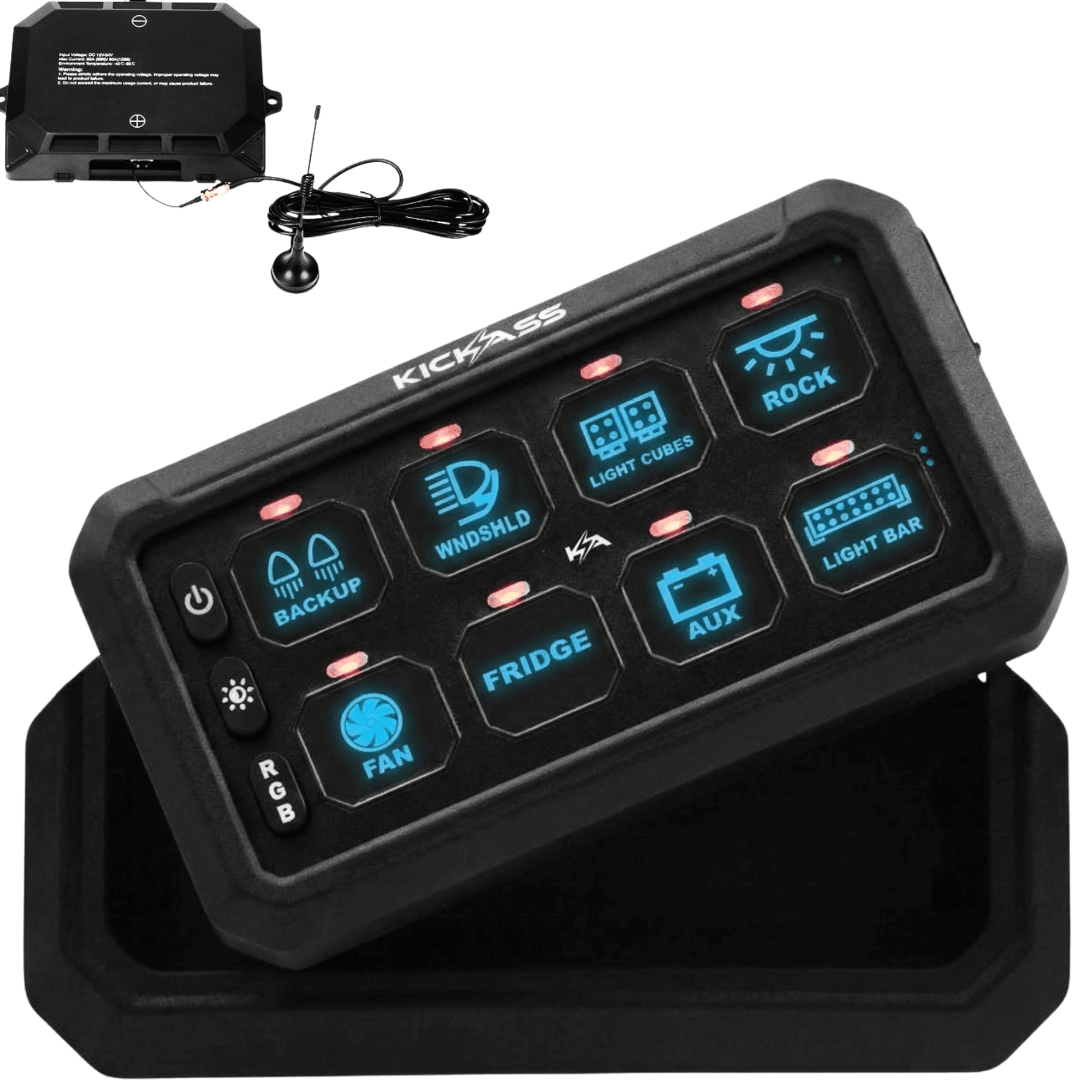

Control your DC switch gear from this sleek, premium 8-Gang Switch Panel. Enjoy app-free, wireless control from a range of up to 60 meters. Comes with a magnetic charging dock, so you can recharge straight from your switch panel’s cradle. No messy cables or loose USB ports – just a sleek, elegant setup.
NOTE: Not compatible with previous MKI control box and switch panels. A complete new MKII control box and switch panel upgrade is required.
KickAss Features:
Wireless control
Operate your DC appliances remotely from a distance of up to 60 meters, which is a much greater range than Bluetooth offers. No need to download apps or have your phone with you, or worry about complex cable routing between the panel and your control box. Simply grab your panel and go!
Rechargeable battery
The switch panel comes with a convenient, built-in rechargeable battery, meaning you can say goodbye to the hassle and expense of replacing disposable batteries – simply plug it in via the USB cable provided.
The battery charges fully in just 2-3 hours and can last for an impressive 5-6 days. Keep track of your battery status easily with the convenient battery indicator, which displays three clear levels: low, medium, and full.
High current capability
The 8 Gang Switch Panel has a high current capability, and can handle up to 60A at either 12V or 24V. This means you can simultaneously use high and low current devices – for example a speaker, camping fridge, camping lights, winch, air compressor, etc.
Multi battery capability
The control box switch offers two options to obtain power: you can connect ACC (Accessory power) to the starter battery, or alternatively to the auxiliary battery. If you prefer to operate your electrical devices (for example your horn, lights, and radio) only in ACC mode, selecting the ACC setup allows you to do so.
IP65 Dust & Water Resistance Rating
With an IP65 rating, the 8 Gang Switch Panel is perfect for outdoor adventures. It can withstand some dust and moisture exposure and continue to function. It should not be submerged in water.
Double sided outlet
The switch panel features a current control box that splits the output into two sides, allowing for versatile wiring configurations and minimising wire clutter. It includes two 30A, two 20A, two 15A, and two 10A outlets, with one of each type on either side of the panel.
Prewired ACC fuse tap
The pre-wired ACC fuse adapter makes it easy to connect the control box to the vehicle’s fuse box, without having to cut, splice or damage the vehicle’s existing wiring. Quick, easy installation!
Enhanced safety features
The 8 Gang Switch Panel is equipped with a 60/80A circuit breaker, blade fuses (plus a spare), and compact solid-state relays. This protects the switch panel from damage caused by thermal, overload and over-currents.
Multiple mounting options
Comes with two bracket mounting options for the switch panel and control box. All essential mounting hardware is included, as well as instructions and suggestions for optimal placement within your vehicle.
Adjustable lighting & on/off switch
There are three lighting modes: a constant light, a momentary light, and strobe modes. You can also choose between five brightness levels, as well as a number of colours and a dedicated switch to turn the backlight on and off. Enjoy total control of your setup.
DIY switch panel labels
Comes with 140 stickers to label each switch and its connection. Almost everything is covered!
Magnetic Charging Cradle
The unit comes with a magnetic charging cradle, which will keep your switch panel powered up without the hassle of loose cables or worn-out USB ports. Just line up the panel with the dock and it snaps neatly into place, delivering a safe, secure charge every time. It’s a seamless way to ensure your unit is always ready to go – clean, simple, and completely cable-free.
Built for reliable high-current performance, this heavy-duty 75mm² cable features flexible silicone insulation, corrosion-resistant tinned copper conductors and an included MEGA fuse with spare – making it the ideal connection for your KickAss 2200W Bi-Directional Inverter Charger.
Complete your inverter setup with the KickAss 2200W Inverter Premium Wiring Kit, designed specifically for use with the KickAss 2200W Bi-Directional Inverter Charger. The heavy-duty 75mm² cable provides a reliable high-current connection, with tinned copper conductors offering excellent conductivity and added corrosion resistance for demanding 12V, mobile and off-grid applications.
A flexible silicone outer sheath makes the cable easier to route and install, particularly in tight or confined spaces. The kit also includes a high-current MEGA fuse for essential circuit protection, plus a spare for added convenience. It’s a purpose-built wiring solution for creating a reliable, professional inverter installation in caravans, camper trailers, 4WDs and other off-grid power setups.
The KickAss Remote Smart Lithium Battery Display Unit is compatible with the KickAss Smart and Ultra-X series batteries. Simple plug-and-play via the RJ45 connector, it allows you to monitor State of Charge (SOC), voltage, real-time current, and temperature of either a single battery or multiple batteries connected in parallel or series. Includes 5m extension cable. No shunt required!
The KickAss Remote Smart Lithium Battery Display Unit is compatible with the KickAss Smart and Ultra-X series batteries. Simple plug-and-play via the RJ45 connector, it allows you to monitor State of Charge (SOC), voltage, real-time current, and temperature of either a single battery or multiple batteries connected in parallel or series. Includes 5m extension cable.
Take full control of your battery system with the KickAss Battery Display Monitor – your window into real-time performance, protection, and peace of mind.
Monitor Your Battery Like a Pro
Never guess your battery’s health again. With a full-colour screen, you can instantly view:
Built-In Battery Management System (BMS)
The integrated KickAss BMS keeps your battery safe — actively protecting against:
Stay alerted with smart error messages and stay in control from your display or compatible mobile device.
Easy Flush-Mount Design
Install it where you need it most. Whether it's in your canopy, van, or camper setup, the flush-mount design with included screws and universal hole spacing makes installation fast and secure.
Compact Dimensions
The KickAss Battery Display Monitor isn’t just for looks – it’s your off-grid command centre. Whether you're heading bush or running gear off your canopy, this screen keeps your system protected and your trips worry-free.
Control and monitor your KickAss Bi-Directional Inverter Charger from a convenient location. This plug-and-play remote features an OLED screen displaying real-time AC output power, dedicated status LEDs, flexible flush or surface mounting and an included two-metre RJ45 cable. Compatible with both 2200W and 3200W models.
Put convenient inverter control and monitoring within easy reach with this remote for KickAss 2200W and 3200W Bi-Directional Inverter Chargers. Switch your inverter on and off without needing direct access to the unit, while the integrated OLED screen displays real-time AC output power so you can keep an eye on appliance loads at a glance. Dedicated LED indicators also provide quick confirmation of bypass and battery-charging status.
Designed for a clean, flexible installation, the inverter remote can be flush mounted or surface mounted using the included frame, making it easy to position where it works best in your caravan, camper trailer, 4WD or off-grid setup. The included two-metre RJ45 cable provides a simple plug-and-play connection, while multi-remote capability lets multiple connected remotes work together for convenient inverter control from different locations.
| Voltage | 12V/24V DC |
| Power | 720W at 12V / 1440W at 24V |
| Maximum Current | 60A Total |
| Operating Temperature | -40°C to 85°C |
| Standby Power | <3mA |
| Battery | Rechargeable |
| Operation | Wireless |
| Weight | 2kg |
| Switch Panel Dimensions | 127mm x 69mm x 14mm |
| Fuse Panel Dimensions | 192mm x 133mm |
| Certification | EN 6100 |
⚠️ Voltage Warning
This switch panel is designed for 12V and 24V Nominal DC electrical systems only. Do NOT connect it to any power source exceeding 24V DC. Using an input voltage higher than 24V may cause permanent damage to the switch panel and will void the warranty.
⚠️ Wiring Warning
Only connect compatible output devices (such as lights, fridges and other 12V/24V accessories) to the panel's output ports. Do NOT connect input devices (such as battery chargers, solar panels or control signals), to the output ports. The switch panel is not designed for these connections. Incorrect wiring may cause permanent damage to the product and will void the warranty.
| Voltage | 12.8V |
| Capacity | 230Ah |
| Cell Type | Prismatic |
| Max Continuous Discharge | 230A |
| Max Continuous Charge | 230A |
| Peak Discharge | 430A (30s) |
| Max Charge Temp | 60°C |
| Min Charge Temp | 0°C |
| Max Discharge Temp | 65°C |
| Min Discharge Temp | -20°C |
| Cycle Life | 4000+ cycles | 80% DoD | 1C Charge / 0.5C Discharge |
| Bluetooth | Yes |
| Remote Display | Optional |
| Parallel / Series | 4 | 4 |
| Parallel / Series Remote Monitoring | Bluetooth | Remote Display |
| Dimensions (Battery) | 450 x 70 x 500 mm |
| Dimensions (with Terminals and Housing) | 510 x 70 x 540mm |
| Weight | 26.9 kg |
| Certifications | IEC62619 |
| Warranty | 5 years |
| DC Input Voltage | 10.5–15 VDC |
| Charger Output Voltage | AGM 14.8V | STD 14.4V | GEL 14.2V | LiFePO4 14.4V |
| Charger Input Power | 1800W Fast Charge | 600W Slow Charge |
| Supported Battery Chemistries | AGM, Standard (STD), GEL, LiFePO4 |
| AC Input Voltage | 196–264 VAC (nominal 230V / 50Hz) |
| AC Output Power | 2200W | 230VAC ±5% | 50Hz ±1 | Pure Sine Wave |
| AC Output Surge Power | 4400W |
| Inverter Efficiency | ≥88% |
| Transfer Time | 15ms max |
| Standby Power | ≤20mA |
| USB | 2 x USB-A (18W Max) |
| Bluetooth | Yes |
| Communications | RS485 |
| Operating Temperature | -20 to +40°C |
| Dimensions | 439mm x 277mm x 96mm |
| Weight | 7.7kg |
| Certifications | CISPR14 | CISPR32 | IEC60335-1 | IEC60335-2-29 | AS/NZS4763 | AS/NZS4268 |
| Input Voltage | 9-16V |
| Communications | RS485 |
| Standby Power | 10mA |
| Operating Temperature | -20 to +50°C |
| Dimensions | 79mm x 68mm x 20mm |
| Weight | TBC |
| Certifications | RCM |
| Wire Size | 75mm² |
| Cable Length | 1000mm |
| Insulation | Silicone |
| Conductor | Tinned Copper |
| KickAss 12V/24V 8 Gang Wireless Switch Panel with Magnetic Charging Cradle - MKII | |
| KickAss Smart 12V 230Ah Ultra-X Lithium Slimline Deep Cycle Battery LiFePO4 | |
| KickAss Smart Lithium Battery Remote Display Unit + 5m Extension Cable Bundle | |
| KickAss 12V to 230V Pure Sine Wave 2200W Bi-Directional Inverter-Charger + Integrated Bluetooth |
Power your adventures with the KickAss 12V 230Ah Ultra-X Lithium Complete Dual Battery Kit. Designed for those who demand reliability, this kit includes the powerful KickAss Smart 12V 230Ah Ultra-X Lithium Slimline Deep Cycle Battery and the advanced KickAss 12V to 230V Pure Sine Wave 2200W Bi-Directional Inverter-Charger. Our smart bundle also features a 60A Dual Channel DCDC Charger with Solar MPPT to ensure your battery is always topped up, while the provided wiring kits ensure seamless installation. Boost your setup with the KickAss 8 Gang Wireless Switch Panel for easy control and monitoring. This comprehensive kit is built to withstand the harshest Australian conditions, offering the perfect blend of performance and durability for off-grid adventures.
