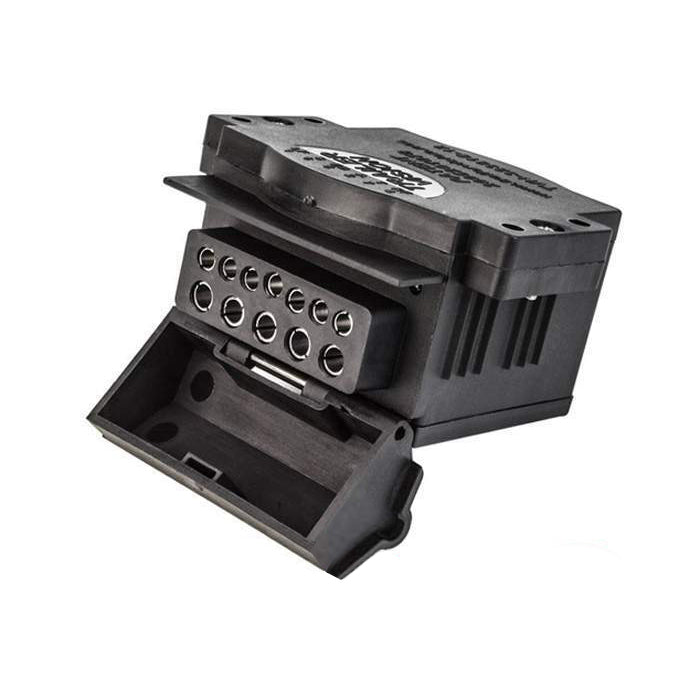

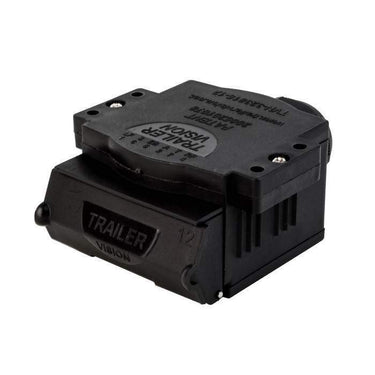

12 Pin Flat Trailer Socket
Pickup available at Acacia Ridge Store
Usually ready in 1 hour
1 Year Warranty
This product is covered by a 1 Year Limited Warranty.
Description
Ideal for car-to-trailer connections, the KickAss 12-pin Flat Trailer Plug can accommodate up to 6mm of cable, ensuring efficient electrical flow while towing. Ensure your lights are functioning properly.
Twelve-Pin Trailer Plug & Socket
A twelve-pin plug is a common alternative to an Anderson-style plug for towing between a car and a trailer, camper, or caravan. It supports up to 6mm cable connections and acts as the main electrical current point between your vehicle and what you're towing.
Wiring Arrangement:
- 1. Yellow β Left indicator
- 2. Black β Auxiliary or reversing light
- 3. White β Earth
- 4. Green β Right indicator
- 5. Blue β Electric brakes
- 6. Red β Stop light
- 7. Brown β Tail and registration plate
- 8. Orange β Battery charger/electric winch
- 9. Pink β Auxiliaries/battery feed/fridge
- 10. White β Earth return
- 11. Grey β Rear fog lamps
- 12. Violet β Spare
Specifications
Additional specifications can be found in the detailed description of the product(s) below.
User Manual and Support
KickAss has warehouses located on both the East and West Coast of Australia. Express orders are dispatched same business day if ordered before 12pm AEST. Standard orders are dispatched within 2-3 business days.Β Deliveries are made during business hours, Monday to Friday.
At KickAss, we take full control of our product journey - from concept to creation - by designing, engineering, and manufacturing our own batteries and 12V accessories in our wholly owned facilities located in Australia, China, and the USA. This end-to-end approach allows us to maintain strict quality standards, drive innovation, and deliver unbeatable value. By owning our production facilities, we ensure every product that carries the KickAss name is built tough, tested rigorously, and ready for off-grid adventure.
Change your mind? No worries, our quick & easy online or in-store returns process has you covered. Learn more.
BUNDLE & SAVE!

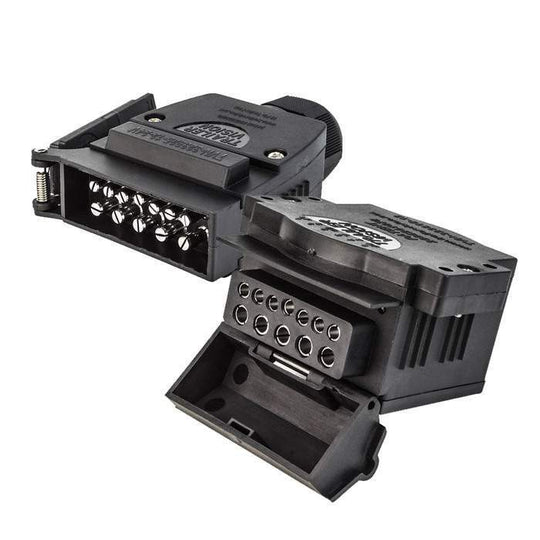

12 Pin Flat Trailer Plug, and 12 Pin Flat Trailer Socket
See why our customers are all inβthese reviews speak for themselves!
- Clive R.Verified BuyerRated 3 out of 5 stars1 year ago12 Pin Trailer Socket

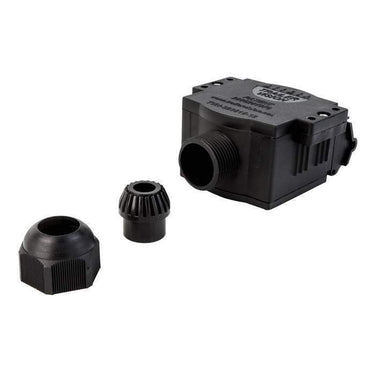

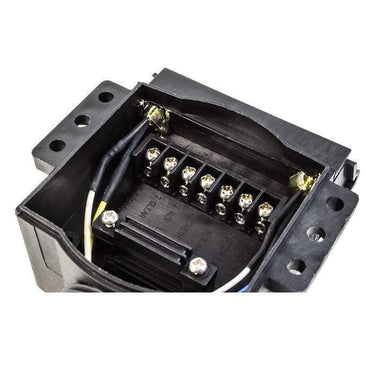

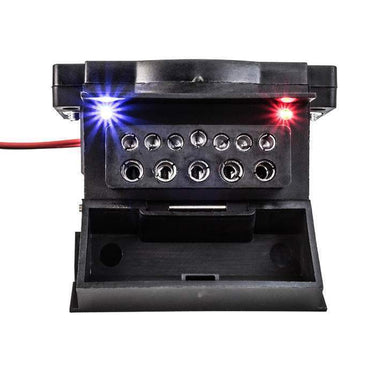

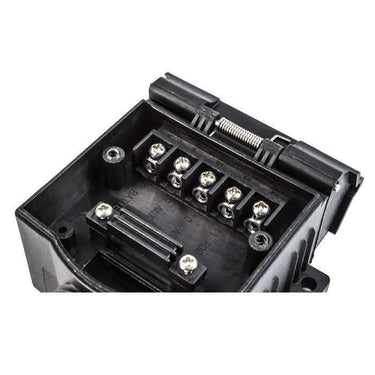

Externally looks good, however when unscrewing the screws that lock each wire into the rear of each of the connectors, I found that the connector socket was thin, resulting in the screw having to be fully removed from the threaded section in order to allow the end of each wire to be pushed into the socket, which was not tight in the surrounding moulding, and rotated when trying to insert the screw back into the thread. After quite some frustration I finally managed to get the locking screws back into the thread. This has not been a problem for me with other brands of these connectors. Also whilst the LED lights are a good idea, there is not enough room in the socket to also insert the LED wire. The screw cap on the cable entry is a good idea.
- Ian T.Verified BuyerRated 3 out of 5 stars2 years agoHoles are to large for
Holes are to large for LED light have to sips glue in
