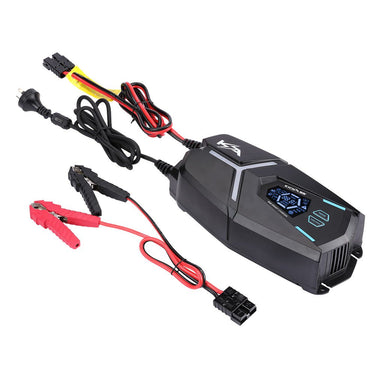

KickAss Flexicharge 12V 32A ACDC Smart Battery Charger For Lead Acid, AGM & Lithium Batteries

KickAss Flexicharge 12V 32A ACDC Smart Battery Charger For Lead Acid, AGM & Lithium Batteries

Support Page User Manual

KickAss Flexicharge 32A Smart 12V Battery Charger – Feature Overview

Automatic 9-Stage Smart Charging
A high-tech microprocessor controls charging in 9 separate stages. It senses your battery's needs and delivers optimal current and voltage for maximum efficiency.

Fast Charge 32A Peak Output
Delivers up to 32A per hour, reducing charge time significantly. Combined with 9-stage charging, it ensures the best performance and protection for your battery.

Adjustable Output for Different Battery Sizes
Offers selectable output at 8A, 16A, or 32A, making it suitable for small and large batteries alike.

Compatible with Multiple Battery Chemistries
Works with AGM, Gel, Lithium, LiFePO4, and Lead Acid batteries. Adjustable output ensures safe and effective charging for each type.

Lithium Activation Mode
Restores lithium batteries that fall below BMS safety voltage. Trickle charges until the cut-in voltage is reached and resumes normal cycles.

AGM Recondition Mode
Revives AGM batteries by breaking down lead sulphate buildup. Ideal after deep discharges or long periods of disuse.

Multiple Protection Features
Includes reverse polarity, short circuit, and over-temperature protection to safeguard both charger and battery.

Connect via Anderson Connectors or Alligator Clips
Flexible connection options let you hook up directly to battery terminals or use a compatible battery box with Anderson input.

Fully Compliant
Certified to Australian standards for safety and performance.

The KickAss Flexicharge delivers up to 32 amps peak charging current and supports multiple battery chemistries including lead acid, AGM, Gel, and LiFePO4 batteries. It offers adjustable output settings of 8A, 16A, and 32A for precise charging tailored to your battery size. This flexibility ensures efficient and safe charging for a wide range of 12V batteries, making it ideal for various off-grid and adventure applications.

No, this charger is designed to charge lithium batteries only if they have an in-built Battery Management System (BMS). This safety requirement protects both the battery and charger during operation. The charger’s Lithium Activation mode is optimised for LiFePO4 batteries with BMS, ensuring safe, reliable charging and extending battery life.

To set up, first position the charger near the battery and plug it into a 220-240V AC power source. Use the ‘Mode’ button to select the correct battery type—AGM, Standard/Gel, or Lithium—then connect the alligator clamps or Anderson connector to the battery terminals. Always connect clamps after powering the charger to avoid sparks and ensure safe operation.

The charger includes reverse polarity protection, short circuit protection, and overheating protection that reduces current to 2A if the internal temperature reaches 95°C. These features prevent damage from incorrect connections, accidental clamp contact, and excessive heat, giving you peace of mind while charging your batteries in any environment.

Yes, the charger has a charge memory function that remembers your settings and automatically resumes charging in the same mode once mains power is restored, provided the clamps remain connected. This feature ensures uninterrupted charging without needing to reset the device, making it highly convenient for off-grid use.

The charger is designed for indoor use only and must be kept away from moisture and excessive dust. Its compact dimensions (298 x 152 x 87mm) make it easy to store and transport. Using it indoors ensures optimal performance and longevity, while its rugged design supports reliable operation in your adventure gear setup.

The charger offers three adjustable charging currents—8A for slow charging, 16A for medium speed, and 32A for fast charging—allowing you to select the optimal rate based on your battery’s specifications. This precision charging maximises battery health and performance, whether you’re topping up a small starter battery or rapidly charging a large deep-cycle battery.

If reverse polarity occurs, the red LED will blink and charging will not start. Simply disconnect the charger from power and battery, then reconnect correctly—red clamp to positive (+) and black clamp to negative (-). This built-in protection prevents damage and ensures safe, hassle-free charging every time.
