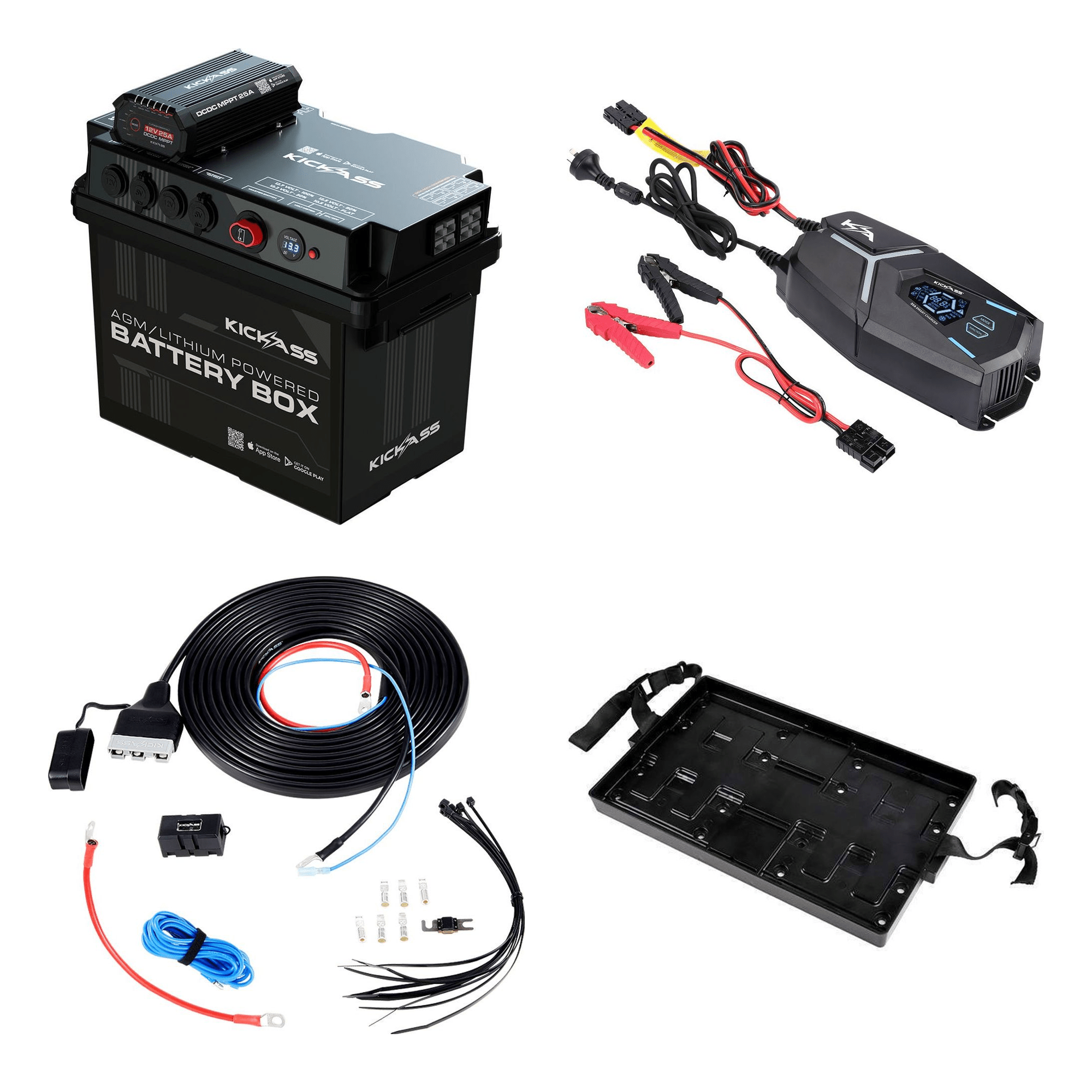

KickAss Battery Box with 25A DCDC Charger Bundle with 32A ACDC Charger, Wiring Kit & Battery Box Tray

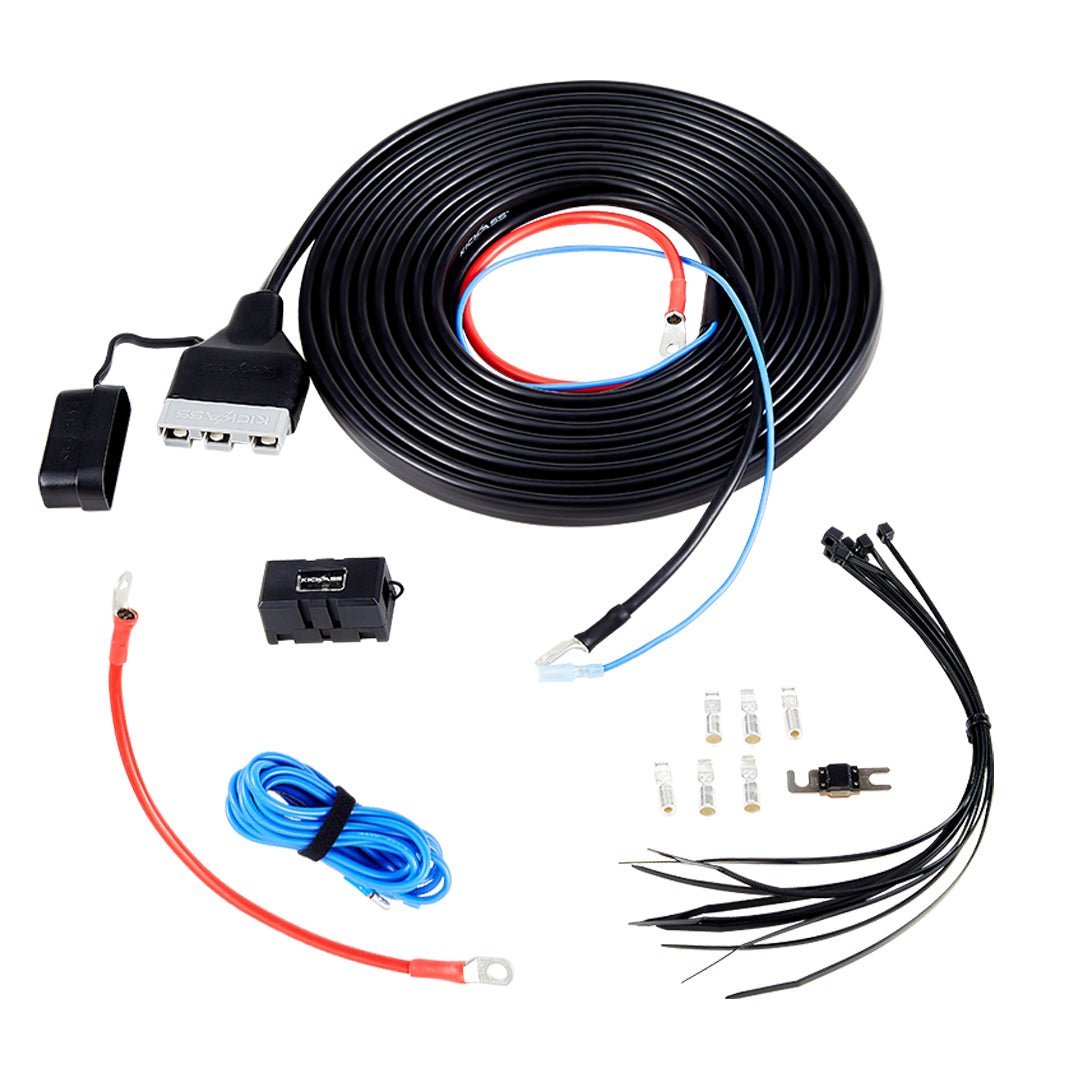

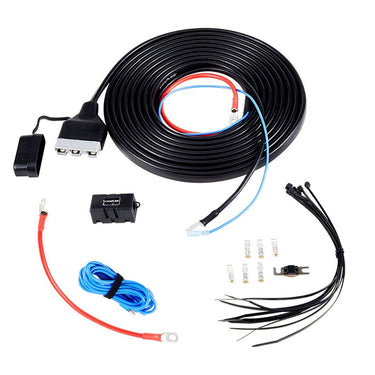

KickAss Premium Plug & Play DC-DC Wiring Kit

Introducing the ultimate dual battery system wiring kit, now featuring a three-pin 50 Amp Anderson-style connector with ignition wire. The team at KickAss has carefully developed this premium plug-and-play wiring kit for ultra-easy DIY installations. It’s packed with high-quality components to ensure your setup is smooth and professional.

The kit is fully plug-and-play for any system using Anderson connectors for charging input and includes everything needed for a professional wiring installation. It now comes with our famous Maxifuse cable pre-installed into 6 metres of heavy-duty 8 B&S cable, providing 50A of circuit protection. The new three-pin Anderson plug allows for easier installation by integrating an ignition wire directly into the connector—eliminating the need to run multiple cables through your vehicle.

The cable is pre-crimped with Anderson connector terminals, making it simple to feed through holes and grommets. Once installed, you just clip on the three-pin Anderson connector. The kit also includes cable ties for securing cables, a spare 80A Maxifuse, a 3-metre ignition tail wire, and spare Anderson terminals.

Backwards Compatibility

The three-pin Anderson connector is backwards compatible, allowing a two-pin Anderson connection to work even if the ignition wire is not connected.

The KickAss Premium DC-DC wiring kit is specifically designed for our DC-DC chargers and is not compatible with VSRs.

For Other Installations, Please Use Our Dual Battery Wiring Kit When:

• Wiring to a battery system in the cargo area of the vehicle
• Installing VSRs – see our KAVSRAND kit fully compatible with this setup
• Connecting KickAss battery boxes and power packs
• Connecting auxiliary batteries – using KickAss Maxifuse Cable and optional VSR

This Kit Includes:

• 6 x 50 Amp Anderson terminals
• 1 x 50 Amp 3-Pin Anderson connector
• 1 x 80Amp spare Maxifuse
• 10 x Black cable ties (300mm)
• 1 x 3m tail ignition cable

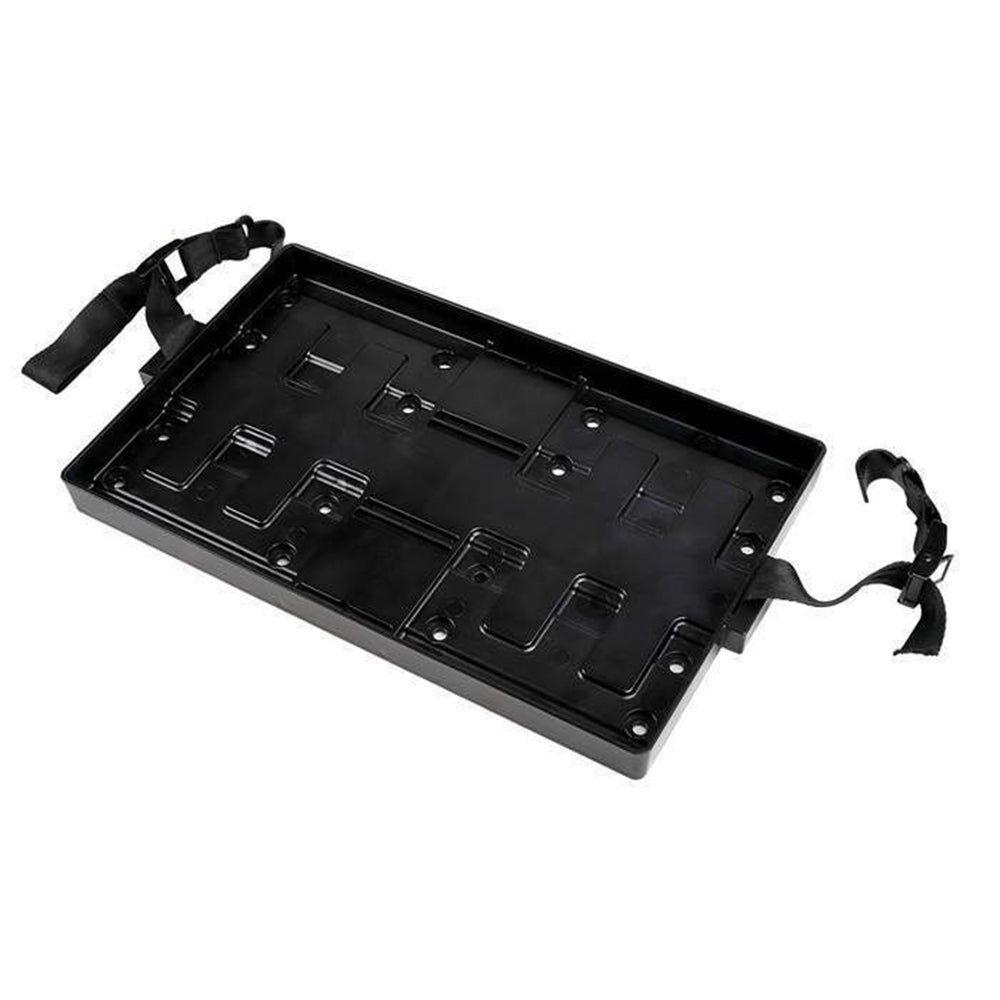

KickAss Battery Box Tray

Materials
Tray: Hard, durable anti-flex plastic
Buckles: Metal
Straps: Thick anti-tear nylon

Dimensions
External: 360 x 225 mm
Internal: 355 x 210 mm

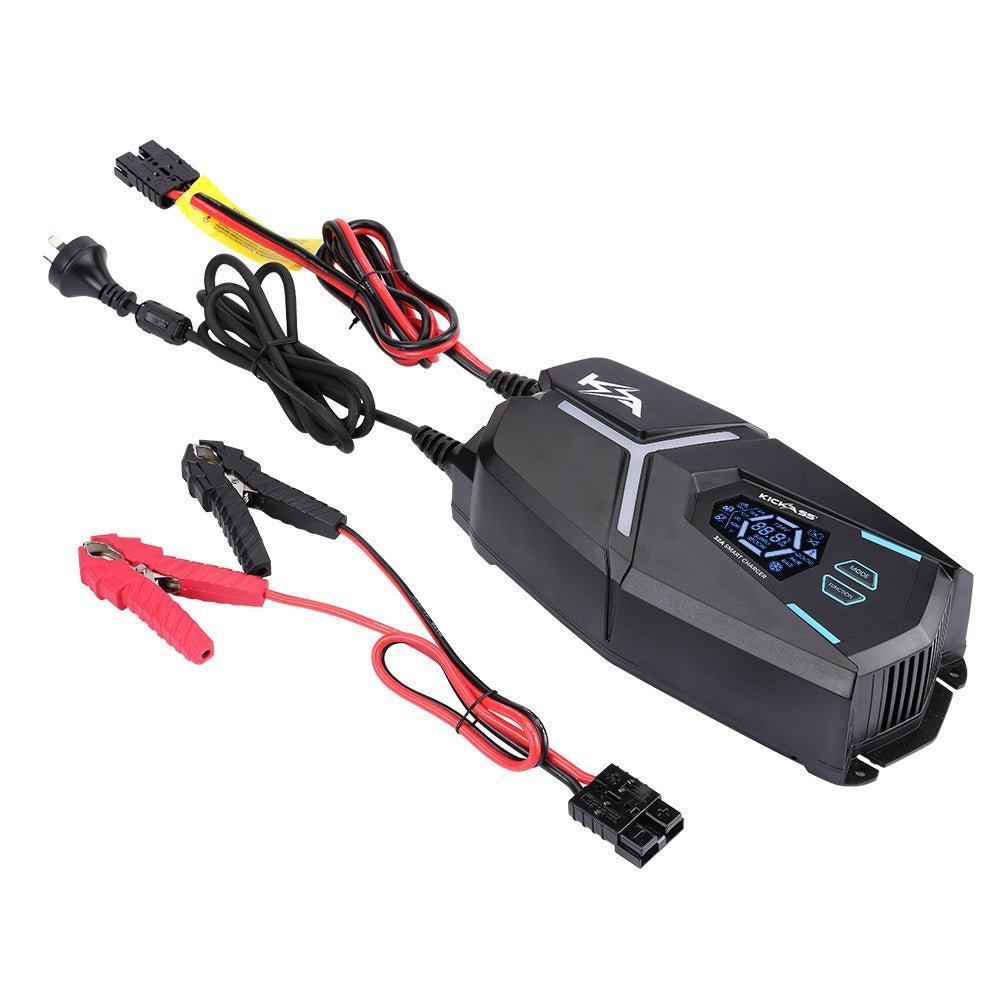

KickAss Flexicharge 32A Smart 12V Battery Charger – Feature Overview

Automatic 9-Stage Smart Charging
A high-tech microprocessor controls charging in 9 separate stages. It senses your battery's needs and delivers optimal current and voltage for maximum efficiency.

Fast Charge 32A Peak Output
Delivers up to 32A per hour, reducing charge time significantly. Combined with 9-stage charging, it ensures the best performance and protection for your battery.

Adjustable Output for Different Battery Sizes
Offers selectable output at 8A, 16A, or 32A, making it suitable for small and large batteries alike.

Compatible with Multiple Battery Chemistries
Works with AGM, Gel, Lithium, LiFePO4, and Lead Acid batteries. Adjustable output ensures safe and effective charging for each type.

Lithium Activation Mode
Restores lithium batteries that fall below BMS safety voltage. Trickle charges until the cut-in voltage is reached and resumes normal cycles.

AGM Recondition Mode
Revives AGM batteries by breaking down lead sulphate buildup. Ideal after deep discharges or long periods of disuse.

Multiple Protection Features
Includes reverse polarity, short circuit, and over-temperature protection to safeguard both charger and battery.

Connect via Anderson Connectors or Alligator Clips
Flexible connection options let you hook up directly to battery terminals or use a compatible battery box with Anderson input.

Fully Compliant
Certified to Australian standards for safety and performance.

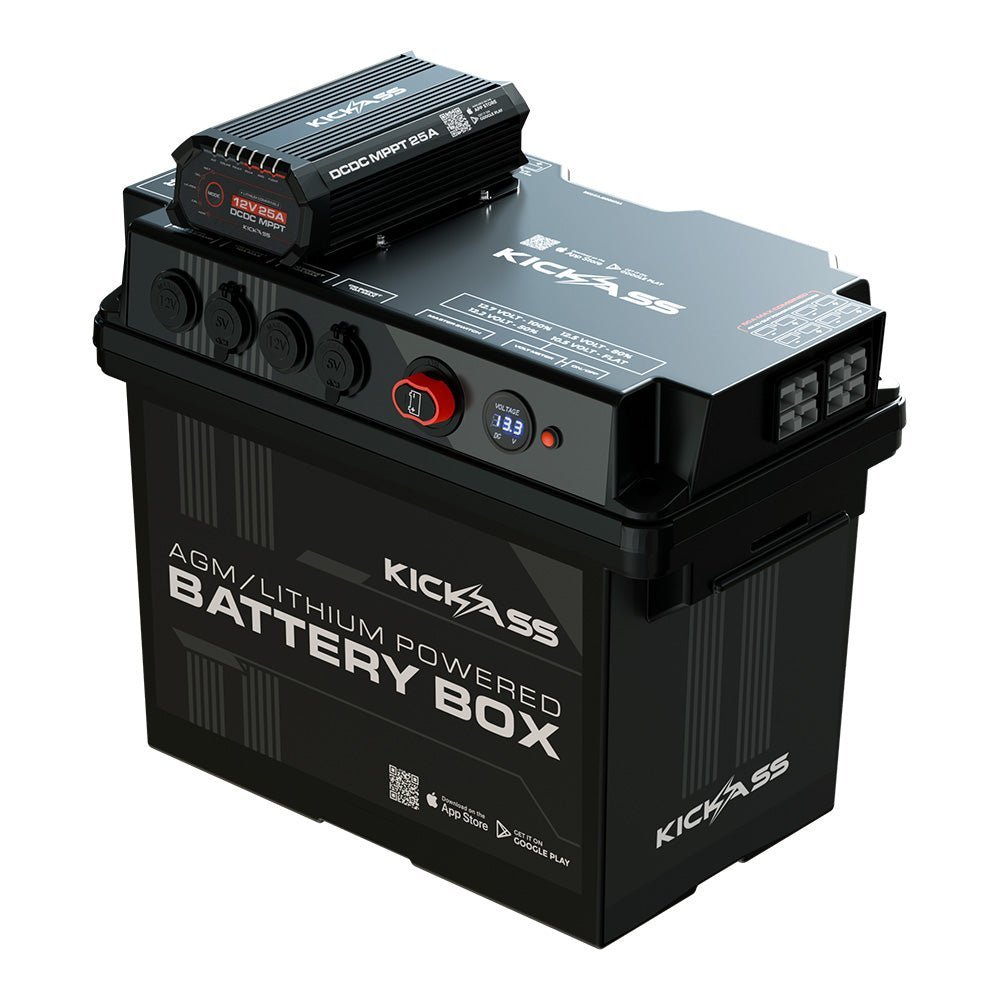

This unit is the new & improved evolution of our iconic Battery Box Power Station. This KickAss Battery Box with 25A DCDC Charger + Integrated Bluetooth is designed to turn your own battery into a powerful, portable energy hub, with faster charging, smarter monitoring and an even cleaner install. Just drop your battery in, plug connect it, and you’re ready to power fridges, lights and accessories.

Fast, reliable charging via alternator and solar

The unit includes a built-in 25A DCDC charger with MPPT, delivering efficient vehicle charging straight from your alternator while driving, or from solar while parked. This means you don’t have to remain dependent on mains power, and can recharge your auxiliary battery at any time.

Bluetooth monitoring with the KA Charge App

Stay in control of your power system without lifting the lid. Integrated Bluetooth lets you monitor charge status, voltage, input sources, charge current and system notifications directly from the KA Charge App. It’s clear, real-time insight into what your system is doing, right from your phone.

Simple plug & play setup

Installation is refreshingly straightforward. The battery box comes pre-wired with inputs and outputs, making setup quick and simple. Drop in your battery, connect your accessories and you’re good to go. It’s perfect for first-time builds or quick upgrades.

Supports multiple battery types

Whether you’re running AGM, Gel, Calcium or Lithium LiFePO₄, this battery box has you covered. Dedicated charging profiles ensure each battery chemistry is charged safely and efficiently, helping maximise performance and extend battery life.

Quick drop-in battery installation

Swapping or installing a battery takes seconds. The drop-in tray design eliminates complex wiring and specialised tools, making it easy to upgrade or replace your battery whenever needed.

Heavy-duty power connections

Four 50A Anderson input/output ports allow you to run multiple high-draw devices or charge from dual sources with confidence. These rugged connectors are built for reliable power transfer in demanding environments.

Power for all your everyday gear

USB ports and 12V cigarette sockets make it easy to run fridges, lights, compressors, phones and other essentials from one central hub.

Clean, professional rear connections

Rear flush-mounted Anderson connectors help keep cables tidy and protected. The result is a cleaner, more professional finish inside your canopy, vehicle or trailer, with reduced clutter and better cable management.

Built-in protection you can rely on

Auto-resettable circuit breakers protect your system from overloads and short circuits without the need for spare fuses. If a fault occurs, simply reset and keep moving.

Clear voltage display at a glance

The integrated LED voltage display gives you an instant snapshot of battery status, day or night.

Designed to move with you

Comfortable moulded carry handles make transporting the battery box easy, even when fully loaded. It’s built for portability without sacrificing strength or stability.

Optional extras for a complete setup

Pair the battery box with the optional DCDC wiring kit for a clean, professional vehicle connection with reduced install time. Add the optional quick-release battery tray to swap batteries in seconds while keeping everything secure!
