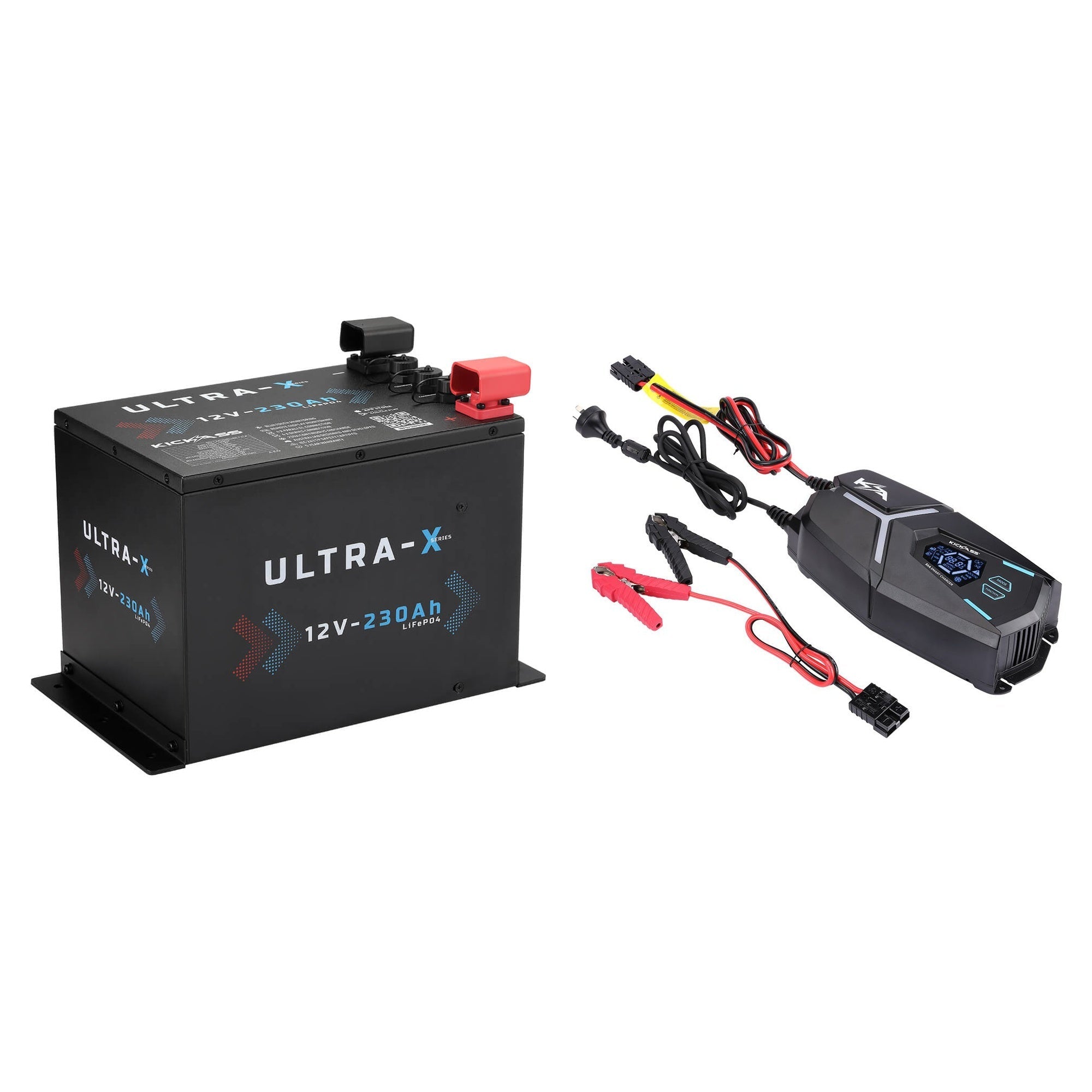

KickAss 230Ah Compact Lithium Battery Bundle with 32A Smart Charger

KickAss Features:

• Ultra compact design
• Supporting Bluetooth app
• BMS with multiple safety features
• Connect in parallel or series
• Monitor your battery bank remotely
• 230Ah usable capacity
• 230A continuous charge & discharge with 460A pulse capacity
• 4000+ Cycles @ 80% DoD 0.5C
• Metal case with integrated mounting points
• Australian Safety Certified
• Designed & developed in Australia

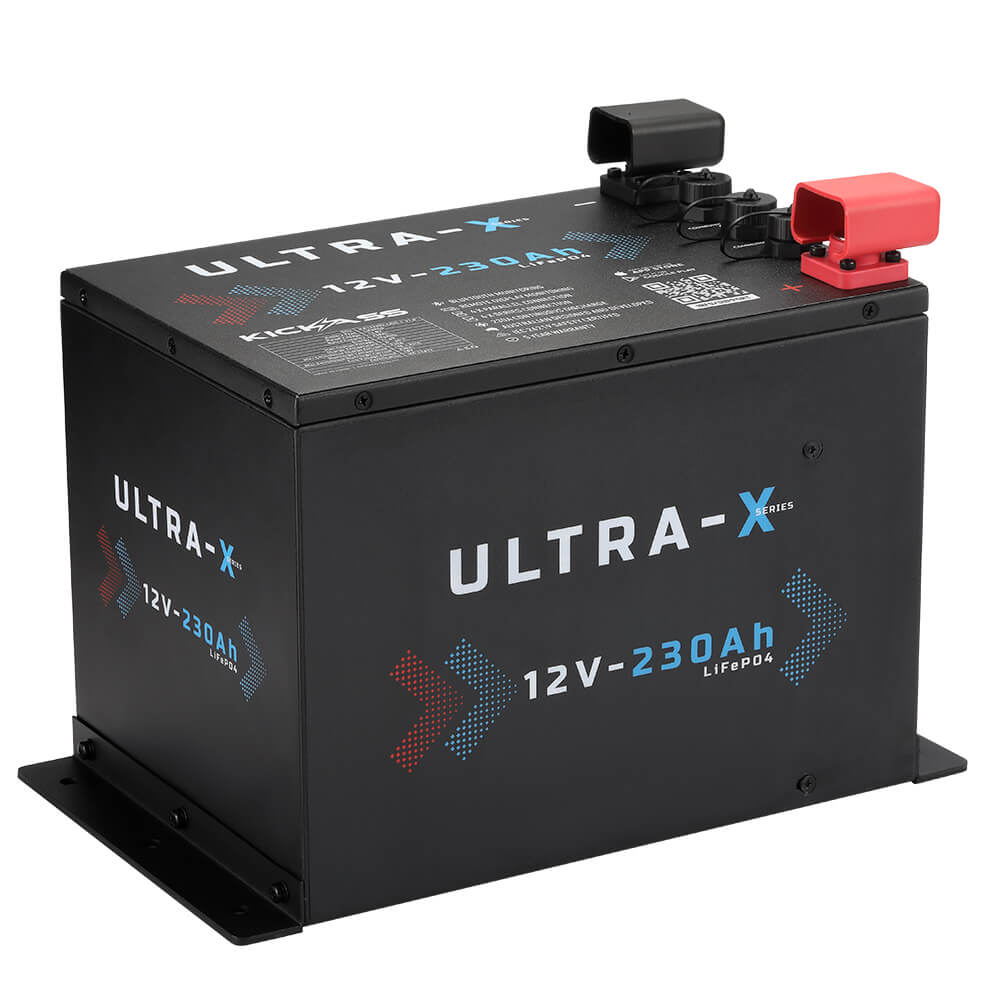

Ultra Compact Design

The ultra-compact design is ideal for those who have minimal space but need maximum power. Despite being only slightly larger than a standard N70 battery, it delivers double the usable capacity – perfect for tight spots & tricky installations. This KickAss battery delivers big power in a small package.

Supporting Bluetooth App

No more guesswork – stay in control of your power system by using the supporting Bluetooth app. Monitor critical battery parameters such as SoC, level, voltage, current, temperature, and real-time system alerts right from your smartphone. Having real-time data at your fingertips ensures optimal performance and peace of mind during all your off-grid adventures.

BMS with Multiple Safety Features

The KickAss 12V 230Ah Deep Cycle Lithium Battery is equipped with an advanced Battery Management System (BMS) that ensures safety and reliability. The BMS actively monitors and protects the battery from common issues such as overcharging, over-discharging, short circuits, and overheating, ensuring safe operation at all times.

Create a Battery Bank with Over 900Ah of Usable Capacity

These batteries support parallel and series configurations for maximum versatility. Link up to four in parallel to create a massive battery bank with over 900Ah of usable capacity, delivering serious power for extended off-grid use. This capability allows you to tailor your power setup to your exact needs.

Monitor Your Battery Bank Remotely

Monitoring multiple batteries in a series or parallel setup usually requires an external shunt, but these batteries eliminate that need. Simply connect each Ultra-X series battery using an RJ45 cable, and the optional KickAss Remote Display Unit (RDU) will seamlessly interface with the entire battery bank. Alternatively, use the supporting Bluetooth app for system monitoring without additional hardware.

230Ah Usable Capacity

With 230Ah of usable capacity, the KickAss 12V Deep Cycle Lithium Battery offers an abundance of power for extended off-grid adventures. This large capacity means you can run devices and appliances for longer periods without frequent recharges.

230A Continuous Charge & Discharge with 460A Pulse Capacity

This battery delivers exceptional performance with its 230A continuous charge and discharge capability, ensuring a steady and reliable flow of power for demanding applications. The impressive 460A pulse capacity allows it to handle sudden power surges, making it incredibly versatile.

4000+ Cycles @ 80% DoD 0.5C

Designed for longevity, this battery offers over 4000 charge and discharge cycles at 80% Depth of Discharge (DoD) and a 0.5C charge/discharge rate. This durability ensures a long-lasting, high-performance battery for years to come.

Metal Case with Integrated Mounting Points

The durable metal housing with integrated mounting points eliminates the need for a separate battery tray. The heavy-duty metal casing not only protects the battery from the elements and rough conditions but also makes installation easier and more secure.

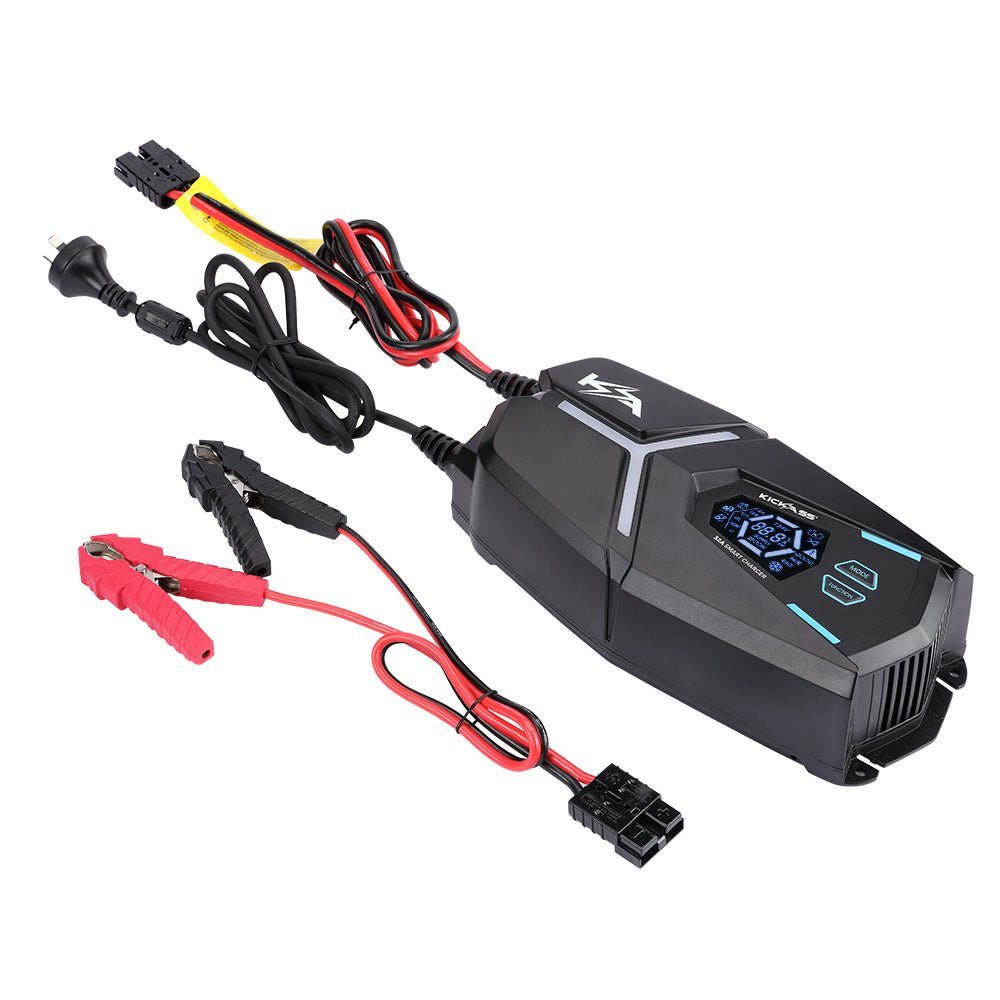

KickAss Flexicharge 32A Smart 12V Battery Charger – Feature Overview

Automatic 9-Stage Smart Charging
A high-tech microprocessor controls charging in 9 separate stages. It senses your battery's needs and delivers optimal current and voltage for maximum efficiency.

Fast Charge 32A Peak Output
Delivers up to 32A per hour, reducing charge time significantly. Combined with 9-stage charging, it ensures the best performance and protection for your battery.

Adjustable Output for Different Battery Sizes
Offers selectable output at 8A, 16A, or 32A, making it suitable for small and large batteries alike.

Compatible with Multiple Battery Chemistries
Works with AGM, Gel, Lithium, LiFePO4, and Lead Acid batteries. Adjustable output ensures safe and effective charging for each type.

Lithium Activation Mode
Restores lithium batteries that fall below BMS safety voltage. Trickle charges until the cut-in voltage is reached and resumes normal cycles.

AGM Recondition Mode
Revives AGM batteries by breaking down lead sulphate buildup. Ideal after deep discharges or long periods of disuse.

Multiple Protection Features
Includes reverse polarity, short circuit, and over-temperature protection to safeguard both charger and battery.

Connect via Anderson Connectors or Alligator Clips
Flexible connection options let you hook up directly to battery terminals or use a compatible battery box with Anderson input.

Fully Compliant
Certified to Australian standards for safety and performance.
