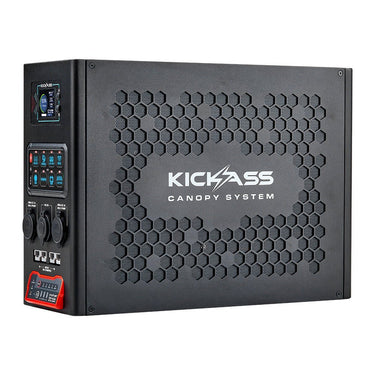

KickAss Wired Switching Canopy Power System with 40A DCDC Charger
Save more when you buy this as part of a KickAss kit.
View bundle deals →The KickAss Canopy System is a plug-and-play unit that makes 12V setups easy. It combines an MPPT solar controller, DC-DC charger, 8-gang switch panel, and USB fast charging, perfect for DIY installs. Pair it with a KickAss lithium smart battery for a complete off-grid solution.
Pickup available at Acacia Ridge Store
Usually ready in 1 hour
1 Year Warranty
This product is covered by a 1 Year Limited Warranty.
Description
The Canopy System simplifies your setup by eliminating the need to buy separate devices and wire them together yourself. This all-in-one, plug-and-play unit is very simple to install and is perfect for the DIY enthusiast. It integrates essential components for your four-wheel-drive vehicle, including an MPPT solar controller, DC to DC charger, Eight-Gang Switching Panel, and USB fast charging capabilities.
Designed to work in conjunction with the KickAss range of Lifepo4 lithium smart batteries, the Canopy System ensures optimal compatibility and performance. Choose the KickAss smart battery that best suits your installation needs for a complete power solution.
Note: The KickAss Wired Switching Canopy Power System is designed to work with KickAss Smart Series and KickAss Ultra-X Lithium Batteries. The display screen will not work with other battery types.
Specifications
| Specifications | |
|---|---|
| Cig Socket Outputs | 1 x 10A |
| USB Outputs | 2 x USB-C 45W | 2 x QC3.0 |
| Anderson Input / Outputs | 5 |
| Anderson Inputs | 3 Pin Alternator | Unregulated Solar |
| Digitally Switched Outputs | 8 |
| DCDC-MPPT | |
| Input Voltage Range | 5-32V DC |
| Alternator Input Voltage Range | 9-32V DC |
| Solar Input Voltage Range | 10-32V DC |
| Maximum Input Current | 47A |
| Maximum Continuous Charging Current | 40A |
| Maximum Output Power | 500W |
| Fuse Size | 60A |
| No Load Current Draw | <15 mA |
| Efficiency | Approx. 93% when full load |
| Ambient Operating Temperature | -20 °C to +80 °C |
| Recommended Battery Capacity | |
| Lead Acid (WET, GEL, AGM, CAL) | 200 – 500Ah |
| LiFePO4 | 50 – 500Ah |
| Charge Profile | |
| Compatible Battery Type | GEL, WET, AGM, CAL, LiFePO4 |
| Absorption Voltage | 14.1V, 14.4V, 14.7V, 15.3V, 14.5V |
| Float Voltage | 13.5V, 13.4V, 13.6V |
| Minimum Auxiliary Battery Voltage | 9V, 0V |
| Alternator Input Conditions | |
| Input Voltage (Ignition OFF) | CUT IN 13.2V | CUT OUT 12.6V |
| Input Voltage (Ignition ON) | CUT IN 12.2V | CUT OUT 10.5V |
| Alternator Input Voltage (Ignition OFF) | CUT IN 26.4V | CUT OUT 25.2V |
| Alternator Input Voltage (Ignition ON) | CUT IN 24.4V | CUT OUT 21.0V |
User Manual and Support
KickAss has warehouses located on both the East and West Coast of Australia. Express orders are dispatched same business day if ordered before 12pm AEST. Standard orders are dispatched within 2-3 business days. Deliveries are made during business hours, Monday to Friday.
At KickAss, we take full control of our product journey - from concept to creation - by designing, engineering, and manufacturing our own batteries and 12V accessories in our wholly owned facilities located in Australia, China, and the USA. This end-to-end approach allows us to maintain strict quality standards, drive innovation, and deliver unbeatable value. By owning our production facilities, we ensure every product that carries the KickAss name is built tough, tested rigorously, and ready for off-grid adventure.
Change your mind? No worries, our quick & easy online or in-store returns process has you covered. Learn more.
BUNDLE & SAVE!

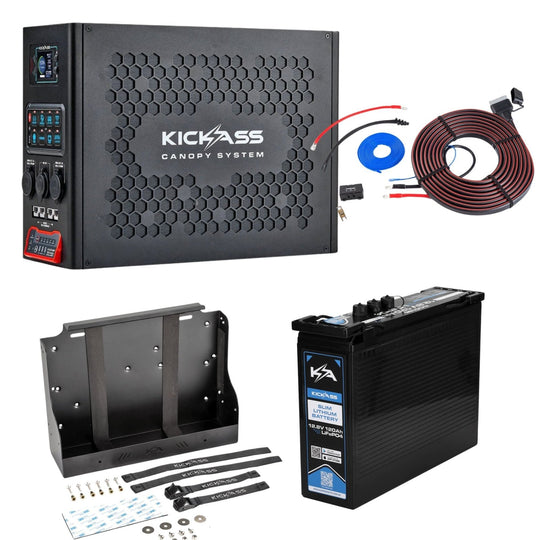

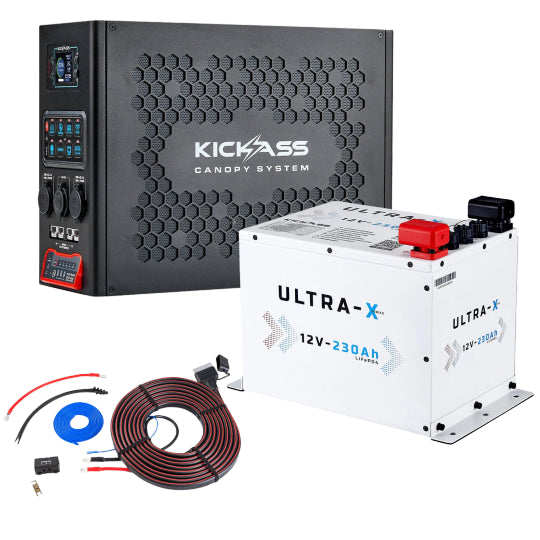

Wired Switching Canopy Power System with 40A DCDC Charger, 12V 120Ah Lithium Deep Cycle Battery LifePO4, Plug and Play DCDC Wiring Kit - 6.5m, and 120Ah Battery Tray

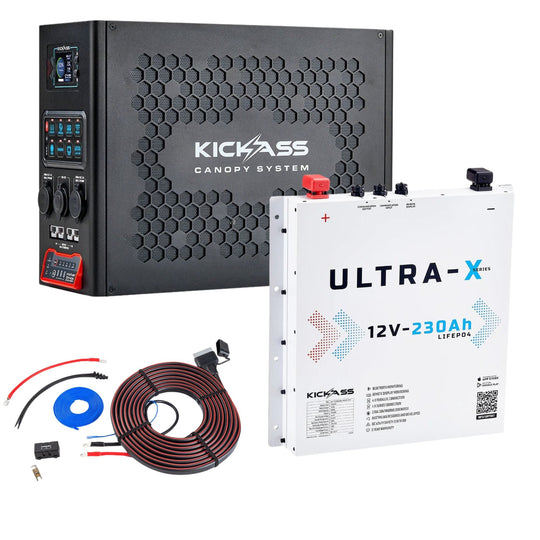

12V 230Ah Ultra-X Lithium Compact Deep Cycle Battery LiFePO4 - Arctic White, Wired Switching Canopy Power System with 40A DCDC Charger, and Plug and Play DCDC Wiring Kit - 6.5m
12V 230Ah Ultra-X Lithium Compact Deep Cycle Battery LiFePO4, Wired Switching Canopy Power System with 40A DCDC Charger, and Plug and Play DCDC Wiring Kit - 6.5m
12V 230Ah Ultra-X Lithium Deep Cycle Battery LiFePO4 - Arctic White, Wired Switching Canopy Power System with 40A DCDC Charger, and Plug and Play DCDC Wiring Kit - 6.5m
12V 230Ah Ultra-X Lithium Deep Cycle Battery LiFePO4, Wired Switching Canopy Power System with 40A DCDC Charger, and Plug and Play DCDC Wiring Kit - 6.5m
230Ah Ultra-X Black Limited Edition Lithium Battery, Wired Switching Canopy Power System with 40A DCDC Charger, and 6.5m Plug and Play Wiring Kit
12V 230Ah Ultra-X Lithium Deep Cycle Battery LiFePO4, Wired Switching Canopy Power System with 40A DCDC Charger, 12V to 240V Pure Sine Wave 2000W Inverter, Flexicharge 12V 32A ACDC Battery Charger ...

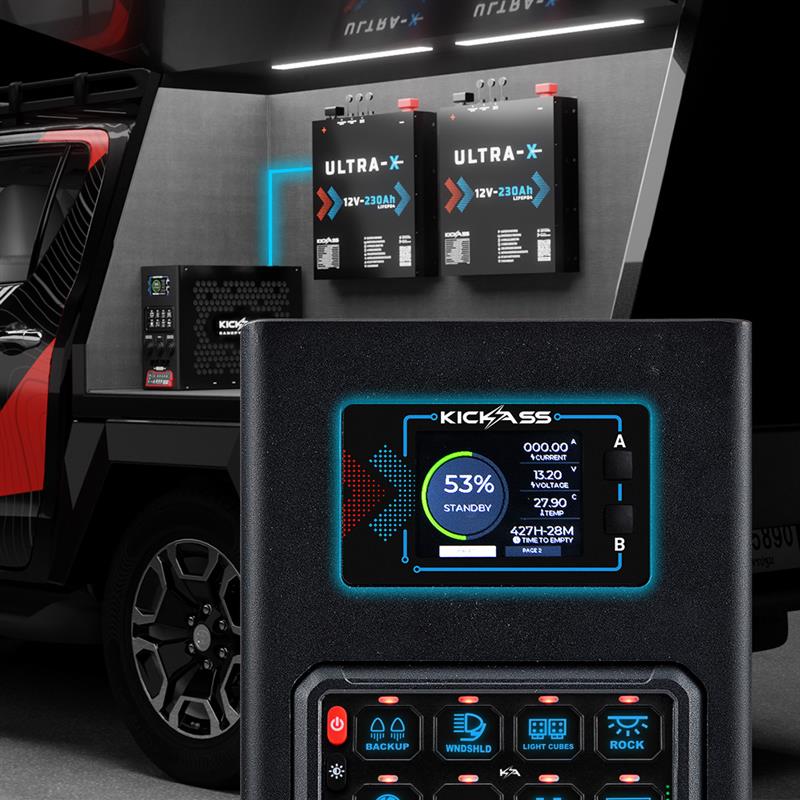

Battery Status Display

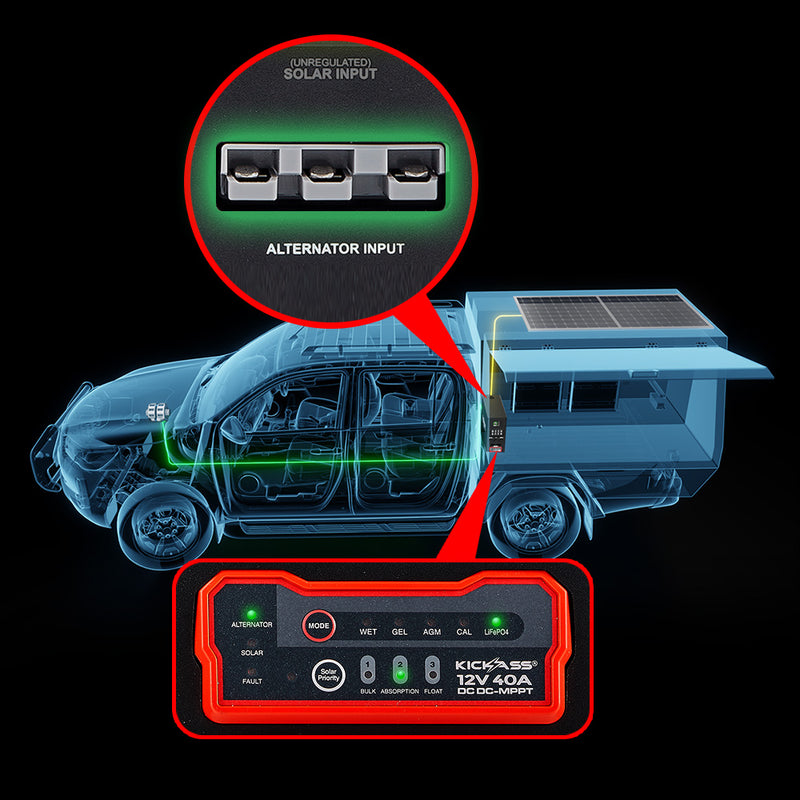

Integrated 40A DC to DC Charger
Allows your batteries to be charged quickly while driving.

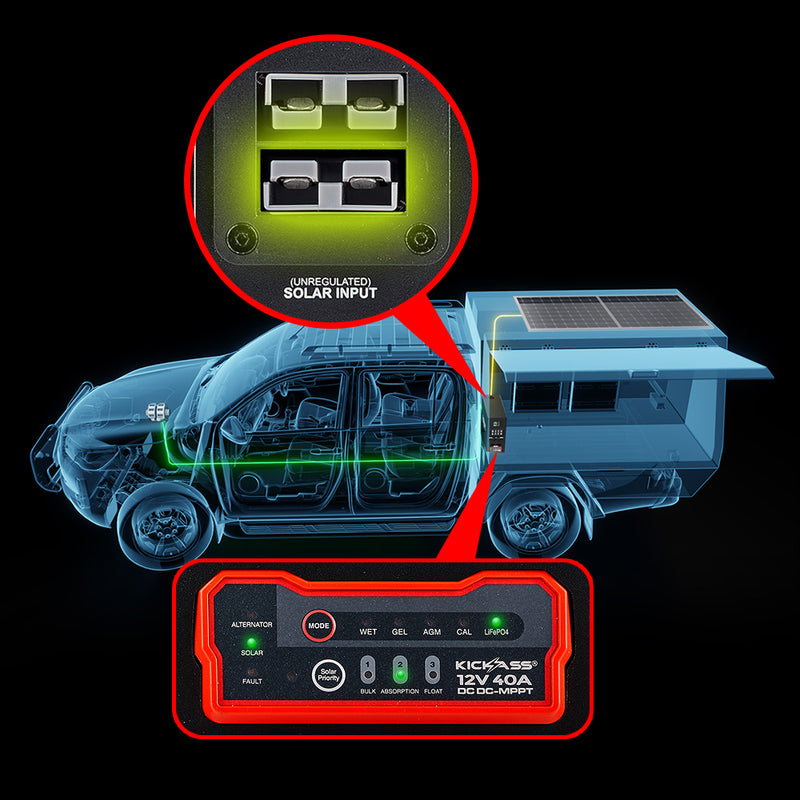

Integrated MPPT solar charge controller

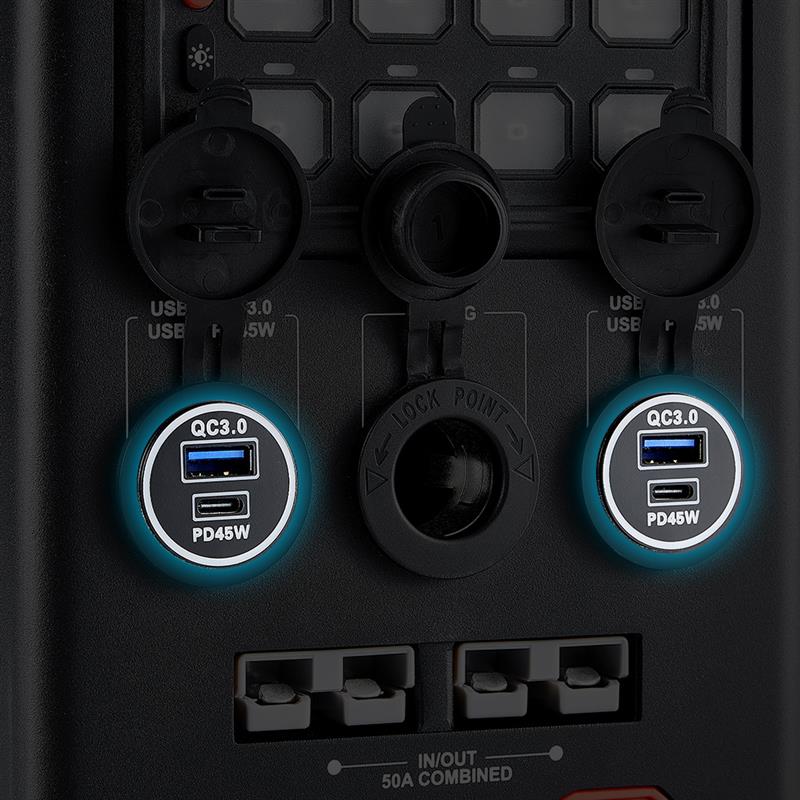

Integrated Fast Charging USB Ports

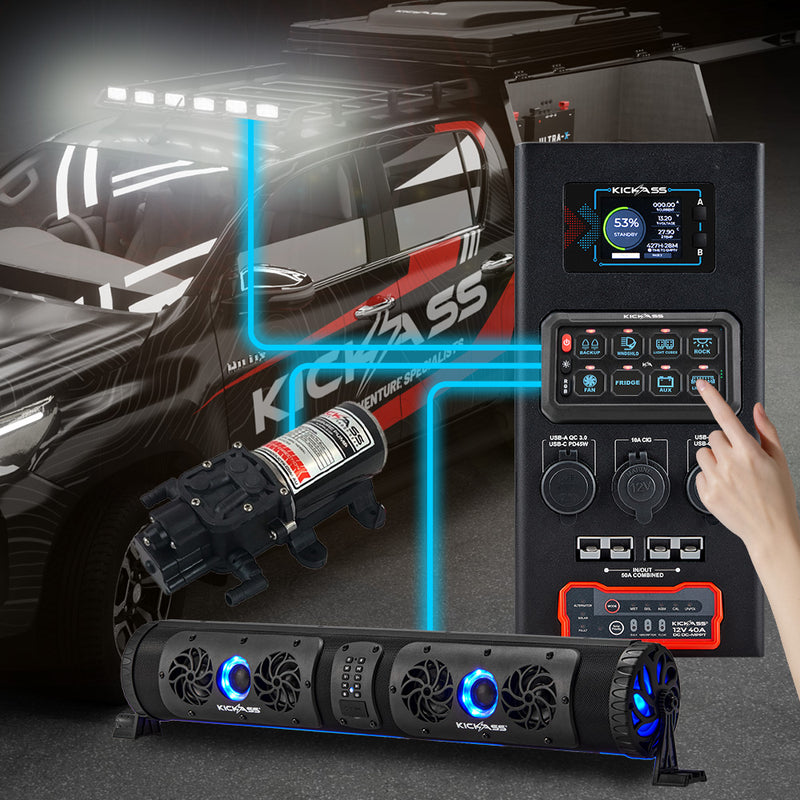

8 Gang Illuminated Switching Panel
The switch panel on the front of the unit controls the internal switching module, allowing you to connect up to 8 devices.
Please note that the cigarette socket on the front is connected to one of the switches.

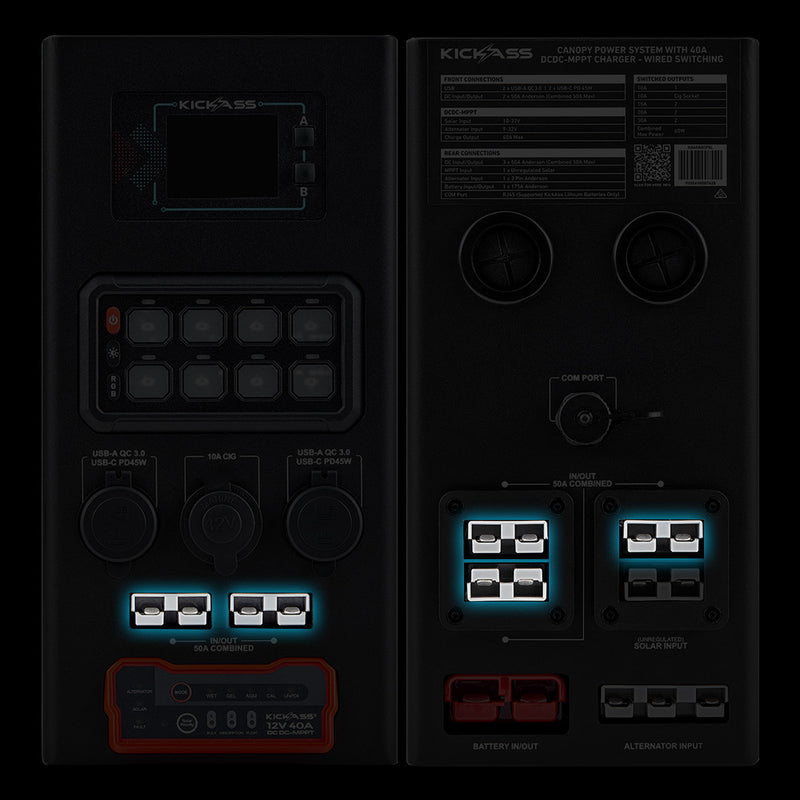

Five Anderson Plugs

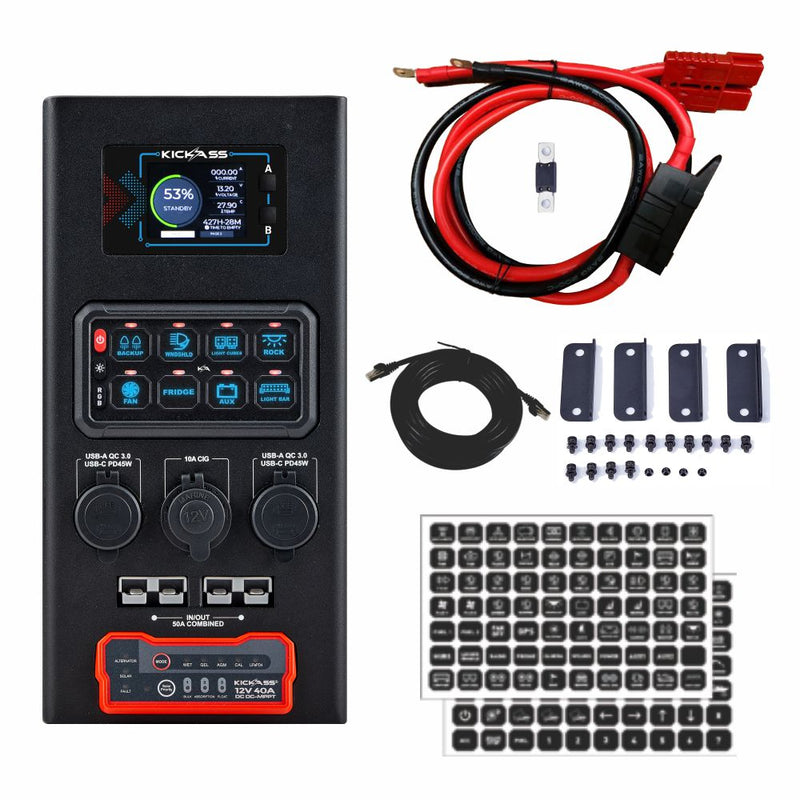

What's Included
- 1x Canopy Power System
- 1x 2AWG/175A 1.6 Meter Long Auxiliary Heavy-Duty Battery Connection Cable: High quality, plug-and-play battery connection cable equipped with a large Anderson plug to connect to the Canopy System and fuse, ensuring a secure connection to your KickAss Lifepo4 lithium smart batteries.
- 1x RJ45 Cable
- 1x Mounting Kit
- Switch Panel Sticker Sheet

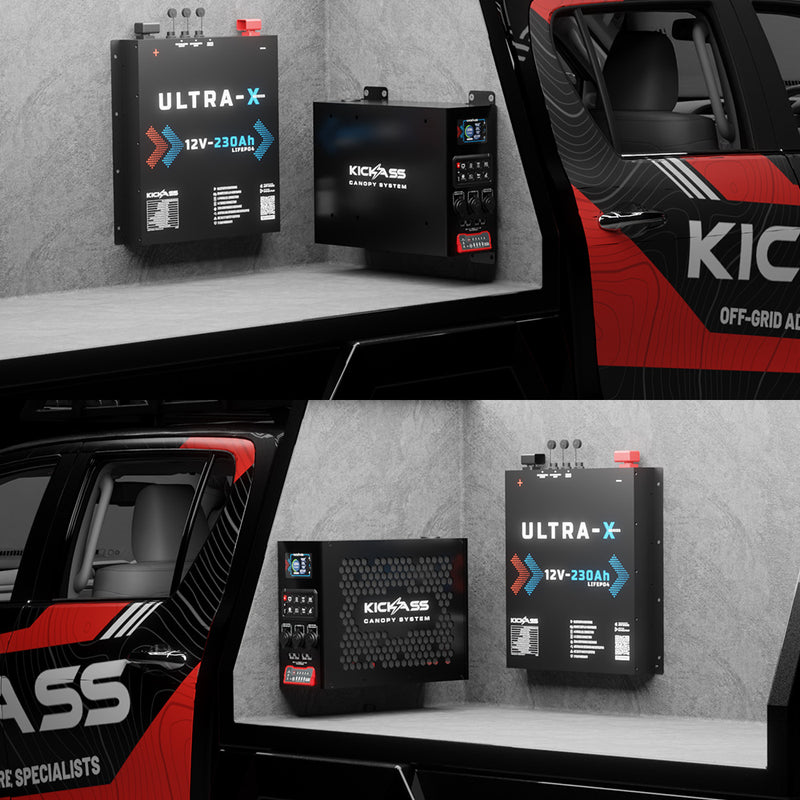

Flexible Installation

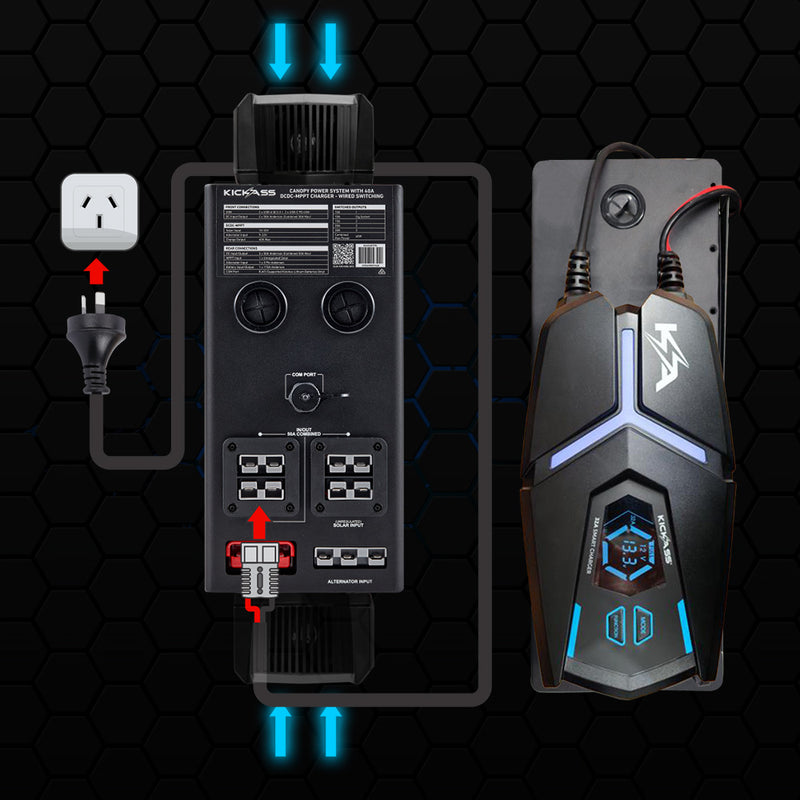

Optional AC Charger
Charge your batteries and power any connected loads such as 12v Fridges with the optional KickAss 32 Amp AC to DC battery charger which can be mounted on the top, bottom of the unit or a separate location of your choice.

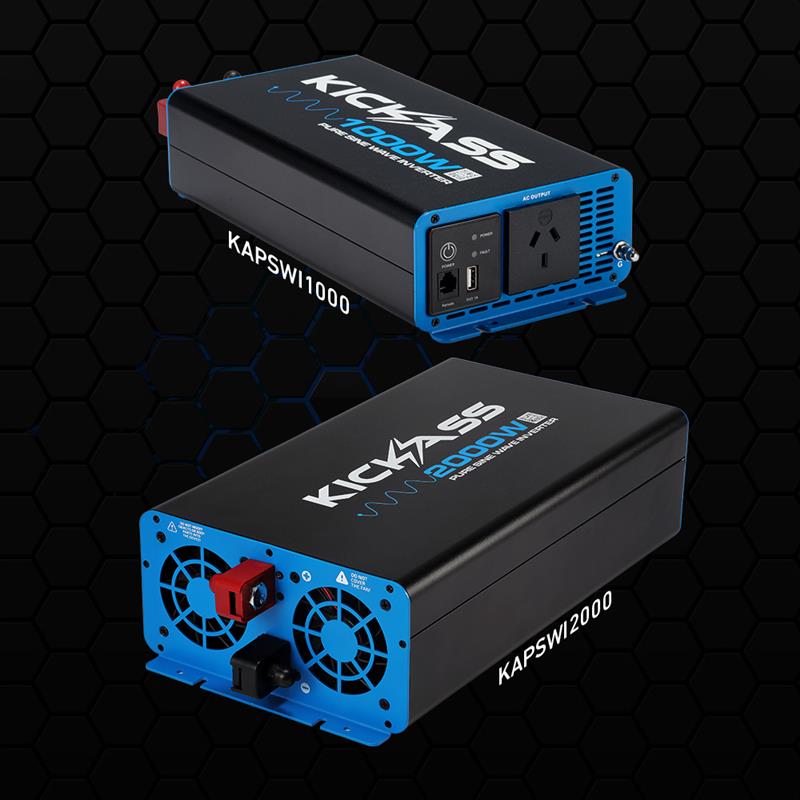

Optional Inverter
If you would like to power AC devices, an inverter can be added to the system.
- If your batteries are less than 200 amps of capacity, choose the 1000W inverter.
- For batteries with 200 amps or more, select the 1000 or 2000W inverter.

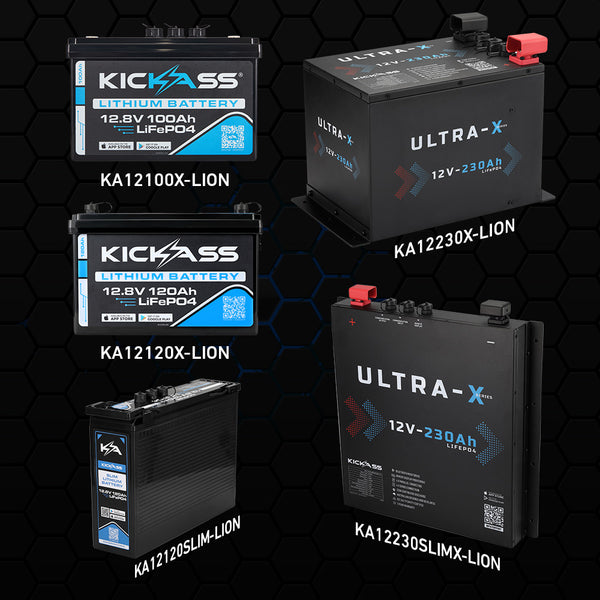

Designed for KickAss Batteries
See why our customers are all in—these reviews speak for themselves!
- Kevin J.Verified BuyerReviewingKickAss Wired Switching Canopy Power System with 40A DCDC ChargerI recommend this productRated 5 out of 5 stars3 minutes agoCanopy set up
Easy to use and set up in my canopy.
- Leigh F.Verified BuyerReviewingKickAss Wired Switching Canopy Power System with 40A DCDC ChargerI recommend this productRated 5 out of 5 stars5 days agoEasy to use and set up
Absolute cracker unit couldn’t be more happier would recommend to anyone
Frequently Asked Questions
How much charging current can the KickAss Wired Switching Canopy Power System provide to my battery?
This high-capacity charger supports both alternator and solar inputs with plug-and-play Anderson connectors, making it ideal for maintaining batteries from 50Ah up to 500Ah, including Lead Acid and LiFePO4 types.
Can I use this power system with my existing solar panels and alternator setup?
This compatibility allows seamless integration with your existing solar panels and vehicle alternator, enabling simultaneous or independent charging sources for your battery. The system’s smart DCDC charger optimises charging stages for maximum battery health.
How do I operate and control the devices connected to the KickAss canopy power system?
Each switch controls a dedicated output, including a 10A fused output operated by the fourth switch. The panel features backlight colour and brightness settings, and the included remote display unit provides real-time voltage and current monitoring for user-friendly operation.
What safety features are built into the KickAss KA40A8CPSL to protect my vehicle and equipment?
Additionally, the unit is IP66 rated for dust and water resistance, uses appropriately sized wiring, and includes warnings to prevent improper installation. These features safeguard your equipment while providing robust, reliable power management in tough Australian conditions.
What types and sizes of batteries are compatible with this power system?
Its charger automatically adjusts absorption and float voltages according to battery type, ensuring optimal charging performance and battery longevity for a wide range of 12V battery chemistries commonly used in off-grid and vehicle setups.
How much power can the USB ports on the KickAss canopy system deliver?
This means you can rapidly charge smartphones, tablets, and compatible devices directly from the canopy system, making it a versatile power hub for all your digital gear while camping or off-grid.
What are the physical dimensions and weight of the KickAss Wired Switching Canopy Power System?
Its compact yet robust design allows easy canopy mounting with included brackets, balancing portability and durability for tough outdoor use. The IP66 rating ensures it withstands dust and water exposure in rugged environments.
How does the remote display unit enhance the usability of the KickAss canopy power system?
This lightweight 10g unit connects via RJ45 and allows you to monitor your battery’s charge status and system performance conveniently from inside your vehicle or camp, giving you peace of mind and control over your power setup.
