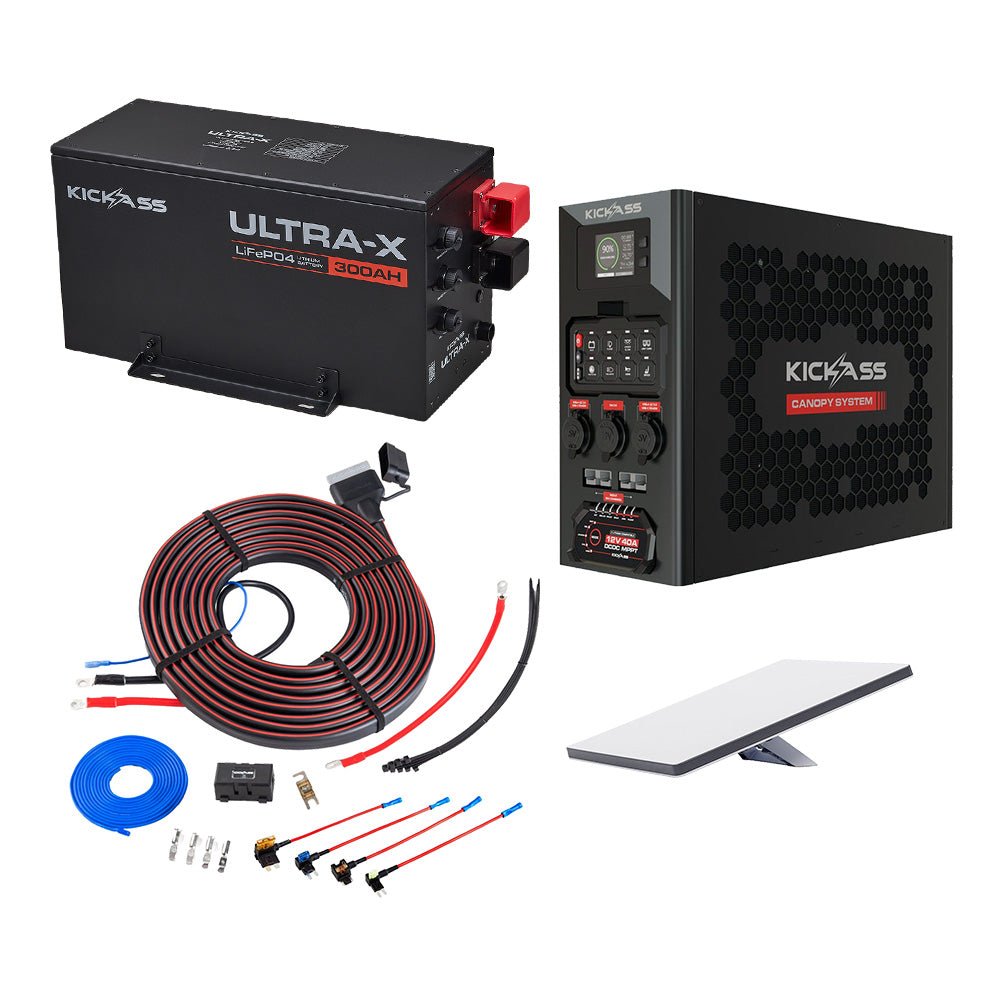

Level up your off-grid setup with our 300Ah Battery Bundle. Includes Canopy System, Starlink Mini & Wiring.
Everything that is included in this KickAss kit!

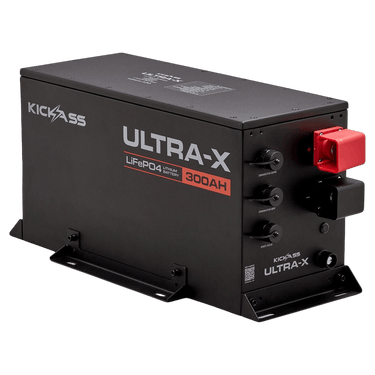

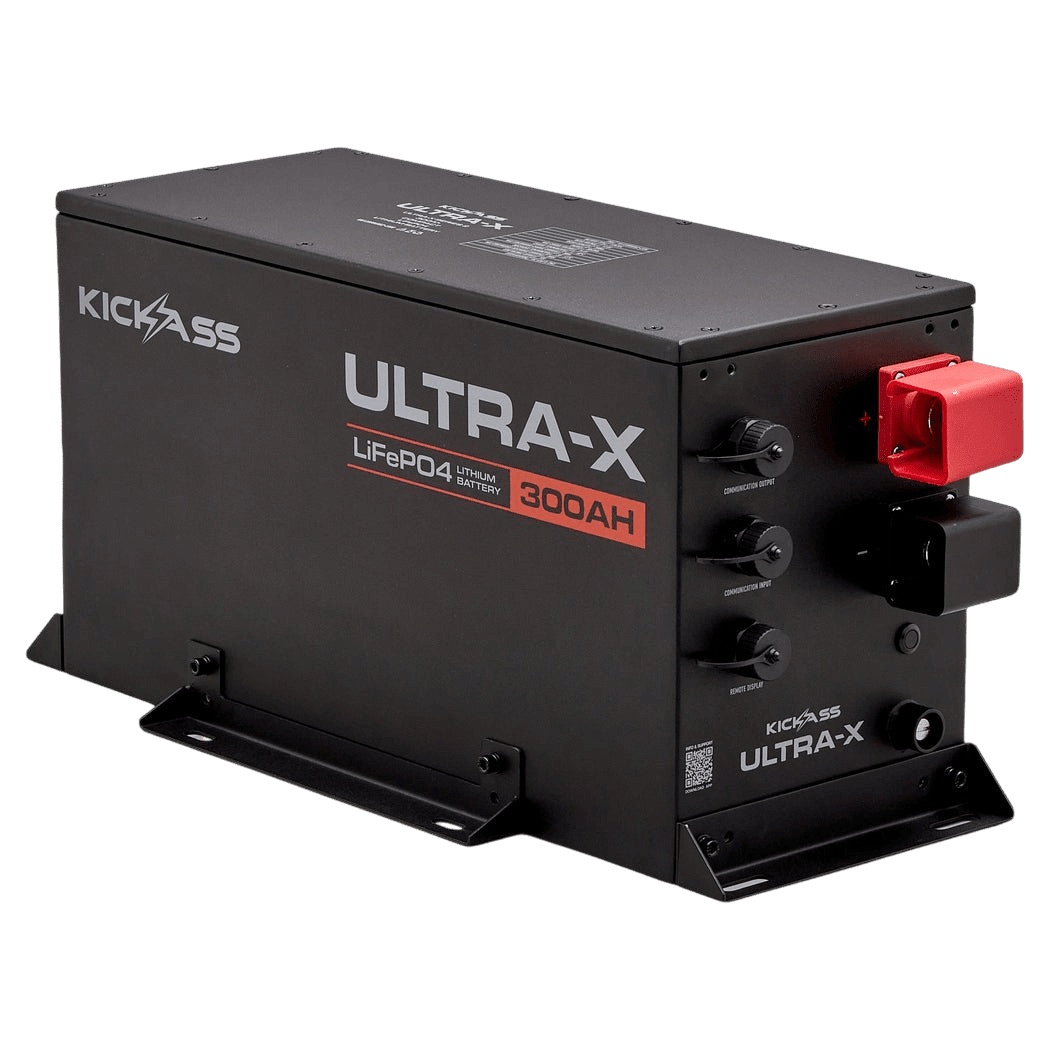

The first release in the new Series 2 Ultra-X battery range, this 300Ah lithium power house packs 300Ah of usable capacity into a compact design that can be installed anywhere from under beds in caravans to the back of ute tubs. Connect up to four in parallel or series & monitor the entire battery bank remotely via Bluetooth – no external shunt required. Supports AS/NZS:3001 compliance.
The KickAss Smart 12V 300Ah Ultra-X Lithium Compact Deep Cycle Battery LiFePO4 is the first battery in the second series of our premium Ultra-X range, building on everything customers already love. This second series introduces a new look along with key upgrades including an IP65-rated enclosure, integrated Low Voltage Recovery (LVR) button, and supports AS/NZS 3001.2 compliant installations. It's the next evolution of KickAss Ultra-X Lithium Batteries, delivering the same premium performance with even more capability.
With 300Ah of usable capacity and a 300A continuous discharge, it's built to power demanding off-grid setups, making it the ideal battery to pair with a 3000W inverter for running fridges, induction cooktops, coffee machines, power tools, lighting and other 12V and 240V appliances at the same time. This high-performance 12V lithium battery gives you more power without taking up valuable space.
Its compact form factor opens up installation options that simply aren't possible with many large-capacity batteries. Mount it neatly beneath caravan beds or bench seats, inside ute tubs under roller covers, within canopies or in camper trailers. A built-in vent means that the battery supports AS/NZS 3001 compliant installations, while the rugged metal housing, IP65 rating and intelligent Battery Management System ensure reliable performance in harsh Australian conditions.
Bluetooth monitoring lets you check battery status, capacity, voltage, temperature and current directly from your smartphone, while the optional Remote Display provides the same information for those who prefer a dedicated screen. If you accidentally run your battery too flat, then the integrated Low Voltage Recovery (LVR) button makes it easy to reawaken the BMS after an over-discharge, helping you get back on the road with the touch of a button.
As your power needs grow, your battery system can grow with them. Connect up to four Ultra-X 300Ah lithium batteries in series or parallel to create a powerful battery bank, then monitor the entire system through the KickAss app or Remote Display without needing an external shunt. The KickAss Ultra-X 300Ah LiFePO4 Battery delivers a cleaner, simpler and smarter way to build a scalable off-grid power system.

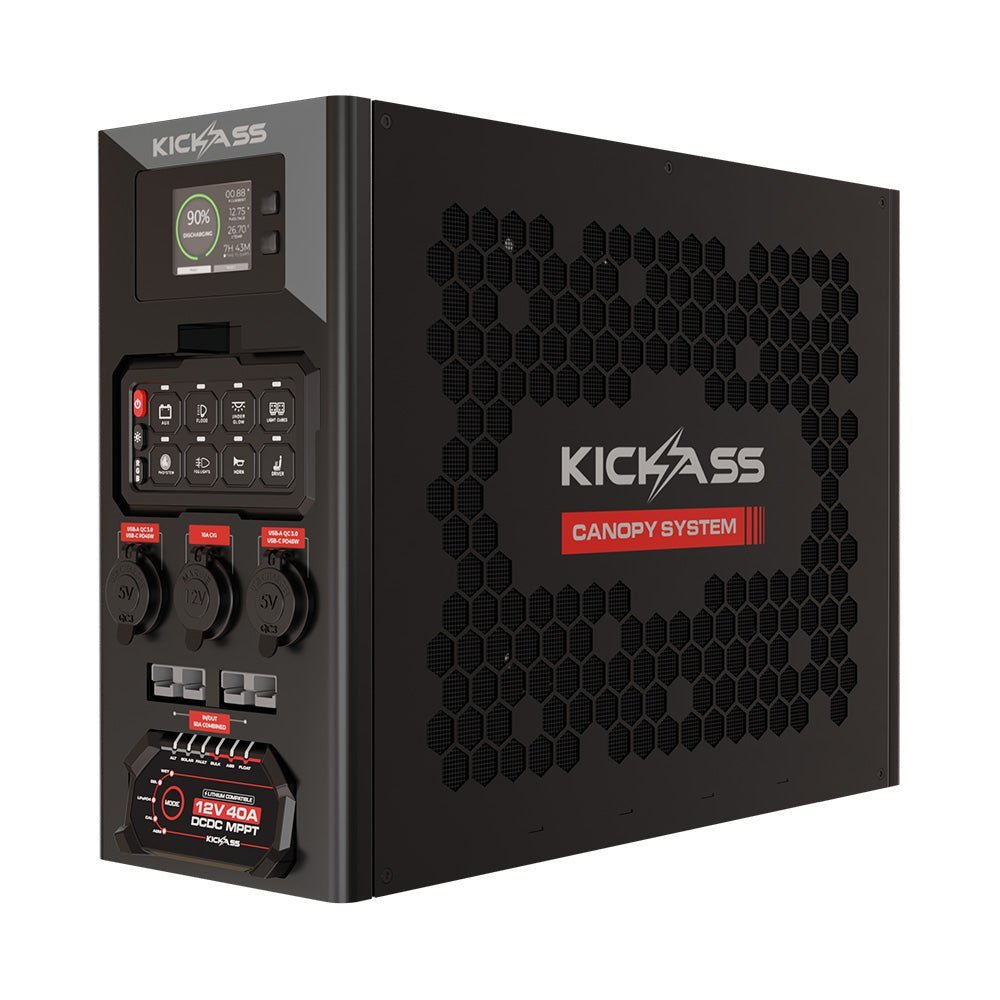

The new and improved KickAss Canopy System makes 12V setups even easier. It now features wireless digital switching and built-in Bluetooth, so you can monitor charging status and performance straight from your phone. With its MPPT solar controller, 40A DCDC charger, and fast-charging outputs, it’s specifically designed to be an off-grid solution for canopies.
The new and improved KickAss Canopy Power System takes the hassle out of building a reliable 12V setup. Instead of sourcing multiple components and wiring them together, this upgraded all-in-one unit brings everything into a single, streamlined package that’s easy to install and ideal for DIYers. It integrates your MPPT solar controller, 40A DCDC charger, USB fast-charging outputs, and a fully redesigned wireless 8-gang switching panel.
This latest version now features wireless digital switching, giving you the freedom to control your accessories from a detachable panel you can carry anywhere around your setup. When the switch panel’s battery runs low, simply return it to the magnetic charging dock… it snaps in securely and tops up automatically. The system also includes new Bluetooth monitoring of the DCDC charger, allowing you to connect via the supporting app to configure the device and view real-time charging data such as solar and alternator input current, battery charge current, charging stage, and system alerts.
Engineered for seamless pairing with KickAss Smart Series and KickAss Ultra-X LiFePO₄ batteries, the updated Canopy Power System delivers maximum compatibility, safety, and efficiency. Select the KickAss lithium battery that suits your build and enjoy a complete, modernised off-grid power solution.
Note: The display and Bluetooth app monitoring features are compatible only with KickAss Smart Series and KickAss Ultra-X Lithium Batteries.

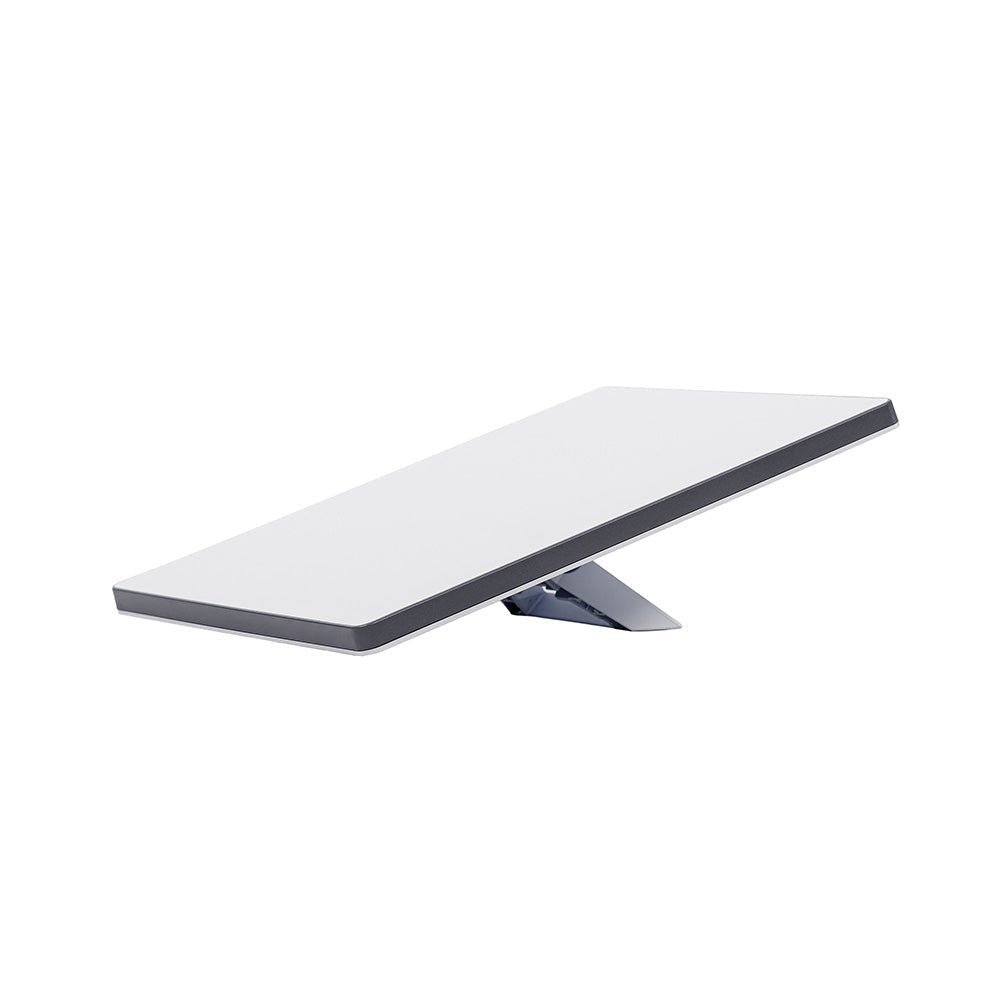

Engineered by SpaceX, Starlink delivers high-speed, low-latency internet to users all over the world, including the most rural and remote locations.
The Starlink Mini is a compact, portable satellite internet solution designed to deliver high-speed connectivity even in the most remote locations. Engineered by SpaceX, this all-in-one kit features a built-in Wi-Fi router, DC power input, and low power consumption, making it ideal for off-grid travel, remote work, camping, and life on the road. Small enough to fit in a backpack yet powerful enough to deliver speeds over 100 Mbps, the Starlink Mini allows you to stay connected everywhere. With Wi-Fi 5 capability and an integrated ethernet port for third-party routers or mesh systems, it offers flexible connectivity options to suit any setup.
Getting online is quick and easy – simply plug in the Starlink Mini and point it at the sky to connect within minutes. The kit includes everything you need to get started, including a built-in router, kickstand, pipe adapter, power cable, and power supply. Designed for efficiency, it operates on just 25–40 watts of power, making it perfect for portable and vehicle-based power systems. For optimal performance, the Starlink Mini requires a clear, unobstructed view of the sky, and a service plan can be selected to suit your needs with no long-term contracts. With ongoing satellite updates from SpaceX and full control via the Starlink app, the Starlink Mini is the ultimate portable internet solution for staying connected anywhere.
Please note, there is a limit of 2 Starlink Mini per order.

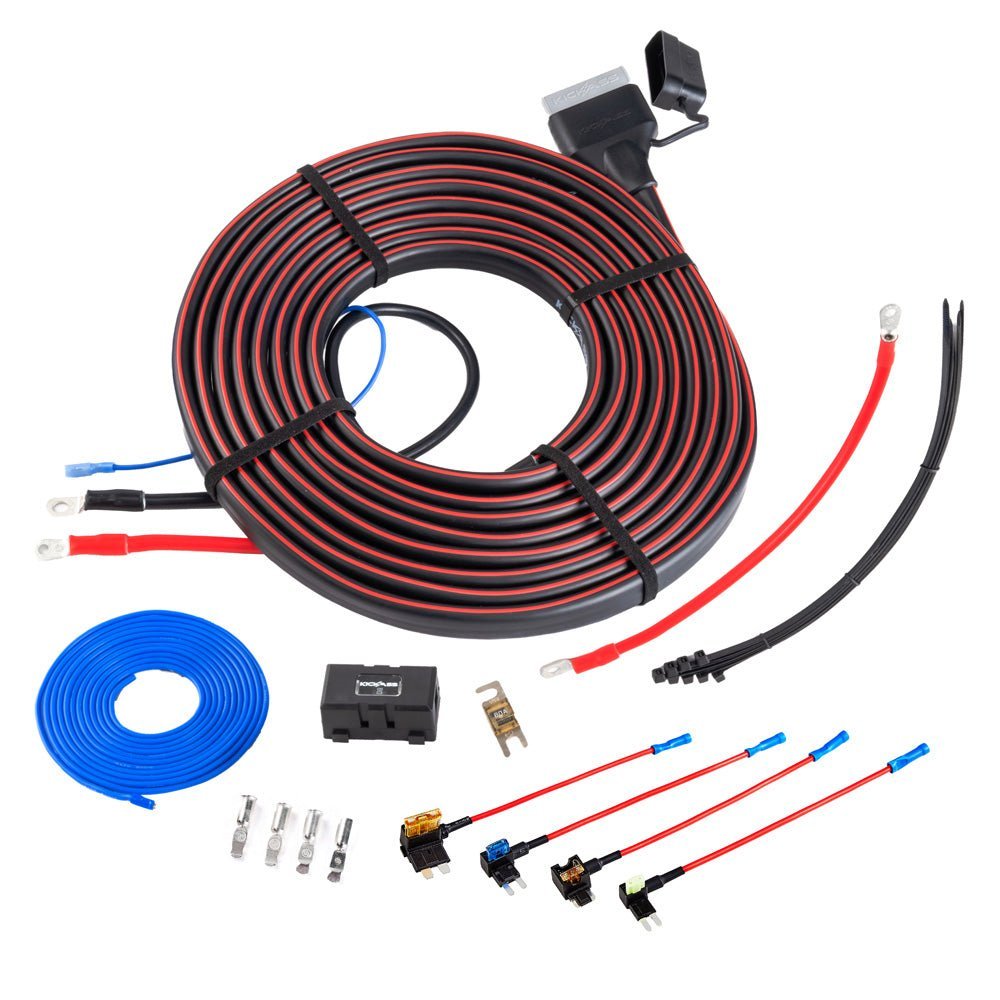

This 3-pin Anderson-style connector with built-in ignition wire makes connecting your 12V dual battery system easy. Perfect for wiring DC/DC chargers, battery boxes & auxiliary batteries.
This 3-pin Anderson-style connector with built-in ignition wire makes connecting your 12V dual battery system easy. Perfect for wiring DC/DC chargers, battery boxes & auxiliary batteries.
| Main Cable Length | 6.5M - 3 Core |
| Ignition Cable Extension | 3M - 14AWG Single Core |
| Cable Size - 3 Core | 2x 6AWG (13.5mm²), 1x 14AWG (1.8mm²) |
| Insulation Material | Inner - Silicon / Outer - PVC |
| Rated Temperature | Max. 105°C |
| Ring Terminals | M8 - Battery / M6 - Fuse |
| Fuse | 80A MIDI Fuse with Holder |
| Connections | 3 Pin Anderson Style / Bullet |
| Cig Socket Outputs | 1 x 10A |
| USB Outputs | 2 x USB-C 45W | 2 x QC3.0 |
| Anderson Input / Outputs | 5 |
| Anderson Inputs | 3 Pin Alternator | Unregulated Solar |
| Digitally Switched Outputs | 8 |
| Battery Connection | 175A Anderson |
| Operating Temperature | -20°C to +50°C |
| Product Dimensions | 440 x 160 x 320mm (L x W x H) |
| Product Weight | 9.35kg |
| DCDC-MPPT | |
| Charger Output Voltage Range | 3–16V DC |
| Alternator Input Voltage Range | 9–32V DC |
| Solar Input Voltage Range | 9–32V DC |
| Maximum Input Current | 56A |
| Maximum Continuous Charging Current | 40A |
| Efficiency | Solar - 99% Max | Alternator - 92% Max |
| No Load Current Draw | 10 mA |
| Charge Profile | |
| Absorption Voltage | GEL - 14.1V | WET - 14.4V | AGM - 14.7V | CAL - 15.3V | LiFePO4 - 14.5V |
| Float Voltage | GEL - 13.5V | WET - 13.4V | AGM - 13.4V | CAL - 13.6V | LiFePO4 - NA |
| Minimum Auxiliary Battery Voltage | GEL/WET/AGM/CAL - 9V | LiFePO4 - 0V |
| Alternator Charge Conditions | |
| 12V Alternator Input (Ignition OFF) | CUT-IN 13.2V | CUT-OUT 12.6V |
| 12V Alternator Input (Ignition ON) | CUT-IN 12.2V | CUT-OUT 10.5V |
| 24V Alternator Input (Ignition OFF) | CUT-IN 26.4V | CUT-OUT 25.2V |
| 24V Alternator Input (Ignition ON) | CUT-IN 24.4V | CUT-OUT 21V |
| Antenna | Electronic Phased Array |
| Field of View | 110° |
| Orientation | Software Assisted Manual Orienting |
| Weight | 1.10 kg (2.43 lb) |
| 1.16 kg (2.56 lb) with Kickstand | |
| 1.53 kg (3.37 lb) with Kickstand & 15 m Cable | |
| Environmental Rating | IP67 Type 4 with DC Power Cable and Starlink Plug/Cable installed |
| Operating Temperature | -30°C to 50°C (-22°F to 122°F) |
| Wind Speed | Operational: 96 kph+ (60 mph+) |
| Snow Melt Capability | Up to 25mm / hour (1 in / hour) |
| Power Consumption | Average: 25-40W |
| Input Rating | 12-48V 60W |
| USB PD Requirement | 100W, 20V/5A Minimum (with Starlink USB-C to Barrel Jack Cable Accessory) |
| Wi-Fi Technology | 802.11a/b/g/n/ac |
| Generation | WiFi 5 |
| Radio | Dual Band 3 x 3 MU-MIMO |
| Ethernet Ports | One (1) Latching Ethernet LAN port with Starlink Plug |
| Coverage | Up to 112 m² (1,200 ft²) |
| Security | WPA2 |
| Power Indicator | LED | rear face plate, lower left corner |
| Mesh Compatibility | Compatible with all Starlink mesh systems *Not compatible with 3rd party mesh systems |
| Devices | Connect up to 128 devices |
| Voltage | 12.8V |
| Capacity | 300Ah |
| Cell Type | Prismatic |
| Max Continuous Discharge | 300A |
| Max Continuous Charge | 250A |
| Peak Discharge | 660A @ 30 Seconds |
| Ingress Protection | IP65 |
| Max Charge Temp | 60°C |
| Min Charge Temp | 0°C |
| Max Discharge Temp | 65°C |
| Min Discharge Temp | -20°C |
| Cycle Life | 4000+ |
| Bluetooth | Yes |
| Remote Display | Optional |
| Parallel / Series Remote Monitoring | Yes, up to 4 |
| Dimensions (Battery with terminals) | 242 x 180 x 460 |
| Dimensions (With Mounting Brackets) | 242 x 180 x 500 |
| Weight | 30kg |
| Certifications | IEC 62619, UN38.3, FCC, EMC |
| KickAss Heavy Duty Plug and Play DCDC Wiring Kit - 6.5m | |
| KickAss 12V Wireless Canopy Power System with 40A DCDC Charger + Integrated Bluetooth | |
| Starlink Mini | |
| KickAss Smart 12V 300Ah Ultra-X Lithium Compact Deep Cycle Battery LiFePO4 - Series 2 |
Take your 4WD adventure to the next level with the KickAss Smart 12V 300Ah Battery Bundle. Perfectly tailored for off-grid enthusiasts, this bundle includes the powerful KickAss Smart 12V 300Ah Ultra-X Lithium Battery, providing reliable energy to sustain your adventures. The 12V Wireless Canopy Power System ensures seamless power management with its integrated 40A DCDC charger and Bluetooth capabilities, making it easy to monitor your system. Stay connected wherever you roam with the Starlink Mini, offering high-speed internet access. The heavy-duty plug and play wiring kit simplifies installation and ensures top-notch connectivity. This complete power solution gives you confidence in your setup, so you never run flat again.
