This KickAss bundle delivers robust off-grid power and global connectivity. It includes a Smart 12V 230Ah Ultra-X Lithium Battery, a 40A DCDC Charger Canopy Power System, and a Starlink Mini for internet anywhere. Comes with a heavy-duty wiring kit and Starlink DC power cable for a complete, ready-to-go setup.

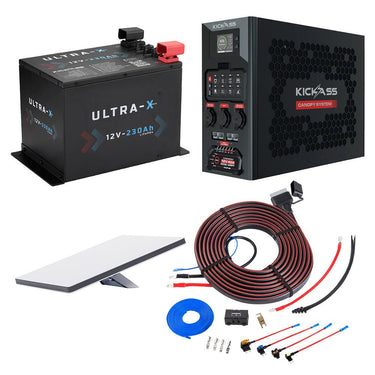

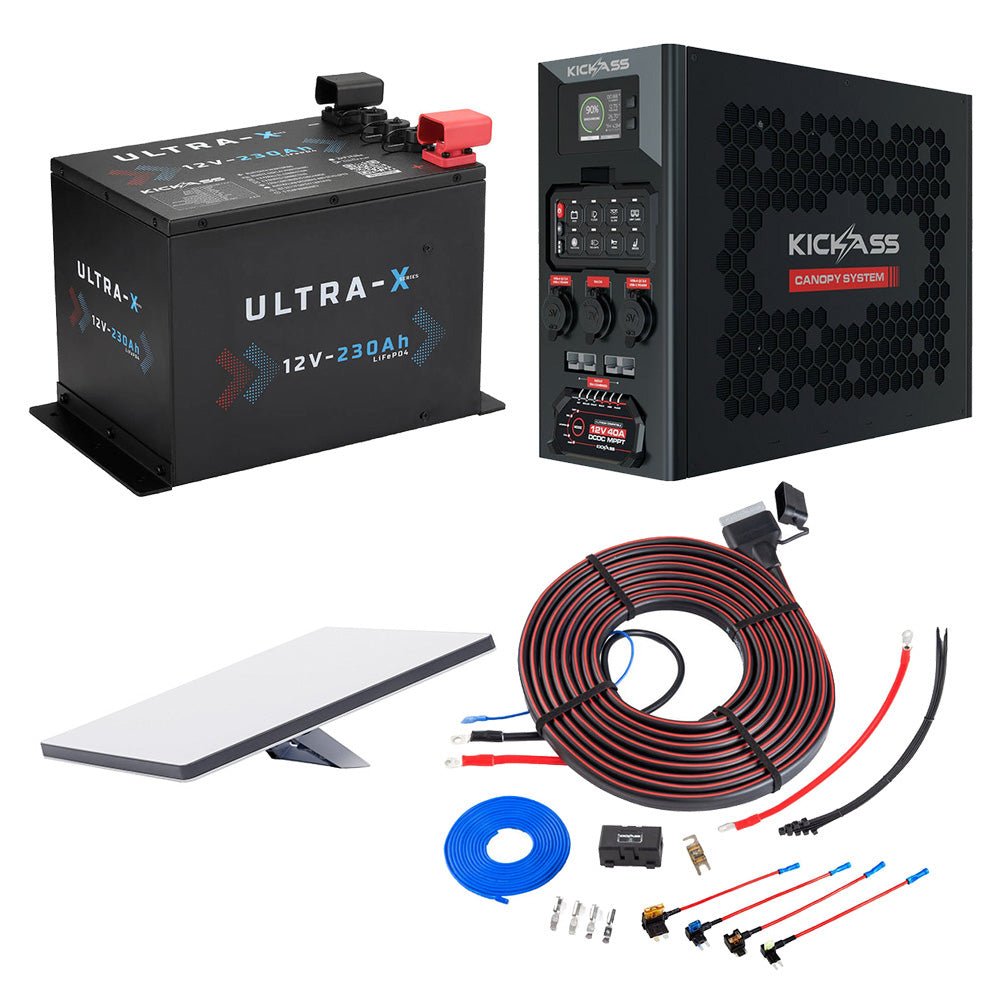

Everything that is included in this KickAss kit!
This 3-pin Anderson-style connector with built-in ignition wire makes connecting your 12V dual battery system easy. Perfect for wiring DC/DC chargers, battery boxes & auxiliary batteries.
This 3-pin Anderson-style connector with built-in ignition wire makes connecting your 12V dual battery system easy. Perfect for wiring DC/DC chargers, battery boxes & auxiliary batteries.

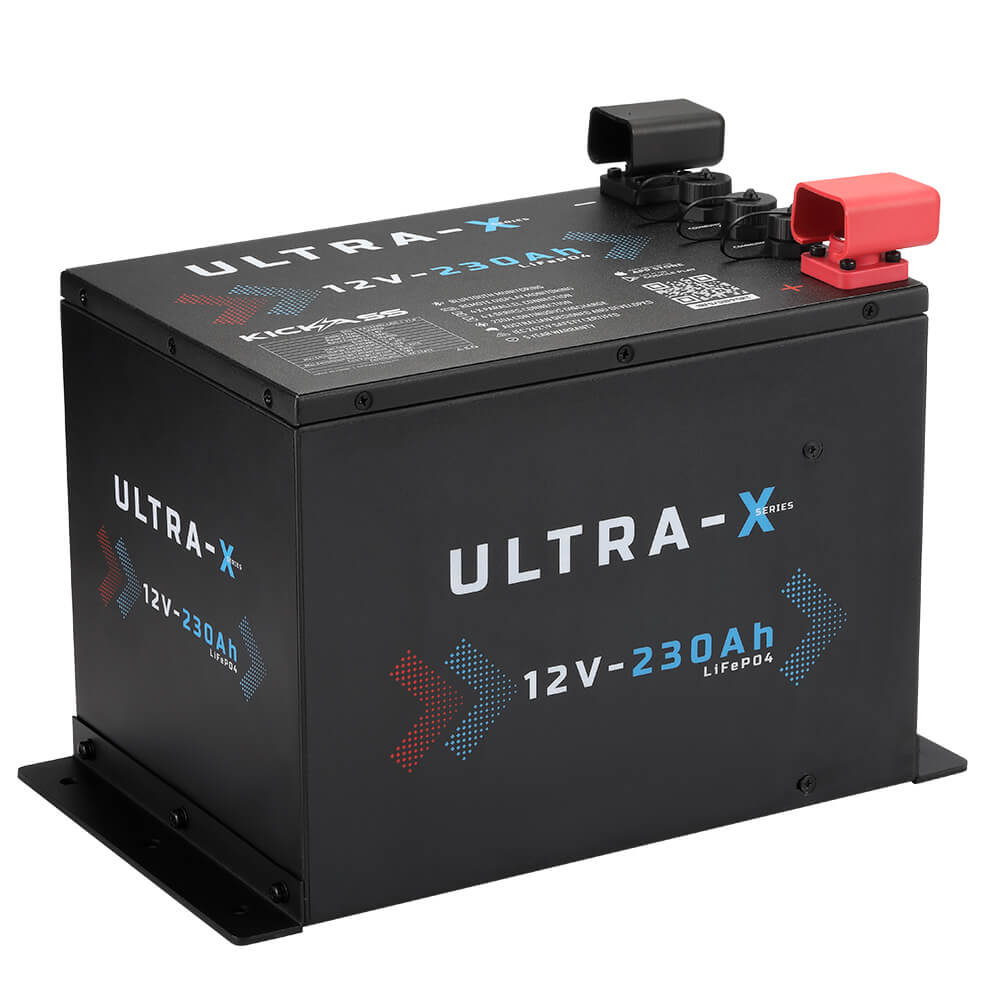

The KickAss 12V 230Ah Lithium Battery delivers huge power in a compact, advanced design. With 230Ah of useable energy, 4000+ cycles at 80% DoD, Bluetooth monitoring, and support for series or parallel setups, it’s perfect for serious off-grid use. Link up to four for over 900Ah, with a built-in BMS for safety.
The ultra-compact design is ideal for those who have minimal space but need maximum power. Despite being only slightly larger than a standard N70 battery, it delivers double the usable capacity – perfect for tight spots & tricky installations. This KickAss battery delivers big power in a small package.
No more guesswork – stay in control of your power system by using the supporting Bluetooth app. Monitor critical battery parameters such as SoC, level, voltage, current, temperature, and real-time system alerts right from your smartphone. Having real-time data at your fingertips ensures optimal performance and peace of mind during all your off-grid adventures.
The KickAss 12V 230Ah Deep Cycle Lithium Battery is equipped with an advanced Battery Management System (BMS) that ensures safety and reliability. The BMS actively monitors and protects the battery from common issues such as overcharging, over-discharging, short circuits, and overheating, ensuring safe operation at all times.
These batteries support parallel and series configurations for maximum versatility. Link up to four in parallel to create a massive battery bank with over 900Ah of usable capacity, delivering serious power for extended off-grid use. This capability allows you to tailor your power setup to your exact needs.
Monitoring multiple batteries in a series or parallel setup usually requires an external shunt, but these batteries eliminate that need. Simply connect each Ultra-X series battery using an RJ45 cable, and the optional KickAss Remote Display Unit (RDU) will seamlessly interface with the entire battery bank. Alternatively, use the supporting Bluetooth app for system monitoring without additional hardware.
With 230Ah of usable capacity, the KickAss 12V Deep Cycle Lithium Battery offers an abundance of power for extended off-grid adventures. This large capacity means you can run devices and appliances for longer periods without frequent recharges.
This battery delivers exceptional performance with its 230A continuous charge and discharge capability, ensuring a steady and reliable flow of power for demanding applications. The impressive 460A pulse capacity allows it to handle sudden power surges, making it incredibly versatile.
Designed for longevity, this battery offers over 4000 charge and discharge cycles at 80% Depth of Discharge (DoD) and a 0.5C charge/discharge rate. This durability ensures a long-lasting, high-performance battery for years to come.
The durable metal housing with integrated mounting points eliminates the need for a separate battery tray. The heavy-duty metal casing not only protects the battery from the elements and rough conditions but also makes installation easier and more secure.

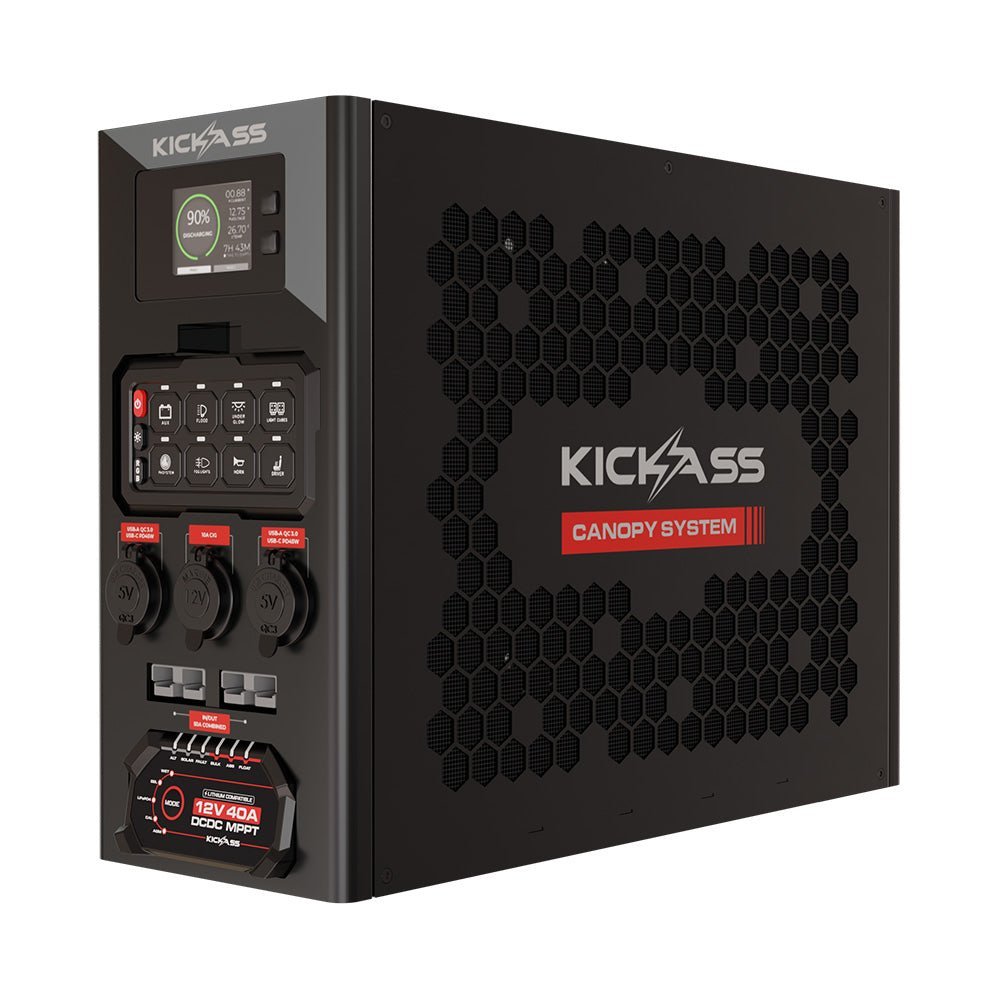

The new and improved KickAss Canopy System makes 12V setups even easier. It now features wireless digital switching and built-in Bluetooth, so you can monitor charging status and performance straight from your phone. With its MPPT solar controller, 40A DCDC charger, and fast-charging outputs, it’s specifically designed to be an off-grid solution for canopies.
The new and improved KickAss Canopy Power System takes the hassle out of building a reliable 12V setup. Instead of sourcing multiple components and wiring them together, this upgraded all-in-one unit brings everything into a single, streamlined package that’s easy to install and ideal for DIYers. It integrates your MPPT solar controller, 40A DCDC charger, USB fast-charging outputs, and a fully redesigned wireless 8-gang switching panel.
This latest version now features wireless digital switching, giving you the freedom to control your accessories from a detachable panel you can carry anywhere around your setup. When the switch panel’s battery runs low, simply return it to the magnetic charging dock… it snaps in securely and tops up automatically. The system also includes new Bluetooth monitoring of the DCDC charger, allowing you to connect via the supporting app to configure the device and view real-time charging data such as solar and alternator input current, battery charge current, charging stage, and system alerts.
Engineered for seamless pairing with KickAss Smart Series and KickAss Ultra-X LiFePO₄ batteries, the updated Canopy Power System delivers maximum compatibility, safety, and efficiency. Select the KickAss lithium battery that suits your build and enjoy a complete, modernised off-grid power solution.
Note: The display and Bluetooth app monitoring features are compatible only with KickAss Smart Series and KickAss Ultra-X Lithium Batteries.
Engineered by SpaceX, Starlink delivers high-speed, low-latency internet to users all over the world, including the most rural and remote locations.

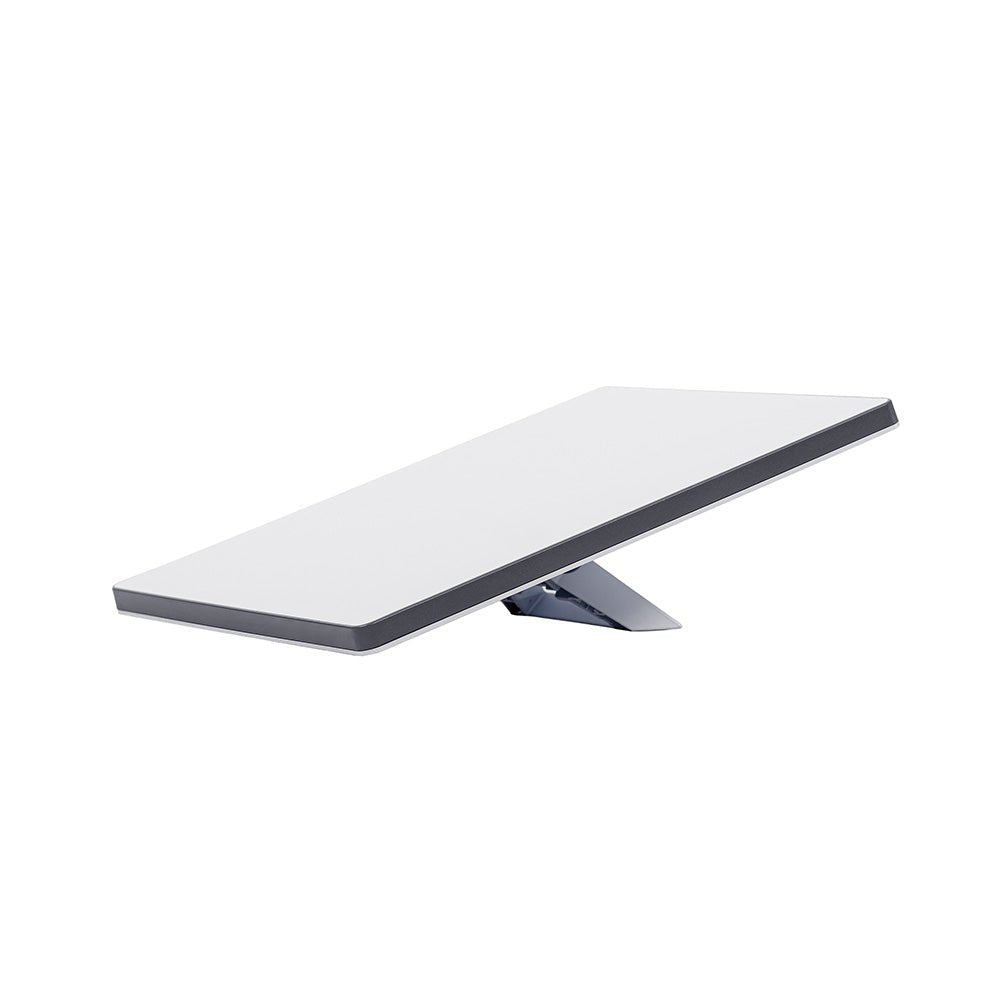

The Starlink Mini is a compact, portable satellite internet solution designed to deliver high-speed connectivity even in the most remote locations. Engineered by SpaceX, this all-in-one kit features a built-in Wi-Fi router, DC power input, and low power consumption, making it ideal for off-grid travel, remote work, camping, and life on the road. Small enough to fit in a backpack yet powerful enough to deliver speeds over 100 Mbps, the Starlink Mini allows you to stay connected everywhere. With Wi-Fi 5 capability and an integrated ethernet port for third-party routers or mesh systems, it offers flexible connectivity options to suit any setup.
Getting online is quick and easy – simply plug in the Starlink Mini and point it at the sky to connect within minutes. The kit includes everything you need to get started, including a built-in router, kickstand, pipe adapter, power cable, and power supply. Designed for efficiency, it operates on just 25–40 watts of power, making it perfect for portable and vehicle-based power systems. For optimal performance, the Starlink Mini requires a clear, unobstructed view of the sky, and a service plan can be selected to suit your needs with no long-term contracts. With ongoing satellite updates from SpaceX and full control via the Starlink app, the Starlink Mini is the ultimate portable internet solution for staying connected anywhere.
| Antenna | Electronic Phased Array |
| Field of View | 110° |
| Orientation | Software Assisted Manual Orienting |
| Weight | 1.10 kg (2.43 lb) |
| 1.16 kg (2.56 lb) with Kickstand | |
| 1.53 kg (3.37 lb) with Kickstand & 15 m Cable | |
| Environmental Rating | IP67 Type 4 with DC Power Cable and Starlink Plug/Cable installed |
| Operating Temperature | -30°C to 50°C (-22°F to 122°F) |
| Wind Speed | Operational: 96 kph+ (60 mph+) |
| Snow Melt Capability | Up to 25mm / hour (1 in / hour) |
| Power Consumption | Average: 25-40W |
| Input Rating | 12-48V 60W |
| USB PD Requirement | 100W, 20V/5A Minimum (with Starlink USB-C to Barrel Jack Cable Accessory) |
| Wi-Fi Technology | 802.11a/b/g/n/ac |
| Generation | WiFi 5 |
| Radio | Dual Band 3 x 3 MU-MIMO |
| Ethernet Ports | One (1) Latching Ethernet LAN port with Starlink Plug |
| Coverage | Up to 112 m² (1,200 ft²) |
| Security | WPA2 |
| Power Indicator | LED | rear face plate, lower left corner |
| Mesh Compatibility | Compatible with all Starlink mesh systems *Not compatible with 3rd party mesh systems |
| Devices | Connect up to 128 devices |
| Cig Socket Outputs | 1 x 10A |
| USB Outputs | 2 x USB-C 45W | 2 x QC3.0 |
| Anderson Input / Outputs | 5 |
| Anderson Inputs | 3 Pin Alternator | Unregulated Solar |
| Digitally Switched Outputs | 8 |
| Battery Connection | 175A Anderson |
| Operating Temperature | -20°C to +50°C |
| Product Dimensions | 440 x 160 x 320mm (L x W x H) |
| Product Weight | 9.35kg |
| DCDC-MPPT | |
| Charger Output Voltage Range | 3–16V DC |
| Alternator Input Voltage Range | 9–32V DC |
| Solar Input Voltage Range | 9–32V DC |
| Maximum Input Current | 56A |
| Maximum Continuous Charging Current | 40A |
| Efficiency | Solar - 99% Max | Alternator - 92% Max |
| No Load Current Draw | 10 mA |
| Charge Profile | |
| Absorption Voltage | GEL - 14.1V | WET - 14.4V | AGM - 14.7V | CAL - 15.3V | LiFePO4 - 14.5V |
| Float Voltage | GEL - 13.5V | WET - 13.4V | AGM - 13.4V | CAL - 13.6V | LiFePO4 - NA |
| Minimum Auxiliary Battery Voltage | GEL/WET/AGM/CAL - 9V | LiFePO4 - 0V |
| Alternator Charge Conditions | |
| 12V Alternator Input (Ignition OFF) | CUT-IN 13.2V | CUT-OUT 12.6V |
| 12V Alternator Input (Ignition ON) | CUT-IN 12.2V | CUT-OUT 10.5V |
| 24V Alternator Input (Ignition OFF) | CUT-IN 26.4V | CUT-OUT 25.2V |
| 24V Alternator Input (Ignition ON) | CUT-IN 24.4V | CUT-OUT 21V |
| Voltage | 12.8V |
| Capacity | 230Ah |
| Cell Type | Prismatic |
| Max Continuous Discharge | 230A |
| Max Continuous Charge | 230A |
| Peak Discharge | 430A (30s) |
| Max Charge Temp | 60°C |
| Min Charge Temp | 0°C |
| Max Discharge Temp | 65°C |
| Min Discharge Temp | -20°C |
| Cycle Life | 4000+ cycles | 80% DoD | 1C Charge / 0.5C Discharge |
| Bluetooth | Yes |
| Remote Display | Optional |
| Parallel / Series | 4 | 4 |
| Parallel / Series Remote Monitoring | Bluetooth | Remote Display |
| Dimensions (Battery) | 300 x 215 x 225mm |
| Dimensions (with Terminals and Housing) | 360 x 215 x 265mm |
| Weight | 23.5 kg |
| Certifications | IEC62619 |
| Warranty | 5 years |

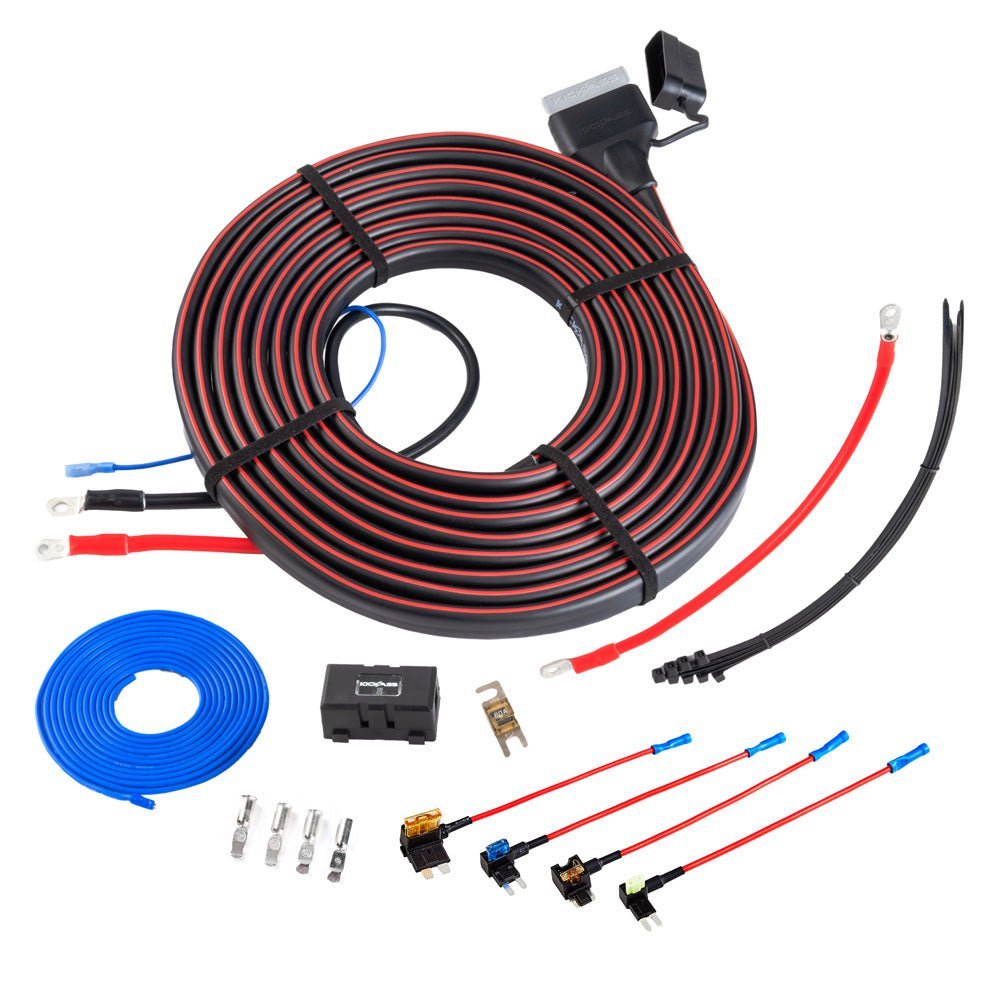

| Main Cable Length | 6.5M - 3 Core |
| Ignition Cable Extension | 3M - 14AWG Single Core |
| Cable Size - 3 Core | 2x 6AWG (13.5mm²), 1x 14AWG (1.8mm²) |
| Insulation Material | Inner - Silicon / Outer - PVC |
| Rated Temperature | Max. 105°C |
| Ring Terminals | M8 - Battery / M6 - Fuse |
| Fuse | 80A MIDI Fuse with Holder |
| Connections | 3 Pin Anderson Style / Bullet |
| Starlink Mini | |
| KickAss 12V Wireless Canopy Power System with 40A DCDC Charger + Integrated Bluetooth | |
| KickAss Smart 12V 230Ah Ultra-X Lithium Compact Deep Cycle Battery LiFePO4 | |
| KickAss Heavy Duty Plug and Play DCDC Wiring Kit - 6.5m |
Get the ultimate off-grid power and connectivity setup with this KickAss bundle. Featuring our top-tier Smart 12V 230Ah Ultra-X Lithium Compact Deep Cycle Battery, you get reliable, long-lasting power in a compact design. This battery is built tough for Australian conditions and offers exceptional cycle life.
The included KickAss 12V Wireless Canopy Power System with a 40A DCDC Charger ensures your battery is always topped up, whether you're driving or parked. It's a complete power management solution, designed for easy installation and robust performance. Plus, with integrated Bluetooth, you can monitor your power from your phone.
Stay connected anywhere with the Starlink Mini, providing high-speed internet even in remote locations. We've also included a heavy-duty plug and play DCDC wiring kit and a 15m DC power cable for the Starlink Mini, so you have everything you need to get set up and exploring.
