KickAss Twin 250W Solar Panel Bundle with Connectors, Mounting Kit & Extension Cable - 5m, 500W Total Capacity
Pickup available at Acacia Ridge Store
Usually ready in 1 hour
Everything that is included in this KickAss kit!
1 x KickAss Solar Panel PV to Anderson Extension Cable - 5m
Makes installing solar panels a breeze. Specially engineered to be paired with our KickAss DC/DC Charger and KickAss 170W, 250W, or 350W Fixed Glass Solar Panels, this extension cable is completely plug & play. MC4 compatible.
Heavy Duty Twin Core 10B&S Cable
Individually insulated and encased in a smooth PVC outer, providing added strength.
Pre-Crimped Anderson Terminals for Ease of Install
Setting up your solar has never been easier with the KickAss Solar Panel PV to Anderson Solar 5M Extension Cable. It can be plugged straight into your KickAss DCDC charger on your battery box, control hub, or directly into your MPPT/PWM solar controller. MC4 compatible.
2 x KickAss 12V 250W Fixed Solar Panel, Glass Roof Top
In-Store Only
KickAss 12V 250W Fixed Glass Solar Panel, built with A-grade monocrystalline cells. Generates power even when partially shaded, resistant to hail, stones and accidental knocks.
Glass Roof Top 12V Solar Panel 250W
Bypass Diode
The bypass diode will maintain the solar panel's output in the event the cells are partially shaded. This technology ensures superior performance by providing a more consistent power supply, ideal for rooftop mounting.
Perfect Sizing for Roof Top Mounting
The KickAss Engineering team has designed these panels with optimal dimensions for mounting on your 4WD, caravan, or trailer.
Permanent Power Solution
Elevate your 12V setup with the new KickAss 250W Fixed Solar Panel. Designed and tested for Australian conditions, it delivers efficient solar power for your 4WD, trailer, caravan, or boat. Fixed panels offer continuous operation once connected to your 12V system. With optional mounting accessories, installation is quick and secure.
A-Grade Monocrystalline Solar Cells
Made with premium monocrystalline cells, the KickAss 12V 250W Fixed Solar Panel offers 15–25% more efficiency than many alternatives. These panels also perform better in low-light conditions.
Thick Tempered Glass
The highly transparent, anti-reflective tempered glass provides strong resistance against hail, stones, and accidental knocks. Perfect for permanent mounting and built to withstand harsh Australian weather conditions.
1 x Solar T Branch Female and Male Connector
Solar T Branch Female and Male Connector. Perfect for connecting multiple panels in parallel. Both dust & waterproof, meaning they are protected from exposure to moisture & elements.
Maximise your solar energy collection with the Solar T Branch Female and Male Connector. This versatile adapter allows easy parallel connection of multiple solar panels, helping you achieve optimal charging efficiency. Ideal for DIY projects and larger solar installations.
Constructed to withstand the elements, the connectors are dust-proof and waterproof, providing reliable protection against moisture, dirt, and harsh environmental conditions. This ensures a long-lasting, robust connection to enhance your solar array's performance.
Whether you're an experienced solar enthusiast or just starting your renewable energy journey, the Solar T Branch Connector is an essential addition to your toolkit. Enjoy increased energy output and a more effective solar setup with this simple yet powerful connector.
Key Features:
- Allows for parallel connection of multiple solar panels
- Dust-proof and waterproof design for superior durability
- Easy to install and compatible with various solar panel models
- Perfect for both residential and commercial solar energy systems
2 x KickAss Mounting Kit for Fixed Glass Solar Panels
This mounting kit has everything you need to make it easy to affix your KickAss 170W, 250W, or 350W Glass Solar Panel to the roof of your vehicle. The compact design maintains the aerodynamics of your vehicle.
Mounting Kit for the KickAss Fixed Glass Solar Panel Range
Constructed from strong, light weight aluminium and contains all bolts, nuts and washers required for mounting.
What's Included:
- 4 x Aluminium Solar Panel Mounting Brackets
- 4 x Threaded Aluminium Mounting Bars
- 8 x M6 x 40mm Stainless Bolts
- 4 x M6 x 16mm Stainless Bolts
- 8 x M6 x 38mm Self Tapping Screws
- 12 x Stainless Steel Nuts
- 12 x Stainless Steel Spring Washer
- 12 x Stainless Steel Washer
This mounting kit has everything you need to make it easy to affix your KickAss Fixed Glass Solar Panel to the roof of your vehicle. The compact design maintains the aerodynamics of your vehicle.
SPECIFICATIONS
Technical Details
KickAss 12V 250W Fixed Solar Panel, Glass Roof Top
| SKU | KARTSP250 |
| Cell type | High efficiency A-grade monocrystalline |
| Max power (Pmax) | 250W |
| Max power voltage (Vmp) | 20.69V |
| Max power current (Imp) | 12.37A |
| Open circuit voltage (Voc) | 24.86V |
| Short circuit current (Isc) | 13.06A |
| Dimensions | 1725mm x 765mm x 35mm |
| Weight | 13.80kg |
| Frame | Black powder coated aluminium |
| Application class | Class A |
| Fire safety class | Class C |
| Maximum system voltage | 1000VDC |
| Operating temperature | -40°C to 85°C |
| Nominal operating cell temperature | 47°C |
| Connector type | Water proof PV Connector |
| Standard test condition | 1000W/m² AM1.5 25° |
| Power tolerance | + / - 5% |
| Dimension tolerance | + / - 2mm |
| Conversion efficiency | 20.6% |
User Manual & Support Docs
| Solar T Branch Female and Male Connector | |
| KickAss Mounting Kit for Fixed Glass Solar Panels | |
| KickAss Solar Panel PV to Anderson Extension Cable - 5m | |
| KickAss 12V 250W Fixed Solar Panel, Glass Roof Top |
Detailed Description

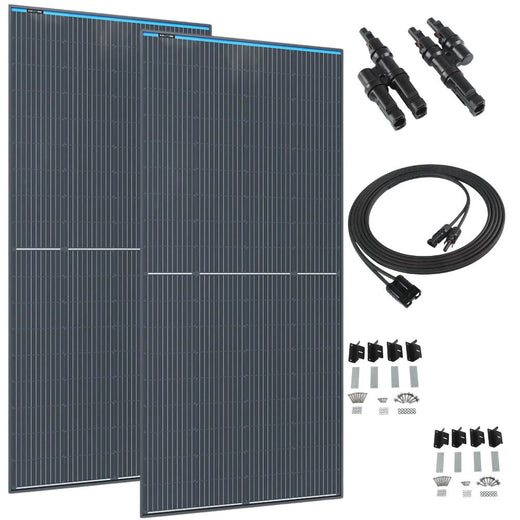

Power up your off-grid adventures with the KickAss 500W Fixed Solar Panel Kit. This bundle includes 2 x KickAss 250W Glass Roof Top Solar Panels, 2 x KickAss Mounting Kits for secure installation, 1 x Solar T-Branch Connector for easy panel connection, and 1 x 5m Solar Panel PV to Anderson Extension Cable for flexible positioning. Perfect for caravans, 4WDs, and off-grid setups.
