KickAss 500A Battery Monitoring Shunt with Remote Display + Extension Cable Bundle
Pickup available at Acacia Ridge Store
Usually ready in 1 hour
Monitor your battery performance with precision using the KickAss 500A Battery Monitoring Shunt Bundle, featuring a remote display and 5M extension cable for flexible, accurate power management.
Everything that is included in this KickAss kit!

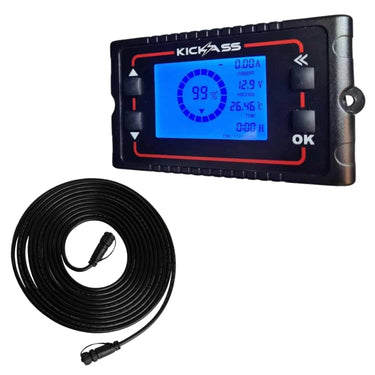

1 x KickAss 500A Battery Monitoring Shunt with Remote Display
Compatible with your current battery, the shunt is a simple way to upgrade your battery without the expense of a whole new setup. Compatible with Lithium, AGM, GEL, WET & Calcium batteries.
KickAss 500A Battery Monitoring Shunt with Remote Display
Accurate Charge Status of Battery
Feel confident knowing your battery’s state of charge at all times. No more relying on voltage alone to determine battery health.
Compatible with Most Modern Battery Types
Works with AGM, GEL, Sealed Lead Acid, Flooded Lead Acid, and LiFePO4 batteries. Ideal for charging starter, deep-cycle, marine, powersports batteries and more.
Preserve Battery Life with Battery Input/Output Monitoring
Monitor both charge and power draw on one clear screen to extend battery life and performance.
Audible Low Battery Voltage Alarm
Avoid trip interruptions—an audible alarm alerts you when voltage drops. The alarm is easily programmable for custom thresholds.
Capable of Monitoring up to 500A Load
Perfect for high-powered setups including inverters and other heavy-duty appliances.
Mounts Directly to Your Battery Terminal
Fast, accurate data straight from the source. Optional 5m extension cable for flexible mounting.
1 x Extension Cable for KickAss Remote Display Unit - 5m
5 metre extension cable add on. Compatible with our new Lithium Battery Remote Display Unit & KickAss Battery Shunt. Durable and effective.
5 metre extension cable add on. Compatible with our new Lithium Battery Remote Display Unit & KickAss Battery Shunt. Durable and effective.
SPECIFICATIONS
Technical Details
KickAss 500A Battery Monitoring Shunt with Remote Display
| Working Voltage Range | 10–30V DC |
| Working Dissipation (backlight on) | ~100 mA |
| Standby Dissipation (backlight off) | ~1–2 mA |
| Accuracy | 1% |
| Battery Capacity Range | 0 – 999Ah |
| Operating Temperature Range | -10° to 60° |
| Display Housing Dimensions | 126L x 66.6H |
| B+ Wire Length | 100cm |
| Wire Length to LCD | 50cm |
| Wire Length to Shunt Sampler | 50cm |
| Optional Extension Cable Wire Length | Up to two 5m extension cables |
User Manual & Support Docs
| Extension Cable for KickAss Remote Display Unit - 5m | |
| KickAss 500A Battery Monitoring Shunt with Remote Display |
Detailed Description
Keep a close eye on your battery performance with the KickAss 500A Battery Monitoring Shunt with Remote Display + Extension Cable Bundle. Designed for serious off-grid enthusiasts and 12V power users, this bundle provides precise battery monitoring and convenient remote access, ensuring your power system is always running at its best.
Accurate Battery Monitoring
The KickAss 500A Battery Monitoring Shunt offers accurate, real-time tracking of your battery’s performance, providing crucial data such as voltage, current, and state of charge. Whether you’re running a complex 12V system or a single battery setup, this shunt ensures you have the information you need to manage your power efficiently and effectively.
Convenient Remote Display
Included in this bundle is the KickAss Remote Display, allowing you to monitor your battery status from a convenient location. The easy-to-read display provides real-time information, so you’re always aware of your battery’s condition and can make adjustments as needed to optimise performance.
Extended Reach with 5M Extension Cable
For added flexibility, this bundle includes a 5M Extension Cable, giving you the freedom to position your remote display exactly where you need it. Whether your setup is in a 4WD, caravan, or camper trailer, this extension cable ensures that your monitoring setup is both accessible and user-friendly.
Built for Australian Conditions
Engineered to withstand the demanding conditions of the Australian outback, the KickAss Battery Monitoring Shunt and Remote Display are built tough. Whether you’re dealing with extreme temperatures or rough terrain, this bundle provides reliable, accurate monitoring to keep your power system in check.
Complete Monitoring Solution
This bundle offers everything you need to stay in control of your 12V power system. With accurate monitoring, convenient remote access, and flexible installation options, the KickAss 500A Battery Monitoring Shunt with Remote Display + Extension Cable Bundle is the perfect solution for maintaining optimal battery performance on the go.
Upgrade your power management with the KickAss 500A Battery Monitoring Shunt with Remote Display + Extension Cable Bundle—accurate, convenient, and built to withstand the toughest conditions.
