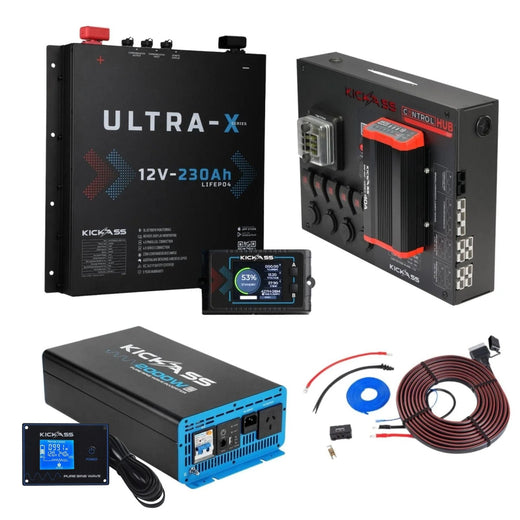

KickAss Smart 12V 230Ah Ultra X Lithium Slimline Complete Dual Battery Kit with 2000W Inverter, Control Hub with 40A DCDC Charger, Display Panel, Wiring

KickAss 12V to 240V Pure Sine Wave 2000W Inverter Feature Overview

2000W Continuous Output

Plenty of power to run all your AC essentials while on the move—induction cooktops, coffee machines, battery chargers for your power tools, and more.

Pure Sine Waveform

Delivers a clean and reliable sine wave output that replicates the AC signal from a home power point. Unlike modified sine wave inverters, the KickAss Pure Sine Wave Inverter is ideal for running sensitive electronics such as laptops, Starlink systems, and CPAP machines.

AC Automatic Transfer Switch

Simplify your off-grid setup with the integrated Automatic Transfer Switch. Power your AC devices from your battery bank, then seamlessly switch to mains power by plugging in the AC input cable. If mains power drops out, the inverter automatically switches back to battery power without interruption.

Multiple Protective Features

Multi-level safety protection uses both software and hardware safeguards to protect you, your inverter, and your devices. The system continuously monitors operation and automatically enters protection mode if necessary. Integrated Residual Current Devices (RCD) and Circuit Breakers (CB) provide added hardware protection, making it suitable for commercial and domestic use.

Optional Remote Control Display (Not Included in Base Version)

Enhance your setup with the optional remote display, allowing you to monitor and manage power usage remotely. The flush-mountable screen is low-profile and ideal for installation near your camp kitchen. It includes an integrated on/off switch for conserving battery power when the inverter is not in use.

Note: Only compatible with the blue KickAss remote inverter screen.

KickAss 12V Control Hub with 40A DCDC Charger

The ultimate power management solution for your dual battery system and off-grid setup. This all-in-one unit integrates a 40A DCDC charger, power distribution for up to 15 devices, and advanced safety features to keep your adventures powered.

Key Features:

• Integrated 40A DCDC Charger – No need for separate devices, simplifying your dual battery setup.
• Power Up to 15 Devices at Once
  • 5 x Hardwired rocker switches
  • 4 x Anderson outputs
  • 2 x Cigarette sockets
  • 1 x USB-C PD
  • 1 x USB QC3.0
  • 2 x USB-A
  • Hardwired connections for high-power devices (e.g., inverters)
• Built-in Circuit Protection – Fuse block for rocker switches, cig sockets & USBs, plus auto-resettable breakers for Anderson outputs.
• Simple Installation – Pre-drilled mounting holes for easy setup using pop rivets, bolts, or screws. Three cable entry points provide flexible wiring options.
• Dual Battery Charging via Alternator – Compatible with 12V & 24V systems, including smart alternators.
• 500W Solar Input – High-power solar charging ensures reliable off-grid energy.
• Automatic Lithium Battery Recovery Mode – Restores flat lithium batteries automatically, no manual reset needed.
• QC3.0 & USB-C Fast Charging – Charges devices 70% faster than standard USB ports.
• 5 x 20A Light-Up Rocker Switches – Backlit for easy control, with replaceable fuses for extra protection.
• Pre-Drilled Mounting for KickAss Lithium RDU – Seamlessly mount your Lithium Battery Remote Display for real-time battery monitoring.

Effortless power, wherever adventure takes you!

This 3-pin Anderson-style connector with built-in ignition wire makes connecting your 12V dual battery system easy. Perfect for wiring DC/DC chargers, battery boxes & auxiliary batteries.

KickAss Features:

• Ultra compact, slimline design
• Supporting Bluetooth app
• BMS with multiple safety features
• Connect in parallel or series
• Monitor your battery bank remotely
• 230Ah usable capacity
• 230A continuous charge & discharge with 460A pulse capacity
• 4000+ Cycles @ 80% DoD 0.5C
• Metal case with integrated mounting points
• Australian Safety Certified
• Designed & developed in Australia

Ultra Compact, Slimline Design

The ultra-compact, slimline design is ideal for those who have minimal space but need maximum power. Measuring only 500mm x 510mm x 70mm, this compact powerhouse is perfect for installing in canopies, under false floors in caravans, behind seats, and anywhere where space is tight. This KickAss battery delivers big power in a small package.

Supporting Bluetooth App

No more guesswork – stay in control of your power system by using the supporting Bluetooth app. Monitor critical battery parameters such as SoC, level, voltage, current, temperature, and real-time system alerts right from your smartphone. Having real-time data at your fingertips ensures optimal performance and peace of mind during all your off-grid adventures.

BMS with Multiple Safety Features

The KickAss 12V 230Ah Deep Cycle Lithium Battery is equipped with an advanced Battery Management System (BMS) that ensures safety and reliability. The BMS actively monitors and protects the battery from common issues such as overcharging, over-discharging, short circuits, and overheating, ensuring safe operation at all times.

Create a Battery Bank with Over 900Ah of Usable Capacity

These batteries support parallel and series configurations for maximum versatility. Link up to four in parallel to create a massive battery bank with over 900Ah of usable capacity, delivering serious power for extended off-grid use. This capability allows you to tailor your power setup to your exact needs.

Monitor Your Battery Bank Remotely

Monitoring multiple batteries in a series or parallel setup usually requires an external shunt, but these batteries eliminate that need. Simply connect each Ultra-X series battery using an RJ45 cable, and the optional KickAss Remote Display Unit (RDU) will seamlessly interface with the entire battery bank. Alternatively, use the supporting Bluetooth app for system monitoring without additional hardware.

230Ah Usable Capacity

With 230Ah of usable capacity, the KickAss 12V Deep Cycle Lithium Battery offers an abundance of power for extended off-grid adventures. This large capacity means you can run devices and appliances for longer periods without frequent recharges.

230A Continuous Charge & Discharge with 460A Pulse Capacity

This battery delivers exceptional performance with its 230A continuous charge and discharge capability, ensuring a steady and reliable flow of power for demanding applications. The impressive 460A pulse capacity allows it to handle sudden power surges, making it incredibly versatile.

4000+ Cycles @ 80% DoD 0.5C

Designed for longevity, this battery offers over 4000 charge and discharge cycles at 80% Depth of Discharge (DoD) and a 0.5C charge/discharge rate. This durability ensures a long-lasting, high-performance battery for years to come.

Metal Case with Integrated Mounting Points

The durable metal housing with integrated mounting points eliminates the need for a separate battery tray. The heavy-duty metal casing not only protects the battery from the elements and rough conditions but also makes installation easier and more secure.

The KickAss Remote Smart Lithium Battery Display Unit is compatible with the KickAss Smart and Ultra-X series batteries. Simple plug-and-play via the RJ45 connector, it allows you to monitor State of Charge (SOC), voltage, real-time current, and temperature of either a single battery or multiple batteries connected in parallel or series. Includes 5m extension cable.

Take full control of your battery system with the KickAss Battery Display Monitor – your window into real-time performance, protection, and peace of mind.

Monitor Your Battery Like a Pro

Never guess your battery’s health again. With a full-colour screen, you can instantly view:

• Battery temperature
• Current draw
• Voltage
• Charge status
• Time to empty/full
• Cell balance and more

Built-In Battery Management System (BMS)

The integrated KickAss BMS keeps your battery safe — actively protecting against:

• Overvoltage and undervoltage
• Short circuits
• Overload
• High temperatures

Stay alerted with smart error messages and stay in control from your display or compatible mobile device.

Easy Flush-Mount Design

Install it where you need it most. Whether it's in your canopy, van, or camper setup, the flush-mount design with included screws and universal hole spacing makes installation fast and secure.

Compact Dimensions

• Display: 126mm (W) x 66.61mm (H) x 23mm (D)
• Cable Length: 440mm
• Mounting holes for quick surface installation

The KickAss Battery Display Monitor isn’t just for looks – it’s your off-grid command centre. Whether you're heading bush or running gear off your canopy, this screen keeps your system protected and your trips worry-free.

KickAss Pure Sine Wave Inverter Remote Display Panel Feature Overview

Real-Time Monitoring

Unexpected power fluctuations can damage your equipment and waste valuable energy. With real-time monitoring, you can track your energy generation and power usage, spotting any problems early. This keeps your setup running smoothly and efficiently at all times.

Remote Control

Monitor and manage your power consumption from a distance—for example, from the front seat while your inverter is installed in the back of your truck. The included 3-metre cable allows you to access and control your inverter system easily.

Fault Diagnostics

When a system malfunction occurs, diagnosing the problem can be challenging and time-consuming. The KickAss Inverter Remote Display automatically identifies and reports inverter faults, providing detailed diagnostics to simplify troubleshooting.

Intuitive User Interface

The display screen is clear and easy to navigate. View energy metrics, adjust settings, and set alerts with confidence—no guesswork, just clear and precise information.

Compatible with Most KickAss Inverters

The remote display unit is compatible with KickAss 2000W and 3000W inverters (not compatible with 700W or 1200W models). Seamlessly integrate it into your current setup or upgrade your system with ease.

Please note: This remote display is not compatible with older red KickAss 700W, 1200W, 2000W, or 3000W inverters.
