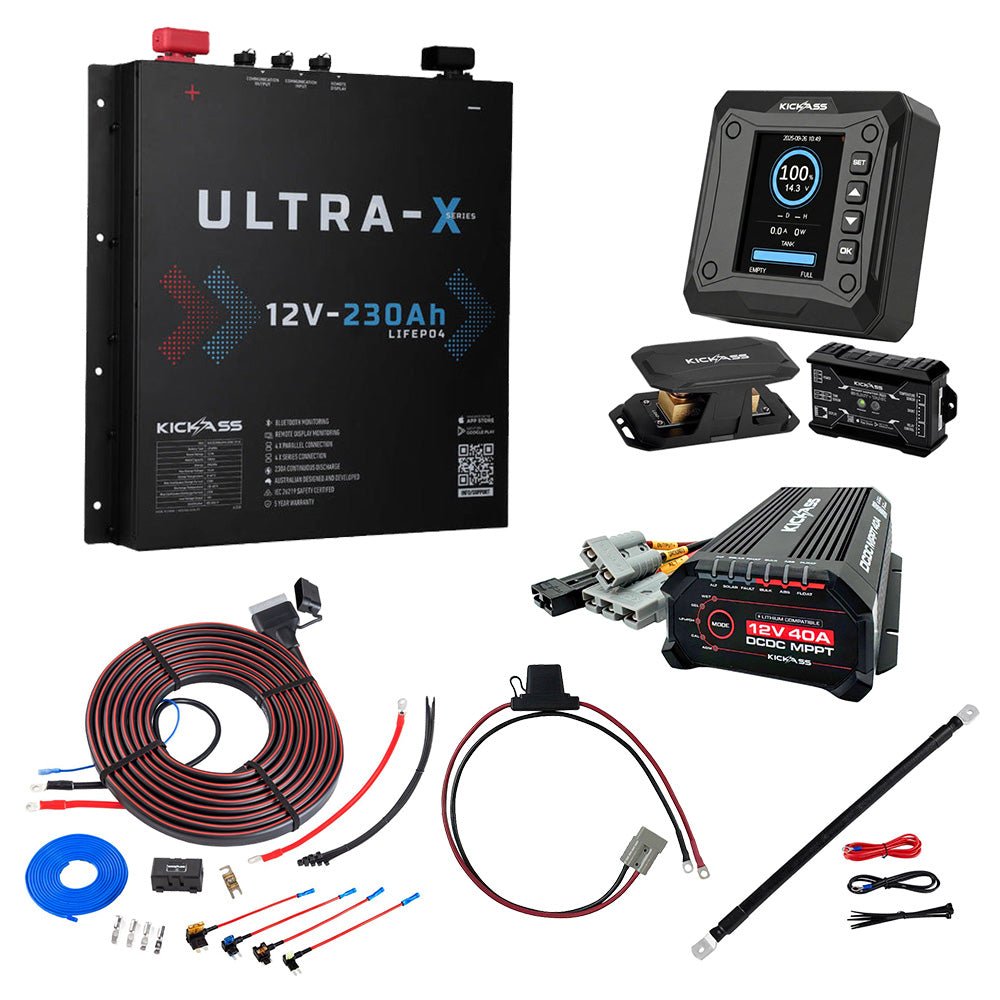

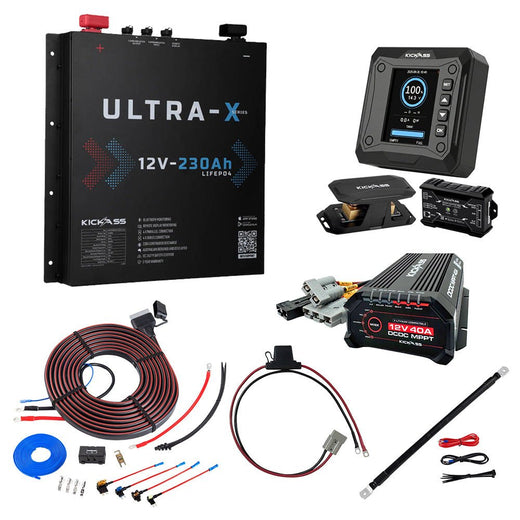

KickAss 230Ah Lithium Slimline Complete Dual Battery Kit with 40A DCDC Charger, Smart Shunt and Wiring

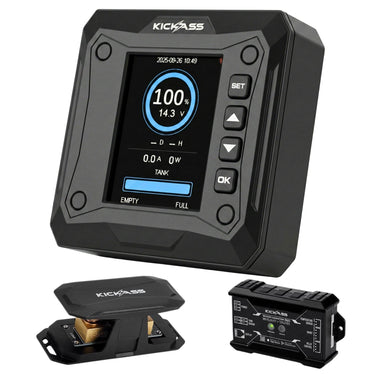

The KickAss Smart Monitor Lite Shunt + Tank Sensor is a powerful, easy-to-use solution for monitoring your off-grid power and water systems. Designed for touring rigs, caravans and 4WD setups, it gives you clear, reliable insight into how your battery bank is performing, how long you can keep running your gear, and when it’s time to recharge or top up the tank.

At the heart of the system is a high-capacity 600A shunt that accurately measures charge and discharge current, battery voltage and State of Charge. This allows you to understand exactly what’s happening inside your battery bank, helping you manage power more efficiently and avoid unexpected shutdowns when running fridges, lighting, inverters and other essential off-grid equipment. As loads and charging sources change, the system continuously provides real-time calculations and updates how long your battery has left to run or how long it will take to recharge. This takes the guesswork out of power management and makes it easier to plan your usage while travelling off-grid.

The Smart Monitor Lite can also connect to your tank sensor or sender, allowing you to monitor both your battery data and water level from a single unit. It’s compatible with resistive and voltage-type tank senders and can be calibrated to suit virtually any tank size or shape.

Monitoring and setup are simple thanks to Bluetooth connectivity and the dedicated mobile app. View real-time voltage, current, power and State of Charge from your smartphone, configure battery and tank settings, and review historical performance data whenever you need it. For quick checks without reaching for your phone, the colour LCD remote display provides clear, at-a-glance system information right where you want it.

Installation and configuration are straightforward, even for more complex setups. The intuitive app interface guides you through setup with clear menus and prompts, making it easy to tailor the system to your specific battery chemistry and capacity. The shunt supports AGM, lithium and other common battery types, from small single-battery systems through to large dual-battery lithium banks.

Integrated data logging records voltage, current and temperature for up to 35 days, allowing you to review power usage trends over the course of a trip. With a wide input voltage range and flexible power options, the unit can be powered directly from the battery or an external supply and used with battery banks of any voltage. For added control and protection, the external relay output allows you to automate system behaviour based on voltage, current, power or temperature.

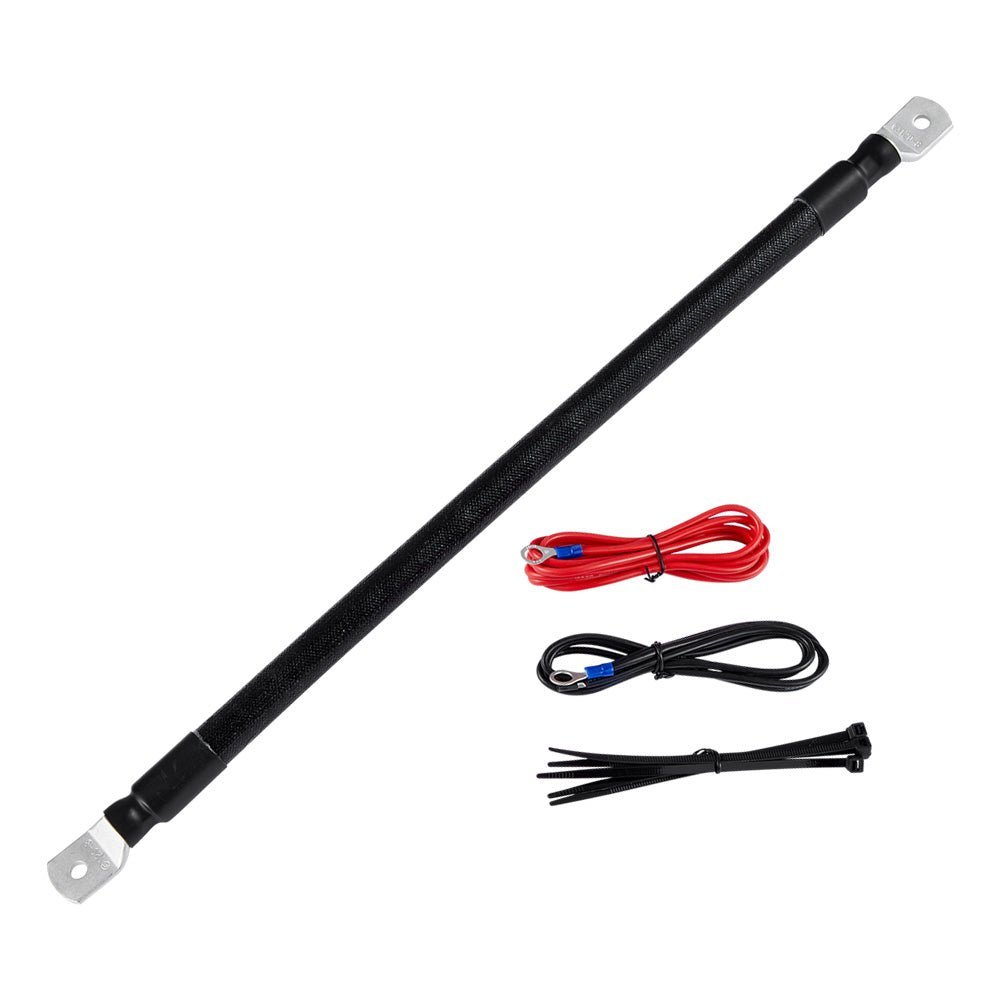

The KickAss 600A Smart Shunt Power Connections Kit is the perfect companion to your KickAss 600A Smart Shunt with Battery & Tank Monitor, designed to make installation quick, clean and easy. This purpose-built kit includes the main heavy-duty negative connection between your battery and shunt, along with the smaller positive and negative power cables required to run the shunt itself. With everything sized correctly and ready to go, it eliminates guesswork and ensures your monitoring system is powered safely and accurately from day one.

Built for serious off-grid and touring setups, the kit features a rugged 95mm² negative hookup cable designed to handle high-current loads with minimal voltage drop. Whether you're running a lithium battery bank, dual battery system or high-draw accessories, these cables deliver dependable performance in harsh environments. By using the correct cabling for your shunt installation, you'll get more accurate readings, improved reliability and a cleaner, more professional finish to your power system.

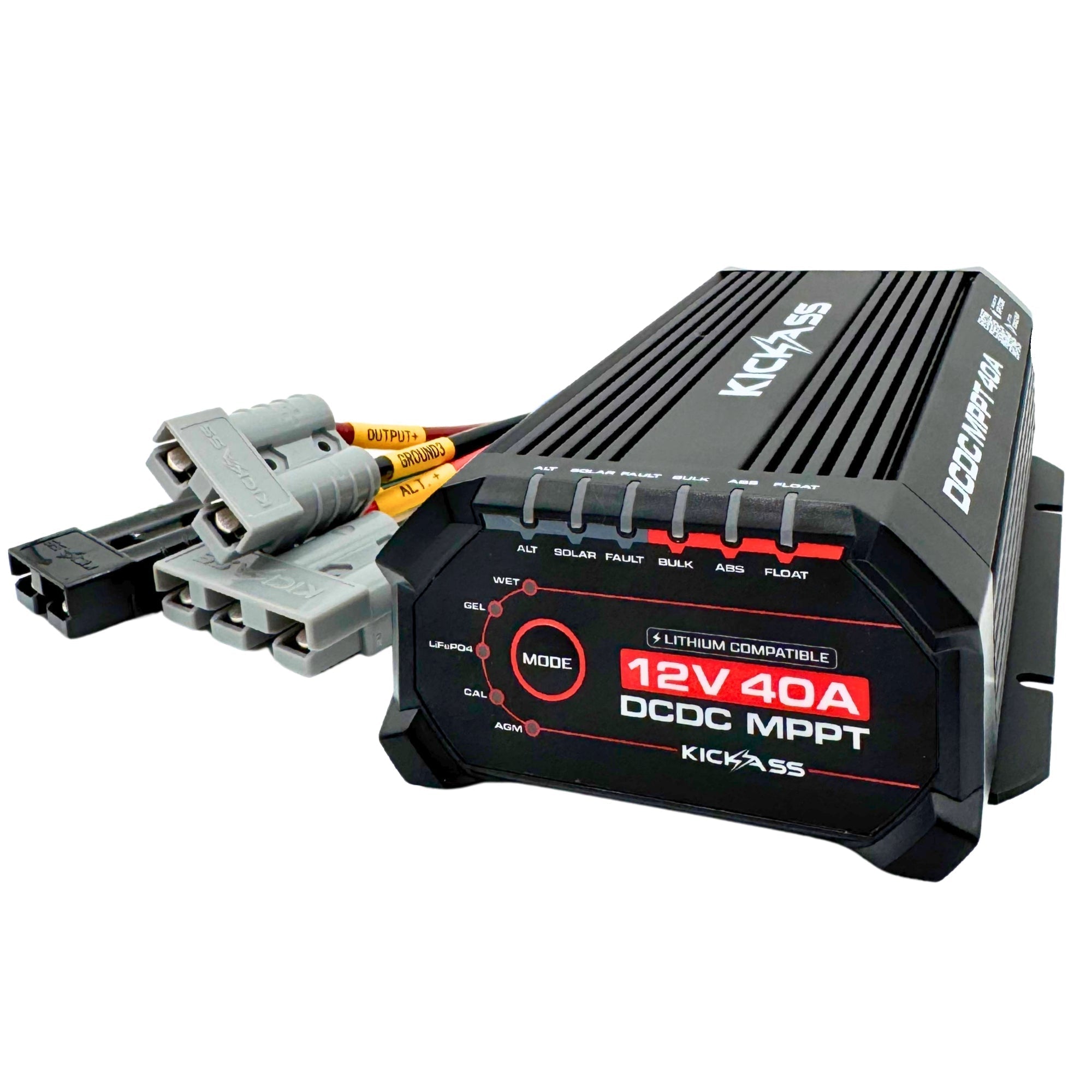

Powerful 40A Dual Battery Charging

With a high 40A output, this charger is perfect for keeping larger lithium and lead acid battery systems topped up and ready for action. It ensures fast, safe charging for demanding off-road or touring applications.

Bluetooth Monitoring & App Control

Connect your charger to your smartphone via Bluetooth to monitor performance in real time. The KickAss App gives you complete visibility over charging status, voltages, current flow, and system alerts – all from your pocket.

Simple Plug & Play Installation

Thanks to Anderson-style connectors, installation is quick and hassle-free with no complex wiring required. It’s designed for DIY setups and easy integration into your existing system.

Dual Input: Alternator & Solar Charging

Charge from your vehicle’s alternator while driving or connect a solar panel when stationary – this charger handles both. Its built-in MPPT solar regulator ensures maximum efficiency when using solar input.

Built for Aussie Conditions

Rated IP66, the KickAss 40A DCDC Charger is waterproof, dustproof, and rugged enough to handle corrugated tracks, extreme heat, and remote adventures. It’s built tough for Australian conditions.

Compatible with 12V & 24V Alternators

Highly versatile, this charger is compatible with both 12V and 24V alternators, making it suitable for a wide range of vehicle types including trucks, commercial vehicles, and 4WDs.

Adjustable Max Input Current – Hybrid Compatible

The maximum input current can be configured via the Bluetooth app, allowing the charger to limit the draw from your vehicle’s alternator, without reducing the maximum charge current when charging from solar. This makes it ideal for some hybrid vehicles or those with low-output alternators, helping prevent overload and ensuring stable, efficient charging without placing strain on your electrical system.

Smart Alternator Ready

Modern vehicles with smart alternators are no problem. The unit supports both smart and fixed-voltage alternators and includes an ignition trigger wire to start or stop charging based on engine status.

Lithium Battery Compatible

Fully lithium-ready, this charger includes an automatic lithium wakeup function that can safely restore LiFePO4 batteries from low voltage protection or sleep mode – no manual intervention needed.

Advanced Multi-Stage Charging

Precision charging algorithms help extend the life of your auxiliary battery. The charger delivers multi-stage charging tailored to the battery type, helping maintain peak performance over the long haul.

Starter Battery Isolation

To protect your starting battery, the charger only delivers current to your auxiliary battery when the engine is running, and automatically disconnects when the vehicle is off – eliminating unwanted drain.

Supports Multiple Battery Chemistries

Whether you’re using lithium, AGM, wet, gel, or calcium batteries, this charger has you covered. It’s a versatile solution designed to support a wide range of battery types.

Perfect for 4WDs, caravans, camper trailers, and off-grid touring setups, the KickAss 40A DCDC Charger with Solar MPPT and Bluetooth delivers intelligent charging for serious adventurers.

This 3-pin Anderson-style connector with built-in ignition wire makes connecting your 12V dual battery system easy. Perfect for wiring DC/DC chargers, battery boxes & auxiliary batteries.

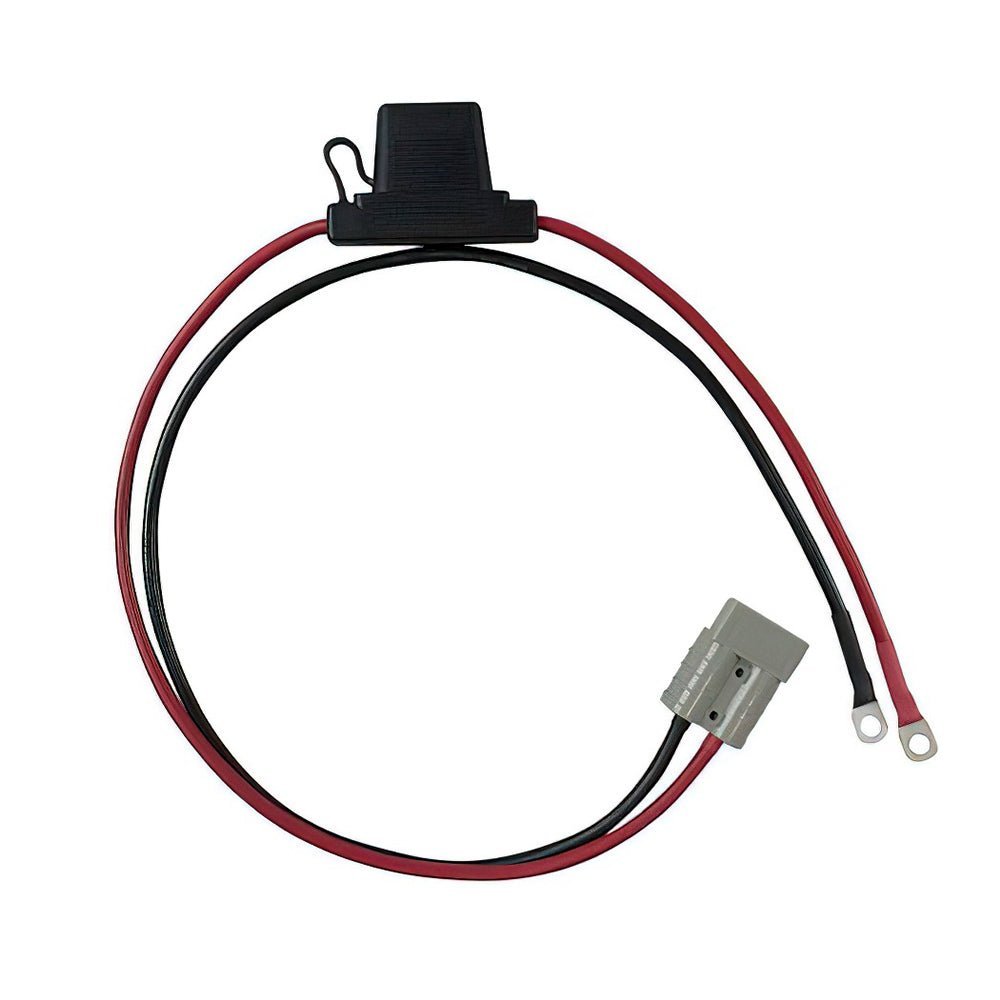

KickAss MAXI Fuse Anderson Cable

The KickAss MAXI Fuse Anderson Cable is the perfect solution for connecting a battery to virtually any device. It offers superior circuit protection through an inline 80A MAXI Fuse, safeguarding against short circuits and potential system damage.

With a purpose-designed length, this cable easily reaches vehicle starting batteries and integrates seamlessly with dual battery setups. The built-in weatherproof MAXI Fuse holder simplifies installation, eliminating the need for mounting traditional fuse holders or circuit breakers.

One end of the cable features a 50 Amp Anderson style connector for effortless connection to battery boxes, solar panels, or other compatible devices. The other end includes high-quality 8mm ring terminals for secure battery attachment. A spare 80A MAXI Fuse is included for added convenience.

Features:

• In-line weatherproof MAXI Fuse holder with 80A MAXI Fuse
• Length: 750mm
• Cable type: Twin 8B&S (7.71mm²) Red/Black Sheathed
• 1 x 80A MAXI Fuse pre-installed in holder
• 1 x 80A MAXI Fuse spare
• 8mm ring terminals

See links below for replacement fuses:

Spare 50A MAXI Fuse - Red

KickAss Features:

• Ultra compact, slimline design
• Supporting Bluetooth app
• BMS with multiple safety features
• Connect in parallel or series
• Monitor your battery bank remotely
• 230Ah usable capacity
• 230A continuous charge & discharge with 460A pulse capacity
• 4000+ Cycles @ 80% DoD 0.5C
• Metal case with integrated mounting points
• Australian Safety Certified
• Designed & developed in Australia

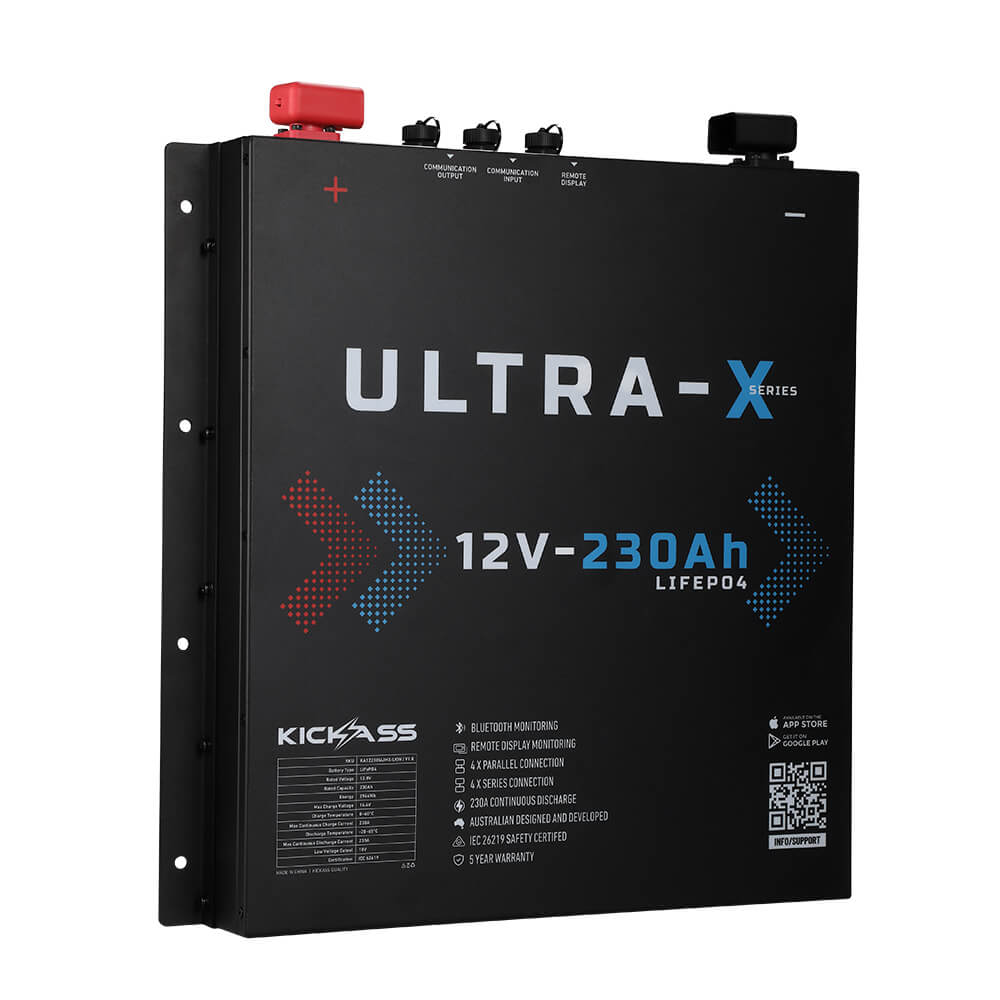

Ultra Compact, Slimline Design

The ultra-compact, slimline design is ideal for those who have minimal space but need maximum power. Measuring only 500mm x 510mm x 70mm, this compact powerhouse is perfect for installing in canopies, under false floors in caravans, behind seats, and anywhere where space is tight. This KickAss battery delivers big power in a small package.

Supporting Bluetooth App

No more guesswork – stay in control of your power system by using the supporting Bluetooth app. Monitor critical battery parameters such as SoC, level, voltage, current, temperature, and real-time system alerts right from your smartphone. Having real-time data at your fingertips ensures optimal performance and peace of mind during all your off-grid adventures.

BMS with Multiple Safety Features

The KickAss 12V 230Ah Deep Cycle Lithium Battery is equipped with an advanced Battery Management System (BMS) that ensures safety and reliability. The BMS actively monitors and protects the battery from common issues such as overcharging, over-discharging, short circuits, and overheating, ensuring safe operation at all times.

Create a Battery Bank with Over 900Ah of Usable Capacity

These batteries support parallel and series configurations for maximum versatility. Link up to four in parallel to create a massive battery bank with over 900Ah of usable capacity, delivering serious power for extended off-grid use. This capability allows you to tailor your power setup to your exact needs.

Monitor Your Battery Bank Remotely

Monitoring multiple batteries in a series or parallel setup usually requires an external shunt, but these batteries eliminate that need. Simply connect each Ultra-X series battery using an RJ45 cable, and the optional KickAss Remote Display Unit (RDU) will seamlessly interface with the entire battery bank. Alternatively, use the supporting Bluetooth app for system monitoring without additional hardware.

230Ah Usable Capacity

With 230Ah of usable capacity, the KickAss 12V Deep Cycle Lithium Battery offers an abundance of power for extended off-grid adventures. This large capacity means you can run devices and appliances for longer periods without frequent recharges.

230A Continuous Charge & Discharge with 460A Pulse Capacity

This battery delivers exceptional performance with its 230A continuous charge and discharge capability, ensuring a steady and reliable flow of power for demanding applications. The impressive 460A pulse capacity allows it to handle sudden power surges, making it incredibly versatile.

4000+ Cycles @ 80% DoD 0.5C

Designed for longevity, this battery offers over 4000 charge and discharge cycles at 80% Depth of Discharge (DoD) and a 0.5C charge/discharge rate. This durability ensures a long-lasting, high-performance battery for years to come.

Metal Case with Integrated Mounting Points

The durable metal housing with integrated mounting points eliminates the need for a separate battery tray. The heavy-duty metal casing not only protects the battery from the elements and rough conditions but also makes installation easier and more secure.
