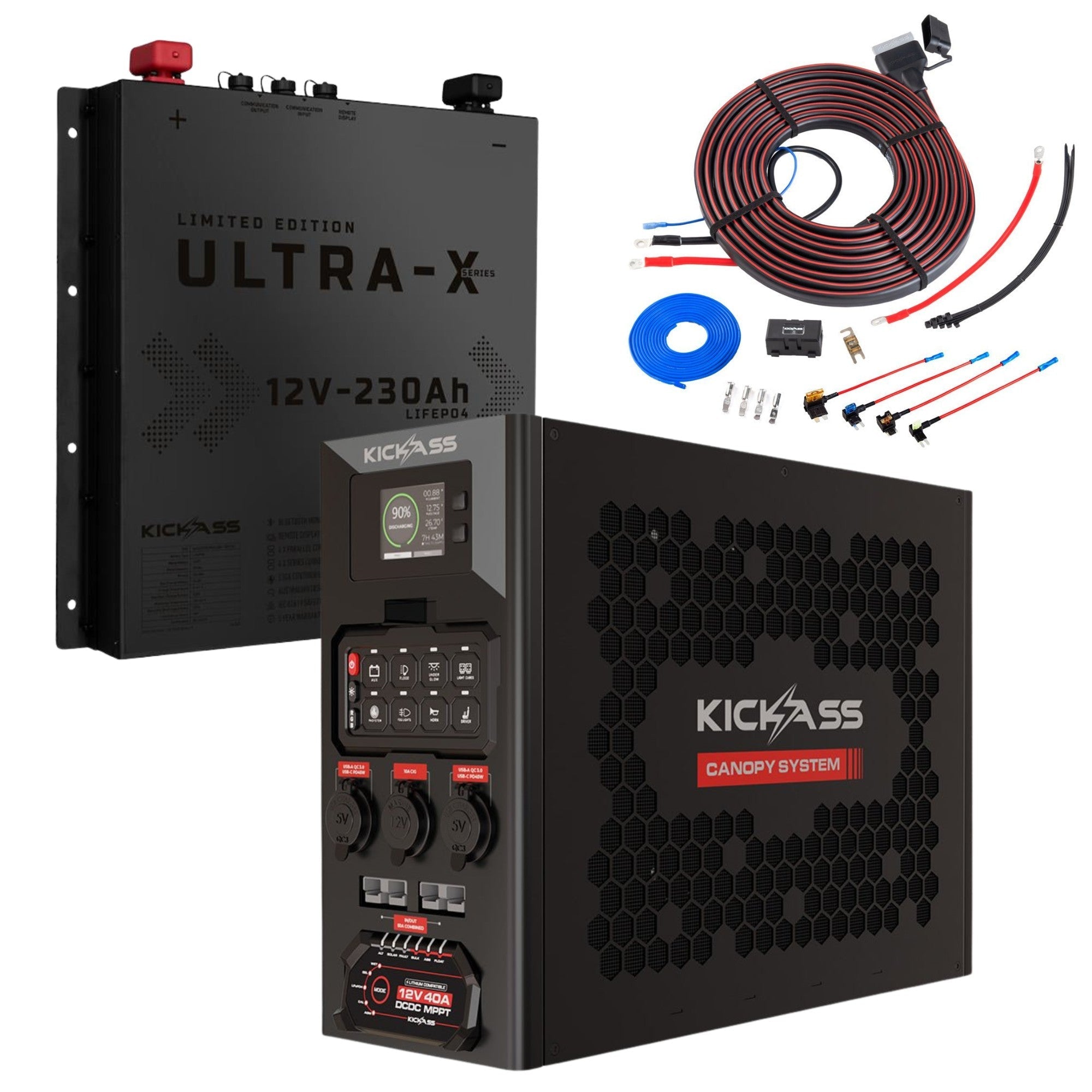

The KickAss 230Ah Lithium Complete Dual Battery Kit features the Ultra-X 230Ah Slimline BLACK EDITION Lithium Battery, a 12V Wireless Canopy Power System with integrated 40A DCDC Charger and Bluetooth, plus a 6.5m Heavy Duty Plug and Play DCDC Wiring Kit. It's a comprehensive, intelligent power solution for your 4WD or canopy, offering robust off-grid capability and easy installation.
Everything that is included in this KickAss kit!

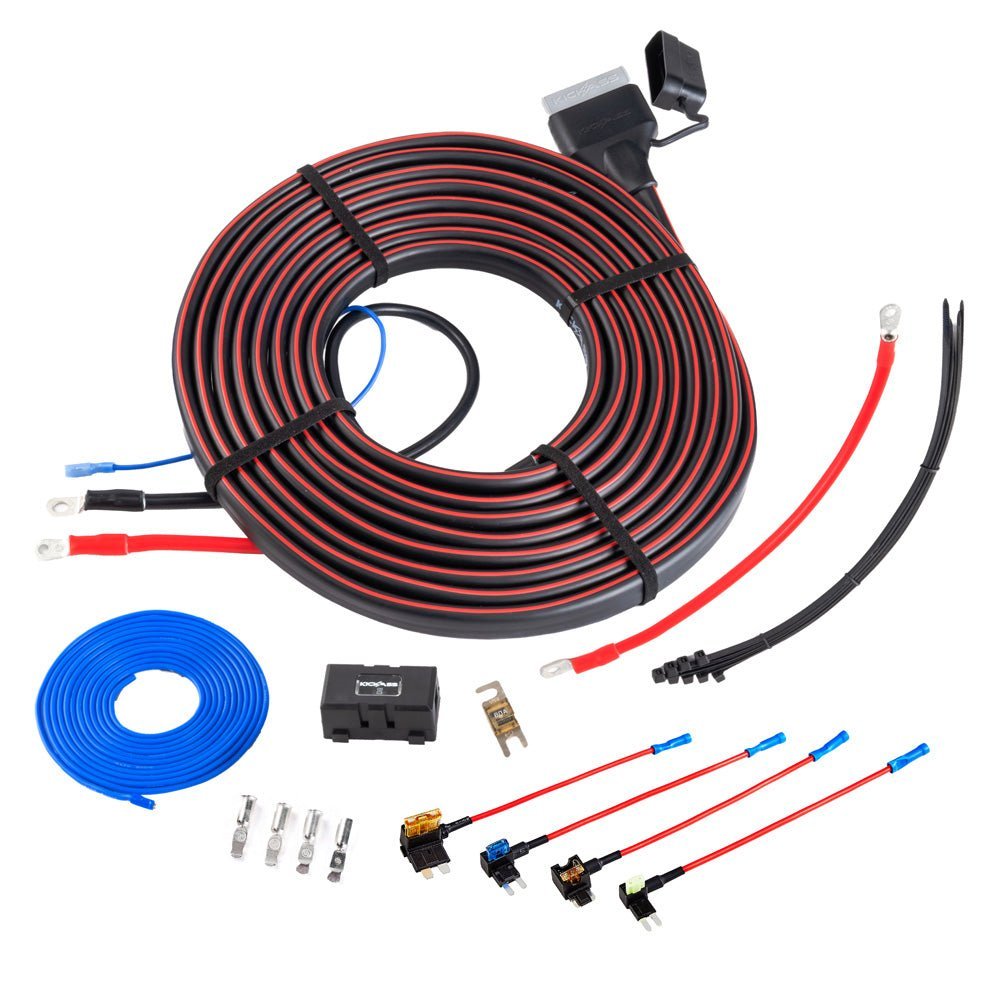

This 3-pin Anderson-style connector with built-in ignition wire makes connecting your 12V dual battery system easy. Perfect for wiring DC/DC chargers, battery boxes & auxiliary batteries.
This 3-pin Anderson-style connector with built-in ignition wire makes connecting your 12V dual battery system easy. Perfect for wiring DC/DC chargers, battery boxes & auxiliary batteries.

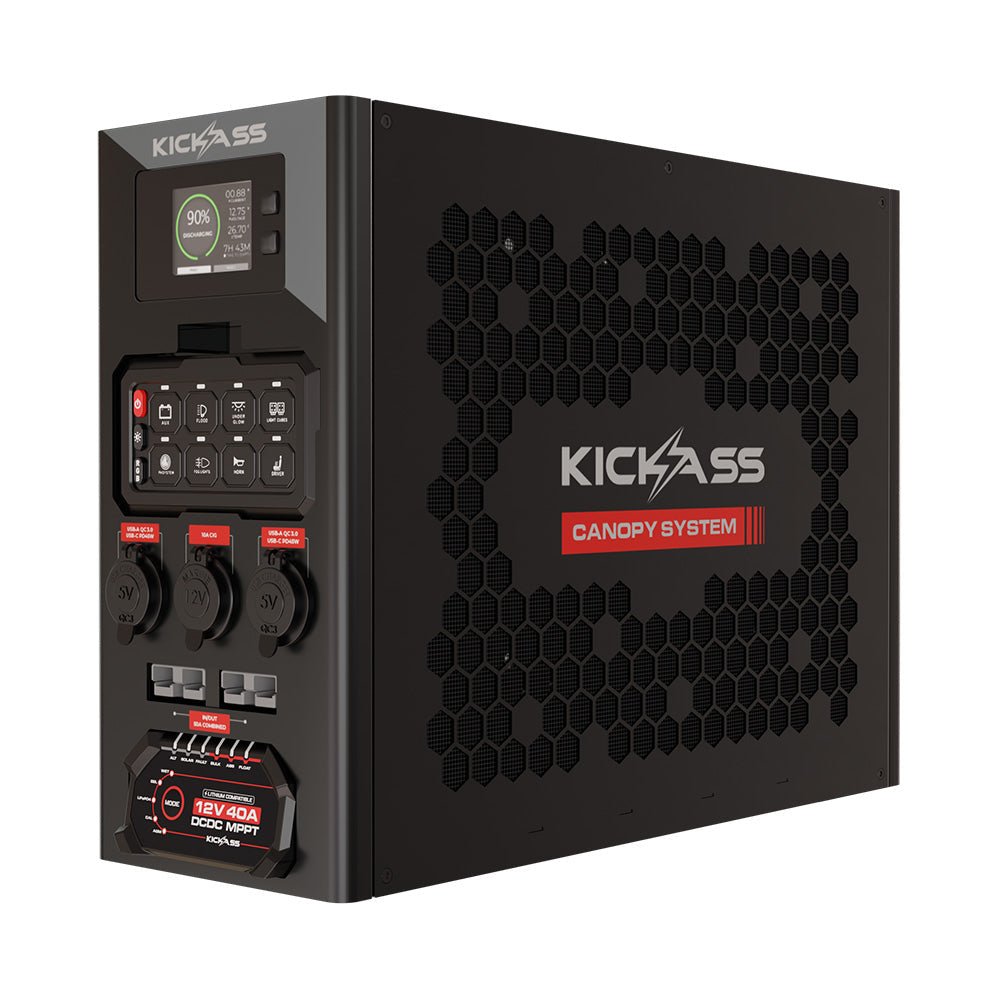

The new and improved KickAss Canopy System makes 12V setups even easier. It now features wireless digital switching and built-in Bluetooth, so you can monitor charging status and performance straight from your phone. With its MPPT solar controller, 40A DCDC charger, and fast-charging outputs, it’s specifically designed to be an off-grid solution for canopies.
The new and improved KickAss Canopy Power System takes the hassle out of building a reliable 12V setup. Instead of sourcing multiple components and wiring them together, this upgraded all-in-one unit brings everything into a single, streamlined package that’s easy to install and ideal for DIYers. It integrates your MPPT solar controller, 40A DCDC charger, USB fast-charging outputs, and a fully redesigned wireless 8-gang switching panel.
This latest version now features wireless digital switching, giving you the freedom to control your accessories from a detachable panel you can carry anywhere around your setup. When the switch panel’s battery runs low, simply return it to the magnetic charging dock… it snaps in securely and tops up automatically. The system also includes new Bluetooth monitoring of the DCDC charger, allowing you to connect via the supporting app to configure the device and view real-time charging data such as solar and alternator input current, battery charge current, charging stage, and system alerts.
Engineered for seamless pairing with KickAss Smart Series and KickAss Ultra-X LiFePO₄ batteries, the updated Canopy Power System delivers maximum compatibility, safety, and efficiency. Select the KickAss lithium battery that suits your build and enjoy a complete, modernised off-grid power solution.
Note: The display and Bluetooth app monitoring features are compatible only with KickAss Smart Series and KickAss Ultra-X Lithium Batteries.

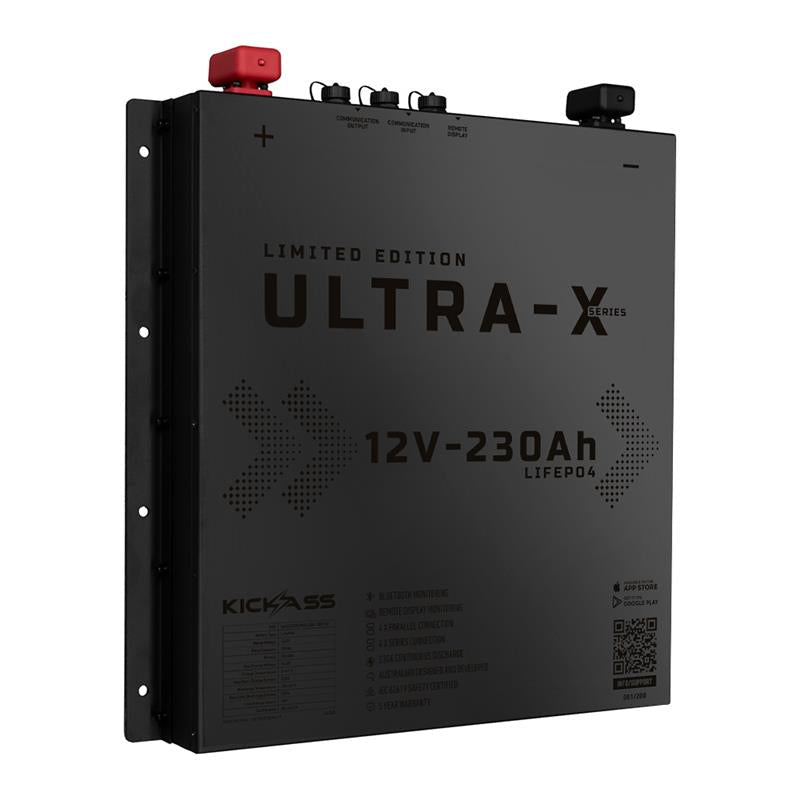

The Limited Edition Black Ultra-X Slim 12V 230Ah Lithium Battery combines rugged performance with premium style. Featuring a sleek matte black finish, 230Ah of usable capacity, Bluetooth monitoring, advanced BMS protection, and support for parallel or series setups, it’s built for serious off-grid power. Connect up to four for over 900Ah of usable energy.
KickAss Features:
Limited Edition Matte Black Design
This exclusive Black Edition takes our proven Ultra-X Slim battery and gives it a bold, premium look. Built for performance and style, it’s finished in a sleek matte black coating that stands out in any setup — whether it’s in a high-end canopy build or a custom 12V fit-out.
Ultra Compact, Slimline Power
Measuring only 500mm x 510mm x 70mm, the Ultra-X Slim Black Edition delivers massive power in a compact form. Perfect for tight installs behind seats, under false floors, or in canopies, it’s the ultimate space-saving powerhouse for serious off-grid adventurers.
Smart Bluetooth App Monitoring
Get real-time insight into your battery’s performance using the Bluetooth app. Track your State of Charge, voltage, current, temperature, and system alerts straight from your phone — giving you complete control over your setup, wherever you are.
Advanced BMS for Complete Protection
Equipped with a high-performance Battery Management System (BMS), this battery safeguards against overcharge, over-discharge, short circuits, and overheating. The BMS ensures stable, efficient, and reliable power delivery no matter how tough the conditions.
Expand Your Power — Parallel or Series Ready
Need more power? Connect multiple Ultra-X Black Edition batteries in parallel or series to create a massive battery bank — up to 900Ah of usable capacity. Ideal for powering caravans, canopies, 4WDs, and off-grid systems for extended adventures.
Monitor Remotely with Ease
Forget complex wiring — simply connect your batteries with an RJ45 cable for seamless integration with the KickAss Remote Display Unit (RDU). You can also monitor everything via the Bluetooth app, no external shunt required.
Engineered for Endurance
Delivering over 4000+ cycles at 80% Depth of Discharge (DoD) and a 0.5C rate, the Ultra-X Slim Black Edition is built to last. With 230A continuous charge/discharge and a 460A pulse capacity, it powers even the most demanding 12V setups.
Durable Metal Case with Integrated Mounting Points
The heavy-duty metal casing provides maximum protection while simplifying installation. Integrated mounting points make for a secure, professional finish — and the matte black exterior adds a touch of rugged sophistication.
| Main Cable Length | 6.5M - 3 Core |
| Ignition Cable Extension | 3M - 14AWG Single Core |
| Cable Size - 3 Core | 2x 6AWG (13.5mm²), 1x 14AWG (1.8mm²) |
| Insulation Material | Inner - Silicon / Outer - PVC |
| Rated Temperature | Max. 105°C |
| Ring Terminals | M8 - Battery / M6 - Fuse |
| Fuse | 80A MIDI Fuse with Holder |
| Connections | 3 Pin Anderson Style / Bullet |
| Voltage | 12.8V |
| Capacity | 230Ah |
| Cell Type | Prismatic |
| Max Continuous Discharge | 230A |
| Max Continuous Charge | 230A |
| Peak Discharge | 430A (30s) |
| Max Charge Temp | 60°C |
| Min Charge Temp | 0°C |
| Max Discharge Temp | 65°C |
| Min Discharge Temp | -20°C |
| Cycle Life | 4000+ cycles | 80% DoD | 1C Charge / 0.5C Discharge |
| Bluetooth | Yes |
| Remote Display | Optional |
| Parallel / Series | 4 | 4 |
| Parallel / Series Remote Monitoring | Bluetooth | Remote Display |
| Dimensions (Battery) | 450 x 70 x 500 mm |
| Dimensions (with Terminals and Housing) | 510 x 70 x 540mm |
| Weight | 26.9 kg |
| Certifications | IEC62619 |
| Warranty | 5 years |
| Cig Socket Outputs | 1 x 10A |
| USB Outputs | 2 x USB-C 45W | 2 x QC3.0 |
| Anderson Input / Outputs | 5 |
| Anderson Inputs | 3 Pin Alternator | Unregulated Solar |
| Digitally Switched Outputs | 8 |
| Battery Connection | 175A Anderson |
| Operating Temperature | -20°C to +50°C |
| Product Dimensions | 440 x 160 x 320mm (L x W x H) |
| Product Weight | 9.35kg |
| DCDC-MPPT | |
| Charger Output Voltage Range | 3–16V DC |
| Alternator Input Voltage Range | 9–32V DC |
| Solar Input Voltage Range | 9–32V DC |
| Maximum Input Current | 56A |
| Maximum Continuous Charging Current | 40A |
| Efficiency | Solar - 99% Max | Alternator - 92% Max |
| No Load Current Draw | 10 mA |
| Charge Profile | |
| Absorption Voltage | GEL - 14.1V | WET - 14.4V | AGM - 14.7V | CAL - 15.3V | LiFePO4 - 14.5V |
| Float Voltage | GEL - 13.5V | WET - 13.4V | AGM - 13.4V | CAL - 13.6V | LiFePO4 - NA |
| Minimum Auxiliary Battery Voltage | GEL/WET/AGM/CAL - 9V | LiFePO4 - 0V |
| Alternator Charge Conditions | |
| 12V Alternator Input (Ignition OFF) | CUT-IN 13.2V | CUT-OUT 12.6V |
| 12V Alternator Input (Ignition ON) | CUT-IN 12.2V | CUT-OUT 10.5V |
| 24V Alternator Input (Ignition OFF) | CUT-IN 26.4V | CUT-OUT 25.2V |
| 24V Alternator Input (Ignition ON) | CUT-IN 24.4V | CUT-OUT 21V |
| KickAss Heavy Duty Plug and Play DCDC Wiring Kit - 6.5m | |
| KickAss Ultra-X 230Ah 12V Deep Cycle Lithium Battery - Slimline BLACK EDITION | |
| KickAss 12V Wireless Canopy Power System with 40A DCDC Charger + Integrated Bluetooth |
Get ready for serious off-grid adventures with the KickAss 230Ah Lithium Complete Dual Battery Kit. This premium package combines our top-tier Ultra-X 230Ah Slimline BLACK EDITION Lithium Battery with the innovative 12V Wireless Canopy Power System, featuring an integrated 40A DCDC Charger and Bluetooth connectivity. We've also included the essential 6.5m Heavy Duty Plug and Play DCDC Wiring Kit, making installation a breeze.
This kit provides a robust, reliable, and intelligent power solution for your 4WD, camper, or canopy. Monitor your power usage and battery status via Bluetooth, enjoy seamless charging on the go, and power all your accessories with confidence. It's the ultimate setup for extended trips and demanding conditions.
